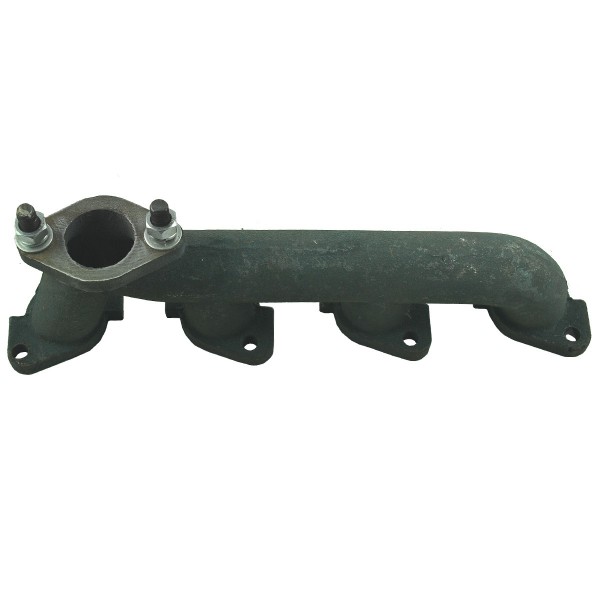

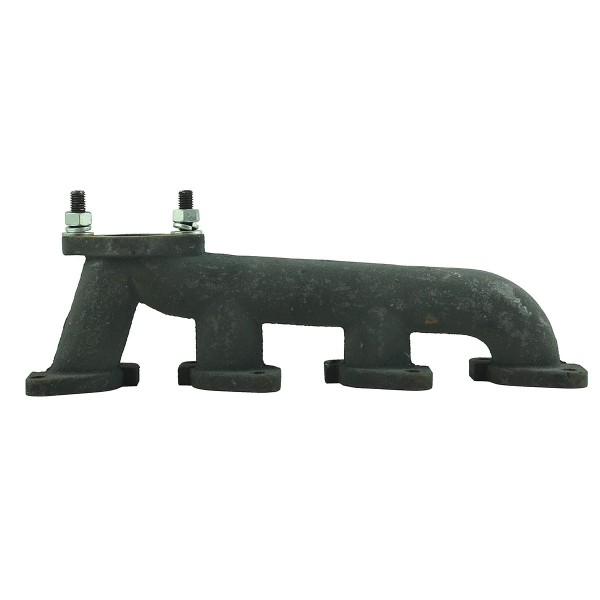

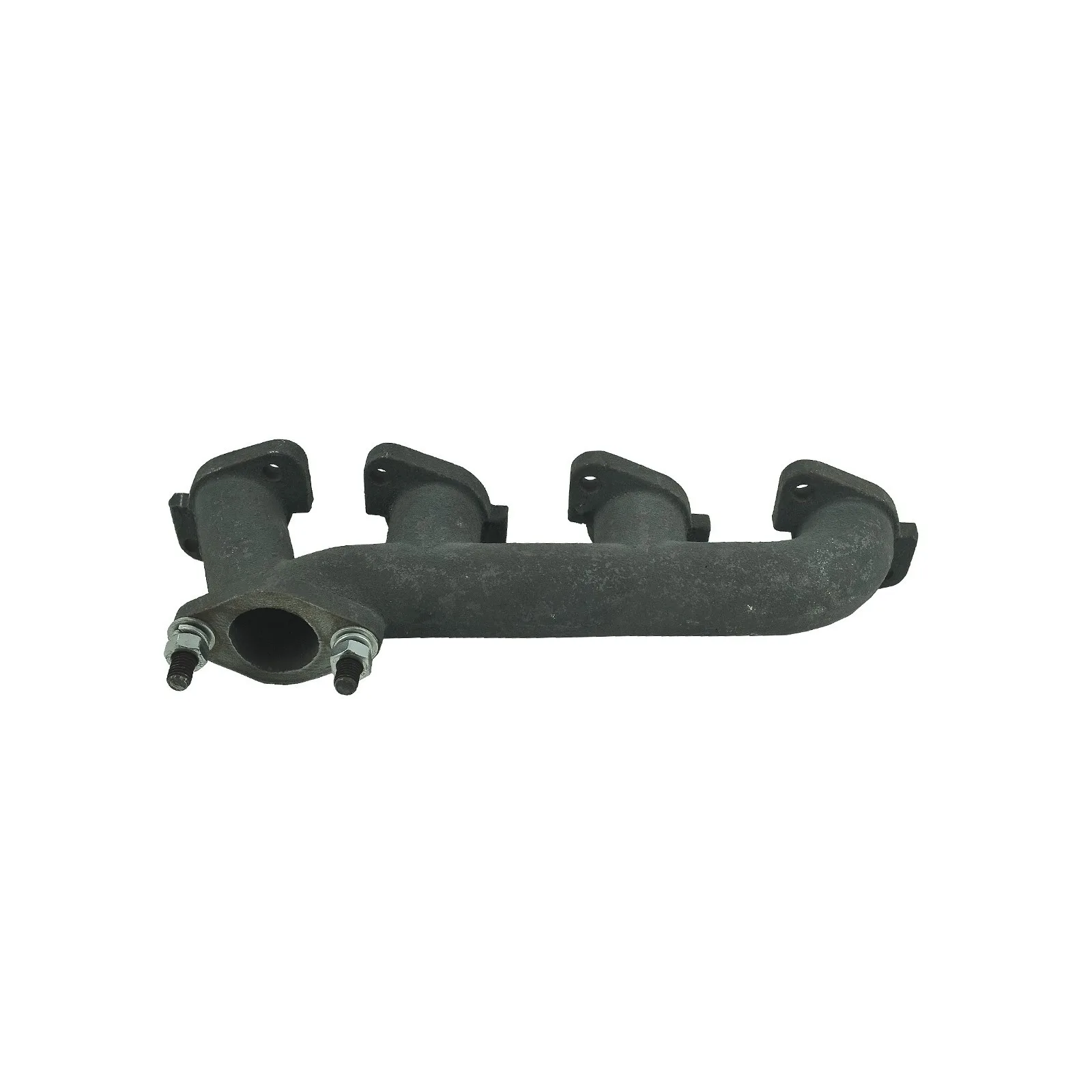

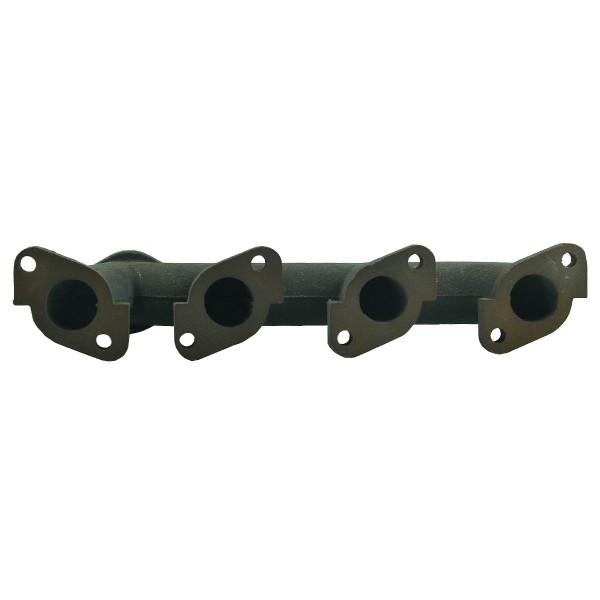

Exhaust manifold / Kubota L285 / L2600 / L3001 / Kubota V1500 / 15401-12310

Exhaust manifold (muffler elbow 5-02-106-02 ) with a total length of 350 mm and a height of 95 mm for Kubota tractors of the Kubota series, Kubota L285, Kubota L295, Kubota L305, Kubota L2600, Kubota L3001 with Kubota V1500 engines and others.

The exhaust manifold is the element responsible for the discharge of exhaust gases from the engine cylinders to the exhaust pipe. The exhaust manifold has as many pipes as the engine has cylinders and is mounted directly on the engine block (gasket required). The exhaust manifold is made of a high-quality alloy of metals resistant to extremely high temperatures.

Dimensions :

• total length: 350 mm,
• height: 95 mm,
• diameter of drainage holes: 4 x 29 / 34 mm,
• Spacing of drainage holes: 96 mm (measured from center to center of holes).
• diameter of mounting screw holes: 9.30 mm,
• spacing of mounting screw holes: 62 mm,
• comparison numbers: 5-02-102-03 , 15401-12314, 15401-12316,
• part numbers: 15401-12310.

Tractor models :

Kubota :

• Kubota L285,
• Kubota L295,
• Kubota L305,
• Kubota L2600,
• Kubota L3001.

Engine models :

Kubota :

• Kubota V1500.

The first signs of exhaust manifold damage are a decrease in engine power and an increase in noise during engine operation. Deformation or cracks in the exhaust manifold are the result of high temperatures, which cause leaks in the exhaust system.

Warehouse :
K18

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
