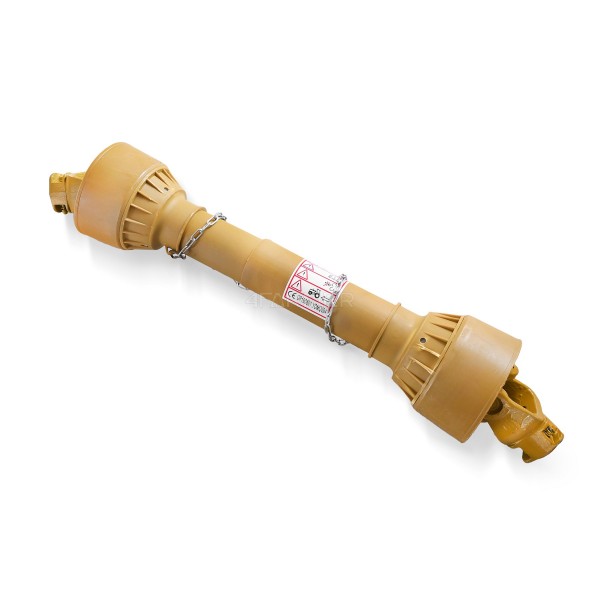

PTO with breakaway wedge (LF)

The power take-off shaft with a breakable wedge is a safety mechanism used in PTO shafts (Power Take-off Shafts) and other drive devices. Its main function is to protect against overloads and mechanical damage in the event of a sudden load or blocking of the working tool.

How does a PTO shaft with a breakaway wedge work?

• Construction : The PTO shaft with a breakable wedge consists of two parts - a threaded head and a special metal or plastic wedge. This key is designed so that the connection between the shaft and the working tool can break if excessive load occurs.
• Safety feature : When the PTO shaft experiences a sudden load, such as when the work tool gets stuck or encounters an obstruction, the breakaway wedge breaks, breaking the connection between the drive shaft and the tool. Thanks to this, torque and force are not transmitted further, which protects against damage to the shaft, tool and other drive elements.
• Wedge Replacement : Once a breakaway wedge breaks, replacement is required. This is a relatively easy procedure that requires unscrewing the damaged wedge and installing a new one.
• Operator safety : The breakaway wedge mechanism is also important for operator safety. It protects against the risk of damage to the working tool and tractor and minimizes the risk of injuries resulting from uncontrolled stopping of the tool.

What is a PTO shaft?

The PTO shaft, or Power Take-Off Shaft, is a mechanical device used to transfer power from a tractor or other drive vehicle to various agricultural and industrial machines. The PTO shaft is an indispensable element of many field operations, enabling the effective use of the power of the driving vehicle's engine to power additional equipment.

Features and uses:

The PTO shaft is most often used in agriculture, where it is used to drive machines such as:

• Rotary mowers
• Fertilizer spreaders
• Shredders
• Seeders

Thanks to the PTO shaft, these machines can operate without the need for their own engine, which increases efficiency and saves costs.

Construction and operation:

The PTO shaft consists of several basic elements:

• Drive Shaft: The rotating shaft that transmits power from the tractor engine to the machine.
• Clutch: A mechanism that enables the drive to be engaged and disengaged, allowing the machine to be started and stopped safely.
• Safety Guards: Protective housings that prevent contact with rotating parts, minimizing the risk of accidents.

Power is transmitted by connecting the tractor's drive shaft to the machine's input shaft using joints and connectors. The rotating drive shaft sets the input shaft of the machine in motion, which allows it to operate.

Security:

When using the PTO shaft, it is very important to follow safety rules. Rotating parts of the shaft can pose a serious hazard, so always use protective covers and never touch the shaft while operating. Before starting work, it is also worth checking that all connections are properly attached and that the equipment operates safely.
