Product description

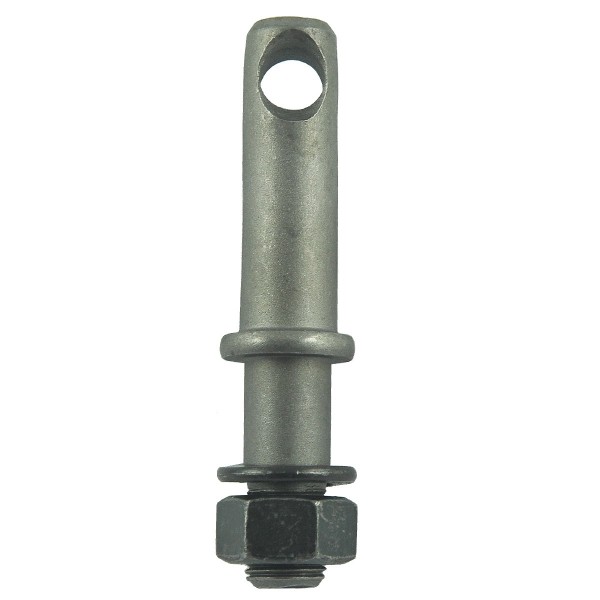

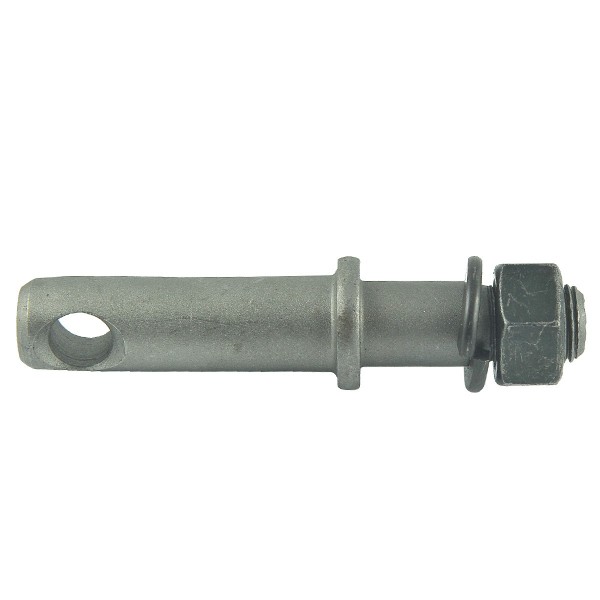

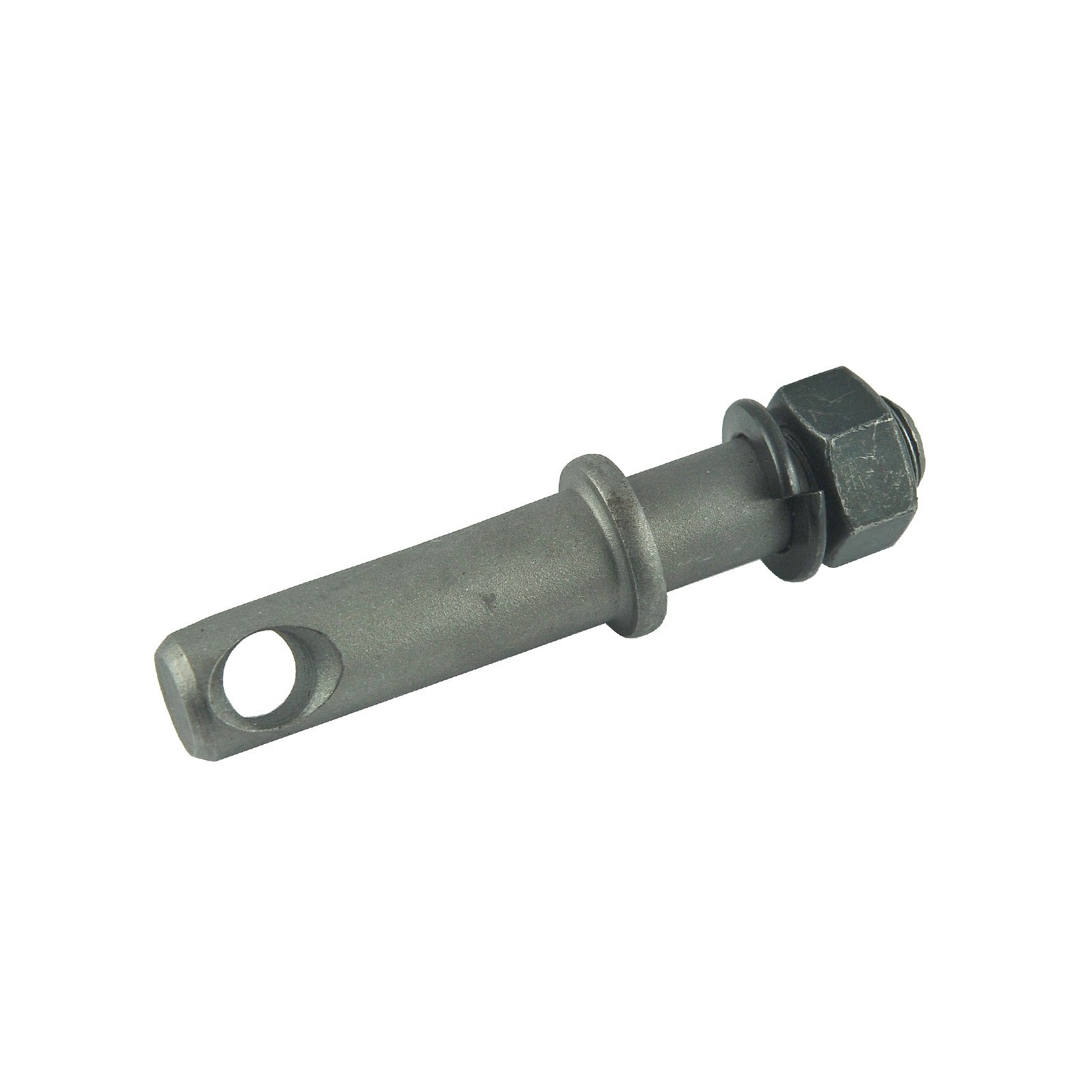

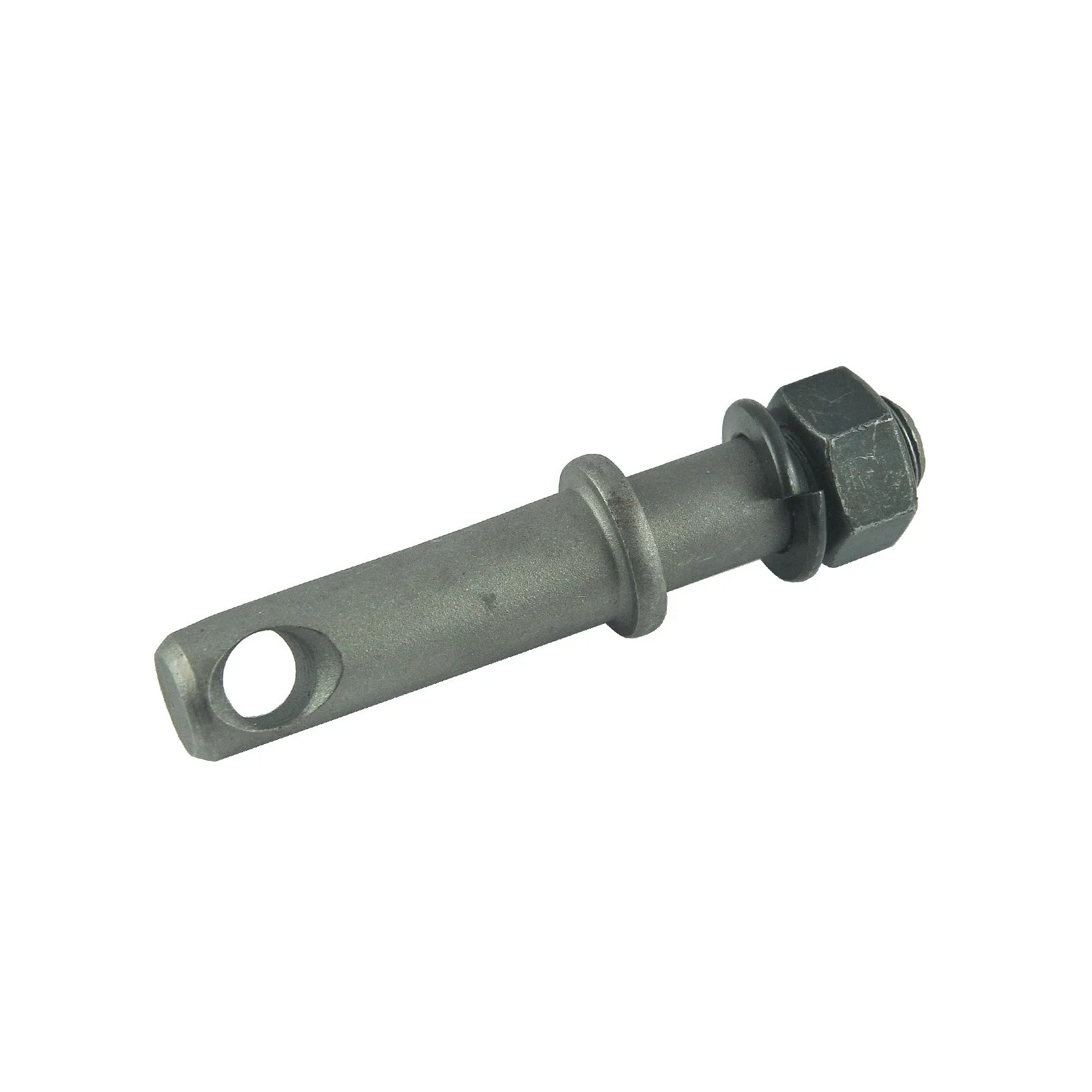

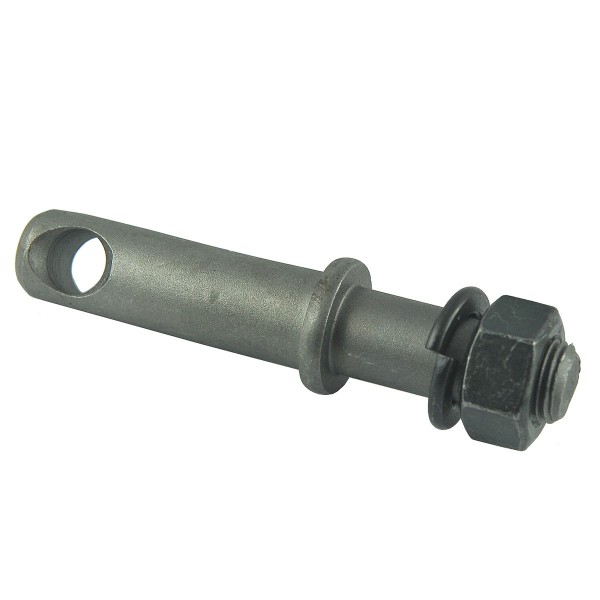

M16 pin of the upper arms of the 3-point linkage (locking pin 5-15-220-01, 34150-37640, S.23 , arm 5-02-113-05 , TC222-34610 (L2802/L3408), 5-02-113-10 (L2600), 5-02-113-07 , 38180-37610 (L1802/L2201, arm hanger 5-07-108-06 ) with a total length of 110 mm and a diameter of 19 mm for Kubota tractors of the Kubota L1802, Kubota L2201, Kubota L2600, Kubota L2800 series. Kubota L2808, Kubota L3008, Kubota L3400, Kubota L3408, Kubota L3608, Kubota L4508 and others.
A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common: headless, nose with a cylindrical head or with a threaded pin.
Dimensions :
- total length: 110 mm,
- working length: 45 mm,
- diameter: 19 mm,
- mounting width: 24 mm,
- thread: M16 mm,
- original part numbers: 30442-37690,
- reference numbers: TC432-37690,
- part numbers: 5-25-102-21.
Tractor models :
Kubota :
- Kubota L1802,
- Kubota L2201,
- Kubota L2600,
- Kubota L2800,
- Kubota L2808,
- Kubota L3008,
- Kubota L3400,
- Kubota L3408,
- Kubota L3608,
- Kubota L4508.
Warehouse :
M01:A16:S04
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
