To order
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota L2808
Kubota L3408
Kubota L3608
Kubota L4508
Overall length (mm)
280
Diameter of Cutter(s) (mm)
36.30 / 39.60 (30T)
39.50 / 44.50 (16T)
Original Part Number (OEM)
TC222- 37430

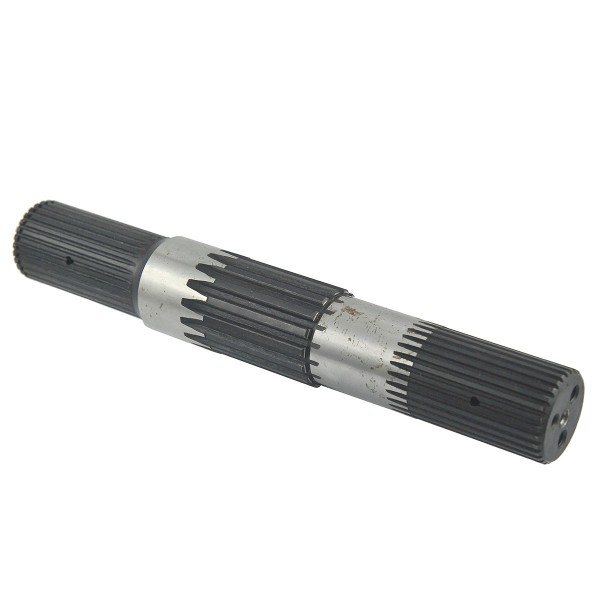

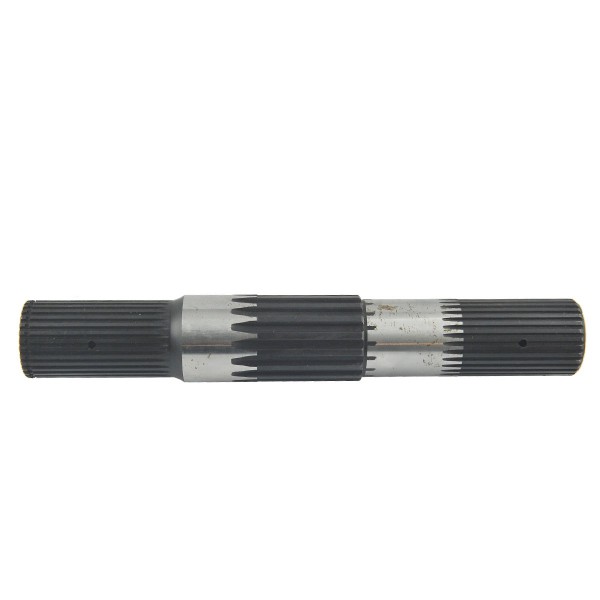

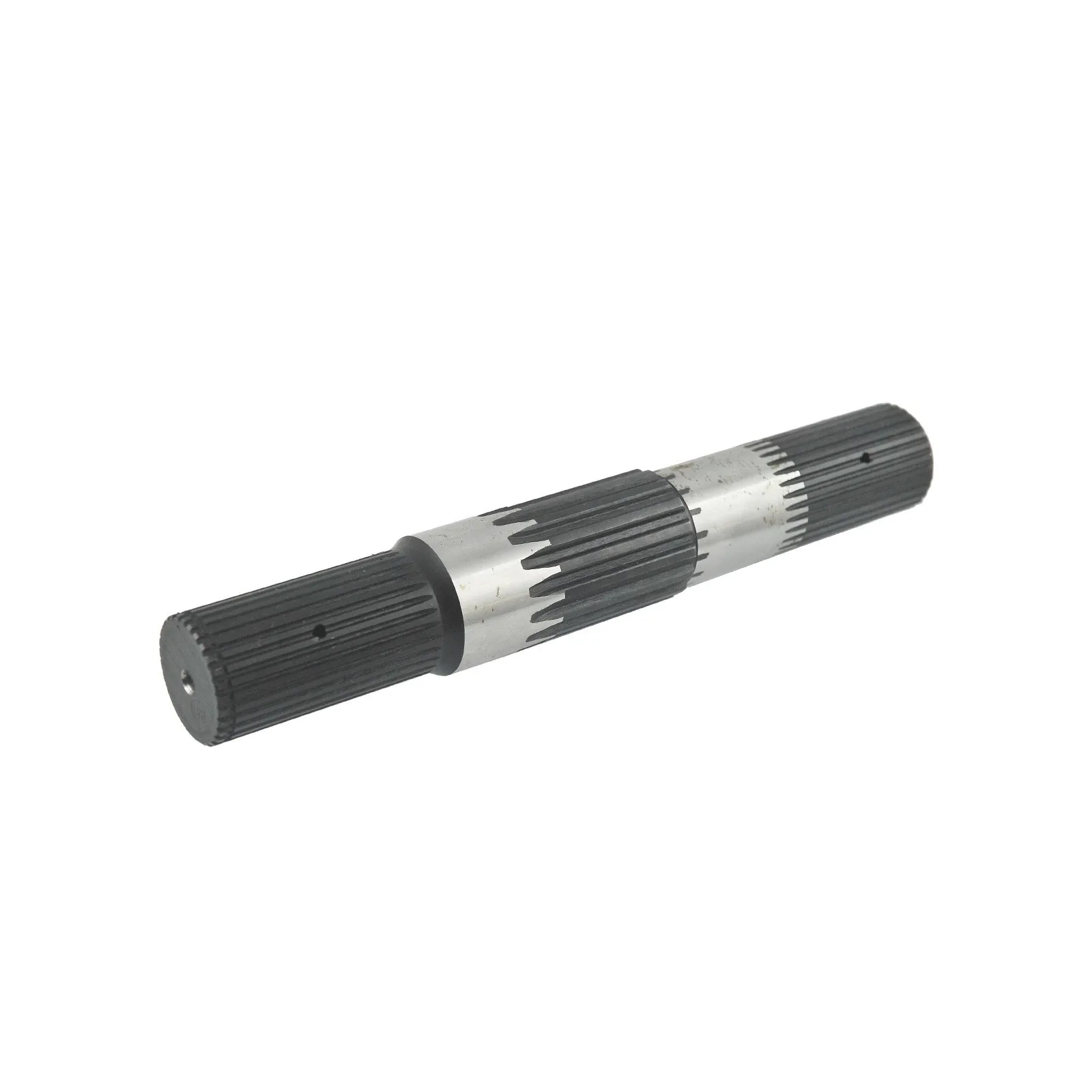

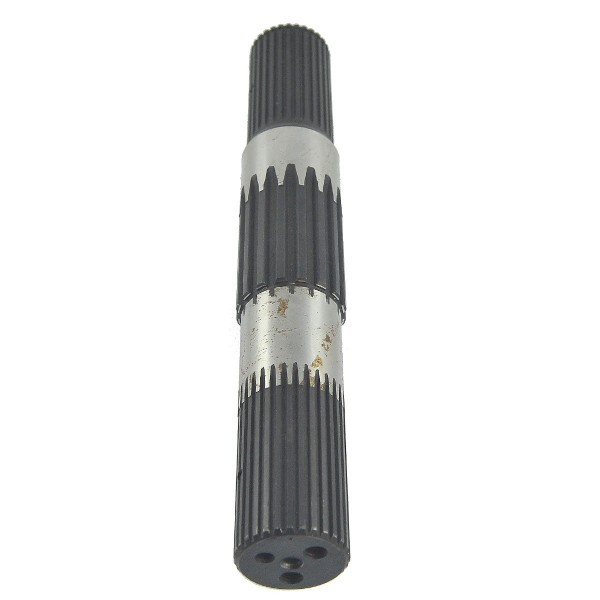

Three-point lift shaft / 30T/16T/30T / 280 mm / Kubota L2808/L3408/L3608/L4508 / TC222-37430 / 5-18-112-12

5-18-112-12
zł319.00
Tax included PL 23% Dostępny na zamówienie

259,35 netto

  • To order

Do you have any questions?

Three-point lift shaft / 30T/16T/30T / 280 mm / Kubota L2808/L3408/L3608/L4508 / TC222-37430 / 5-18-112-12

Shaft of the three-point linkage hydraulic lift 30T / 16T / 30T, upper three-point linkage arms (arm 5-02-113-05 , TC222-34610, hydraulic piston pusher 5-25-117-04 , 31351-37320, o-ring 5- 27-100-20 , 04816-50450, second O-ring 5-27-100-20 , 04816-50450, spare ring 5-14-105-21 , TC402-37480) with a total length of 280 mm for Kubota series tractors Kubota L2808, Kubota L3408, Kubota L3608, Kubota L4508 and others.

Dimensions :

  • total length: 280 mm,
  • cutter diameter (30T): 36.50 mm (measured between the cutter teeth), 39.50 mm measured together with the cutter),
  • cutter diameter (16T): 39.50 mm (measured between the cutter teeth), 44.50 mm measured together with the cutter),
  • working length of cutters: 60 / 68 / 52 mm,
  • number of teeth: 30T / 16T / 30T,
  • original part numbers: TC222- 37430,
  • part numbers: 5-18-112-12.

Tractor models :

Kubota :

  • Kubota L2808,
  • Kubota L3408,
  • Kubota L3608,
  • Kubota L4508.

Warehouse :
M01:A72:S03

Specification

Magazyn: M01:A72:S03
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota L2808
Kubota L3408
Kubota L3608
Kubota L4508
Overall length (mm)
280
Diameter of Cutter(s) (mm)
36.30 / 39.60 (30T)
39.50 / 44.50 (16T)
Original Part Number (OEM)
TC222- 37430
Part number
5-18-112-12
