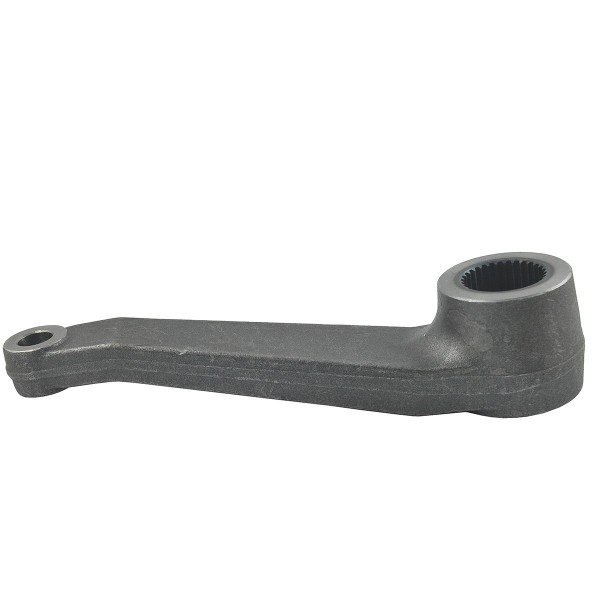

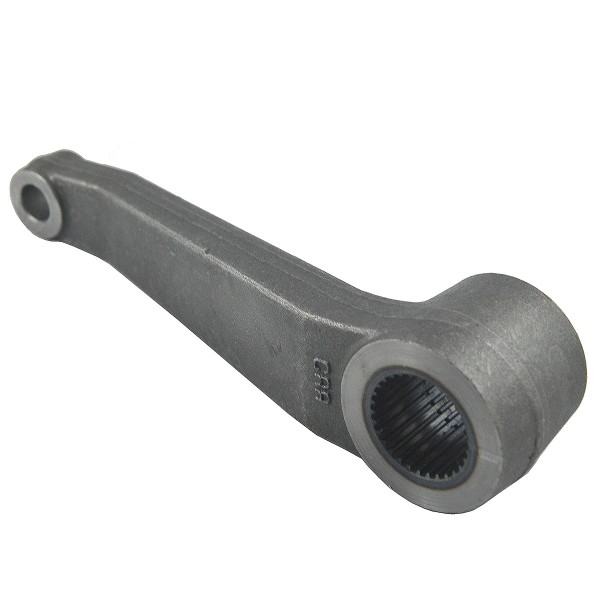

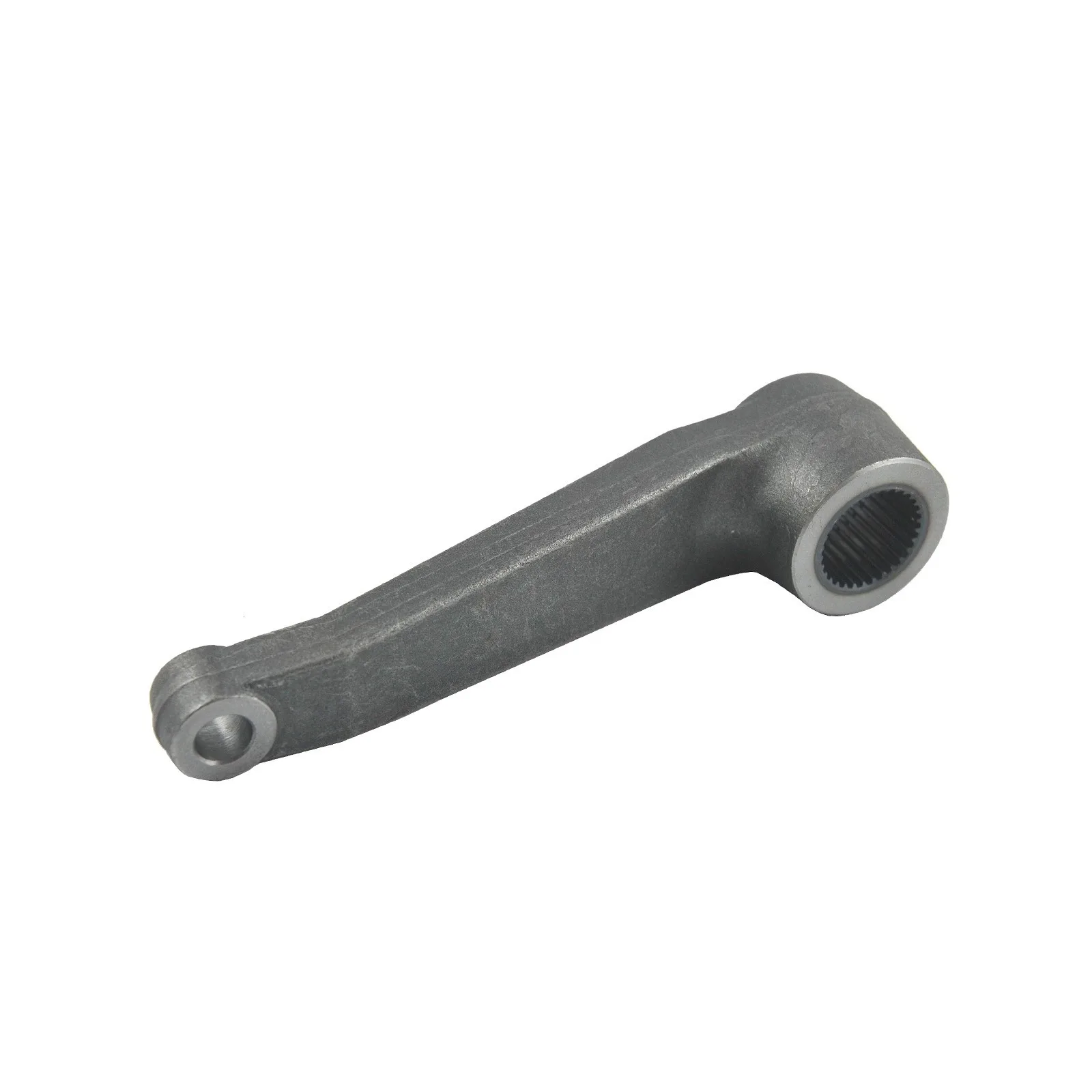

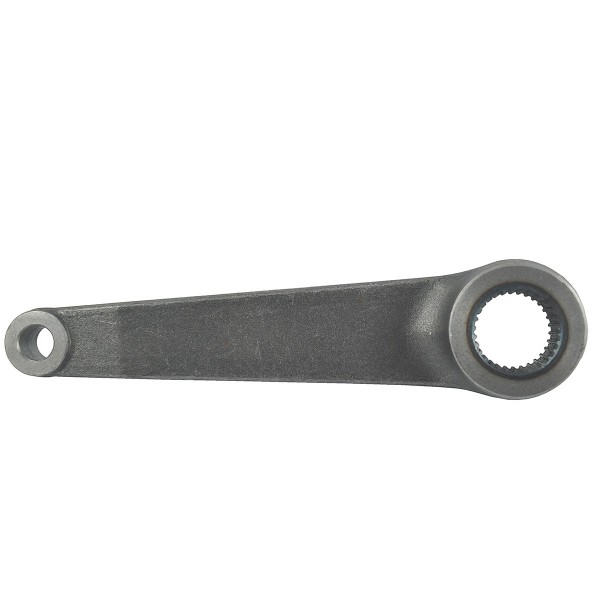

3-point linkage arm Cat I / 30T / 235 mm / Kubota L2808/L3408 / TC222-34610 / 5-02-113-05

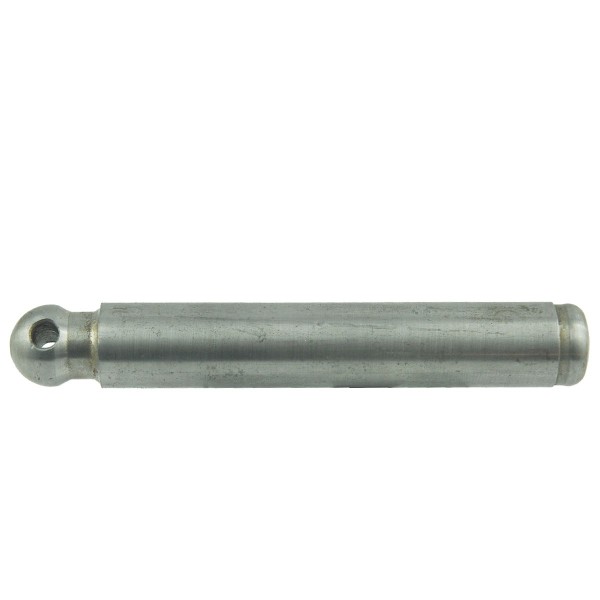

30T lifting arm, upper arm of the three-point rear linkage suspension system (mounting pin 5-25-102-21 , 30442-37690, middle arm5-01-107-05 , 31321-37445, hydraulic shaft 5-18-112-12 , TC222-37430, hydraulic piston pusher 5-25-117-04 , 31351-37320) with a total length of 305 mm , for Kubota tractors of the Kubota L2808, Kubota L3408 series and others.

The TUZ lift arm Category I, 235 mm long, is a high-quality spare part designed for Kubota tractors, including the L2808 and L3408 models. The product is made of durable materials, ensuring the reliability and long-term operation of the hydraulic lift system. Compatibility with the TUZ category I makes the arm suitable for a wide range of agricultural machinery, supporting their efficiency and precision of work. Ideal for repairing or modernizing the lift system.

Dimensions :

• total length: 285 mm,
• working length: 235 mm,
• number of teeth: 30T,
• inner diameter: 17 mm,
• inner diameter (30T): 39.50 mm (measured between cutter teeth), 37 mm (measured together with cutter),
• original part numbers: TC222-34610,
• part numbers: 5-02-113-05.

Tractor models :

Kubota :

• Kubota L2808,
• Kubota L3408.

Warehouse :
M01:F72:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
