Crown wheel / 34T / Kubota L1-18 / L1-20 / L1-22 / L1-24 / L1-26 / L1-28 / L1-R18 / L1-R20 / L1-R22 / L1-R24 / L1-R26

Product code: 5-19-127-22
Brand 4FARMER
Country of production 4FARMER
View other model
zł1,500.00
Includes VAT 23%

Lowest price from 30 days: zł1,500.00

Product description

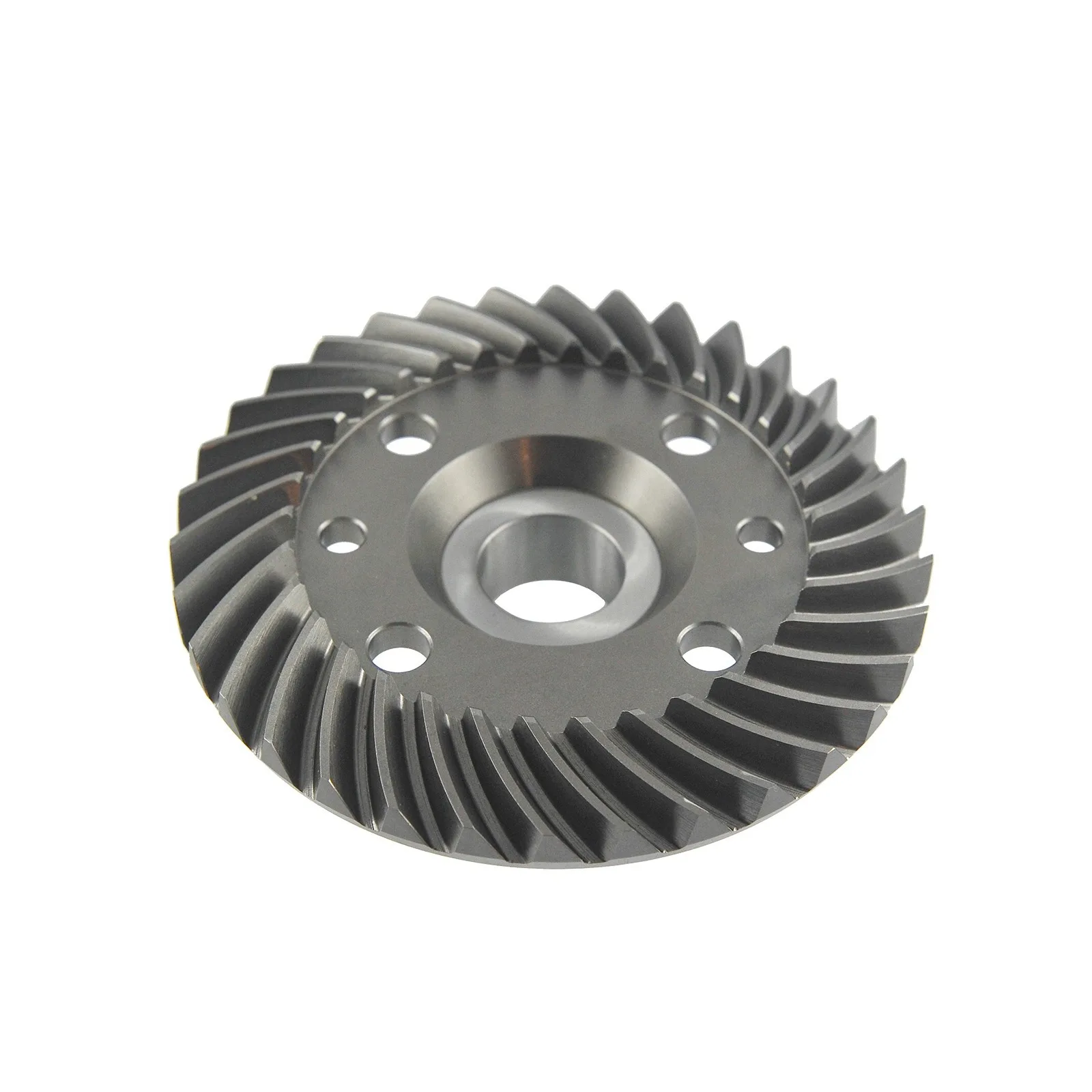

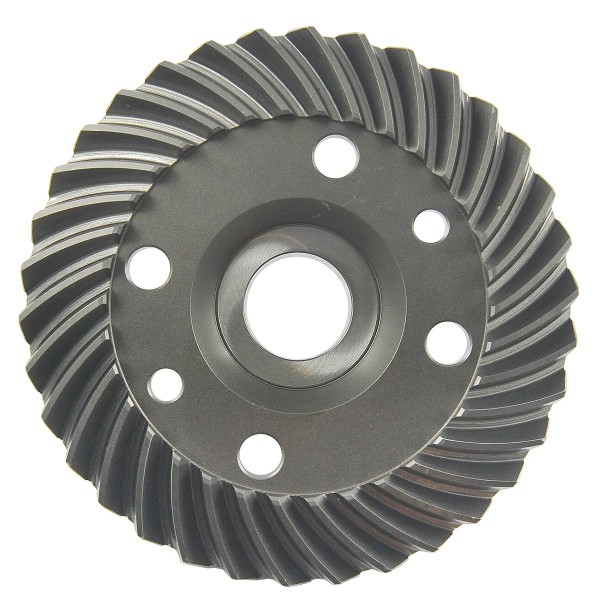

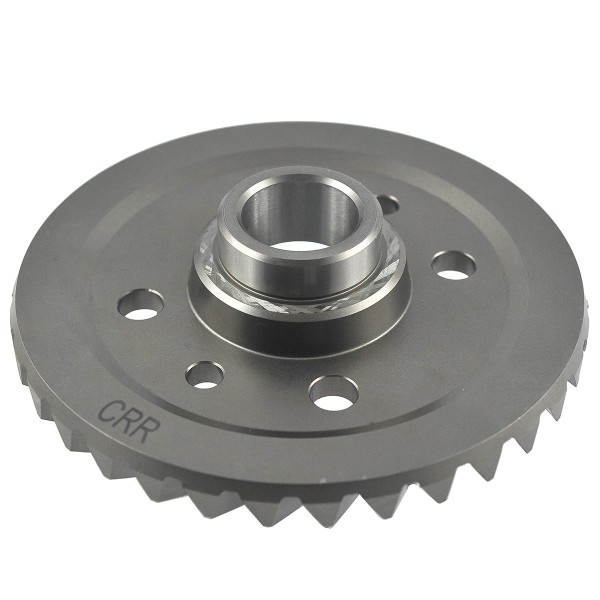

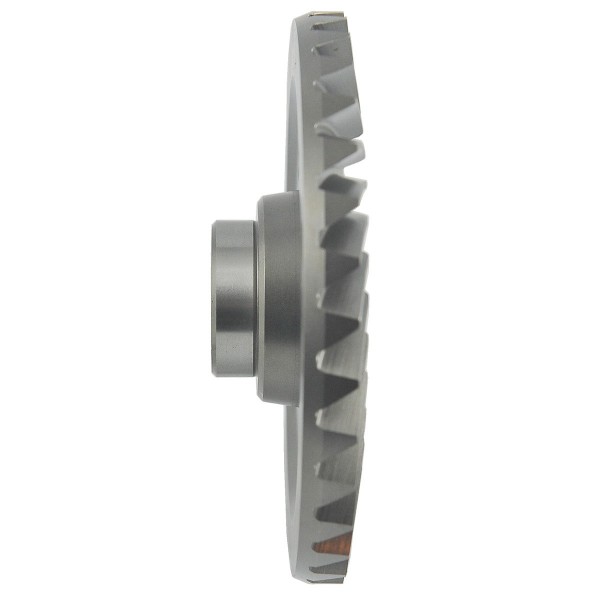

34T crown wheel (input shaft 5-18-117-22 , 5-18-117-21 , 31353-43212) of the front axle drive for Kubota tractors of the Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1-28, Kubota L1-R18, Kubota L1-R20, Kubota L1-R22, Kubota L1-R24, Kubota L1-R26, Kubota L1-R28 series and others.

The crown wheel with the pinion is a part of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transferring the drive , the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

Dimensions :

  • outer diameter: 161.50 mm,
  • inner diameter: 32 mm,
  • height: 40 mm,
  • mounting screw hole spacing: 90 mm (measured diagonally), 63 mm (measured from each other),
  • number of teeth: 34T,
  • original part numbers: 31353-99120, 31353- 43393,
  • part numbers: 5-19-127-22.

Tractor models :

Kubota :

  • Kubota L1-18,
  • Kubota L1-20,
  • Kubota L1-22,
  • Kubota L1-24,
  • Kubota L1-26,
  • Kubota L1-28,
  • Kubota L1-R18,
  • Kubota L1-R20,
  • Kubota L1-R22,
  • Kubota L1-R24,
  • Kubota L1-R26,
  • Kubota L1-R28.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.

Warehouse :
M01:F71:S03

Specifications

Condition
New
Bolt hole spacing (mm)
63 / 90
