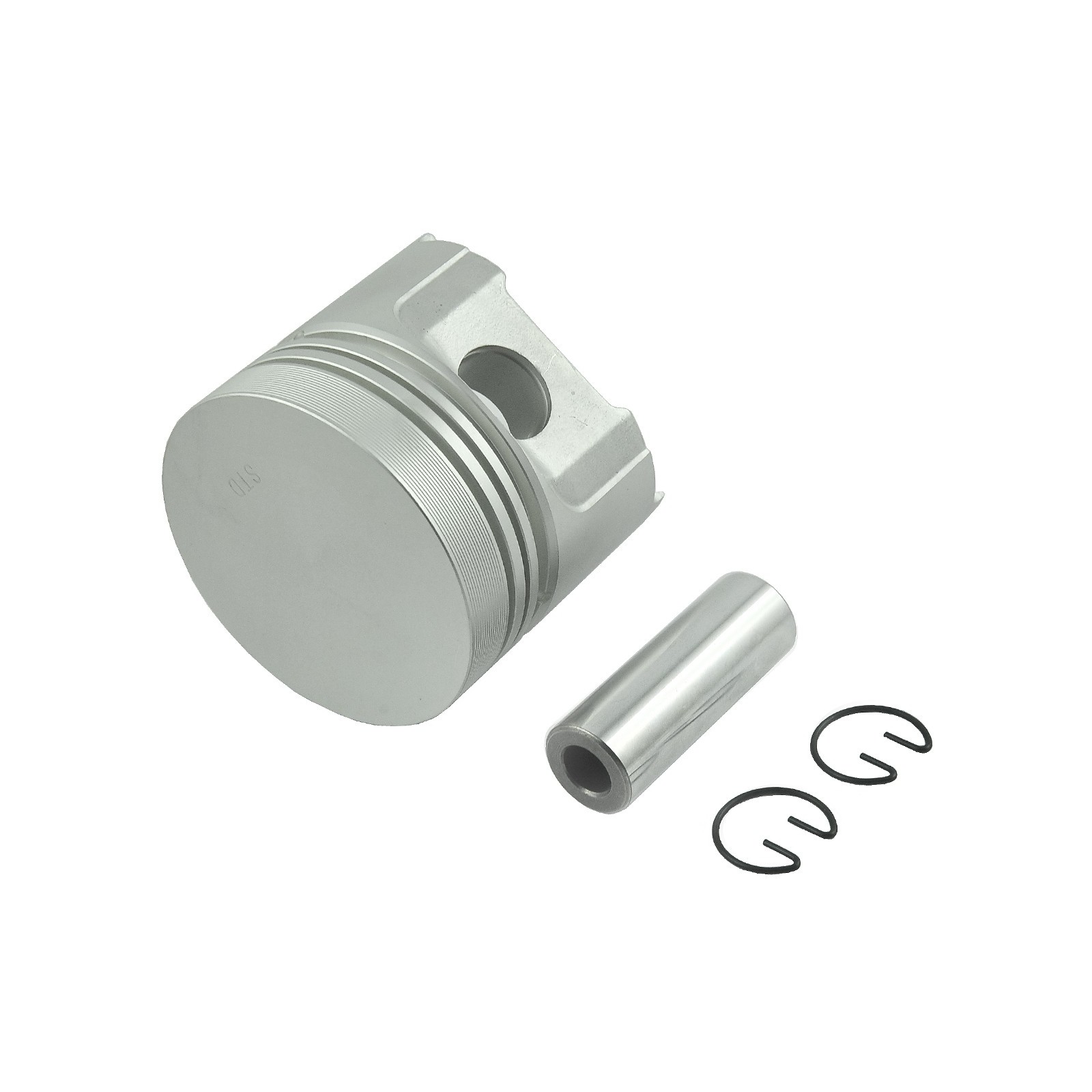

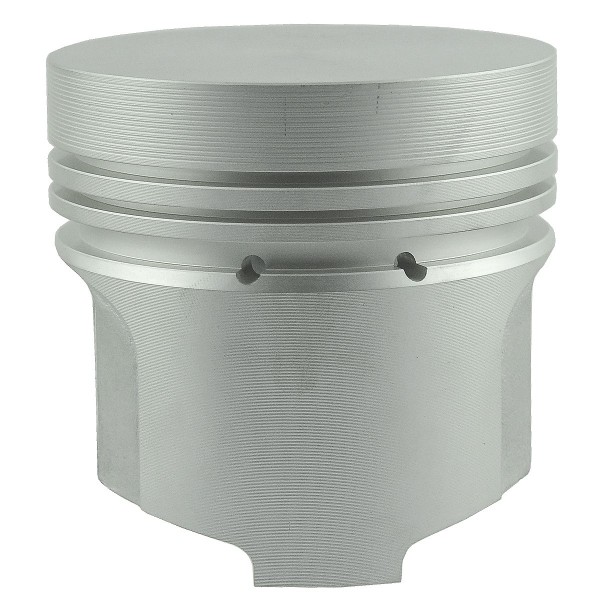

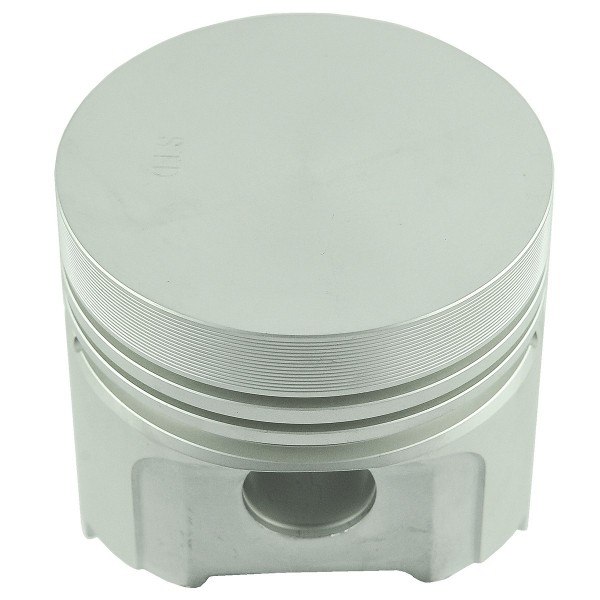

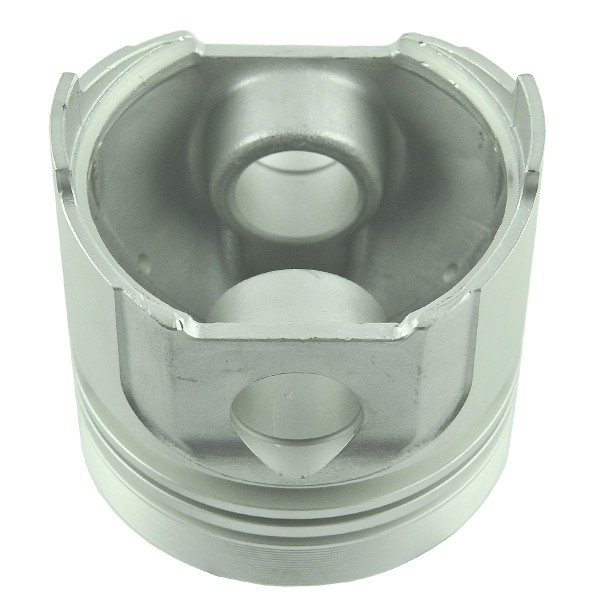

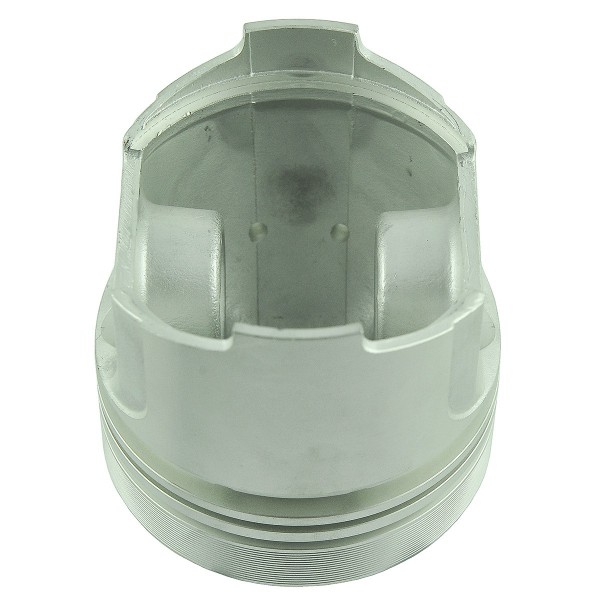

Engine Piston / 85mm / Kubota D1402 / V1902 / Kubota L1-20 / L1-22 / L1-205 / L2202 / L2402 / L2602 / L3202 / M4000 / M4950

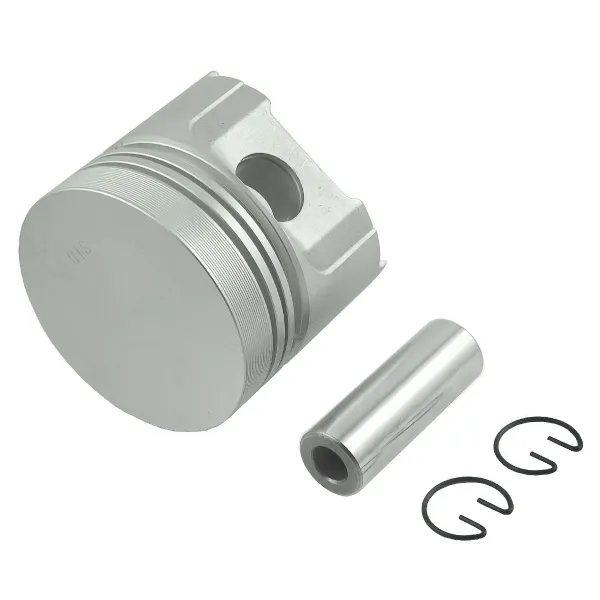

Engine piston with an outer diameter of 85 mm (STD) and a total height of 79.80 mm for Kubota tractors of the Kubota L1-20, Kubota L1-22, Kubota L1-205, Kubota L2202, Kubota L2402, Kubota L2602, Kubota L3202, Kubota M4000, Kubota M4950 series with Kubota D1402, Kubota V1902 and other engines. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, i.e. further into engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connection to the connecting rod. At the top there is the so-called bottom, which may have a different shape depending on the type of engine. Due to the fact that they operate in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 85 mm,
• height: 64 / 79.80 mm,
• pin hole diameter: 23 mm,
• pin diameter: 22.90 mm,
• pin length: 64 mm,
• distance from end of pin hole to lower edge of piston: 9 mm.
• distance from edge of pin hole to top of piston: 32 mm.
• ring groove width ( %C5% 9Bci-do-kubota/639-pier %C5% 9Bcienie-t %C5% 82oka- %C3% B8-85-mm-250-x-200-x-500-mm-kubota-d1302d1402v1902-kubota-l-1l2202m4950-6-26-100-04.html">6-26-100-04 ) from the top of the piston: 2.50 / 2 / 5 mm.
• original part number: 15521-2105-0,
• part number: 6-23-100-04.

Engine model :

• Kubota D1402,
• Kubota V1902.

Tractor models :

Kubota :

• Kubota L1-20,
• Kubota L1-22,
• Kubota L1-205,
• Kubota L2202,
• Kubota L2402,
• Kubota L2602,
• Kubota L3202,
• Kubota M4000,
• Kubota M4950.

Magazine : K18:F32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
