To order
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Kubota L2800
- Kubota L2900
- Kubota L3300
- Kubota L3830
Kubota GL23
Kubota L2808
Kubota L4508
Number of teeth (pcs/T-teeth)
9T/14T(Shaft)
Overall length (mm)
158 (roller)
Diameter of Cutter(s) (mm)
16 / 20
Go to full specification >

Drive shaft 9T/14T/158 mm / Kubota GL23/L2800/L2808/L2900/L3300/L3408/L4508 / TA020-12013

TA020-12013-9T
zł950.00
Tax included PL 23% Dostępny na zamówienie

772,36 netto

  • To order

Do you have any questions?

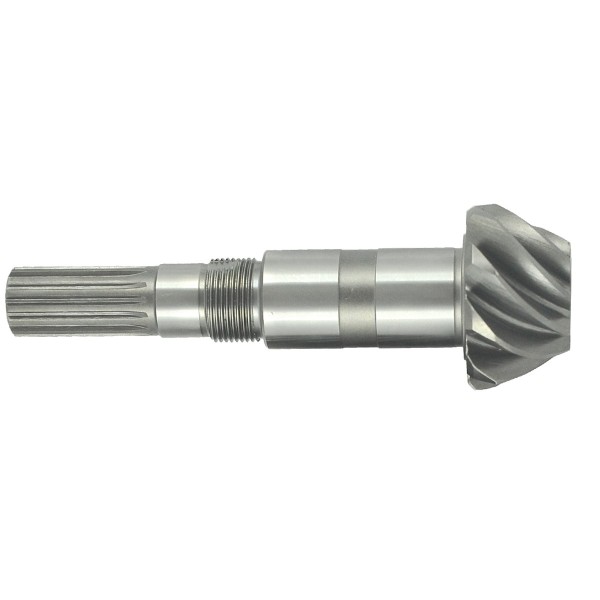

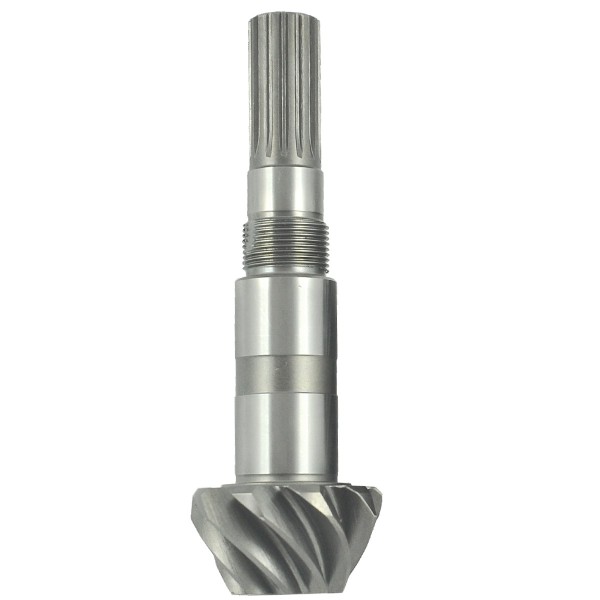

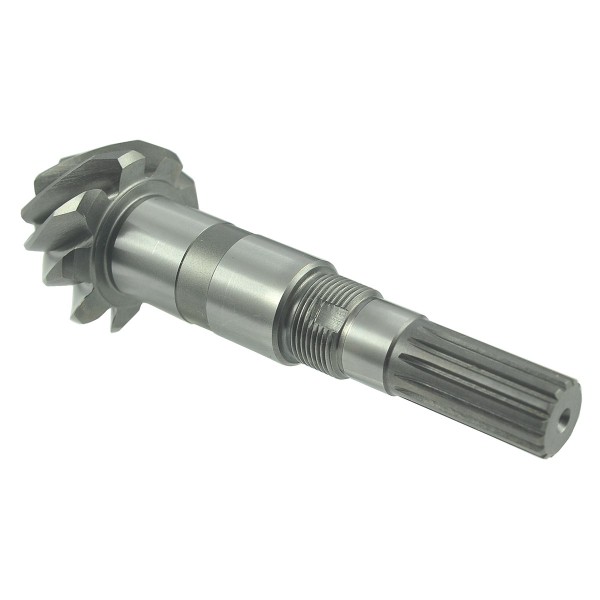

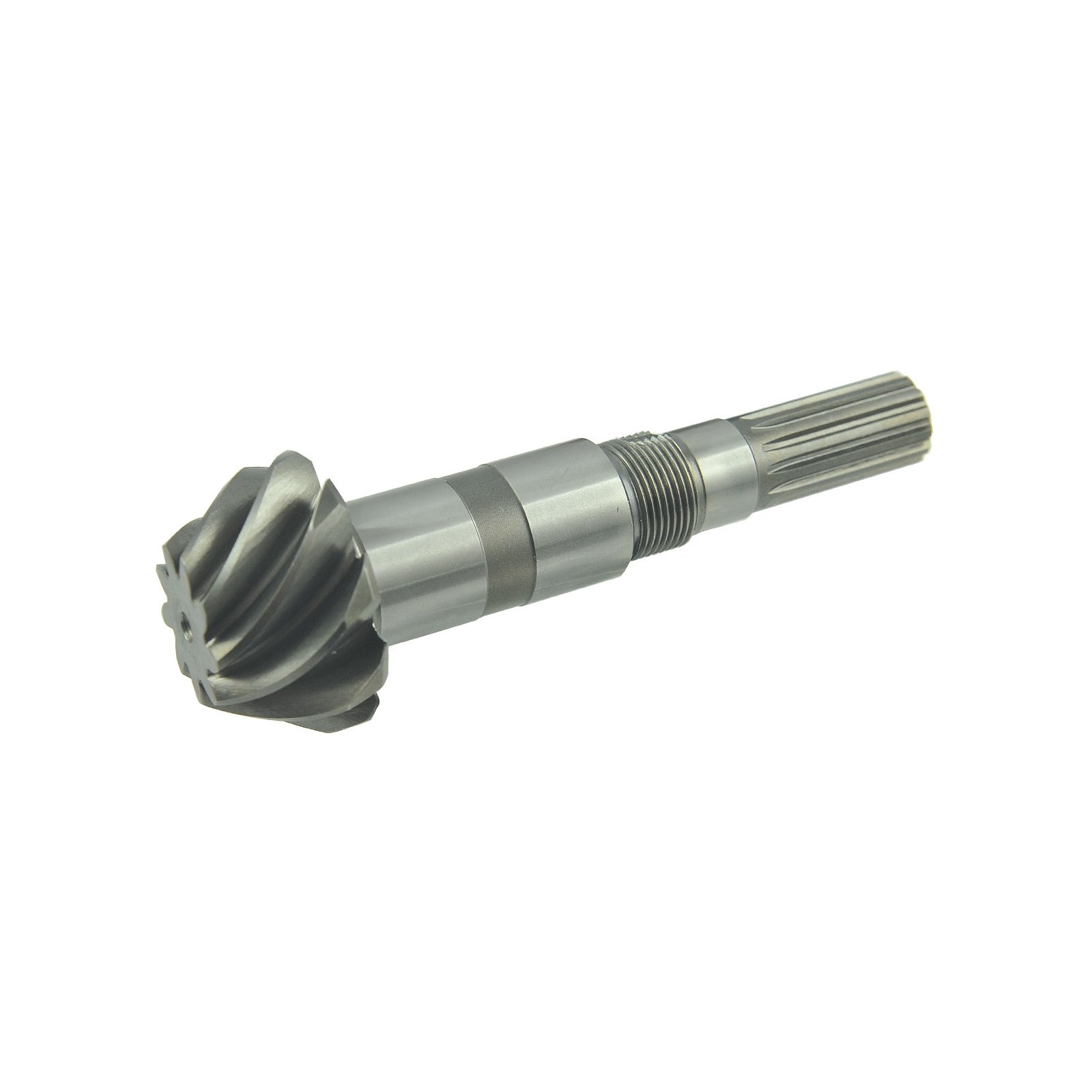

Drive shaft 9T/14T/158 mm / Kubota GL23/L2800/L2808/L2900/L3300/L3408/L4508 / TA020-12013

9T / 14T front axle drive input shaft for Kubota tractors of the Kubota GL23 , Kubota L2800 , Kubota L2808, Kubota L2900, Kubota L3300 series, Kubota L3830, Kubota L4508 and others.

The disc wheel with an attack shaft is an element of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transmitting the drive, the shaft + disc wheel drive assembly increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

Dimensions :

  • total length: 158 mm,
  • helical gear diameter: 32 / 52 mm,
  • helical gear width: 30 mm,
  • cutter diameter: 20 mm (measured together with the cutter teeth), 16 mm (measured between the cutter teeth),
  • working length of the cutter: 35 mm,
  • thread: M24 x 1.5 mm,
  • thread length: 14 mm,
  • number of teeth: 9T / 14T,
  • original part numbers: TA020-12013,
  • comparison numbers: 5-19-127-07 , 34070-12010, TA020-12010,
  • part numbers: TA020-12013-T

Tractor models :

Kubota :

  • Kubota GL23,
  • Kubota L2800,
  • Kubota L2808,
  • Kubota L2900,
  • Kubota L3300,
  • Kubota L3830,
  • Kubota L4508.

The first signs of damage to the drive unit, crown wheel or input shaft are the observation of play in the main gear, or a noticeable knocking noise when starting and an increased noise level during operation.

Warehouse:
 M01:F71:S03

Specification

Magazyn: M01:F71:S03
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Kubota L2800
- Kubota L2900
- Kubota L3300
- Kubota L3830
Kubota GL23
Kubota L2808
Kubota L4508
Number of teeth (pcs/T-teeth)
9T/14T(Shaft)
Overall length (mm)
158 (roller)
Diameter of Cutter(s) (mm)
16 / 20
Diameter of helical gear (mm)
32 / 52
Rack width (mm)
30
Thread
M24 x 1.5
Comparison numbers
5-19-127-07
34070-12010
TA020-12010
Original Part Number (OEM)
TA020-12013
Part number
TA020-12013-9T
