To order
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Kubota B1550
- Kubota B1750
Number of teeth (pcs/T-teeth)
13T (OUT) / 18T (IN) (sprocket 13T/18T / 66416-14260)
17T / 18T (66416-14270)
18T (cutter) / 13T / 18T (cutter)
Height (mm)
29 (1 sprocket 13T/18T / 66416-14260)
36 (17T/18T sprocket)
Outer diameter (mm)
43 / 55.50 (sprocket 13T/18T / 66416-14260)
54 / 69.50 (17T/18T sprocket)
Go to full specification >

Gear shaft / Kubota B1550/B1750 / 66416-14210

42050
zł710.00
Tax included PL 23% Dostępny na zamówienie

577,24 netto

  • To order

Do you have any questions?

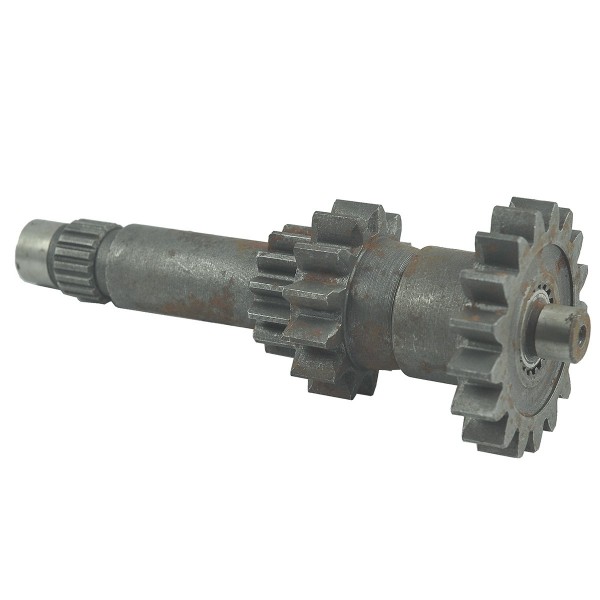

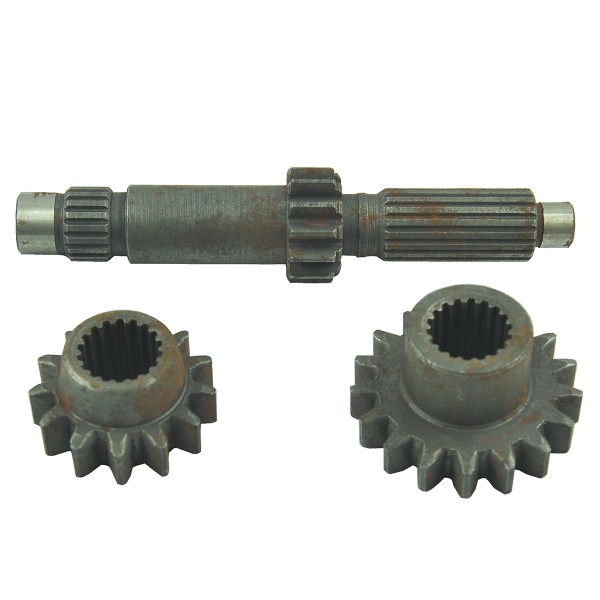

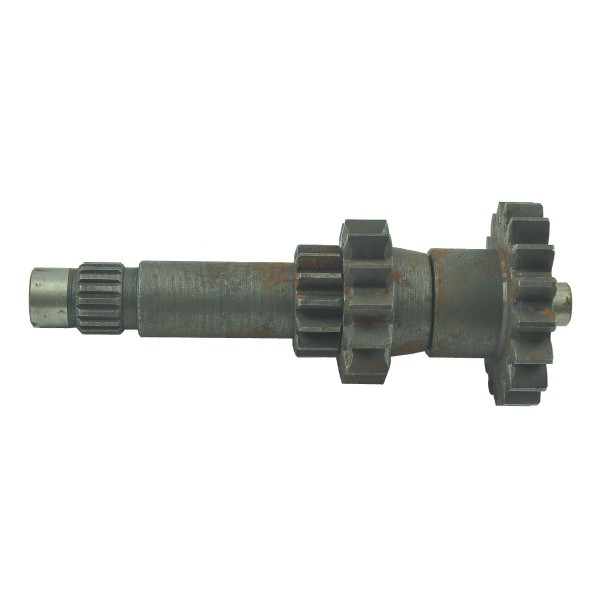

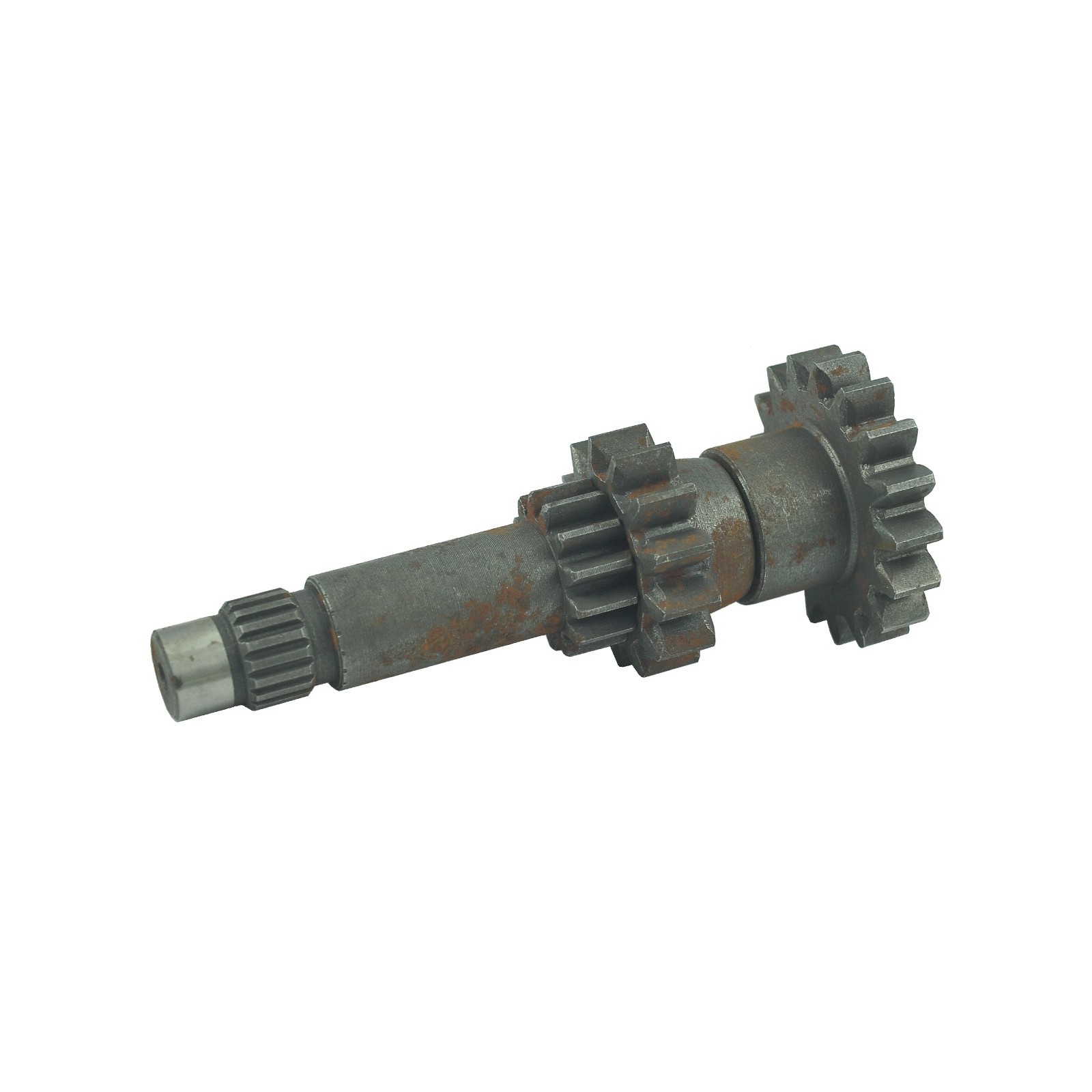

Gear shaft / Kubota B1550/B1750 / 66416-14210

2nd drive gear shaft (OEM 66416-14212), with a total length of 180 mm and 13T (OUT) / 18T (IN) (OEM 66416-14260) and 17T (OUT) / 18T (IN) (OEM 66416-14270) sprockets for Kubota tractors of the Kubota B1550, Kubota B1750 and other series.

Shaft dimensions (66416-14212):

  • length: 180 mm,
  • number of teeth: 18T (cutter) / 13T (rack) / 18T (cutter),
  • sprocket diameter (13T): 28.50 mm (measured between the teeth), 37.50 (measured together with the teeth),
  • sprocket width: 17 mm,
  • cutter diameter (18T): 21.50 mm (measured between the cutter teeth), 24 (measured together with the cutter),
  • cutter length: 15 / 50 mm,
  • original part numbers: 66416-14212.

Dimensions of the 17T/18T sprocket (66416-14270):

  • inner diameter: 25 mm (measured between the cutter teeth), 22.50 (measured together with the cutter)
  • outer diameter: 54 mm (measured between the teeth), 69.50 (measured together with the teeth),
  • total height: 36 mm,
  • sprocket width: 13 mm,
  • number of teeth: 17T (IN) / 18T (OUT),
  • original part numbers: 66416-14270.

Dimensions of the 13T/18T sprocket (66416-14260):

  • inner diameter: 25 mm (measured between the cutter teeth), 22.50 (measured together with the cutter)
  • outer diameter: 43 mm (measured between the teeth), 55.50 (measured together with the teeth),
  • total height: 29 mm,
  • sprocket width: 16 mm,
  • number of teeth: 13T (OUT) / 18T (IN),
  • original part numbers: 66416-14260.

Tractor models:

Kubota :

  • Kubota B1550,
  • Kubota B1750.

Warehouse:
M01:B45:S02

Specification

Magazyn: M01:B45:S02
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Kubota B1550
- Kubota B1750
Number of teeth (pcs/T-teeth)
13T (OUT) / 18T (IN) (sprocket 13T/18T / 66416-14260)
17T / 18T (66416-14270)
18T (cutter) / 13T / 18T (cutter)
Height (mm)
29 (1 sprocket 13T/18T / 66416-14260)
36 (17T/18T sprocket)
Outer diameter (mm)
43 / 55.50 (sprocket 13T/18T / 66416-14260)
54 / 69.50 (17T/18T sprocket)
Inner Diameter (mm)
22.50 / 25 (17T/18T sprocket)
22.50 / 25 (sprocket 13T/18T / 66416-14260)
Shaft length (mm)
180
Cutter(s) length (mm)
15/50 (18T shaft)
Diameter of Cutter(s) (mm)
21.50 / 24 (wałek 18T)
Rack diameter (mm)
28.50 / 37.50 (shaft sprocket 13T)
Rack width (mm)
13 (17T/18T sprocket)
16 (sprockets 13T/18T / 66416-14260)
17
Original Part Number (OEM)
66416-14212
66416-14260
66416-14270
