Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota B1400
- Kubota B1550
- Kubota B1750
- Kubota B6000
- Kubota B7000
- Kubota B7001
Kubota B1200
Kubota B1402
Kubota B1500
Kubota B1502
Kubota B1600
Kubota B1702
Kubota B6001
Kubota B7100
Number of teeth (pcs/T-teeth)
14T / 14T
Inner Diameter (mm)
19.50/19.50 / 17.80/17.80
Overall length (mm)
140
Go to full specification >

Cardan joint / 14T/14T / Kubota B6000 / B6001 / B7000 / B7001 / B7100 / B1200 / B1400 / B1402 / B1500 / B1550 / B1750 / B1502

29004
$77.12
Tax included PL 23%

62,7 netto

  • Dostępność (42 Quantity): stock

Do you have any questions?

Cardan joint / 14T/14T / Kubota B6000 / B6001 / B7000 / B7001 / B7100 / B1200 / B1400 / B1402 / B1500 / B1550 / B1750 / B1502

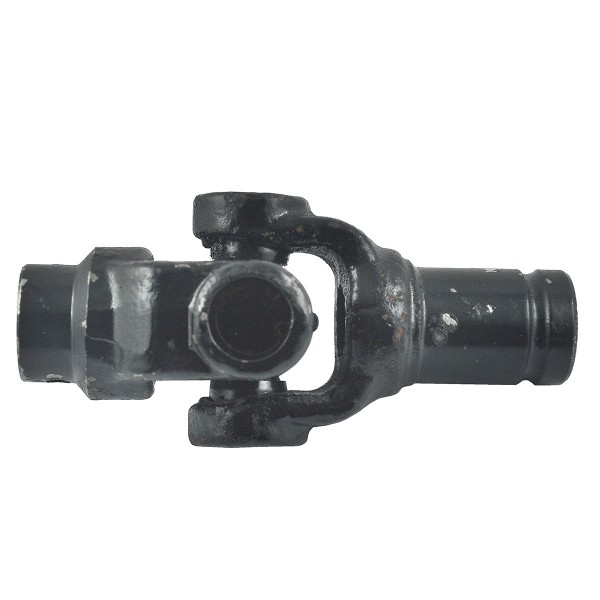

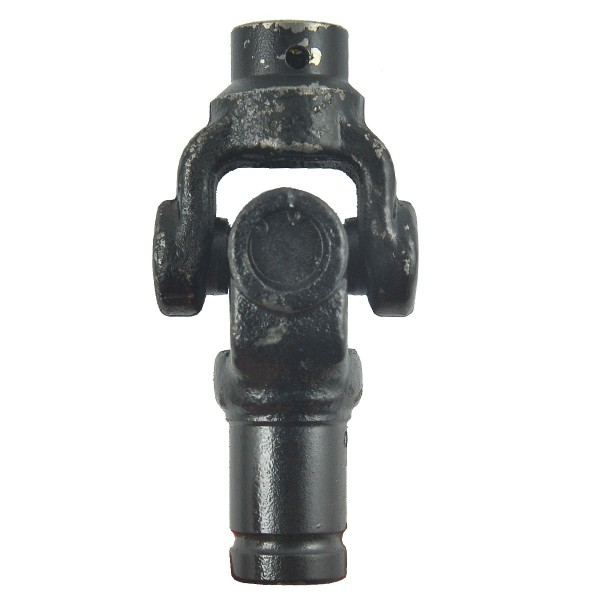

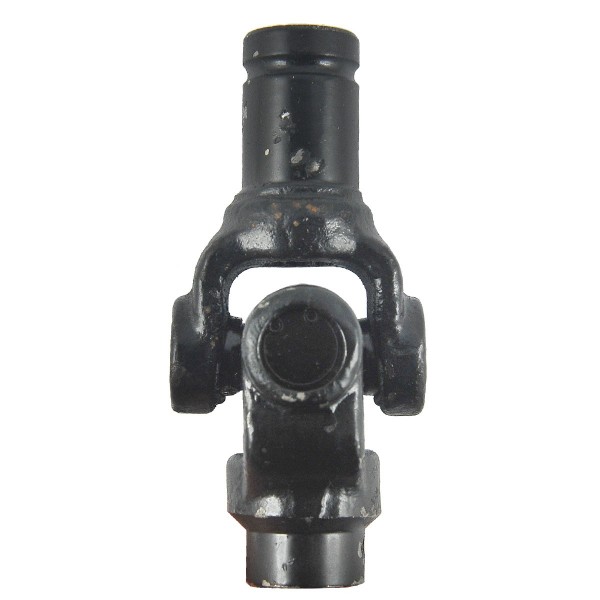

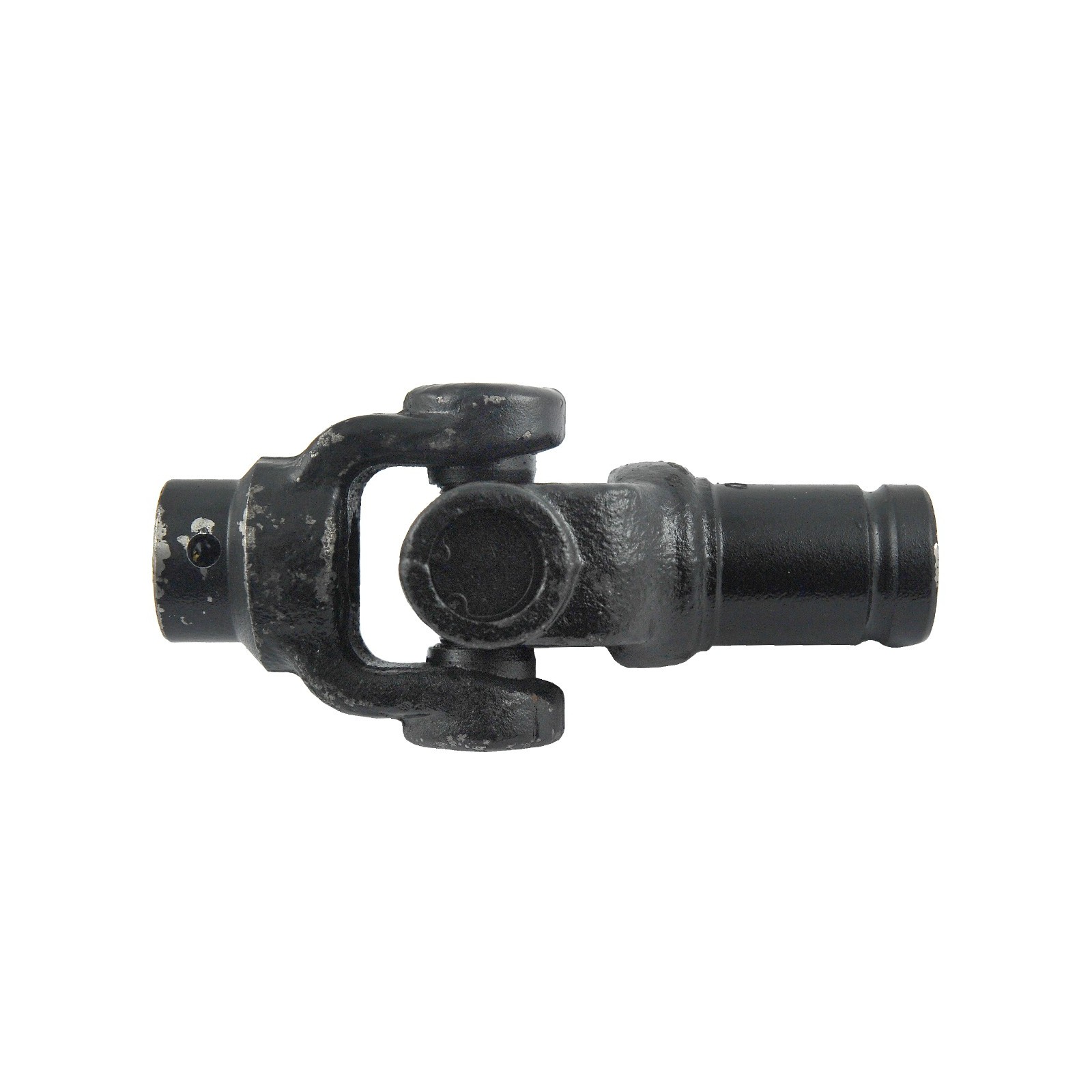

14T / 14T front axle drive cardan joint (cross 66591-56321, joint cover 43004 , 66591-57173) with a total length of 140 mm , internal diameter 19.50 / 19.50 mm (measured between the cutter teeth), 17.80 / 17.80 mm (measured together with the cutter) for Kubota tractors of the Kubota B6000, Kubota B6001, Kubota B7000, Kubota B7001, Kubota B7100, Kubota B1200, Kubota B1400, Kubota B1402, Kubota B1500, Kubota B1502, Kubota B1600, Kubota B1550, Kubota B1702, Kubota B1750 series and others.

A cardan joint, universal joint or pivot joint is an element whose main task is to transfer drive, torque from the driving shaft to the driven shaft, which may be at a significant angle to each other. A cardan clutch, universal joint or pivot clutch are all correct names for a joint that consists of two fork-shaped elements connected to each other by a cross connection. Cardan joints are available with shafts, with ends with a milling cutter or a fork locked with a wedge.

Dimensions :

  • dimensions of the cross (66591-56321): 20 x 54.60 mm,
  • total length: 140 mm,
  • inner diameter: 19.50 / 19.50 mm (measured between cutter teeth), 17.80 / 17.80 mm (measured together with cutter),
  • cutter working length: 32 / 52 mm,
  • number of teeth: 14T / 14T,
  • original part number: 15221-221247, 67121-57250, 67121-75250,
  • part numbers: 29004.

Tractor models :

Kubota :

  • Kubota B6000,
  • Kubota B6001,
  • Kubota B7000,
  • Kubota B7001,
  • Kubota B7100,
  • Kubota B1200,
  • Kubota B1400,
  • Kubota B1402,
  • Kubota B1500,
  • Kubota B1502,
  • Kubota B1600,
  • Kubota B1550,
  • Kubota B1702,
  • Kubota B1750.

Warehouse :
M01:B86

Specification

Magazyn: K04
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota B1400
- Kubota B1550
- Kubota B1750
- Kubota B6000
- Kubota B7000
- Kubota B7001
Kubota B1200
Kubota B1402
Kubota B1500
Kubota B1502
Kubota B1600
Kubota B1702
Kubota B6001
Kubota B7100
Number of teeth (pcs/T-teeth)
14T / 14T
Inner Diameter (mm)
19.50/19.50 / 17.80/17.80
Overall length (mm)
140
Dimensions (mm)
20 x 54.60 (cross)
Cutter(s) length (mm)
32 / 52
Original Part Number (OEM)
15221-221247
67121-57250
67121-75250
