To order
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Kubota M5000
Number of teeth (pcs/T-teeth)
16T / 16T
Length (mm)
890
Outer diameter (mm)
24
wishlist

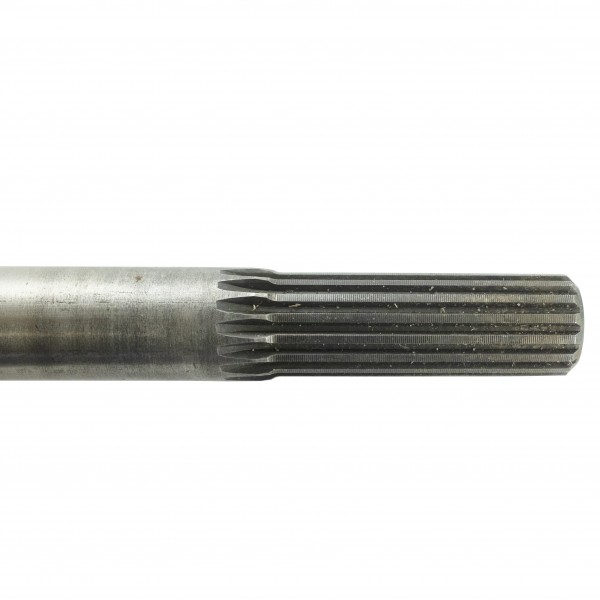

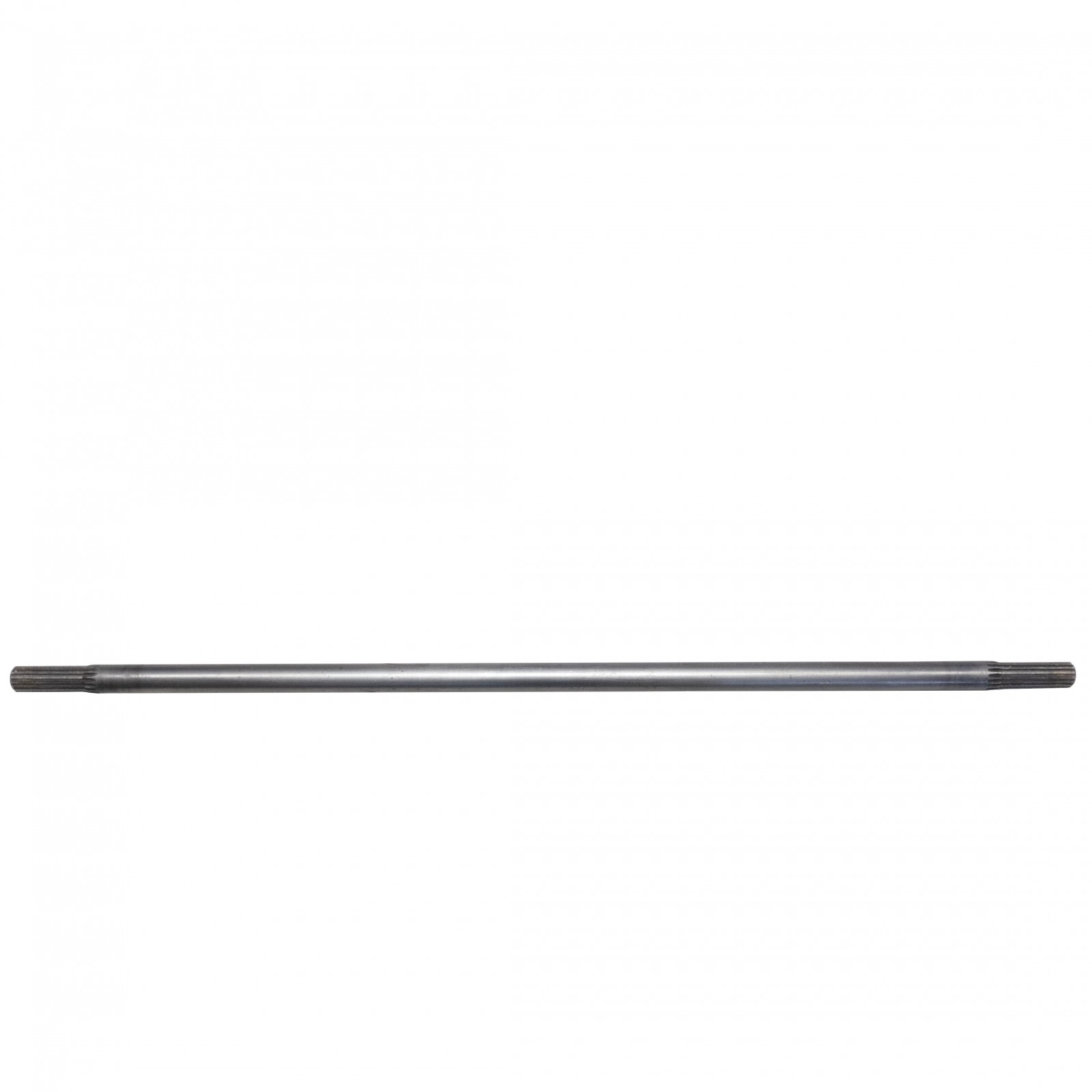

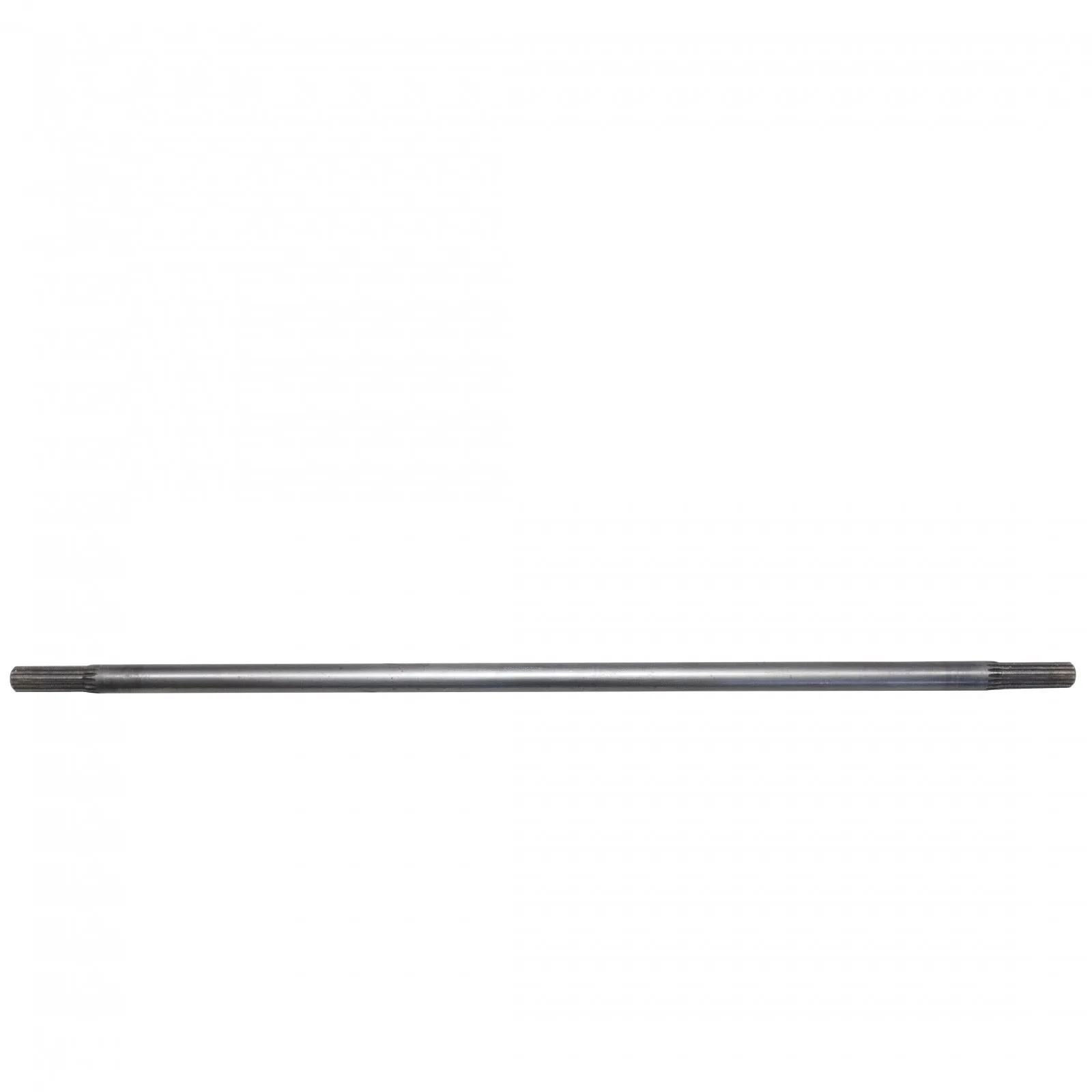

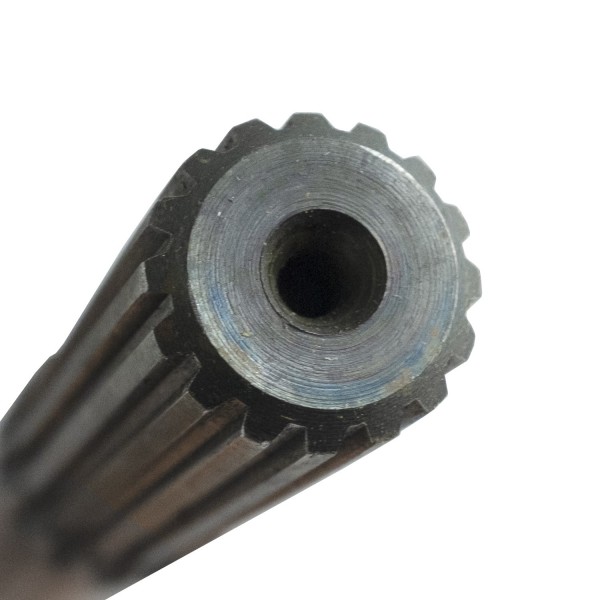

Kubota M5000 / 890mm / 16T / 16T / 3A021-41320 drive shaft

6-18-117-03
zł369.00
Tax included PL 23%

300 netto

  • To order
wishlist

Do you have any questions?

Kubota M5000 / 890mm / 16T / 16T / 3A021-41320 drive shaft

Front axle drive shaft with a length of 890 mm , diameter 22 mm and the number of teeth of the cutter 16T and 16T for the Kubota M500 series tractor and others.

Intermediate shaft, drive shaft is a part of the system responsible for transmitting drive from the engine to the tractor driving axle (s) and / or the tractor power take-off shaft. Tractors with 4 x 4 drive have two similar or identical rollers. The task of the gearbox shaft is to collect the driving force from the clutch disc and transfer it to one of the gears or to the PTO / PTO shaft . The drive shaft is one of the most precisely crafted things in a drive system and is always made of a single piece of steel because the shaft is fitted with equally precise bearings, racks and gears that drive the tractor.

Dimensions :

  • length: 890 mm,
  • outer diameter: 24 mm,
  • cutter diameter: 22 (measured with the teeth), 19.30 mm (measured between the teeth),
  • cutter length: 65/65 mm,
  • number of teeth: 16T / 16T,
  • weight: 2.5 kg,
  • comparative numbers: 3A021-41320.

Tractor models :

Kubota :

  • Kubota M5000.

Warehouse :
M01: C53

Specification

Magazyn: M01:C53
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Kubota M5000
Number of teeth (pcs/T-teeth)
16T / 16T
Length (mm)
890
Outer diameter (mm)
24
Cutter(s) length (mm)
65 / 65
Diameter of Cutter(s) (mm)
22 (measured across the teeth), 19.30 mm (measured between the teeth)
Weight (kg)
2.5
Comparison numbers
3A021-41320

Kubota is one of the leading manufacturers of heavy agricultural equipment based in Osaka. The company was established in 1890 by Gonshiro Kubota. For several years, it produced tractors under license from FIAT.

It was only in 1978 that the company released its first tractor entirely on its own components to the market. In 2010 , Kubota announced production of 3.5 million tractors. Nowadays, Kubota is one of the global concerns employing approximately 25,000 people around the world.
From the beginning of its activity, it has been cooperating with the best suppliers and manufacturers of parts and components, which results from cooperation with Fiat and Nissan. The company has 34 representative offices around the world, mainly in Europe: Germany, Great Britain, France, Spain, Poland, the United States and Canada.


Kubota is a company that is known for its long life and high quality of workmanship, which is why it is currently very popular among many users around the world.

Their wide range of agricultural tractors allows each user to choose a model tailored to their individual needs and preferences.
