Tie rod end / Kubota M5000 / 3A022-62920 / 5-23-101-43

Name: Tie rod end / Kubota M5000 / 3A022-62920 / 5-23-101-43
Brand: 4FARMER
SKU: 5-23-101-43
Price: 190 PLN
Availability: InStock

Reference 5-23-101-43

zł190.00

Tax included PL 23%

154,47 netto

Dostępność (20 Quantity):

Do you have any questions?

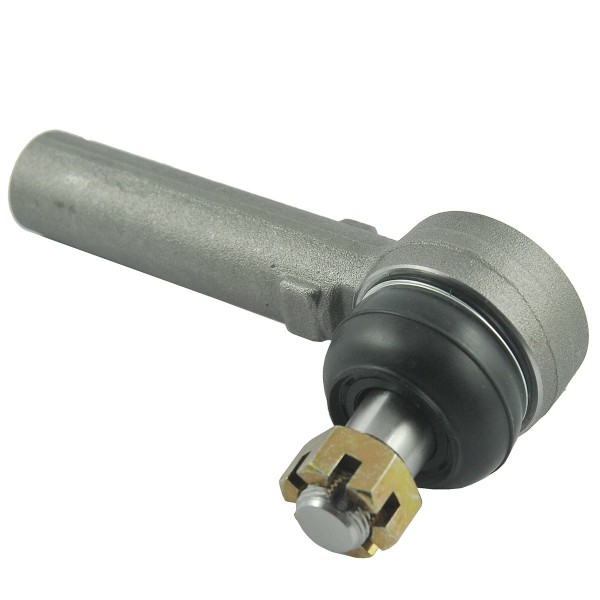

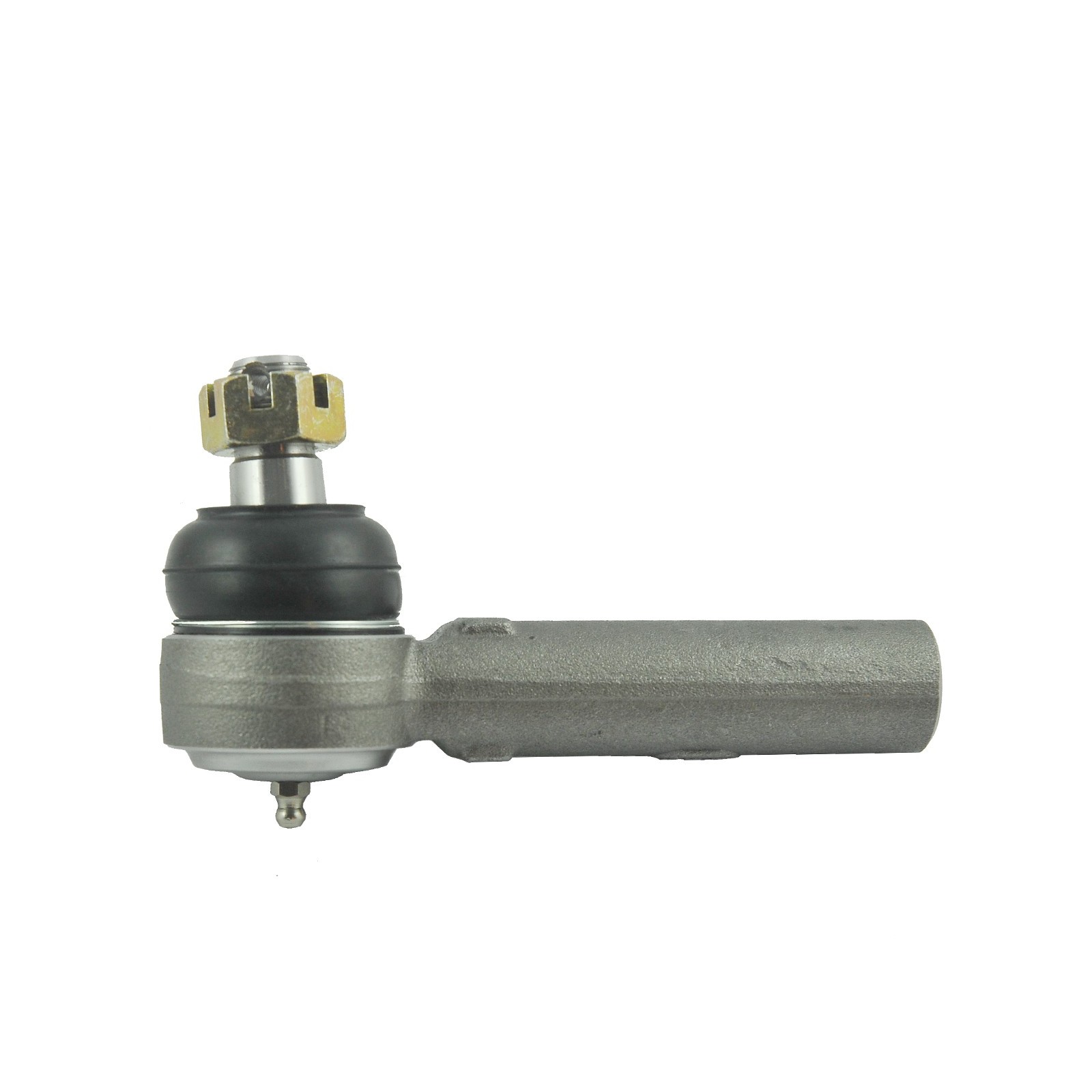

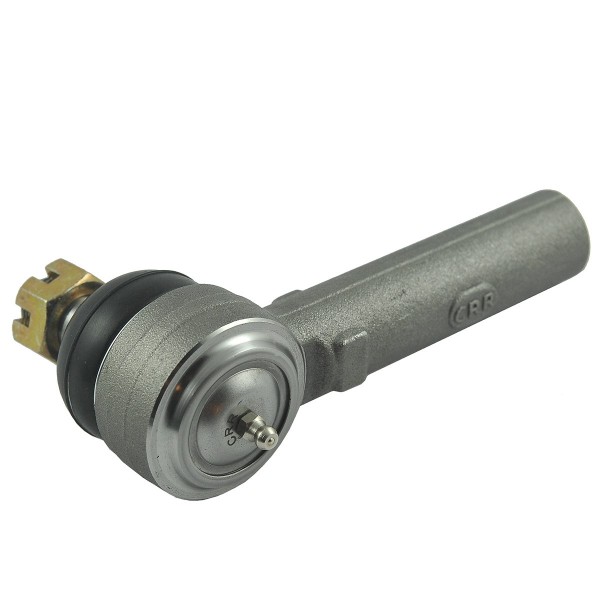

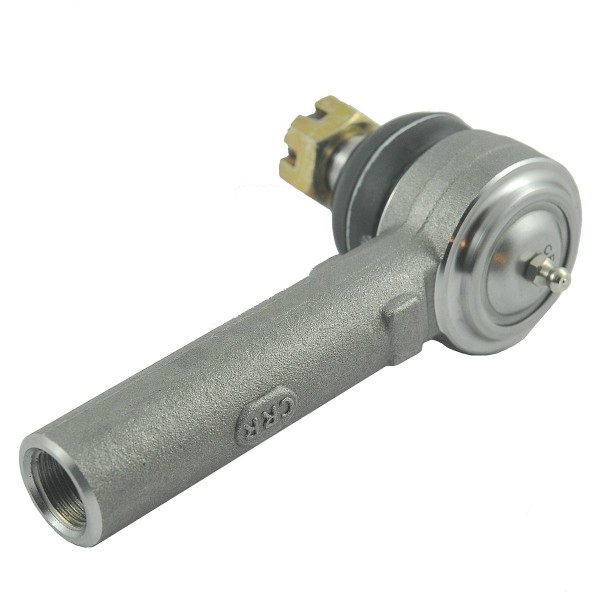

Tie rod end / Kubota M5000 / 3A022-62920 / 5-23-101-43

Steering rod end (joint for set 5-23-101-47 , 3A121-62980, rod + joint set 3A022-62972 , ) with a total length of 166 mm and a total height of 88 mm for Kubota tractors of the Kubota M5000 series and others.

The tie rod end is a steering system element that connects the wheels to the steering gear. Correct installation of this element directly affects the wheel angle and, consequently, the driving characteristics of the vehicle itself. The most common visible signal and the need to replace the tie rod are play in the steering system or visible unnatural tire abrasion. Remember that the good condition of the tie rod ends affects driving safety and extends the durability of the tires.

Dimensions :

total length: 166 mm (=/- 2 mm).
height: 88 mm.
head diameter: 54 mm.
thread length: 18 / 66 mm..
cone height: 50 mm.

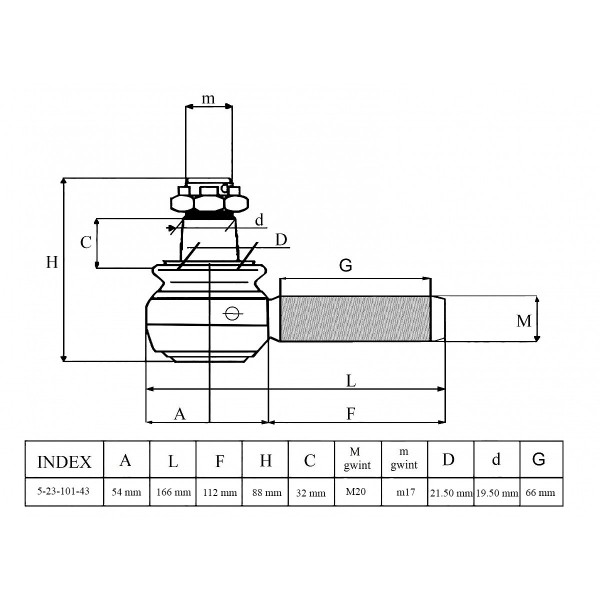

cone diameter (see drawing): 19.50 / 21.50 mm.
thread: M20 x 1.5 / M17 x 1.5,
original part numbers: 3A022-62920 ,
part numbers: 5-23-101-43.

Tractor models:

Kubota:

Kubota M5000.

The first signs of wear in the steering rod are play in the steering wheel, vibrations in the steering wheel, delayed reaction of the steering wheels to slight movements of the steering wheel. Wear of the rod ends or their damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : K18:A19:S01

Specification

Magazyn: K18:A19:S01

Condition

New

Production

Substitute

Parts

Chassis

Tractor models

Kubota M5000

Cone Height(mm)

Height (mm)

Overall length (mm)

166

Thread(s) length (mm)

18 / 66

Head diameter (mm)

Cone diameter (mm)

19.50 / 21.50

Thread

M20 x 1.5 / M17 x 1.5

Original Part Number (OEM)

3A022-62920

Part number

5-23-101-43
