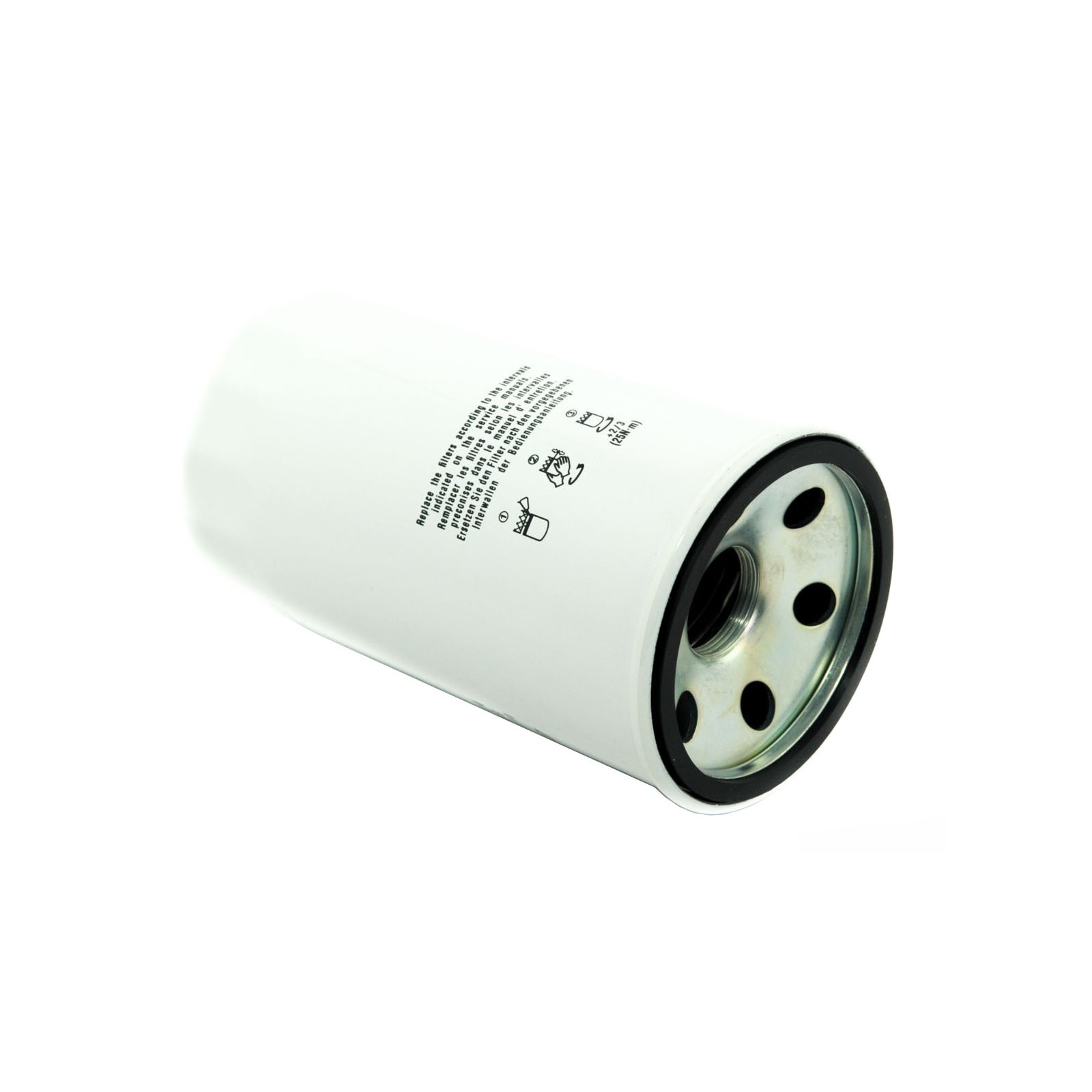

Hydraulic oil filter 176 x 98 mm / 1"1/8-16UNF / Kubota GL/KL/M5000 / Yanmar RS/AF

Hydraulic filter with dimensions of 98 x 176 mm with a 1"1/8-16UNF thread for Japanese Kubota tractors and mini tractors of the GL , KL , M , Yanmar RS , AF series and others.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor's box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor,

Dimensions :

• Height: 176 mm,
• Diameter: 98 mm,
• Seal diameter: internal 80 mm, external 90 mm,
• Thread: 1"1/8-16UN, 28 mm.

Tractor models :

Kubota :

• Kubota GL19,
• Kubota GL21,
• Kubota GL25,
• Kubota GL200,
• Kubota KL34,
• Kubota KL25,
• Kubota KT230,
• Kubota M5000.

Yanmar :

• Yanmar RS24,
• Yanmar AF16,
• Yanmar AF18,
• Yanmar AF160.

Mitsubish and:

• Mitsubishi MTR250.

Shibaura :

• Shibaura D238.

Engine models :

Kubota :

• Kubota D1403,
• Kubota D1463,
• Kubota V2403.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
