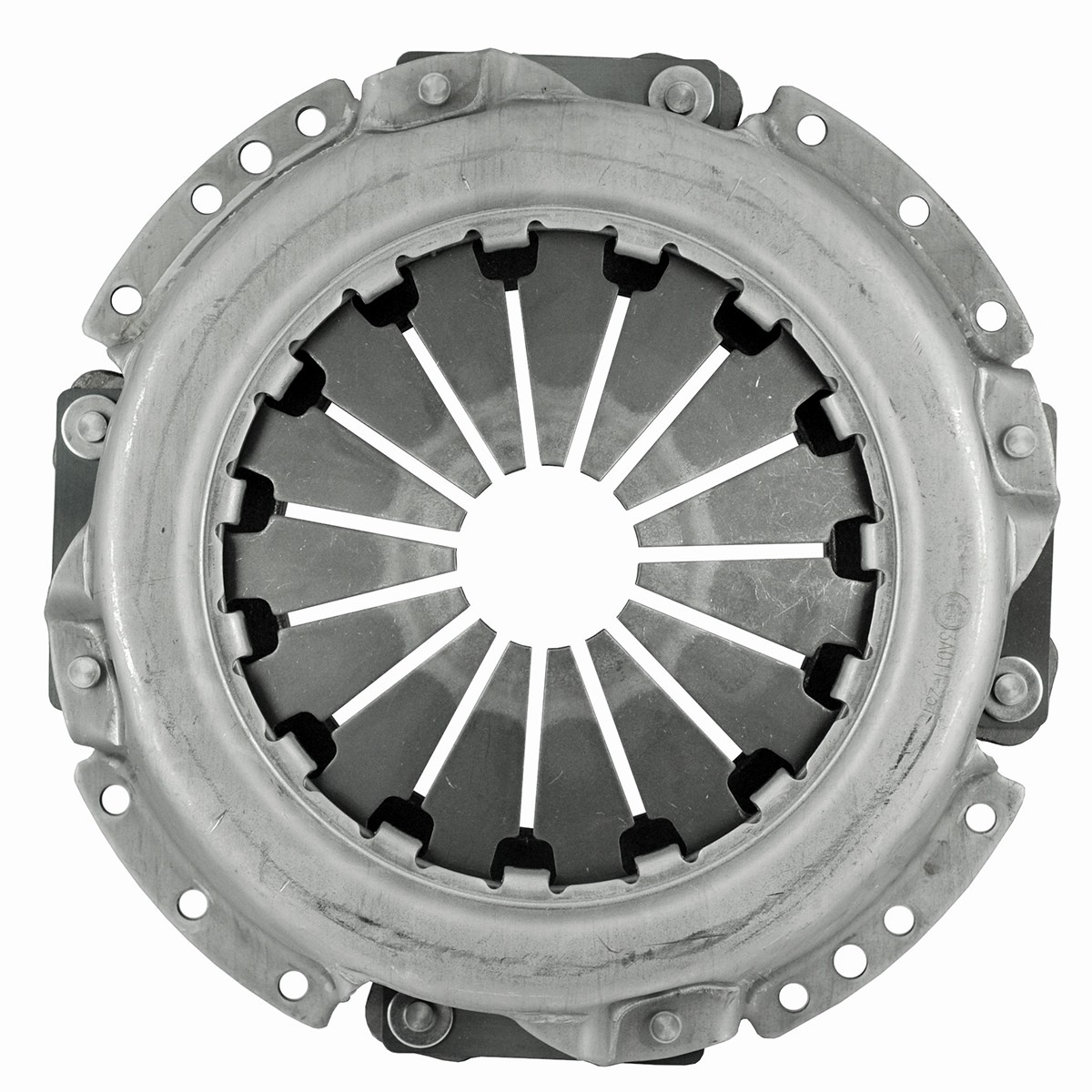

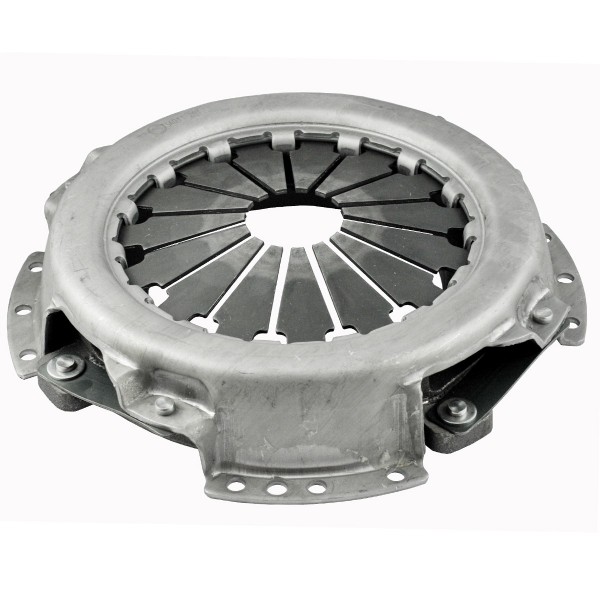

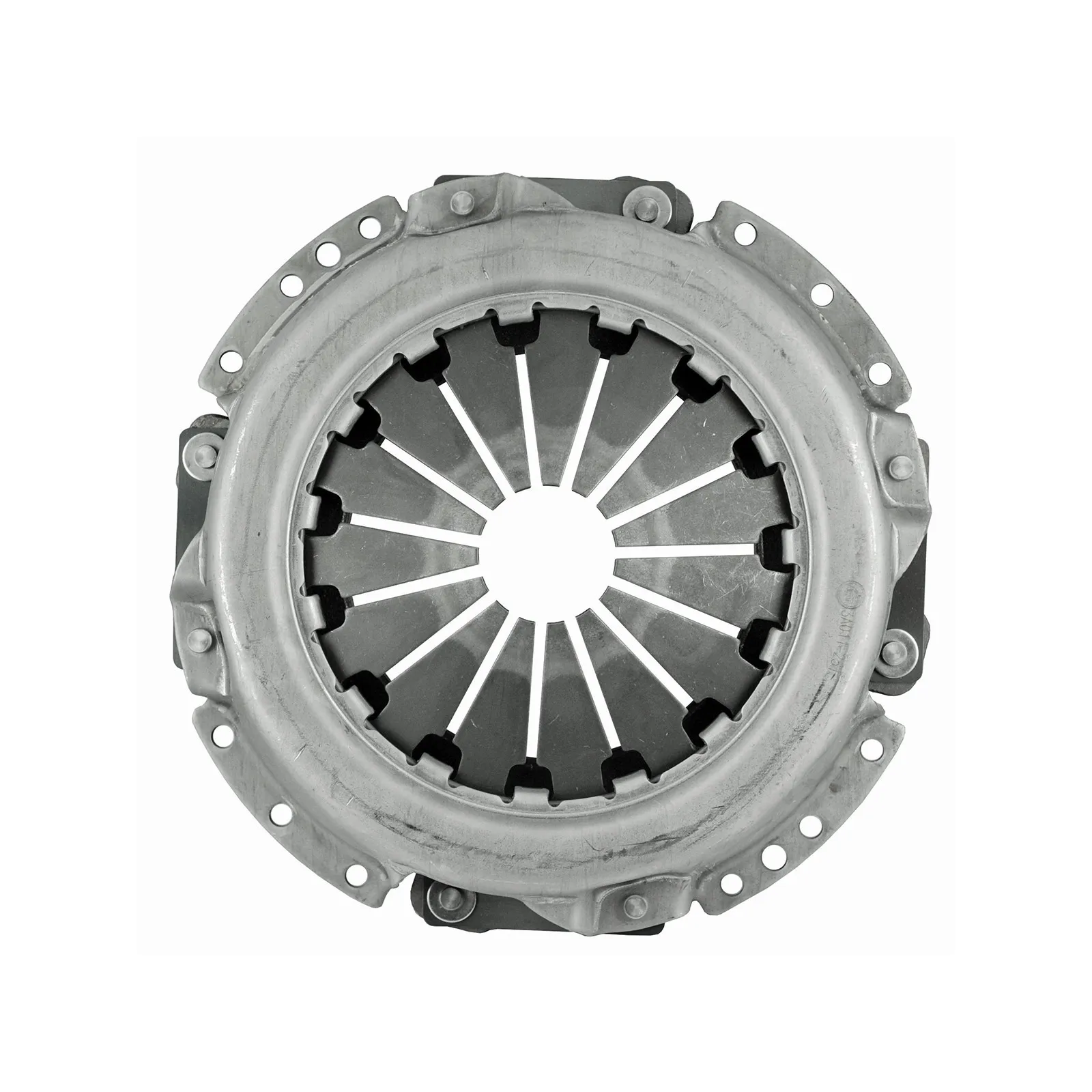

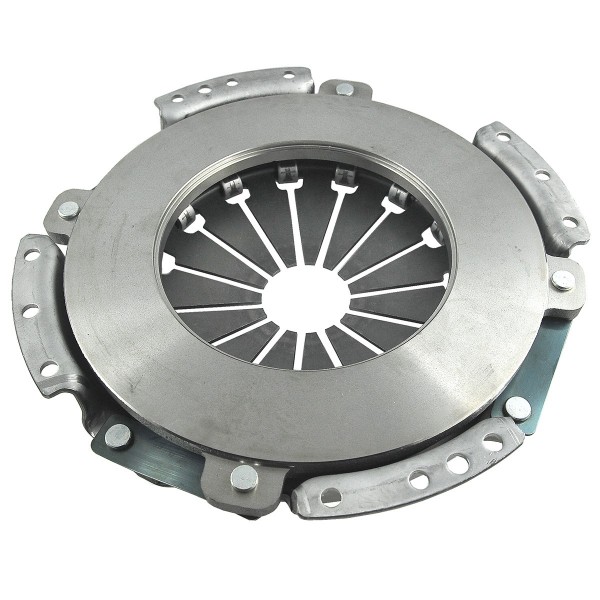

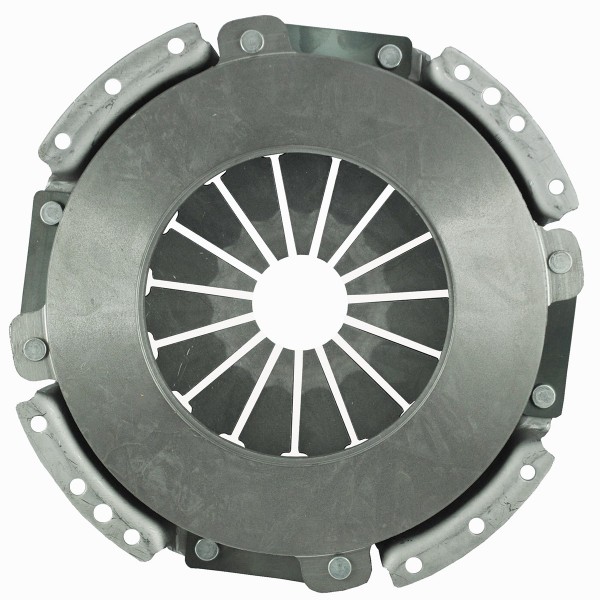

Clutch pressure plate / 11' / 280 mm / Kubota M4700 / M4900 / M5000 / M5040 / M7040 / M8200 / 6-26-102-07

Clutch disc pressure plate (disc %C5% 82a-275-mm-14t-kubota-m7040-3a261-25130-6-05-100-08.html">6-05-100-08 ) with an outer diameter of the pressure plate 280 mm for Kubota tractors of the Kubota M4700, Kubota M4900, Kubota M5000, Kubota M5040, Kubota M7040, Kubota M8200 series and others.

The clutch pressure plate is the component that connects the gearbox to the engine, and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.

Dimensions :

• housing diameter: 328 mm.
• pressure plate diameter: 170 / 280 mm.
• height: 60 mm,
• mounting screw hole spacing: 310 mm (measured diagonally), 155 mm (measured from each other),
• original part numbers: %C5% 82a-kubota-m604-m500-m704.html">3A011-25110 ,
• comparative numbers: ,
• part numbers: 6-26-102-07.

Tractor models :

• Kubota M4700,
• Kubota M4900,
• Kubota M5000,
• Kubota M5040,
• Kubota M7040,
• Kubota M8200.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine: K18:A30

*The photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
