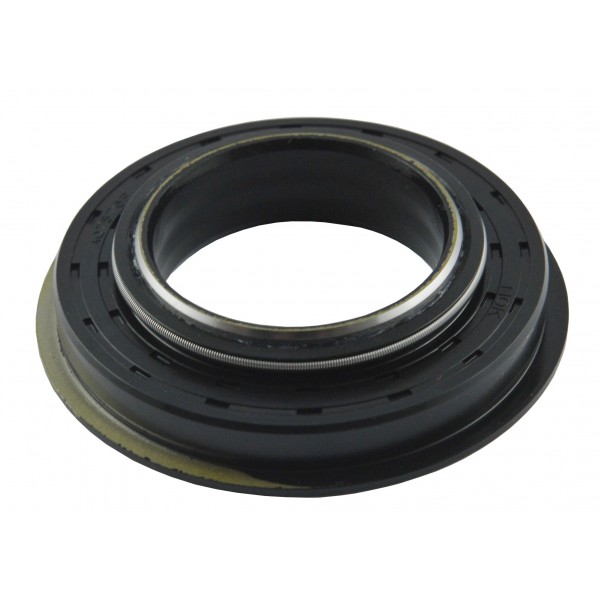

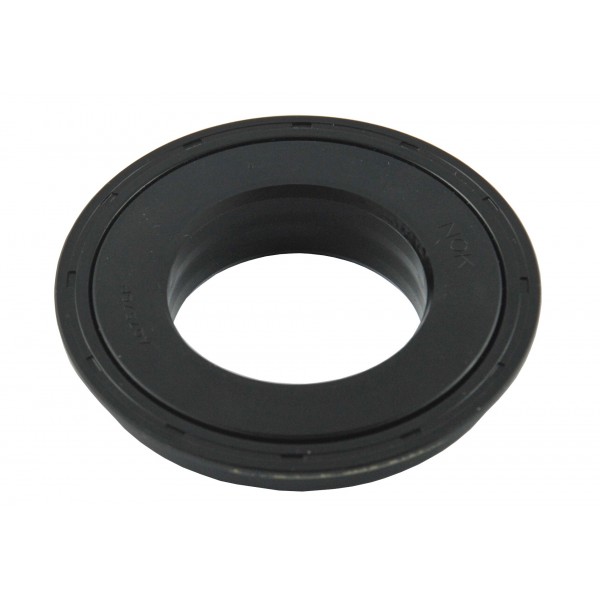

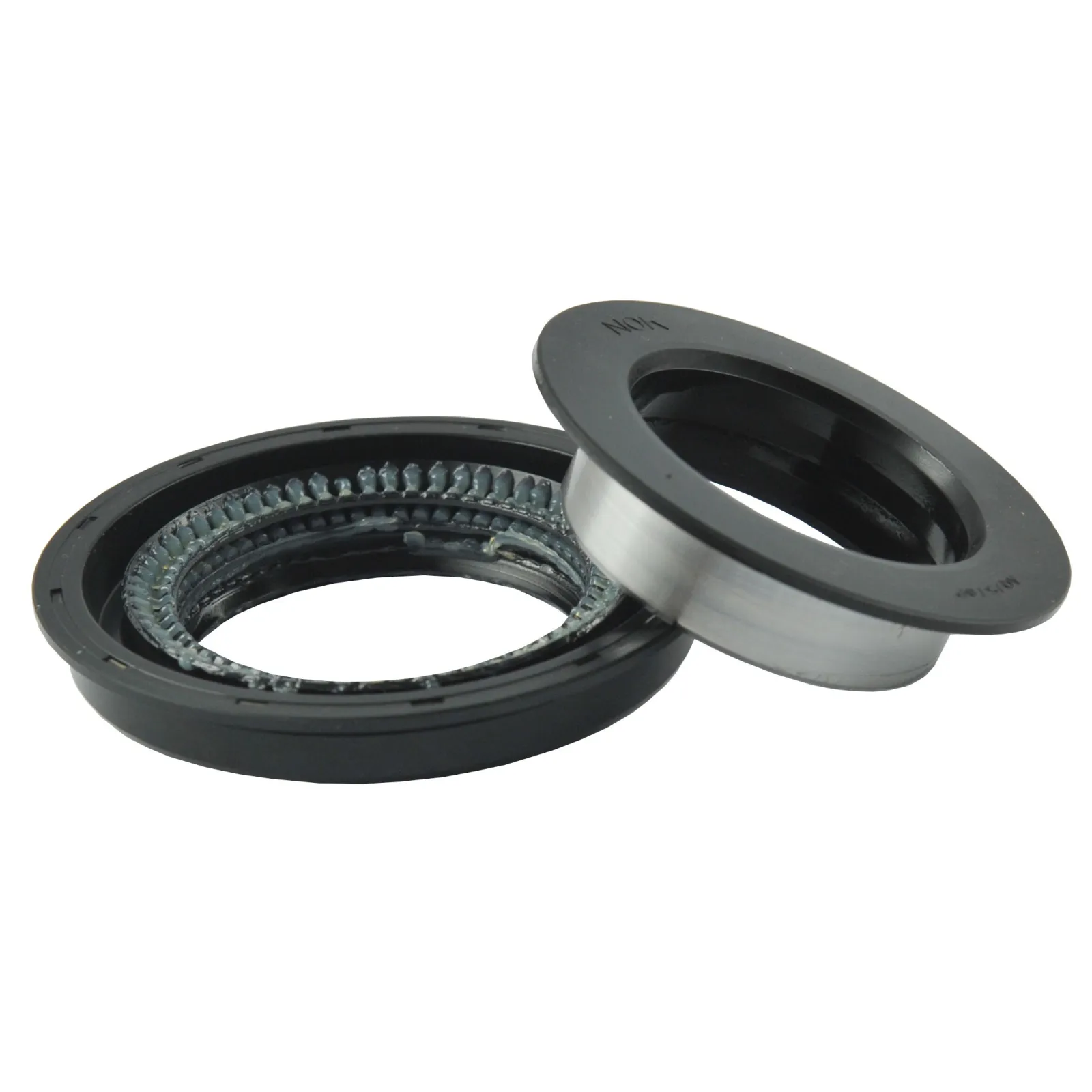

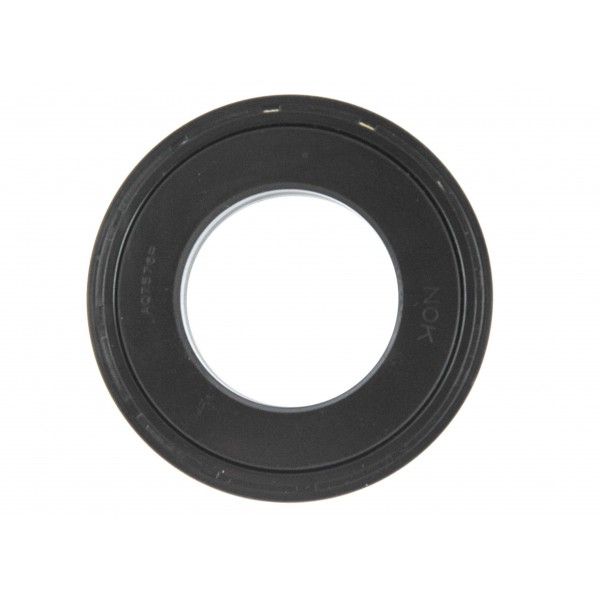

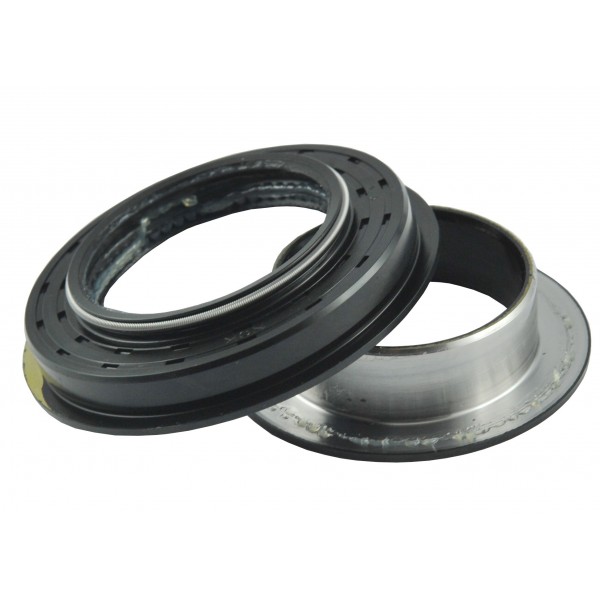

AQ7576P / 50 x 85 x 20 mm cartridge sealant Iseki TU / TE / TH / TF / SF / SIAL / 1550-307-005-00

Cassette seal , 50 x 80 x 20 mm oil seal of the front axle for Japanese Iseki tractors TU, TE, TH, TF, SF, SIAL and others.

The sealant is a rubber ring (also known as simmer ring, Simmer ring), named after the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of up to 0.1MPa and which are submerged during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is the sealing of shafts and power transmission systems or drives of machines and devices. There are different types of seals, the most common are cassette seals (two-piece), o-rings with a spring all around, or seals with a partially metal casing (cover). Sealants prevent leakage of oil or lubricant and prevent contaminants from entering the system.

Dimensions :

• outer diameter: 85 mm (without collar).
• outer diameter with collar: 93 mm.
• inner diameter: 50 mm.
• height: 14 mm (without collar and sleeve).
• height with collar and sleeve: 20 mm.
• part number: 79156-33190, 1550-307-005-00, AQ7576P.

Tractor models :

Isek and:

• Iseki TU180,
• Iseki TU185,
• Iseki TU197,
• Iseki TU200,
• Iseki TU205,
• Iseki TU217,
• Iseki TU220,
• Iseki TU225,
• Iseki TU1700,
• Iseki TU1900,
• Iseki TU2100,
• Iseki Sial TF21,
• Iseki Sial TF23,
• Iseki Sial TF223,
• Iseki Sial TF243

50x85
85x50
50-85
85-50
