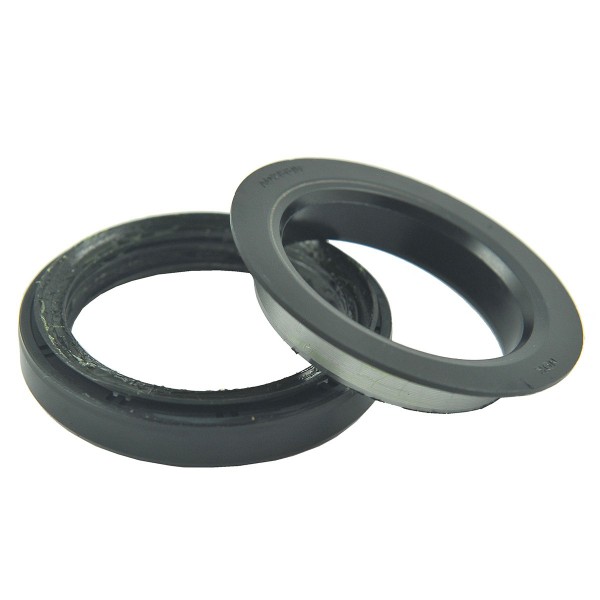

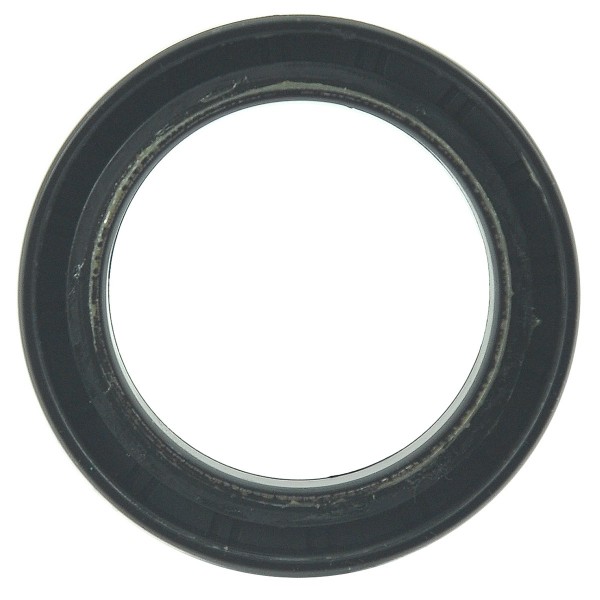

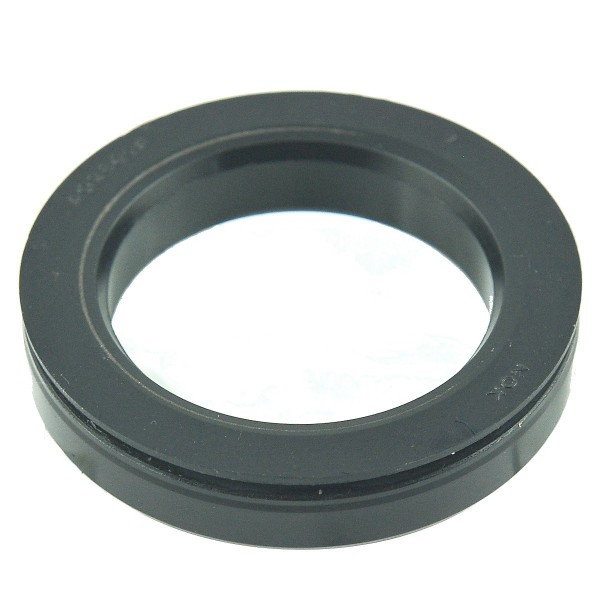

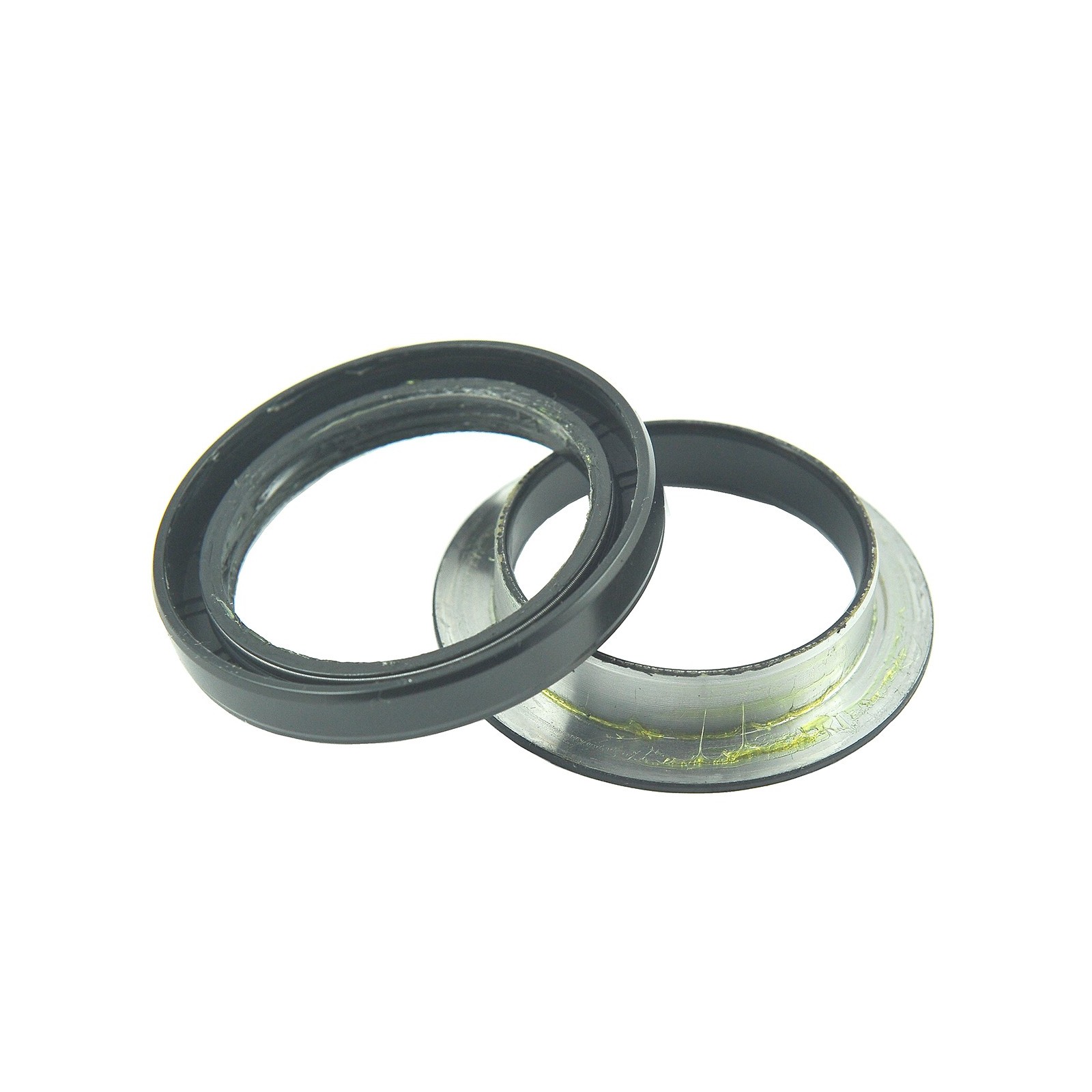

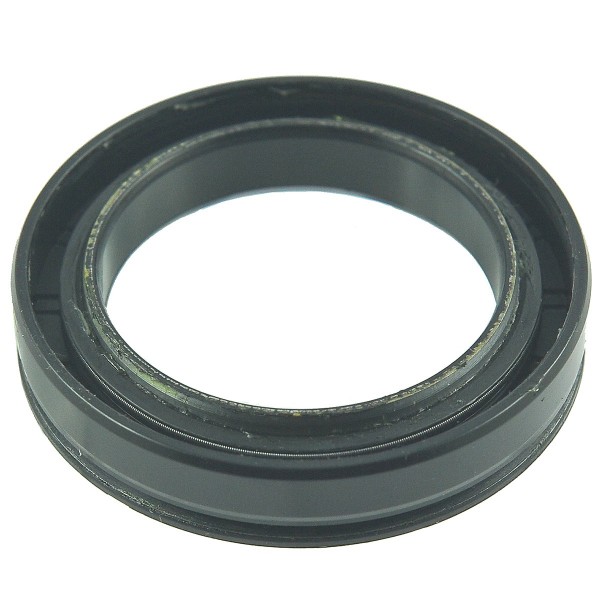

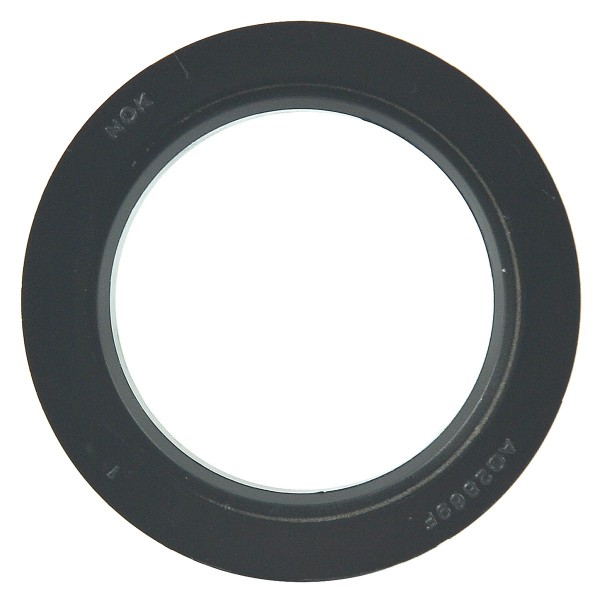

Cassette seal / 50 x 72 x 10/13 mm / Kubota B1121 / B1410 / 1610 / BX24D / BX25 / M6040 / M7040

Front axle (axle reduction) cassette seal with an inner diameter of 50 mm , outer diameter of 72 mm and a height of 10/13 mm for Kubota tractors of the Kubota B1121, Kubota B1161, Kubota B1181, Kubota B1220, Kubota B1410, Kubota B1610, Kubota B1620, Kubota B1820, Kubota BX24D, Kubota BX25, Kubota BX188, Kubota BX23S, Kubota BX2360, Kubota BX2370, Kubota BX2380, Kubota BX2350D, Kubota BX1830D, Kubota BX2200, Kubota BX2230D, Kubota M6040, Kubota M7040 series and others.

A seal is usually a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. A simmering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 50 mm (sleeve), 54 mm (seal),
• outer diameter: 72 mm (seal), 54 mm (sleeve),
• height: 10 / 13 mm,
• original part numbers: 16A320-56220,
• part numbers: AQ2869F, 5-08-101-17.

Tractor models:

Kubota:

• Kubota B1121,
• Kubota B1161,
• Kubota B1181,
• Kubota B1220,
• Kubota B1410,
• Kubota B1610,
• Kubota B1620,
• Kubota B1820,
• Kubota BX24D,
• Kubota BX25,
• Kubota BX188,
• Kubota BX23S,
• Kubota BX2360,
• Kubota BX2370,
• Kubota BX2380,
• Kubota BX2350D,
• Kubota BX1830D,
• Kubota BX2200,
• Kubota BX2230D,
• Kubota M6040,
• Kubota M7040.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.
