Crown wheel 18T / 23T / 108 mm + pinion shaft 9T / 14T / 158 mm / Kubota GL23 / L2800 / L2808 / L2900 / L3300 / L3408

5-19-127-05
zł2,100.00
Tax included PL 23% Dostępny na zamówienie

1707,32 netto

  • To order

Do you have any questions?

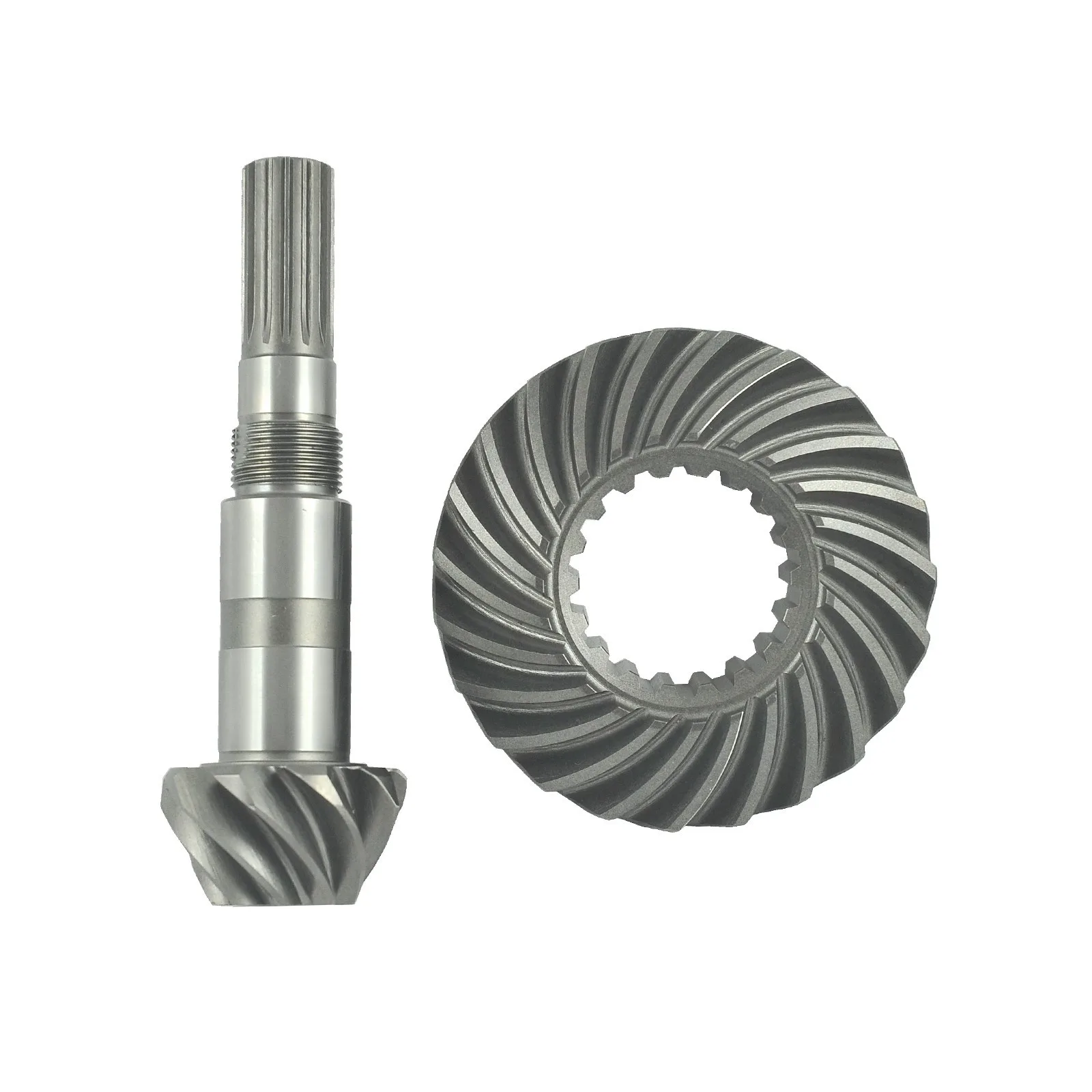

Crown wheel 18T / 23T / 108 mm + pinion shaft 9T / 14T / 158 mm / Kubota GL23 / L2800 / L2808 / L2900 / L3300 / L3408

18T/23T crown wheel + 9T/14T pinion shaft of the front axle drive for Kubota tractors of the Kubota GL23 series, Kubota L2800 , Kubota L2808, Kubota L2900, Kubota L3300, Kubota L3830, Kubota L4508 and others.

The crown wheel with the pinion is a part of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transferring the drive , the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

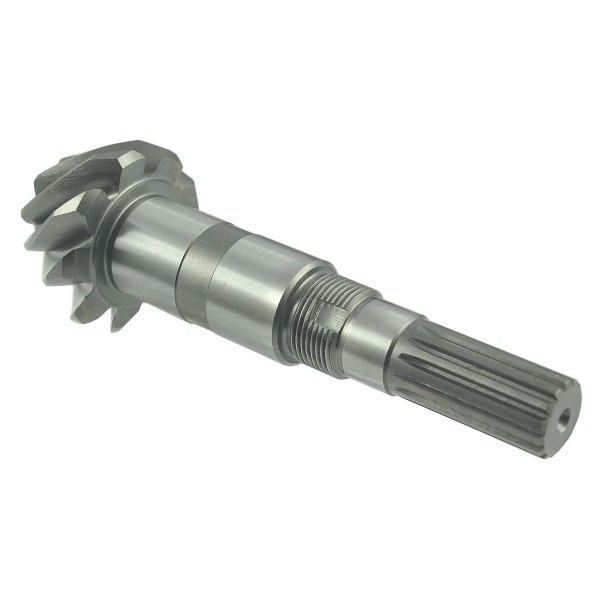

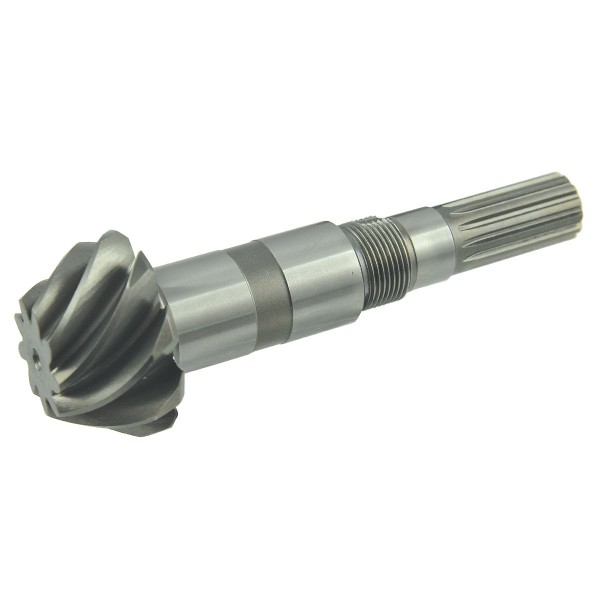

Roller dimensions :

  • total length: 158 mm,
  • helical gear diameter: 32 / 52 mm,
  • helical gear width: 30 mm,
  • cutter diameter: 20 mm (measured together with the cutter teeth), 16 mm (measured between the cutter teeth),
  • cutter working length: 35 mm,
  • thread: M24 x 1.5 mm,
  • thread length: 14 mm,
  • number of teeth: 9T / 14T,
  • original part numbers: TA020-12013,
  • reference numbers: 5-19-127-07 , 34070-12010, TA020-12010,
  • part numbers: 5-19-127-05.

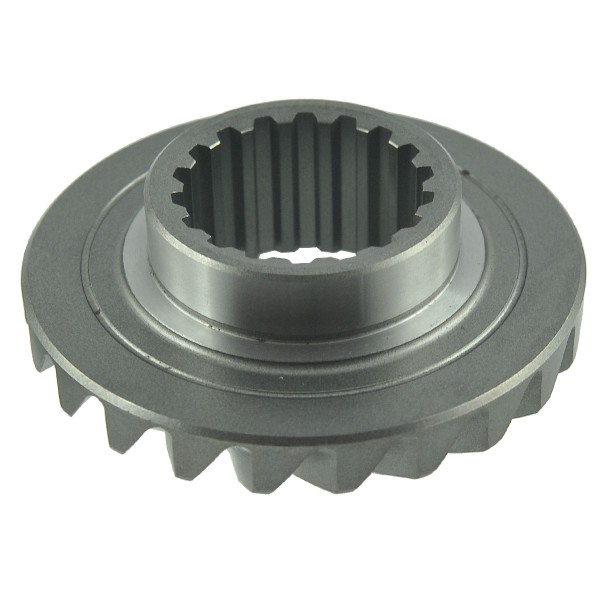

Dimensions of the crown wheel :

  • outer diameter: 108 mm,
  • inner diameter: 45 mm (measured together with the cutter teeth), 50 mm (measured between the cutter teeth),
  • height: 40 mm,
  • number of teeth: 18T (IN) / 23T (OUT),
  • original part numbers: TA020-12013,
  • reference numbers: 5-19-127-07 , TA020-12010, 34070-12010,
  • part numbers:5-19-127-05.

Tractor models :

Kubota :

  • Kubota GL23,
  • Kubota L2800,
  • Kubota L2808,
  • Kubota L2900,
  • Kubota L3300,
  • Kubota L3830,
  • Kubota L4508.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.

Warehouse:
 M01:A14:S01

Specification

Magazyn: M01:A14:S01
Condition
New
Production
Substitute
Parts
Engine
Tractor models
- Kubota L2800
- Kubota L2900
- Kubota L3300
- Kubota L3830
Kubota GL23
Kubota L2808
Kubota L4508
Number of teeth (pcs/T-teeth)
9T/14T(Shaft)
Height (mm)
40 (circle)
Outer diameter (mm)
108 (circle)
Inner Diameter (mm)
45 / 50
Overall length (mm)
158 (roller)
Diameter of Cutter(s) (mm)
16 / 20
Diameter of helical gear (mm)
32 / 52
Rack width (mm)
30
Thread
M24 x 1.5
Comparison numbers
5-19-127-07
34070-12010
TA020-12010
Original Part Number (OEM)
TA020-12013
