Sprocket / 13T/18T/32T / Kubota B1-15/B1500/B1502 / 67311-14630 / 42039

42039
zł399.00
Tax included PL 23% Dostępny na zamówienie

324,39 netto

  • To order

Do you have any questions?

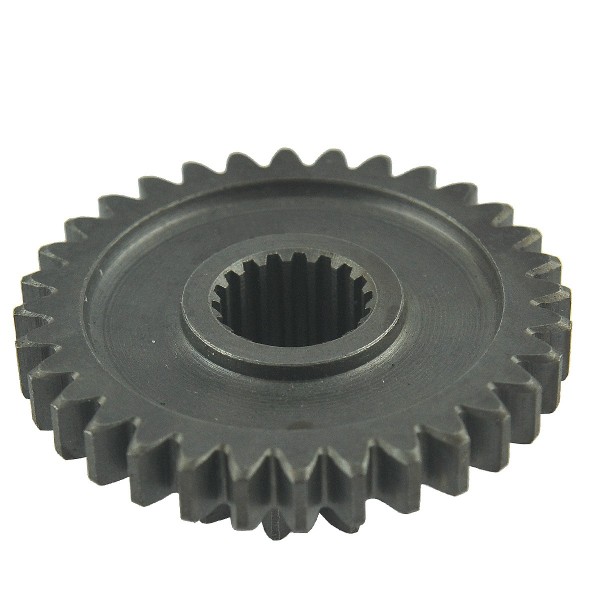

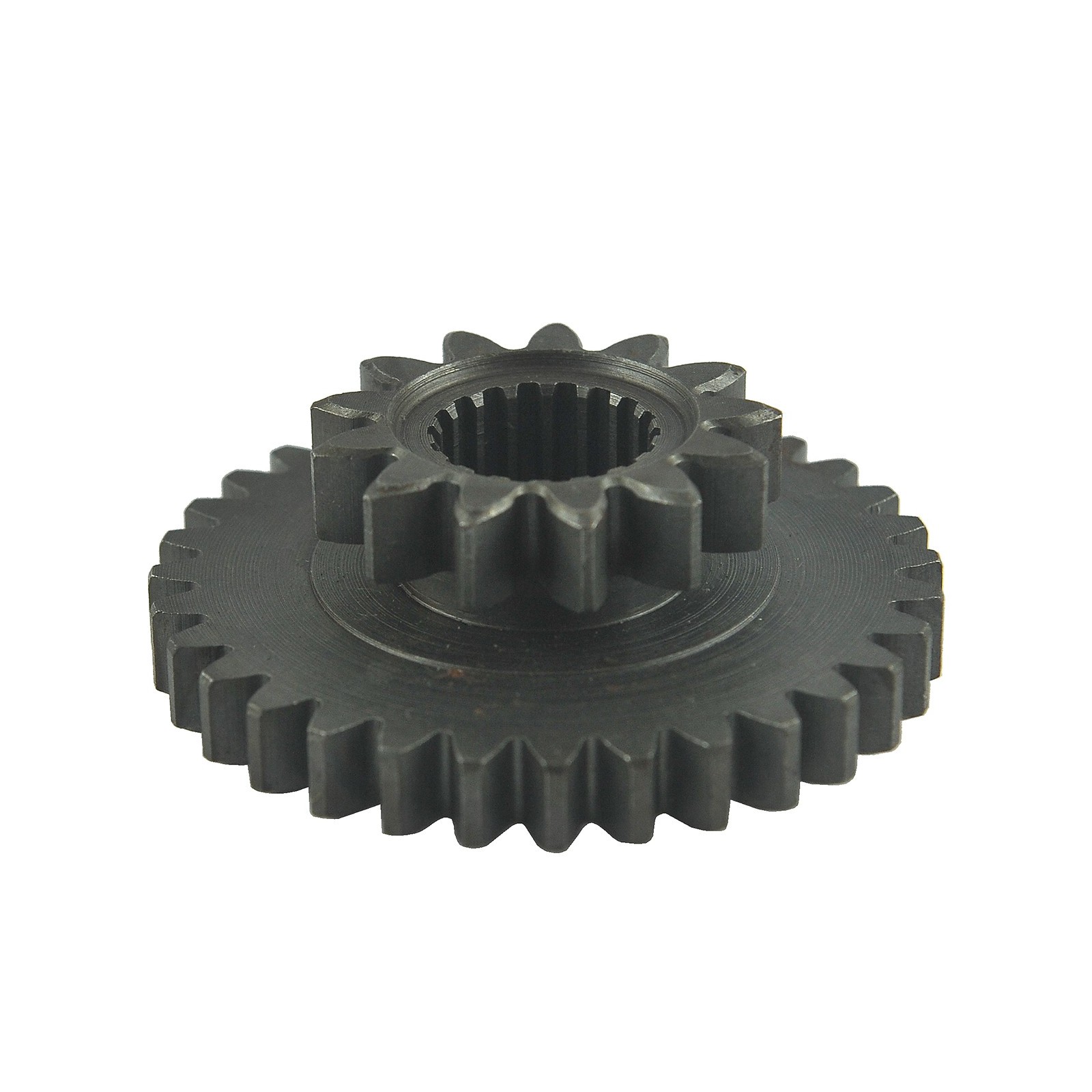

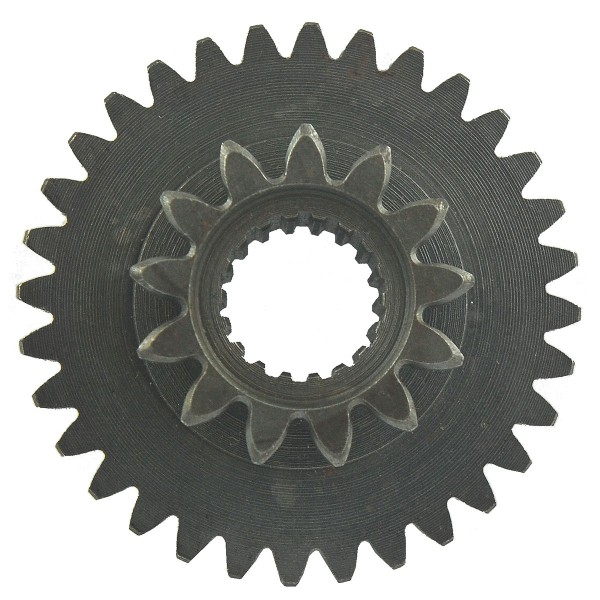

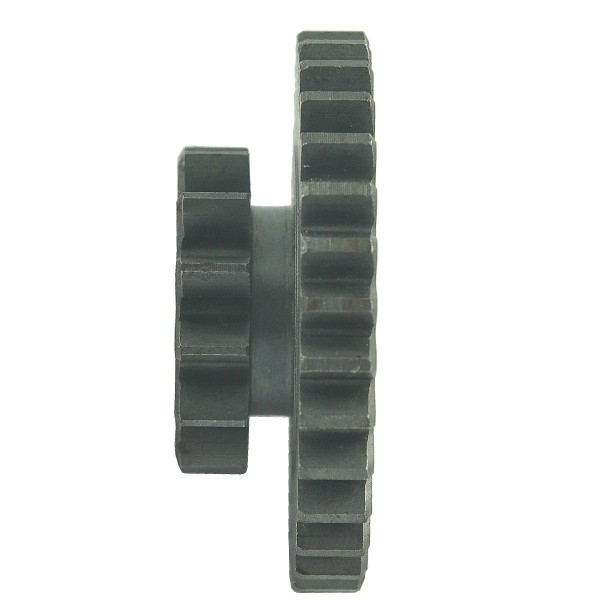

Sprocket / 13T/18T/32T / Kubota B1-15/B1500/B1502 / 67311-14630 / 42039

13T / 18T / 32T sprocket with external diameter 39.50 / 51 mm (13T), 75.50 / 86.75 mm (32T), internal diameter 22.50 / 25 mm and total height 29 mm for tractors of the following brands : Kubota B1-15, Kubota B1500, Kubota B1502 and others.

Dimensions :

  • outer diameter (13T): 39.50 mm (measured between the teeth), 51 mm (measured together with the teeth),
  • outer diameter (32T): 75.50 mm (measured between the teeth), 86.75 mm (measured together with the teeth),
  • inner diameter: 22.50 mm (measured together with the cutter), 25 mm (measured between the cutter teeth),
  • total height: 29 mm,
  • sprocket width (13T): 11 mm,
  • sprocket width (32T): 11 mm,
  • number of teeth: 13T / 18T / 32T,
  • original part numbers: 67311-14630,
  • part numbers: 42039.

Tractor models :

Kubota :

  • Kubota B1-15,
  • Kubota B1500,
  • Kubota B1502.

Warehouse :
M01:D53

Specification

Magazyn: M01:D53
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Kubota B1-15 Bulltra
Kubota B1500
Kubota B1502
Number of teeth (pcs/T-teeth)
13T / 18T / 32T
Height (mm)
29
Outer diameter (mm)
39.50 / 51 (13T)
75.50 / 86.75 (32T)
Inner Diameter (mm)
22.50 / 25
Rack width (mm)
11 (13T)
11 (32T)
Original Part Number (OEM)
67311-14630
Part number
42039
