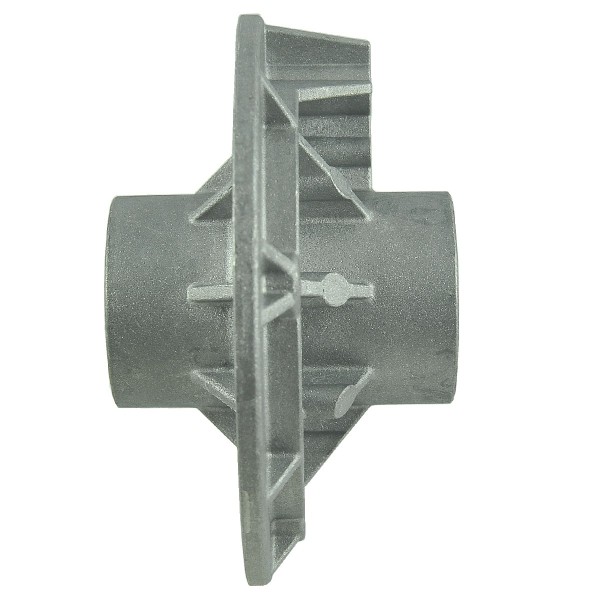

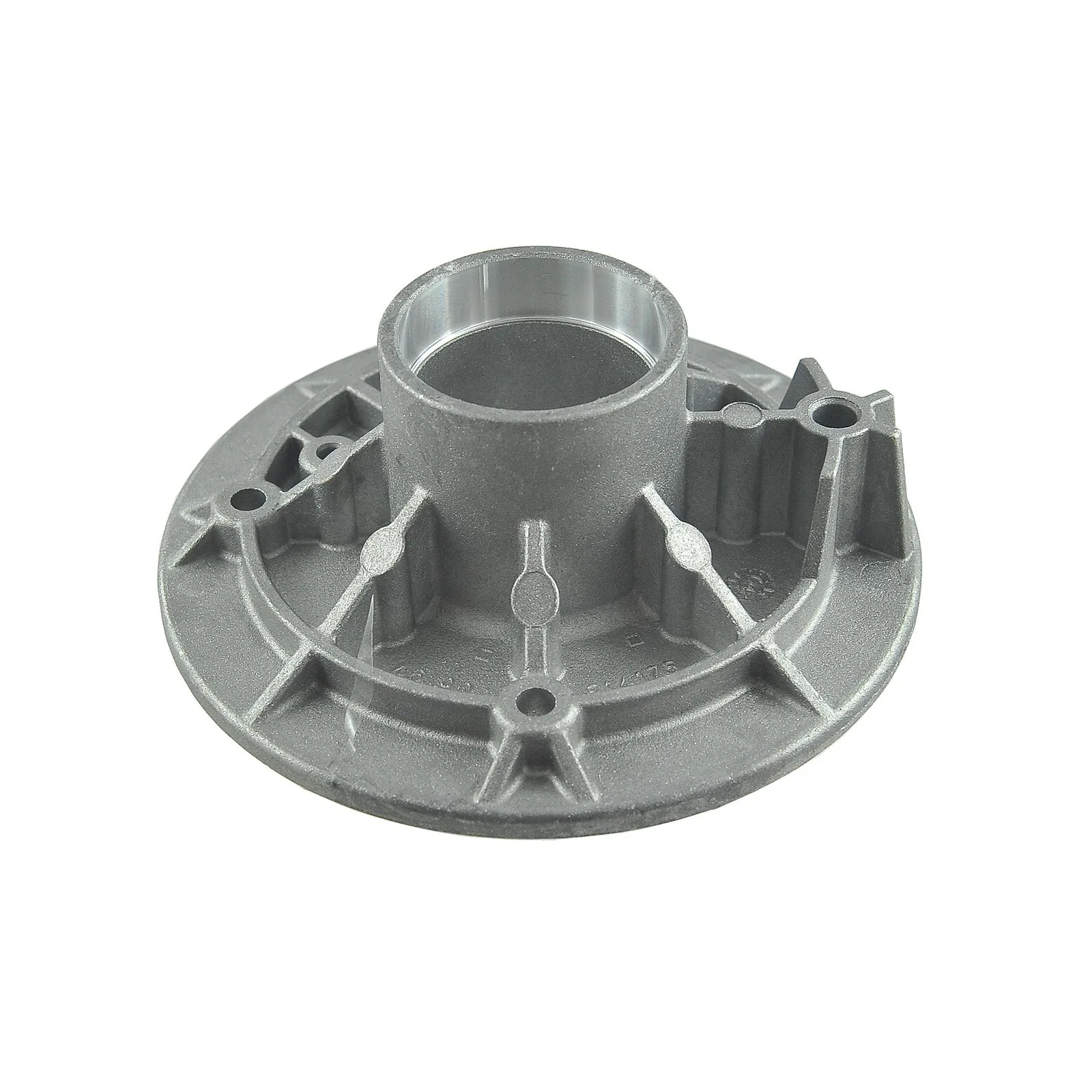

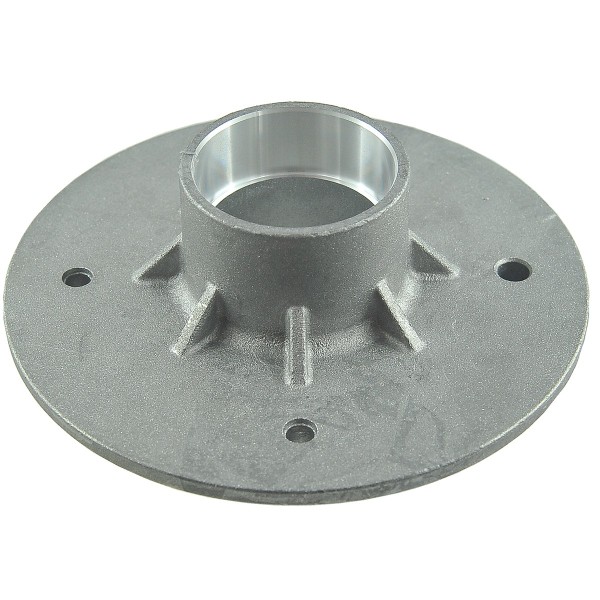

AL-KO hub shaft bearing housing T13-102 / T17-102 HD / T20-102 HD / T23-125.6 HD V2 / T850 / 514175

Blade hub, bearing construction of the hub shaft (bearing 476634) with an inner diameter of 52 mm , outer diameter of 159 mm , height of 95 mm for AL-KO lawn tractors of the AL-KO T13-102, AL-KO T17-102 HD, AL-KO T20-102 HD, AL-KO T23-125.6 HD V2, AL-KO T850 series and others

The blade hub is a key element in the design of mowers, which enables the correct attachment of the cutting blade. Their main function is to ensure the stability of the blade during operation, which is important for mowing efficiency and user safety. Depending on the mower model, the hubs may have different shapes and attachment mechanisms, but their basic task remains the same. It is important to regularly check the condition of the blade hubs, as their wear or damage can lead to improper operation of the mower, and in extreme cases to dangerous situations. Proper maintenance and replacement of these elements are crucial for the longevity of the device and user safety.

Dimensions :

• height: 95 mm,
• inner diameter: 52 mm,
• outer diameter: 159 mm,
• mounting screw hole spacing: 84 mm (measured from each other), 118.50 mm (measured diagonally),
• reference numbers: 6170-702-6910-A,
• part numbers: 514175.

Lawnmower models :

AL-KO :

• AL-KO T13-102,
• AL-KO T17-102 HD,
• AL-KO T20-102 HD,
• AL-KO T23-125.6 HD V2,
• AL-KO T850.

Warehouse :
K18:E13:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
