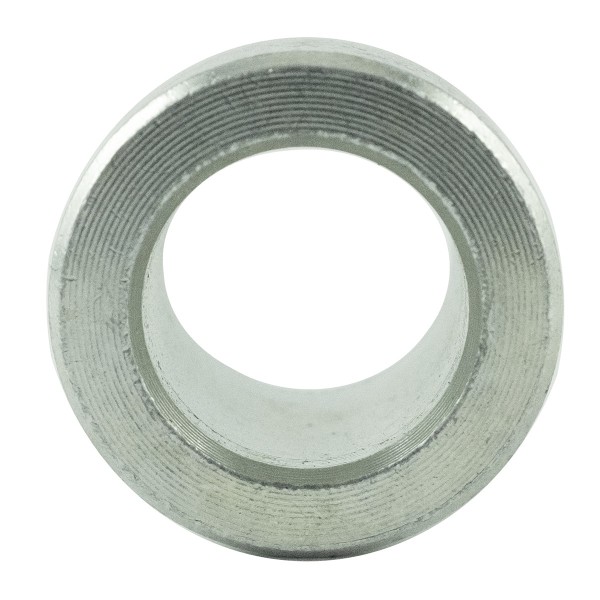

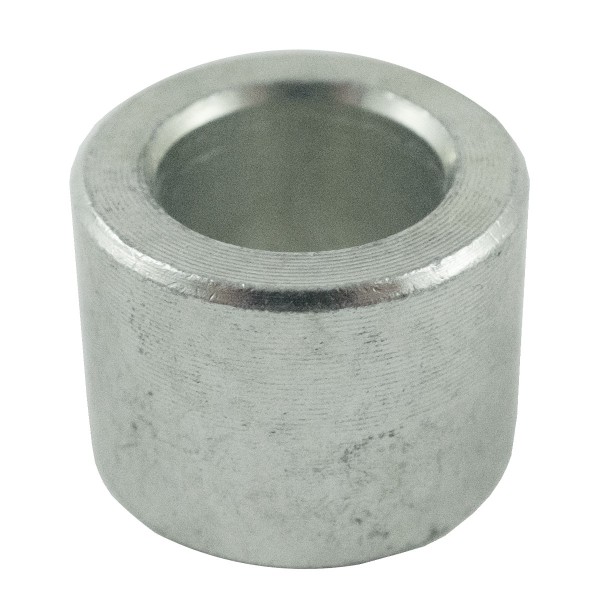

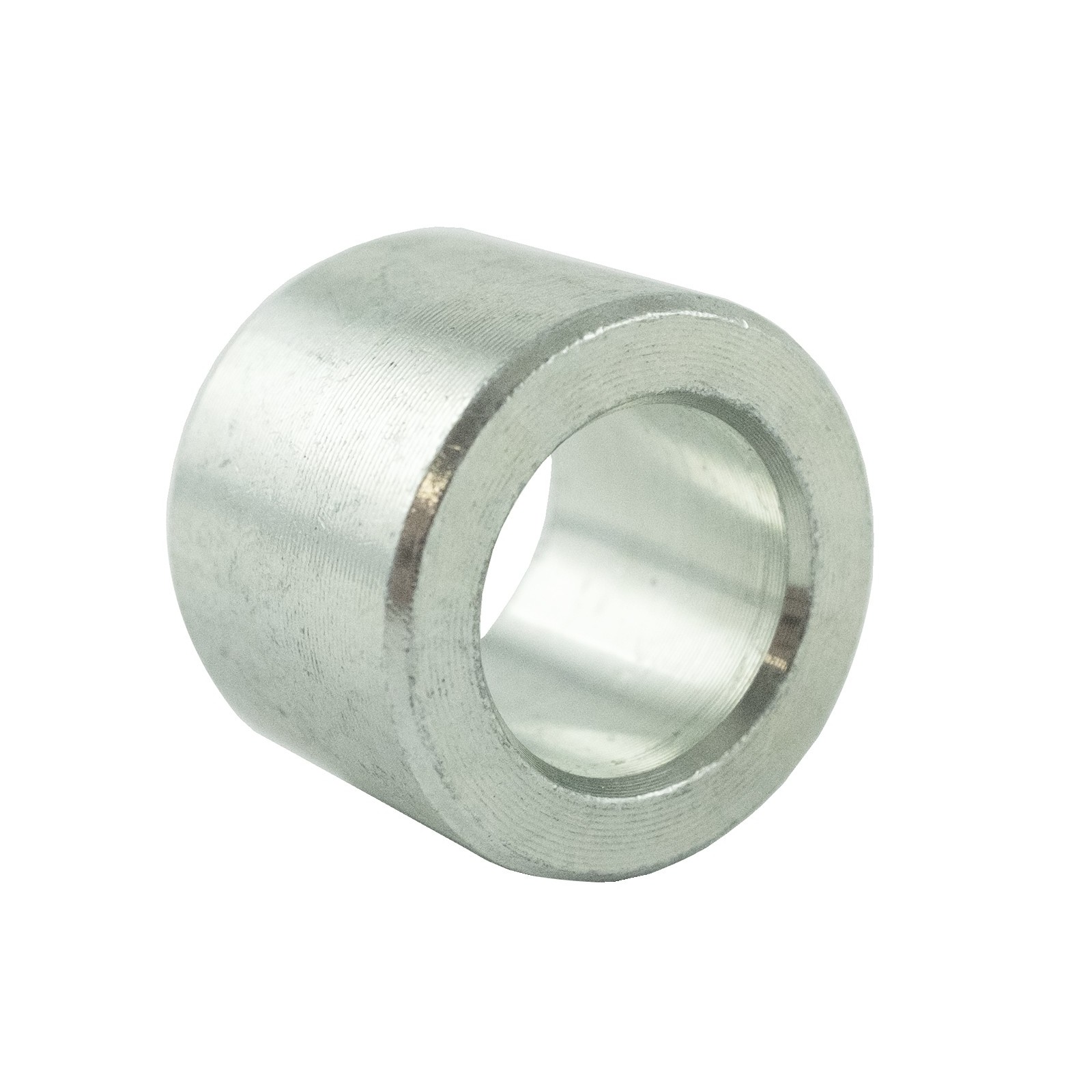

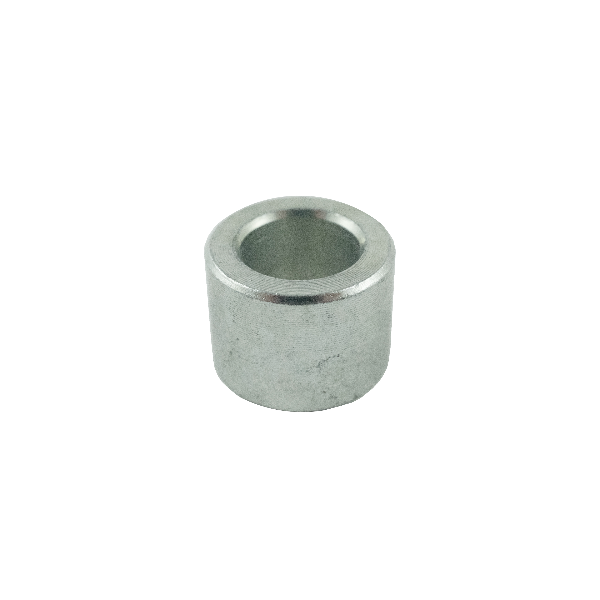

Bushing M12 / 15 mm / Y-type knives of the EF / EFG / VF / EF flail mower

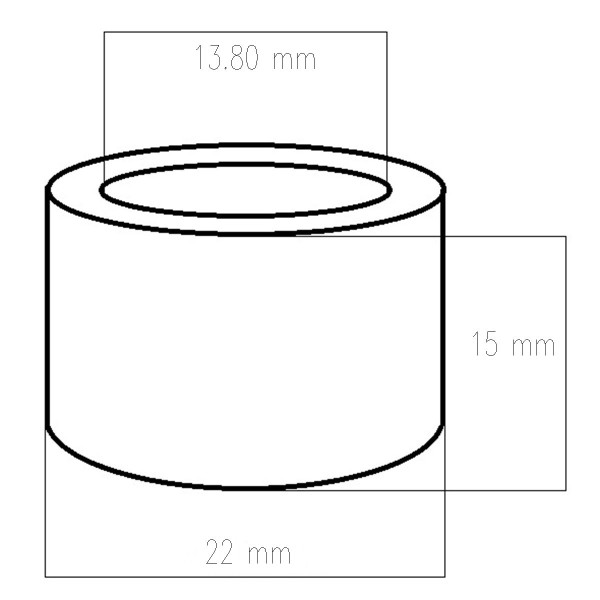

Dimensions :

• width / height (mm): 15,
• Inner diameter (mm): 13.80,
• Outer diameter (mm): 22,

To properly install one set of Y-type knives, we need two distance sleeves, which we put between the knife holder on the cutting shaft and the knives. The entire set of Y-type knives consists of:

• screw M12 x 80 ,
• nut M12 x 2.00 ,
• 2 x Y / X knife ,
• see what the whole set of Y / X knives looks like.

In flail mowers, the cutting element are hammers , the so-called flails , which can be replaced with hammer knives , which resemble an inverted letter Y. Y-type knives are interchangeable with flails and for proper installation you need distance sleeves that keep the knives in one position and do not allow for controlled movement.

Models of mowers in which we install Y knives with M12 sleeves:

• EF 4FARMER flail mower all sizes,
• EFN Geograss flail mower all sizes
• EFN TRX flail mower all sizes,
• EFG GEOGRASS flail mower all sizes,
• EFG TRX flail mower all sizes,
• Flail mower VF / EF SANKO all sizes,
• and others,
