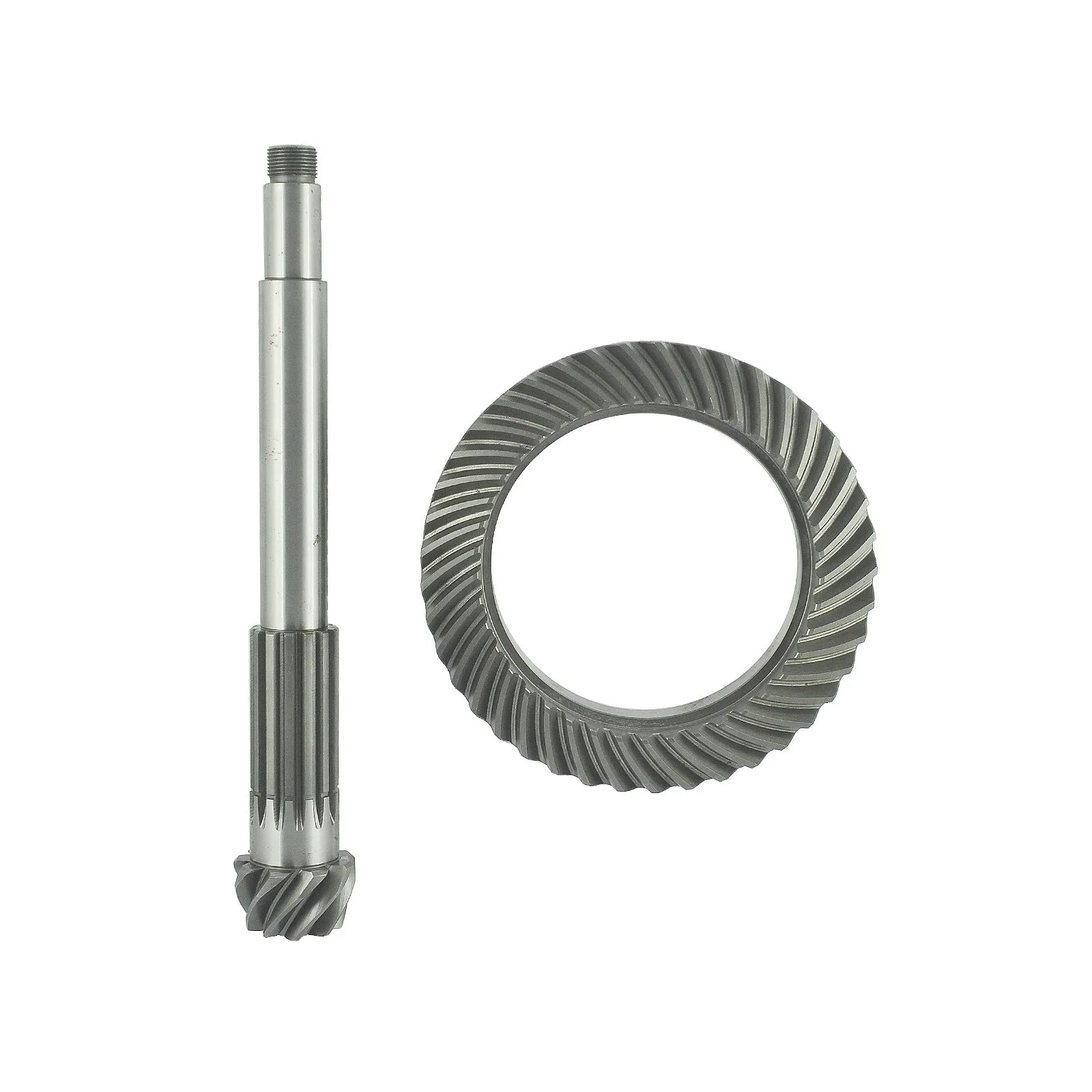

Crown wheel 41T/206 mm + drive shaft 9T/344 mm / Kubota L240 / 5-19-104-06

Crown wheel 41T + drive shaft 9T front axle drive for Kubota tractors, Kubota L240 series and others.

The crown wheel with the drive shaft is an element of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transmitting the drive, the drive shaft + crown wheel increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

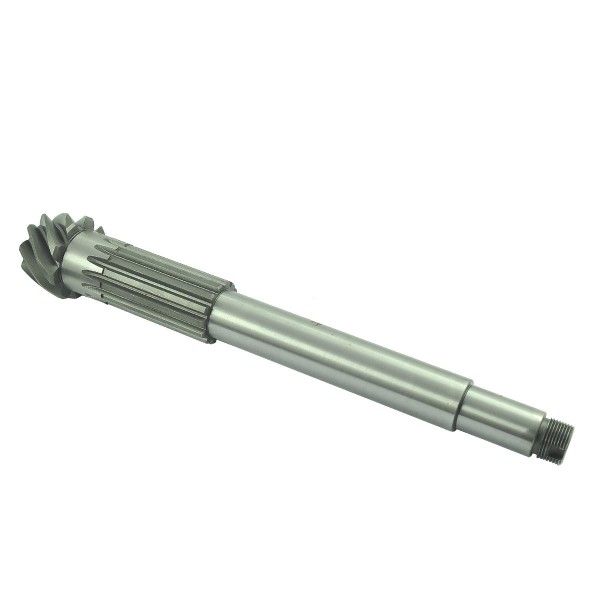

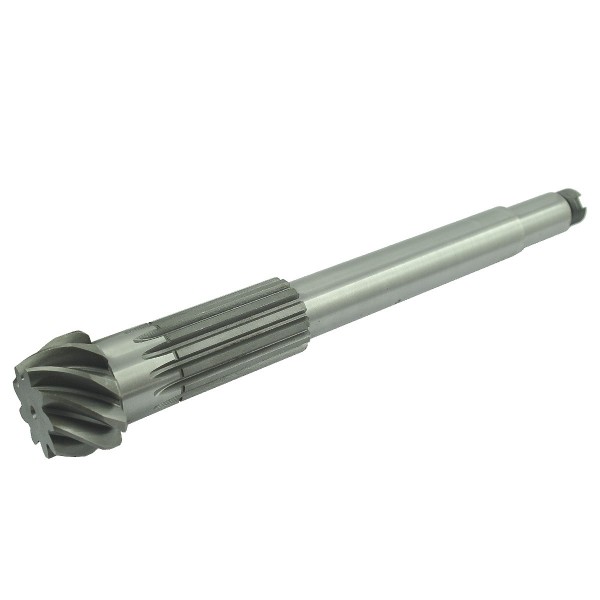

Shaft dimensions :

• total length: 344 mm,
• helical gear diameter: 43 / 54 mm,
• helical rack length: 41 mm,
• cutter diameter: 39 mm (measured with teeth), 32.50 mm (measured between teeth),
• cutter working length: 71 mm,
• thread: M22 x 1.5 mm,
• thread length: 12 mm,
• number of teeth: 9T / 14T,
• part numbers: 5-19-104-06

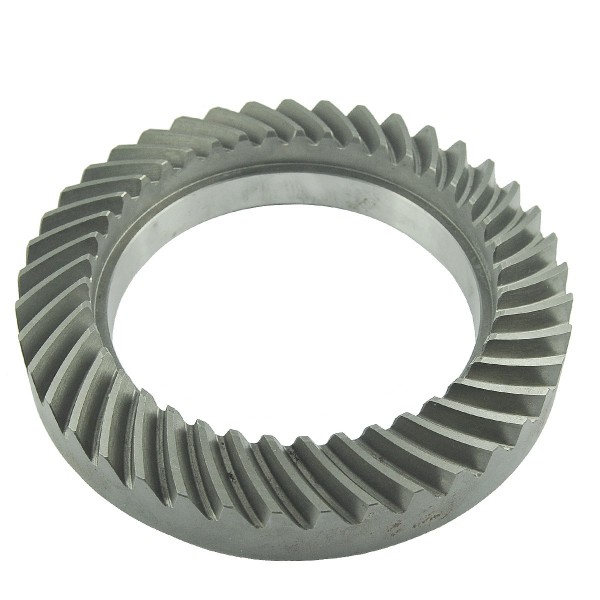

Ring wheel dimensions :

• outer diameter: 206 mm,
• inner diameter: 138 mm,
• height: 37mm,

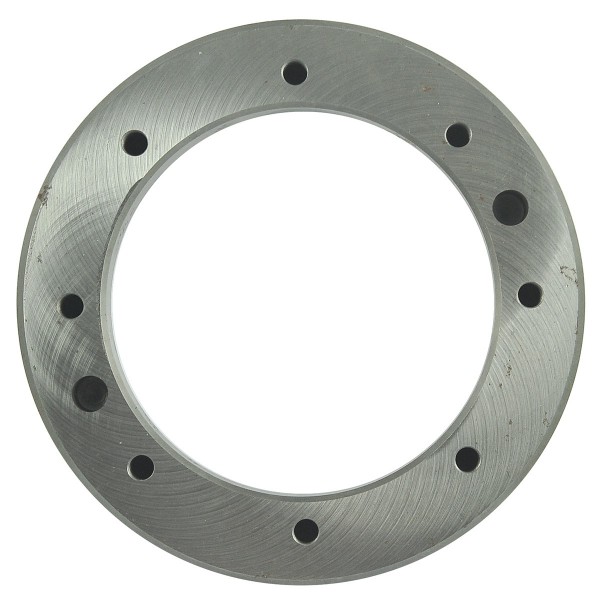

• spacing of mounting screw holes: 165 mm (measured diagonally), 62.50 mm (measured apart),
• number of teeth: 41T,
• part numbers: 5-19-104-06.

Tractor models :

Kubota :

• Kubota L240.

The first signs of damage to the drive unit, ring gear or pinion shaft are the observation of play in the final drive, or a clear clatter when starting and increased noise level during operation.
