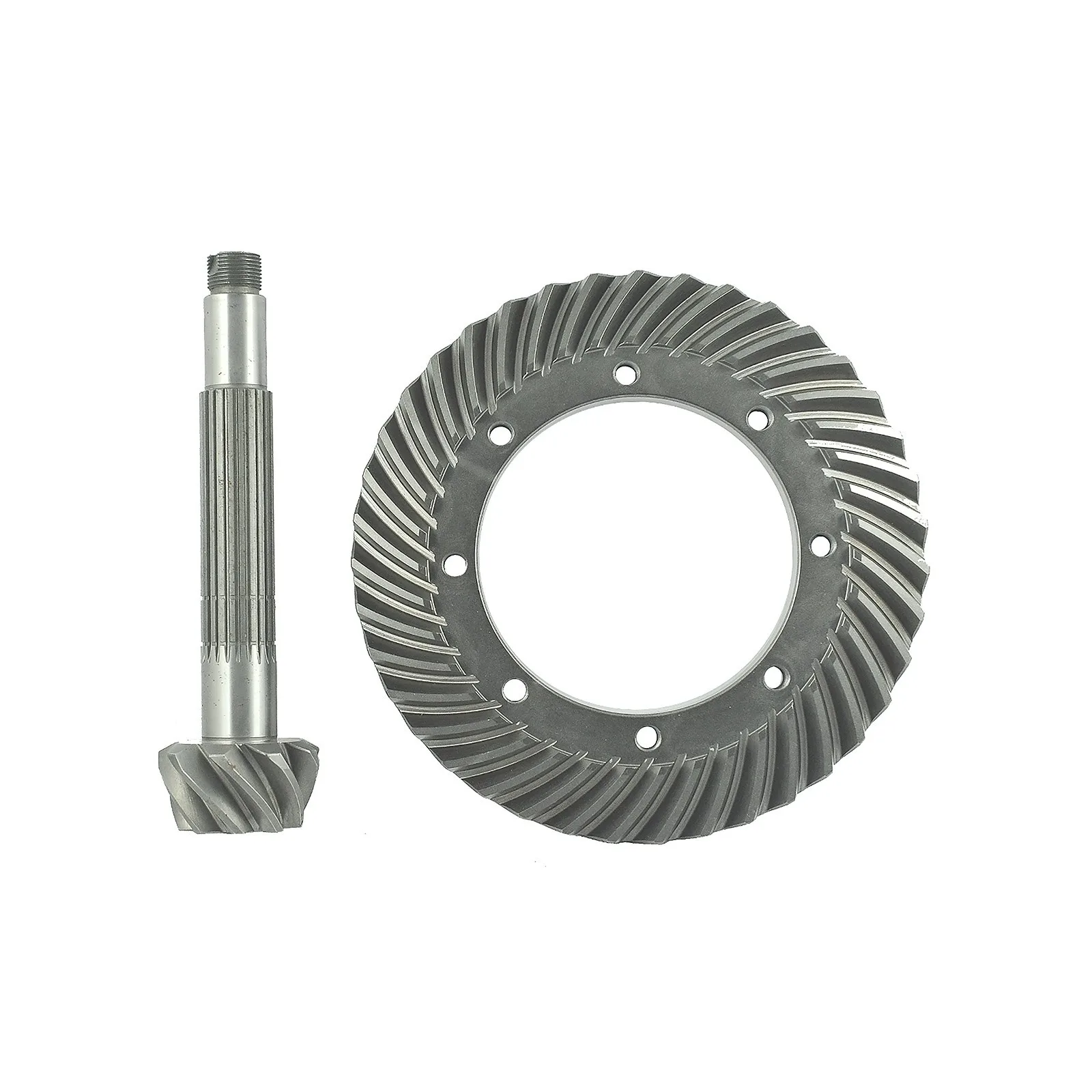

Crown wheel 39T/225 mm + pinion shaft 9T/22T/228 mm / Kubota L1500/L2201/L2601/L3001 / 34160-4321-1 / 5-19-104-05

5-19-104-05
zł1,999.00
Tax included PL 23%

1625,2 netto

  • To order
wishlist

Do you have any questions?

Crown wheel 39T/225 mm + pinion shaft 9T/22T/228 mm / Kubota L1500/L2201/L2601/L3001 / 34160-4321-1 / 5-19-104-05

Crown wheel with an outer diameter of 225 mm + drive shaft with a total length of 228 mm for Kubota tractors of the Kubota L1500, Kubota L2201, Kubota L2601, Kubota L3001 series and others.

The crown wheel with the drive shaft is an element of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transmitting the drive , the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

Shaft dimensions :

  • total length: 228 mm,
  • helical gear diameter: 48 / 63 mm,
  • helical rack length: 34 mm,
  • cutter diameter: 29.50 mm (measured with cutter teeth), 27.50 mm (measured between teeth),
  • cutter working length: 16 / 80 mm,
  • thread: M22 x 1.5 mm,
  • thread length: 13 mm,
  • number of teeth: 9T / 22T.

Ring wheel dimensions :

  • outer diameter: 225 mm,
  • inner diameter: 125 mm,
  • height: 22.50mm,
  • spacing of mounting screw holes: 144 mm (measured diagonally), 55 mm (measured apart),
  • number of teeth: 39T.

Tractor models :

Kubota :

  • Kubota L1500,
  • Kubota L2201,
  • Kubota L2601,
  • Kubota L3001.

The first signs of damage to the drive unit, ring gear or pinion shaft are the observation of play in the final drive, or a clear clatter when starting and increased noise level during operation.

Warehouse :
M01:A46

Specification

Magazyn: M01:A46
Condition
New
Production
Substitute
Parts
Drive
Tractor models
- Kubota L2201
- Kubota L2601
- Kubota L3001
Kubota L1800
Number of teeth (pcs/T-teeth)
9T/22T (Shaft)
39T (wheel)
Outer diameter (mm)
225 (wheel)
Inner Diameter (mm)
125 (wheel)
Overall length (mm)
228
Thread(s) length (mm)
13
Cutter(s) length (mm)
16 / 80
Diameter of Cutter(s) (mm)
27.50 / 29.50 (roll)
Diameter of helical gear (mm)
48 / 63
Bolt hole spacing (mm)
55 / 144
Thread
M22x1,5
