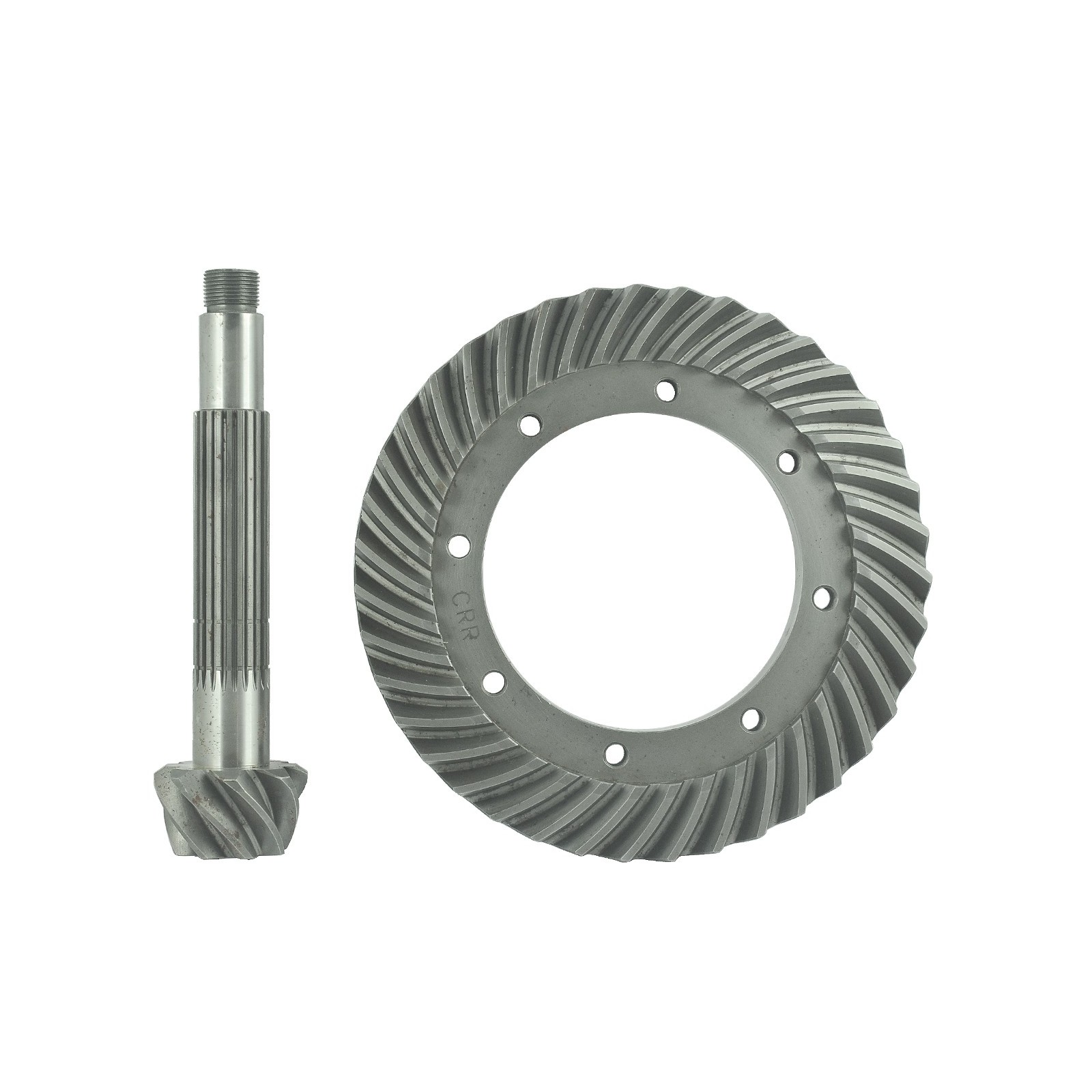

Disc wheel 39T/225 mm + drive roller 8T/128 mm / Kubota L2202 / 5-19-104-04

39T disc wheel + 9T input shaft of the front axle drive for Kubota tractors of the Kubota L2202 series and others.

The disc wheel with an attack shaft is an element of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transmitting the drive , the shaft + disc wheel drive assembly increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

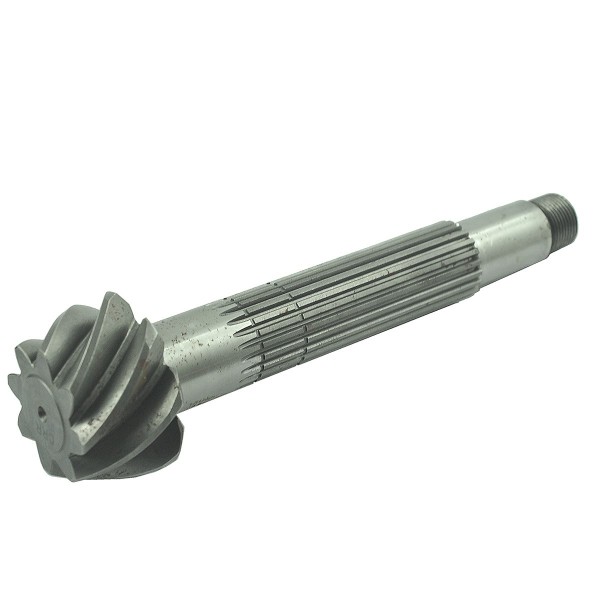

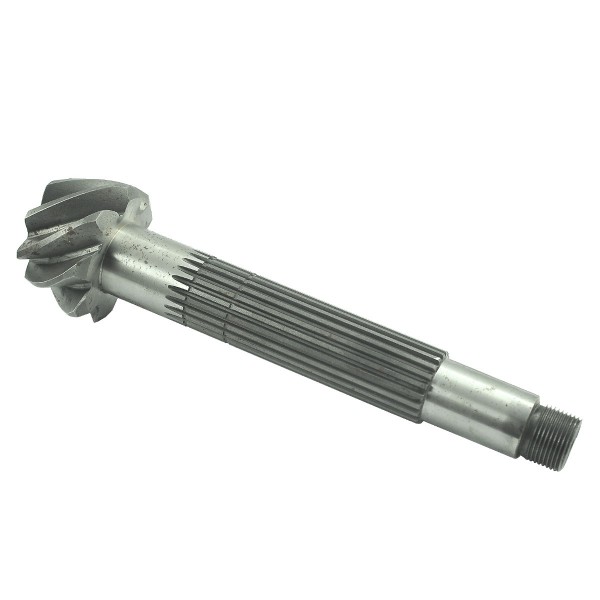

Roller dimensions :

• total length: 128 mm,
• helical gear diameter: 45 / 59 mm,
• helical sprocket width: 33.50 mm,
• cutter diameter: 29.50 mm (measured with teeth), 27.50 mm (measured between teeth),
• working length of the cutter: 97 mm,
• thread: M22 x 1.5 mm,
• thread length: 14 mm,
• number of teeth: 6T / 22T,
• part numbers: 5-19-104-04.

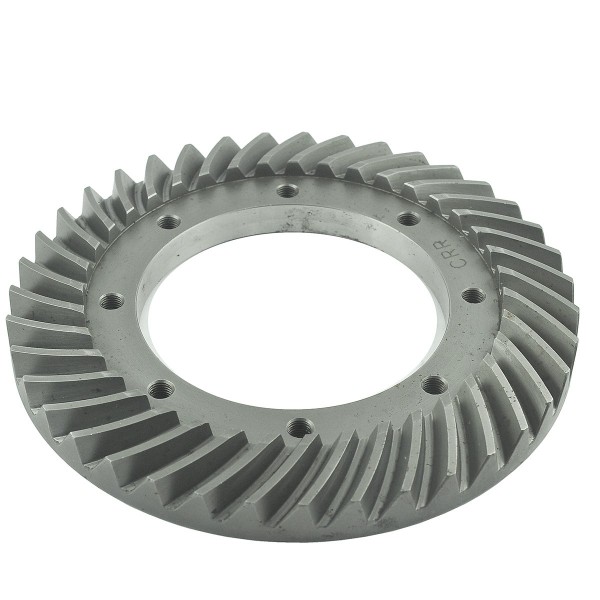

Plate wheel dimensions :

• outer diameter: 225 mm,
• inner diameter: 125 mm,
• height: 25 mm,
• spacing of holes for mounting screws: 145 mm (measured diagonally), 55 mm (measured from each other),
• number of teeth: 39T,
• part numbers: 5-19-104-04.

Tractor models :

Kubota :

• Kubota L2202.

The first signs of damage to the drive unit, crown wheel or input shaft are the observation of play in the main gear, or a noticeable knocking noise when starting and an increased noise level during operation.
