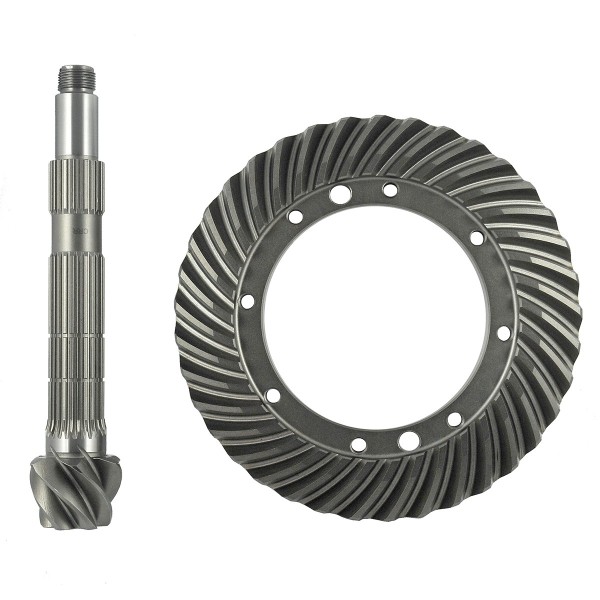

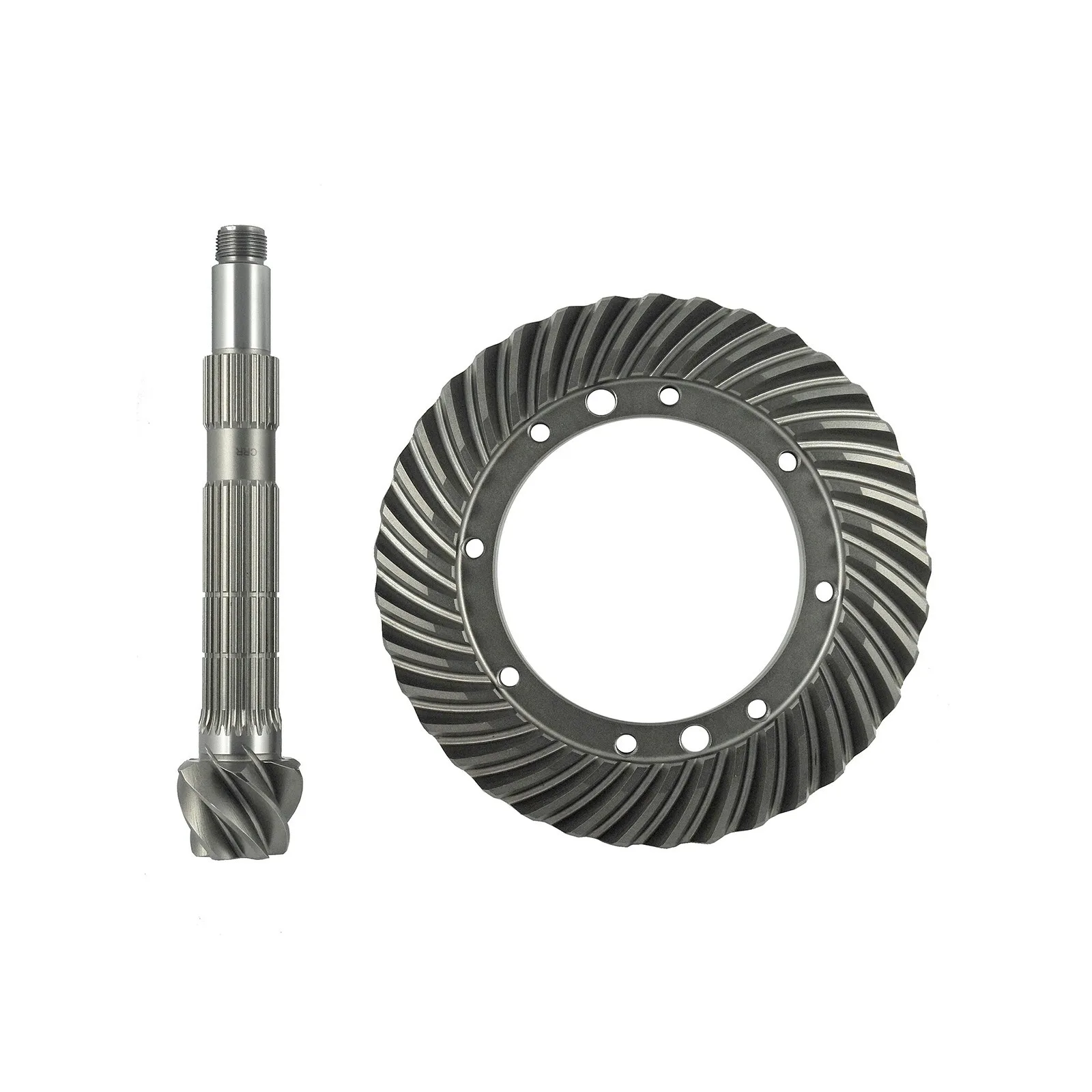

Crown wheel 37T + drive shaft 6T/24T / Kubota L4708 / 5-19-104-08

Crown wheel with pinion shaft of the rear axle drive for Kubota tractors of the Kubota L4708 series and others.

The crown wheel with the pinion is a part of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transferring the drive, the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

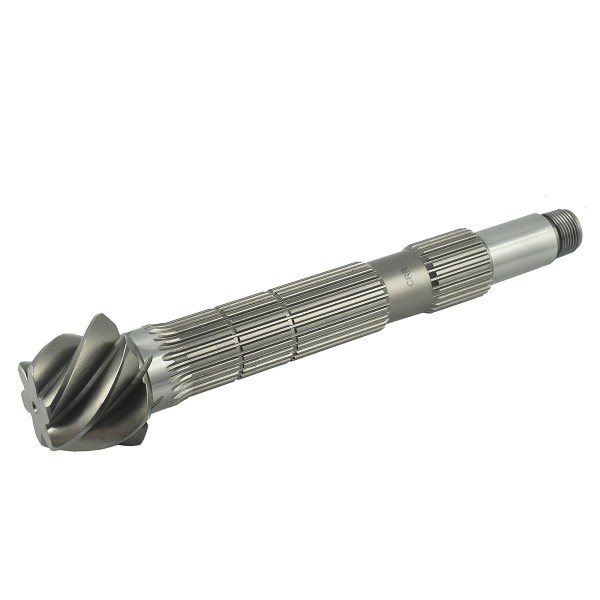

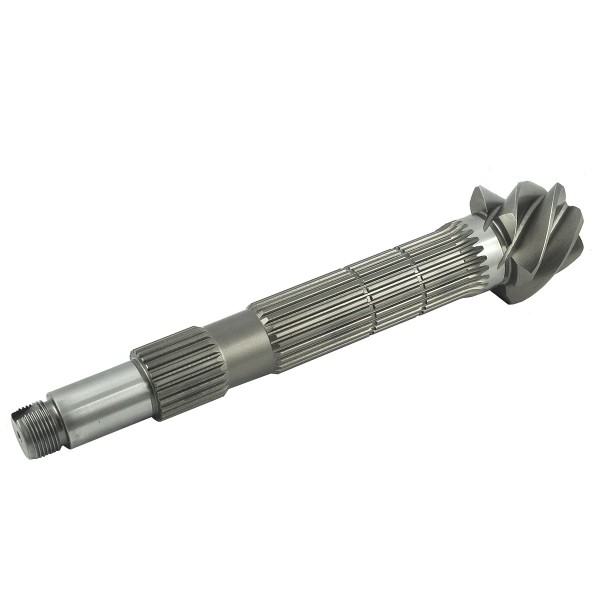

Roller dimensions :

• total length: 268 mm,
• helical gear diameter: 39 / 56 mm,
• helical gear length: 40 mm,
• cutter diameter: 32.50 mm (measured with teeth), 31.50 mm (measured between teeth),
• cutter working length: 27 / 92 mm,
• thread: M22 x 1.5 mm,
• thread length: 10 mm,
• number of teeth: 6T / 24T,
• original part numbers: TC432-99340.

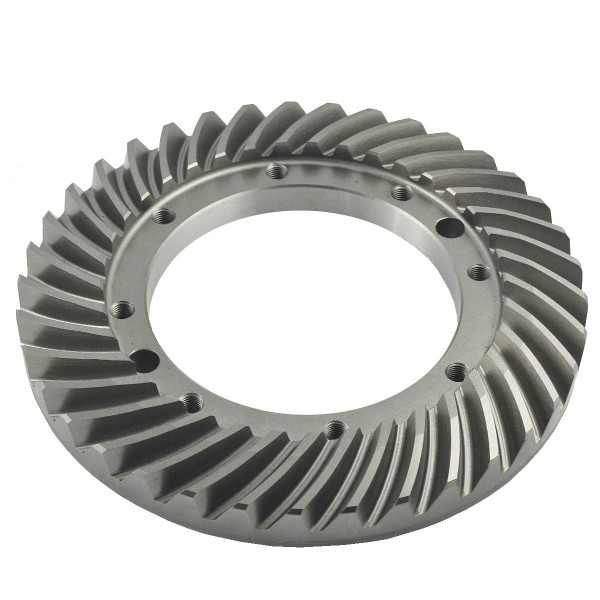

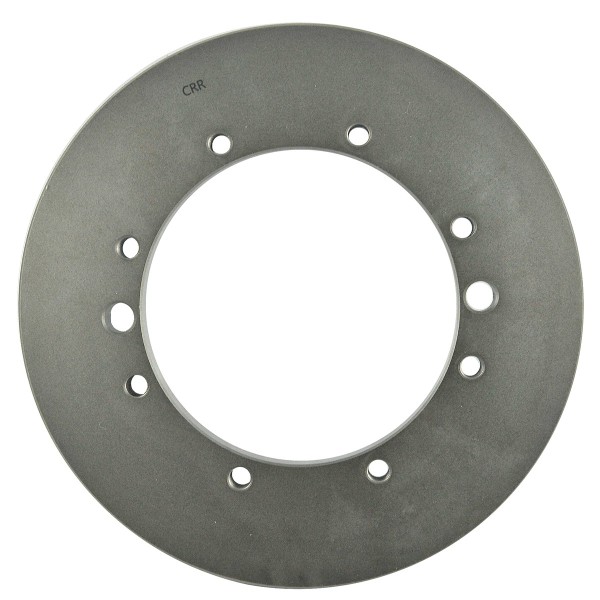

Dimensions of the crown wheel :

• outer diameter: 237 mm,
• inner diameter: 132 mm,
• height: 26.50 mm,
• mounting screw hole spacing: 153 mm (measured diagonally), 57 mm (measured apart),
• number of teeth: 37T,
• original part numbers: TC432-99340.

Tractor models :

Kubota :

• Kubota L4708.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.
