Tachometer cable 1220 mm - Kubota L4600/L4708
5-25-123-20
Do you have any questions?

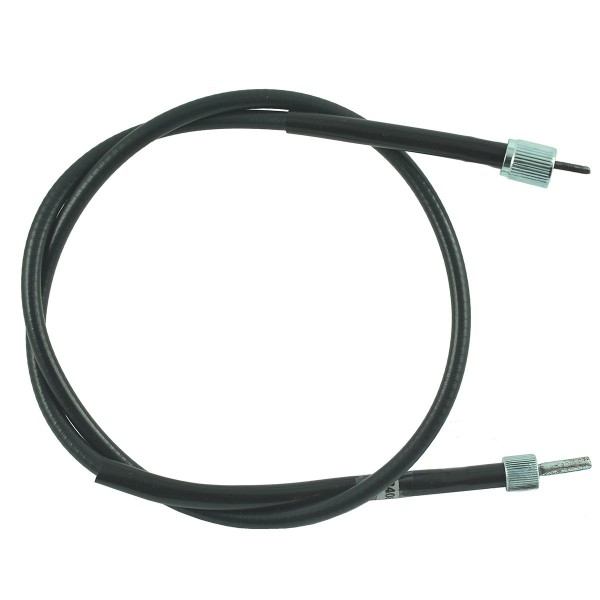

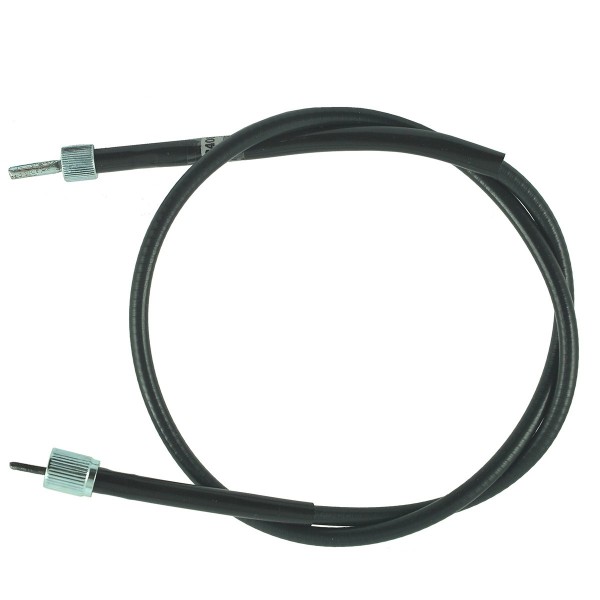

Tachometer cable 1220 mm - Kubota L4600/L4708
Counter cable with a total length of 1220 mm with a "cut" end for Kubota tractors of the Kubota L4600, Kubota L4708 series and others.
The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.
Dimensions:
- total length: 1220 mm,
- rope length: 1220 mm,
- armour length with rivets: 1200 mm,
- armor diameter: 7 mm,
- rope diameter: 3.00 mm,

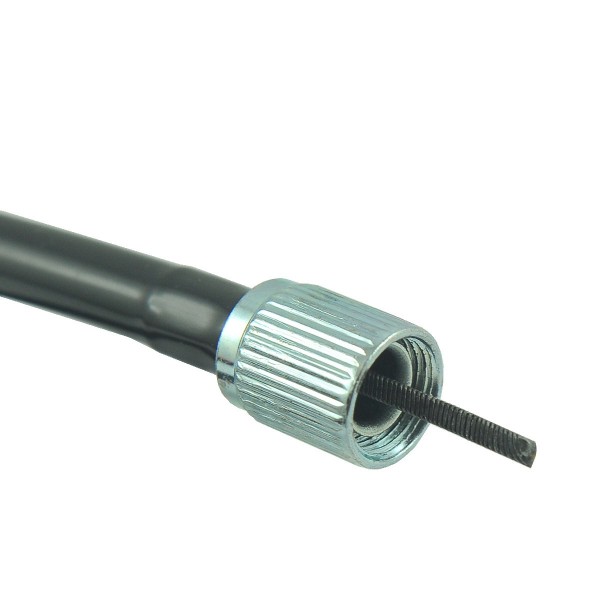

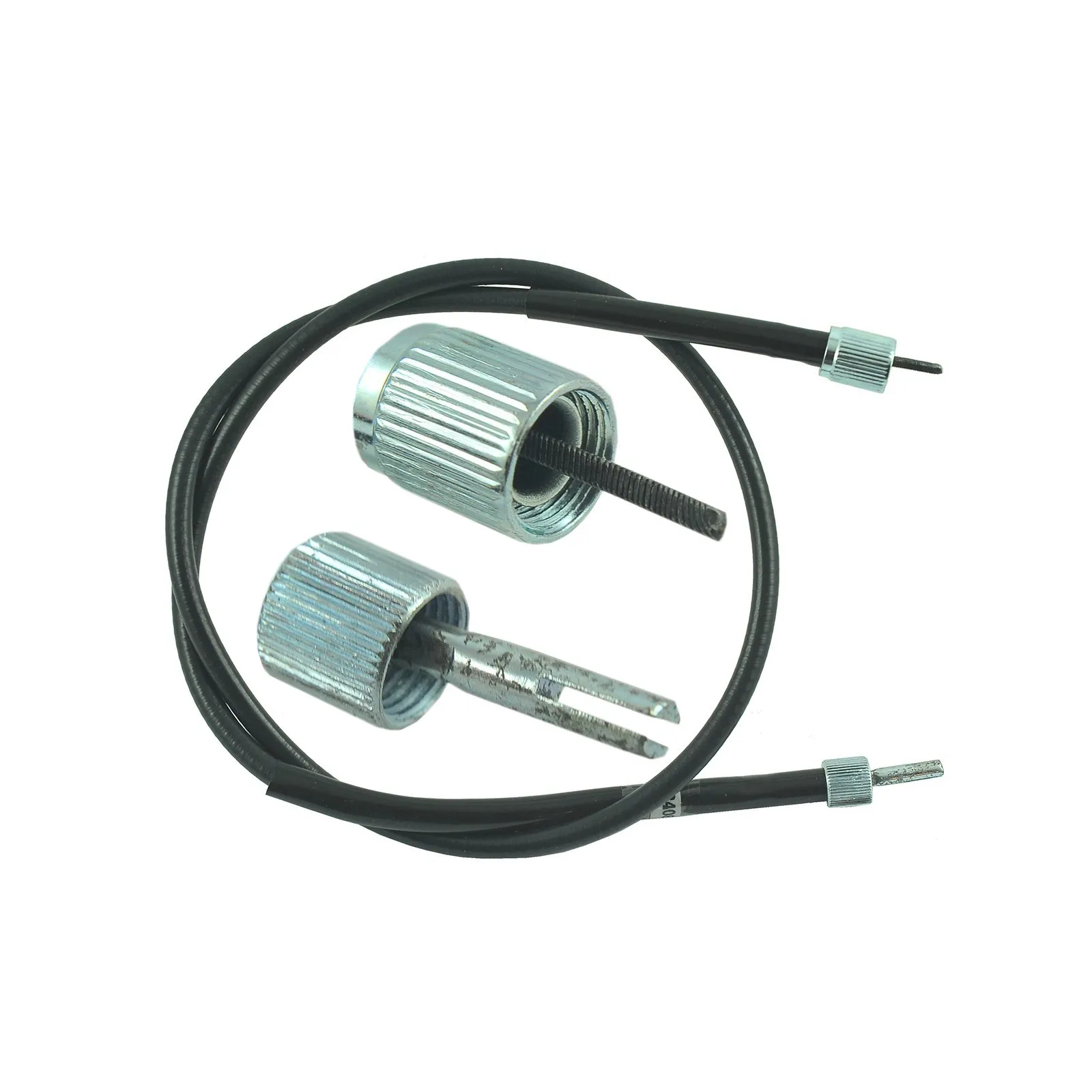

- cylindrical tip diameter: 4.50 mm,

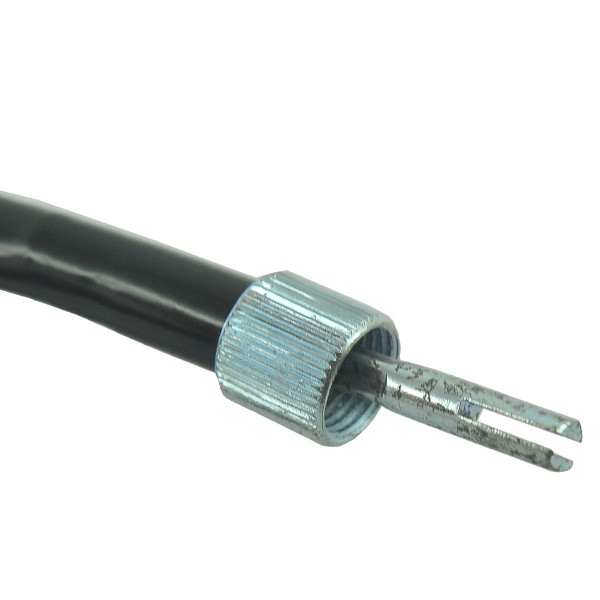

- square tip: 2.50 x 2.50 mm,
- thread: M11 / M12,
- original part numbers: TC432-34650,
- comparison numbers: -,
- part numbers: 5-25-123-20.
Tractor models :
Kubota :
- Kubota L4600,
- Kubota L4708.
The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.
Warehouse:
M01:A35:S02
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
