Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Kubota M5040
Kubota M5640
Kubota M7040
Kubota M7060
Number of teeth (pcs/T-teeth)
11T
24T
Height (mm)
44.50
Outer diameter (mm)
72
Go to full specification >

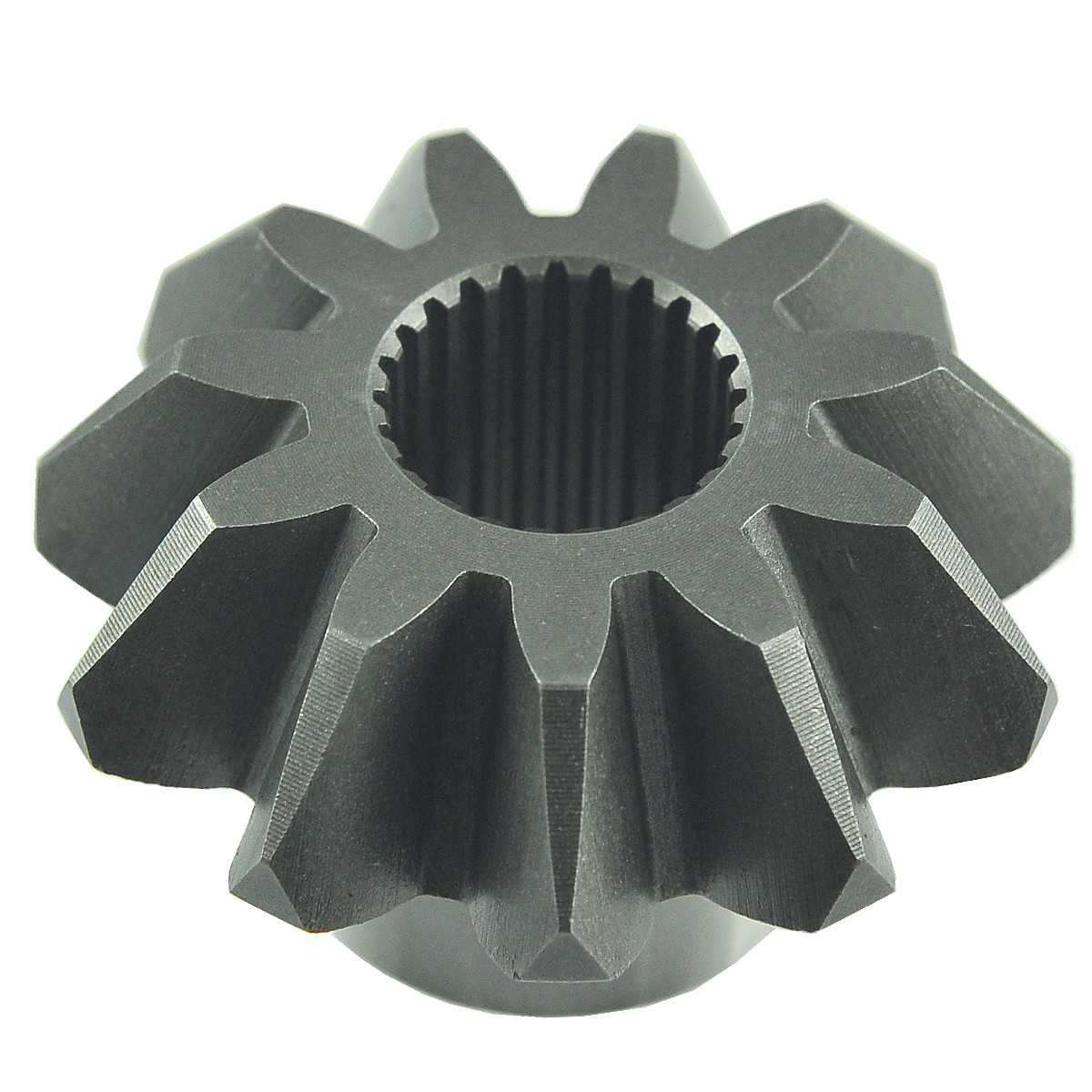

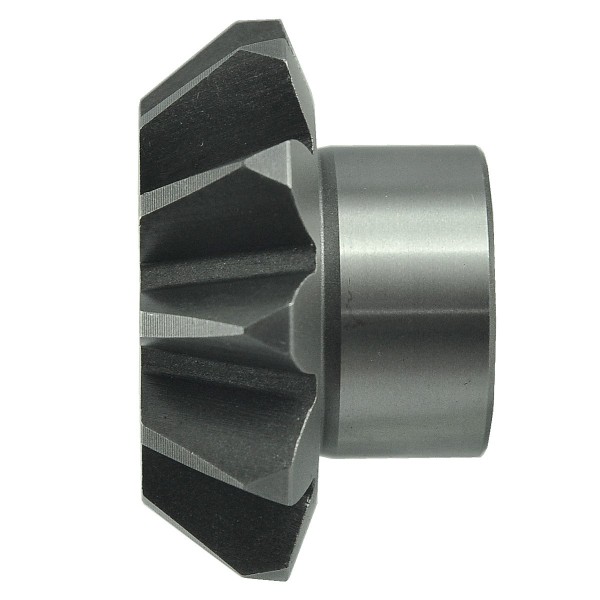

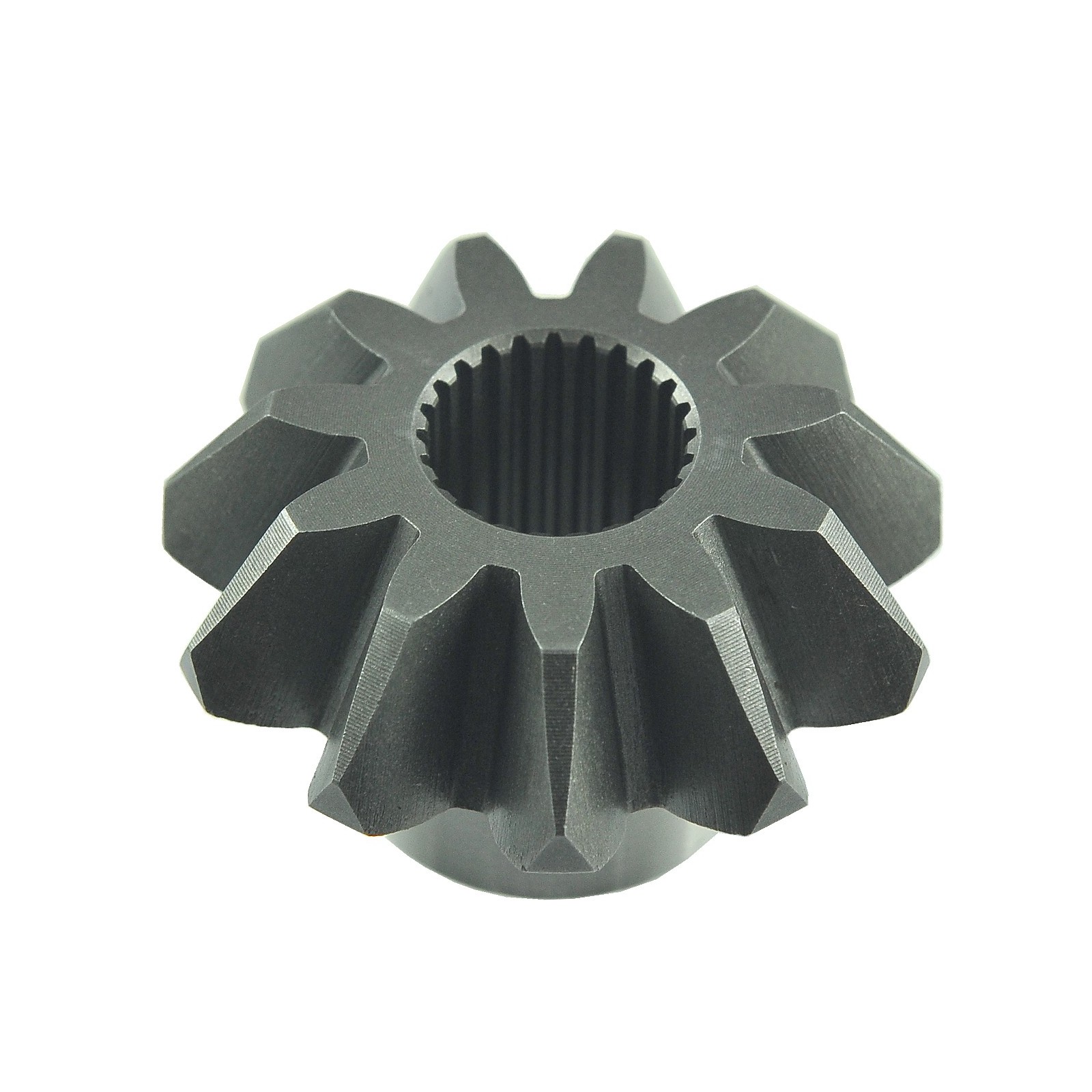

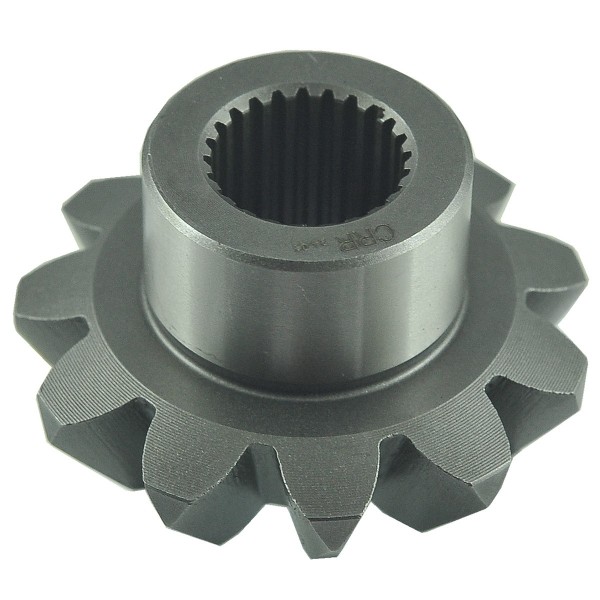

Sprocket / 11T / 24T / Kubota M5040 / M6040 / M7040 / M7060 / M8540 / 5-19-133-09

5-19-133-09
zł400.00
Tax included PL 23%

325,2 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

Sprocket / 11T / 24T / Kubota M5040 / M6040 / M7040 / M7060 / M8540 / 5-19-133-09

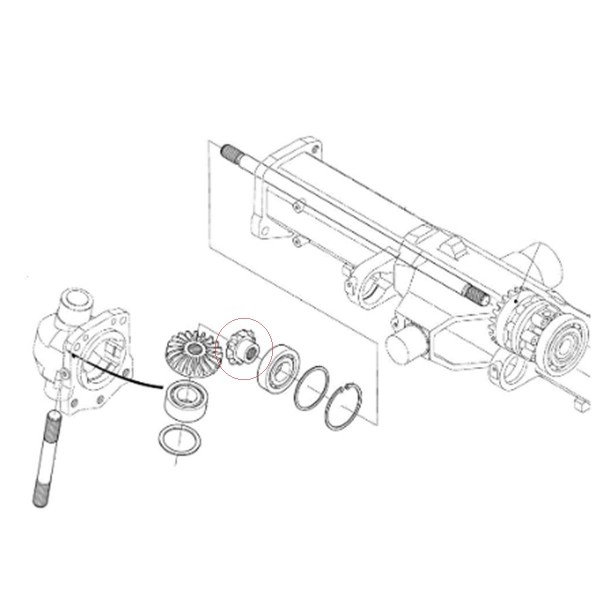

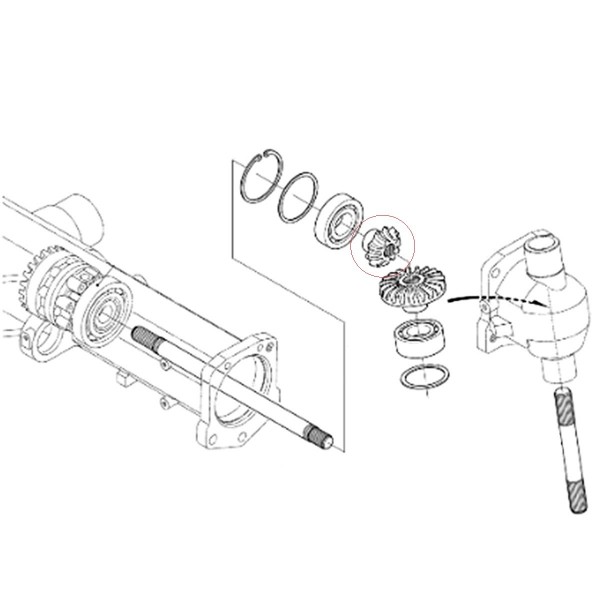

Drive sprocket (lower sprocket 5-19-131-24 , 3C011-43422, shaft RH 5-18-114-21, 3C011-43210, shaft LH 5-18-114-20, 3C011-43220) front wheel 11T (OUT) / 24T (IN) () front wheel drive (RH / LH) with an outer diameter of 72 mm , an inner diameter of 25 mm (measured between the teeth of the cutter), 22.50 mm (measured together with the cutter) and a total height of 44.50 mm for Kubota tractors of the Kubota M5040, Kubota M6040, Kubota M7040, Kubota M7060 series and others.

The bridge or drive axle is a key element in the construction of a tractor. Its main function is to transfer the weight of the machine and transmit torque from the engine to the driving wheels.

Dimensions:

  • inner diameter: 25 mm (measured between teeth), 22.50 mm (measured together with teeth),
  • outer diameter: 72 mm,
  • height: 44.50 mm,
  • number of teeth: 24T (IN) / 11T (OUT),
  • original part numbers: 3C011-43242,
  • reference numbers: 3C131-43240,
  • part numbers: 5-19-133-09.

Tractor models :

Kubota :

  • Kubota M5040,
  • Kubota M6040,
  • Kubota M7040,
  • Kubota M7060.

Warehouse :
K18:E12:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18:E12:S03
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Kubota M5040
Kubota M5640
Kubota M7040
Kubota M7060
Number of teeth (pcs/T-teeth)
11T
24T
Height (mm)
44.50
Outer diameter (mm)
72
Inner Diameter (mm)
22.50
25
Comparison numbers
3C131-43240
Original Part Number (OEM)
3C011-43242
Part number
5-19-133-09
