Planetary gear 23T Kubota M8540 M8560 M9540 M9960 5-19-150-22
search
2 osoby oglądają ten produkt
  • Planetary gear 23T Kubota M8540 M8560 M9540 M9960 5-19-150-22
  • Planetary gear 23T Kubota M8540 M8560 M9540 M9960 5-19-150-22
  • Planetary gear 23T Kubota M8540 M8560 M9540 M9960 5-19-150-22
  • Planetary gear 23T Kubota M8540 M8560 M9540 M9960 5-19-150-22

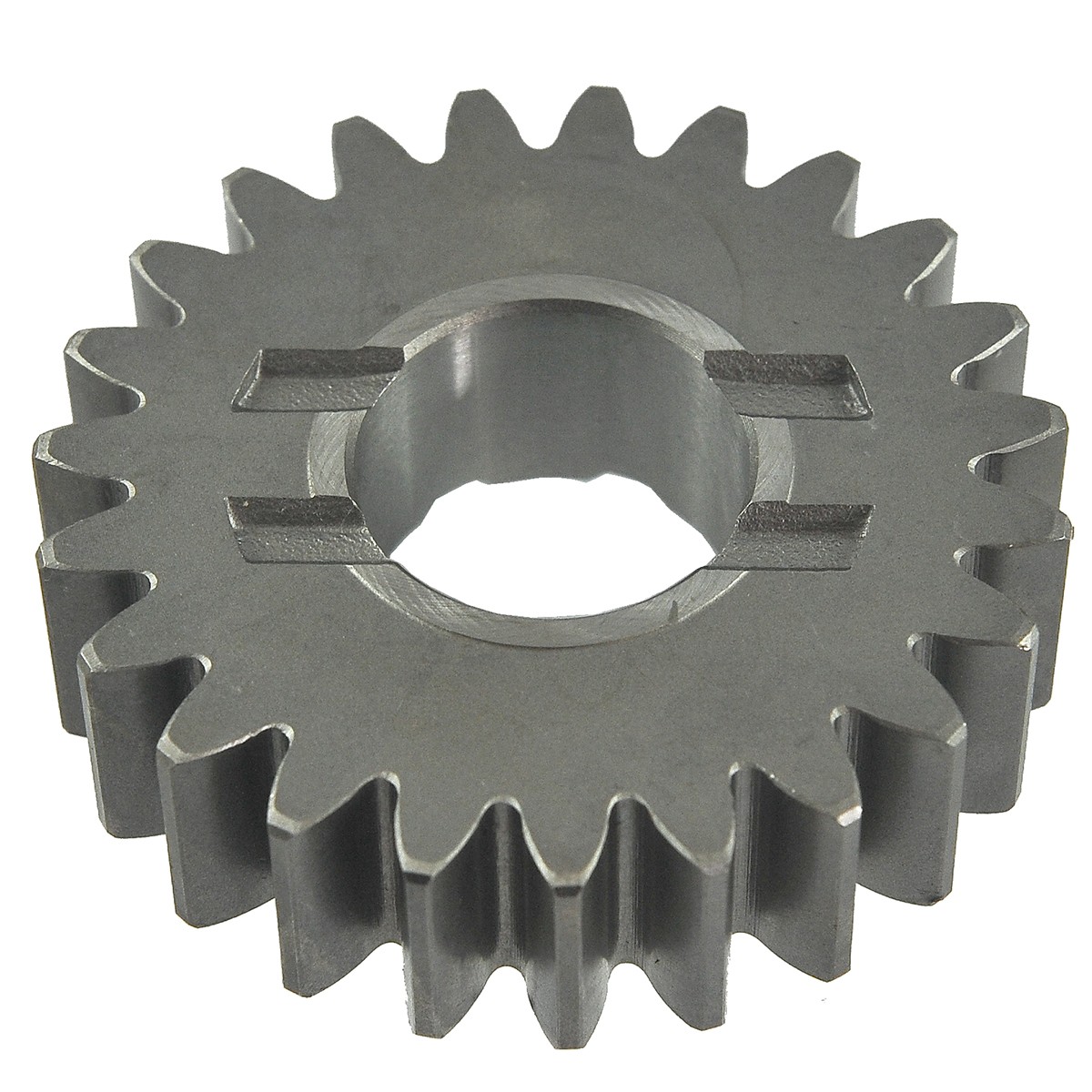

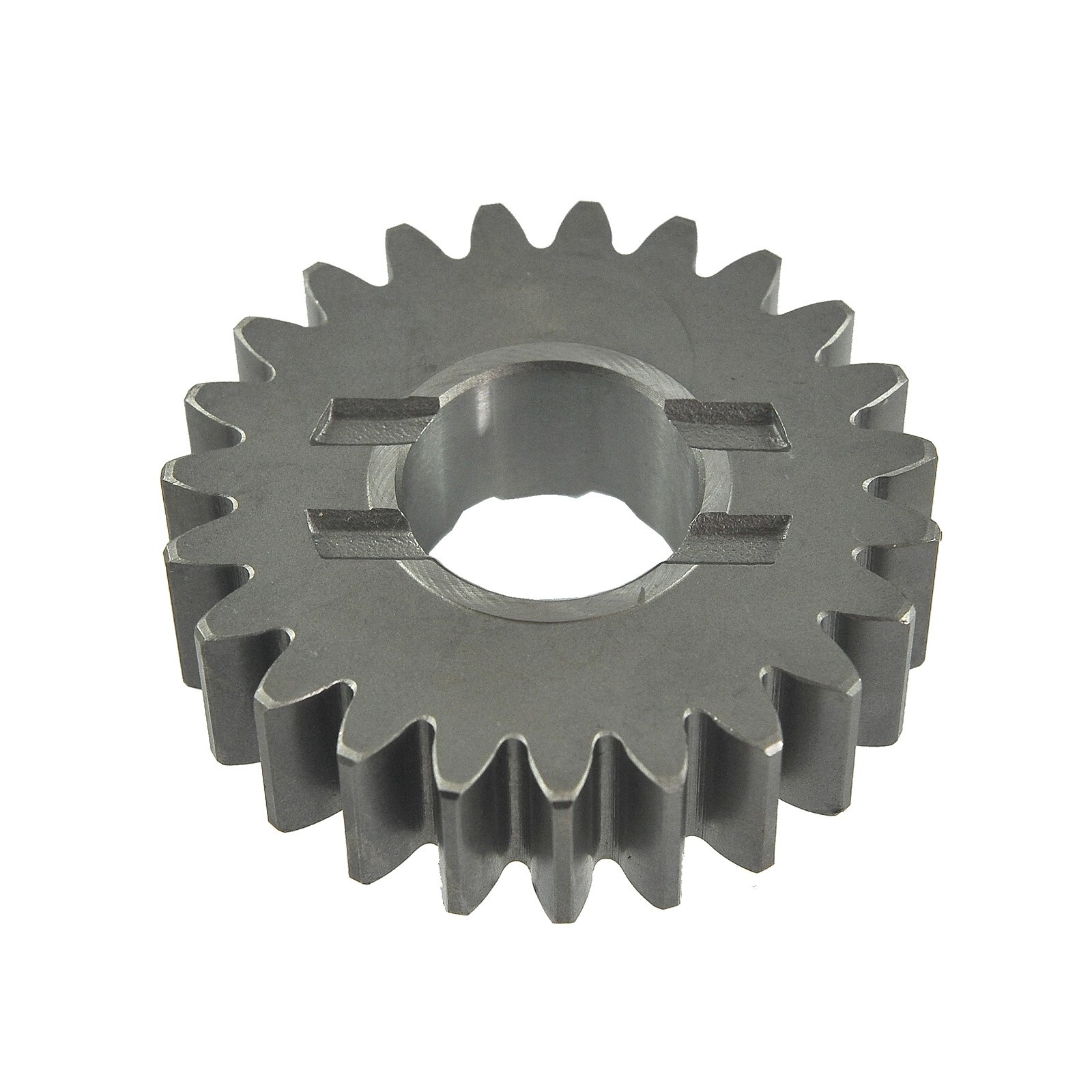

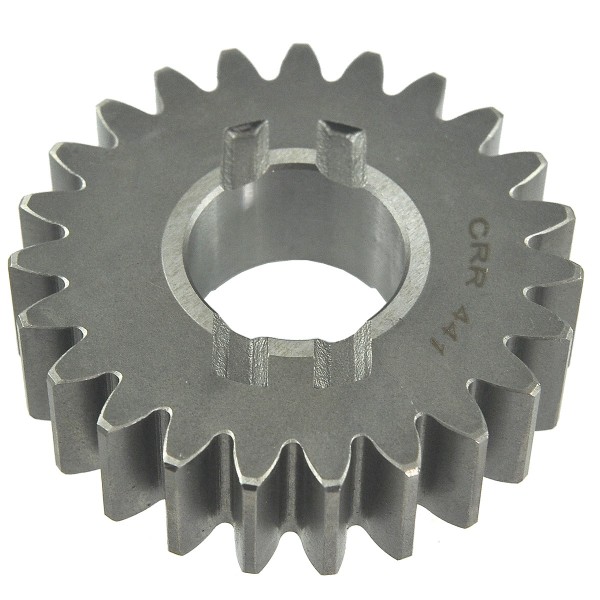

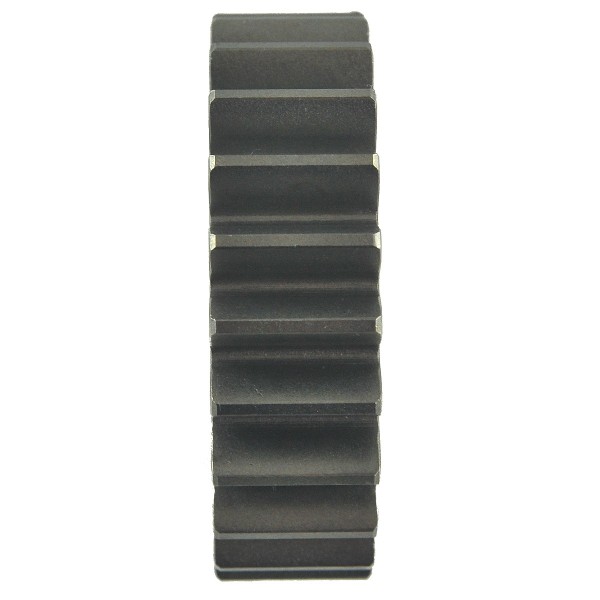

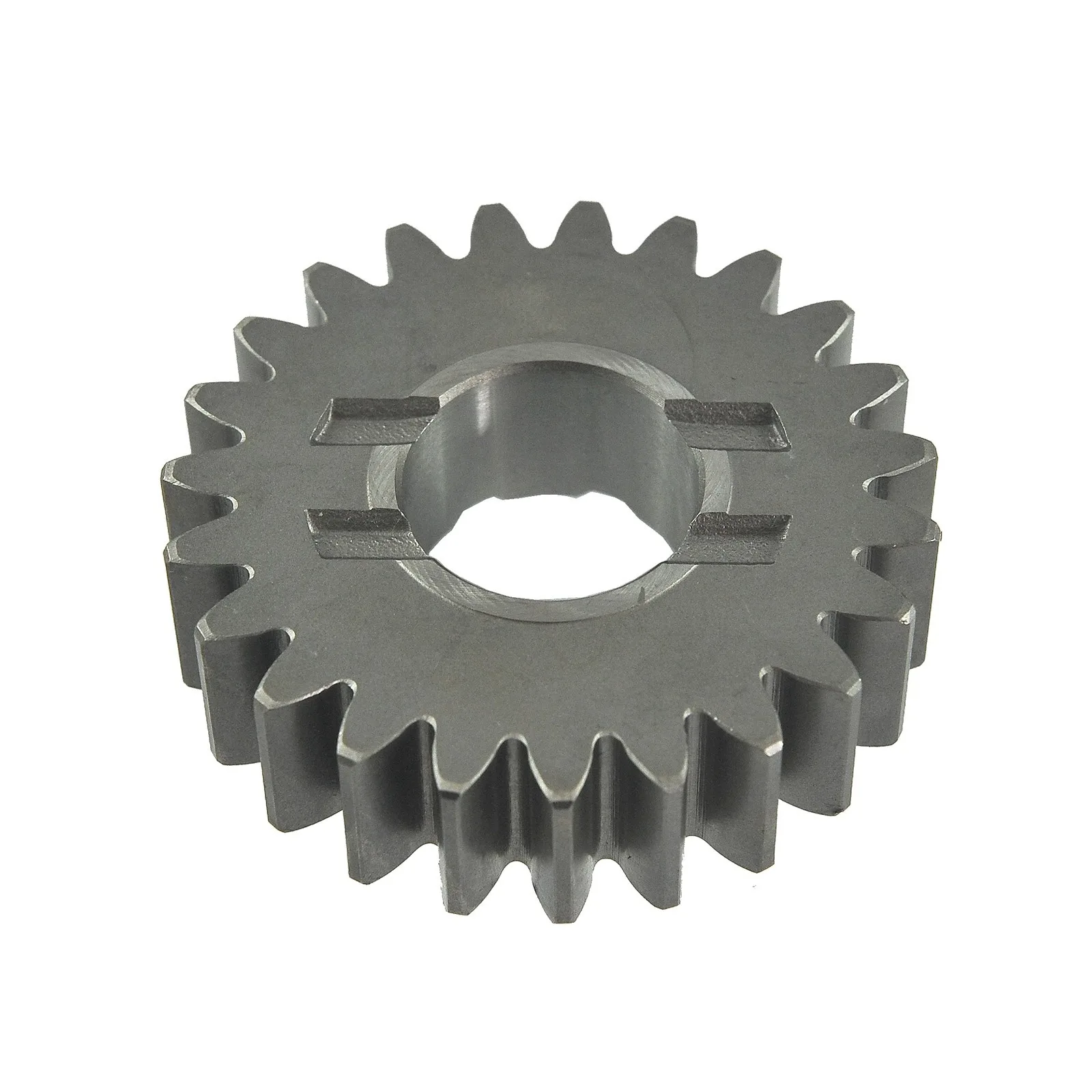

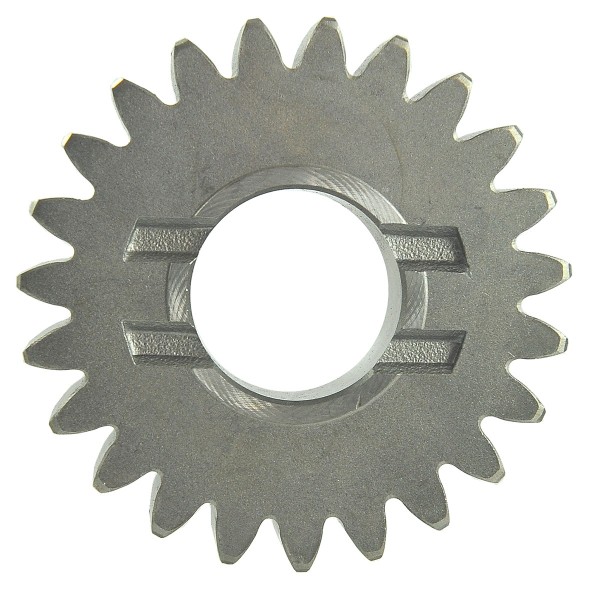

Planetary gear / 23T / 86.80 mm / Kubota M8540 / M8560 / M9540 / M9960 / 5-19-150-22

Product code: 5-19-150-22
Brand 4FARMER
Country of production 4FARMER
View other model
zł500.00
Includes VAT 23%

Lowest price from 30 days: zł500.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
2 pieces
Delivery See details Leasing & financing for businesses See details

Product description

23T planetary gear (housing 5-25-127-46, pin 5-25-125-78, 3C091-44252, 3C091-44210, bearing 3F740-44240) of the front axle reduction gear with an inner diameter of 33 mm , outer diameter of 86.80 mm (measured together with the teeth) and a height of 24 mm for Kubota tractors of the Kubota M8540, Kubota M8560, Kubota M9540, Kubota M9960 series and others.

The bridge or drive axle is a key element in the construction of a tractor. Its main function is to transfer the weight of the machine and transmit torque from the engine to the driving wheels.

Dimensions:

  • inner diameter: 33 mm,
  • outer diameter: 71 mm (measured between cutter teeth), 86.80 mm (measured together with teeth),
  • height: 24 mm,
  • number of teeth: 23T,
  • original part numbers: 3C091-44220,
  • comparative numbers:,
  • part numbers: 5-19-150-22.

Tractor models :

Kubota :

  • Kubota M8540,
  • Kubota M8560,
  • Kubota M9540,
  • Kubota M9960.

Warehouse :
M01:F21:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New

Reviews of Planetary..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
