Gear / 11T/22T / Iseki TM3185 / TM3187 / 1776-434-003-00

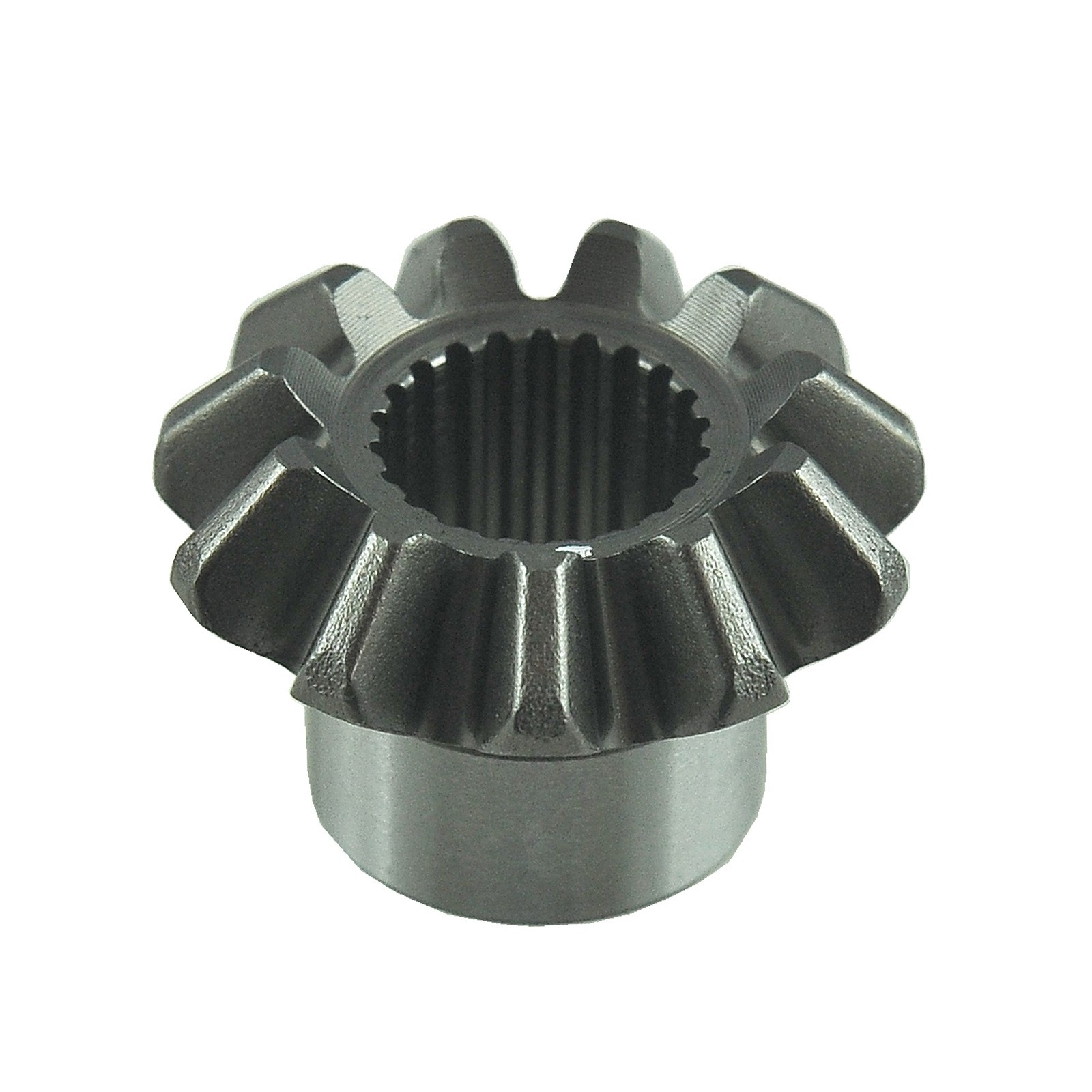

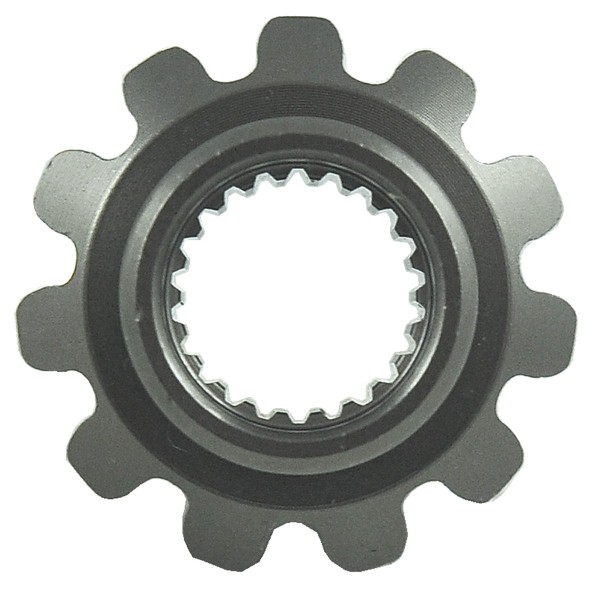

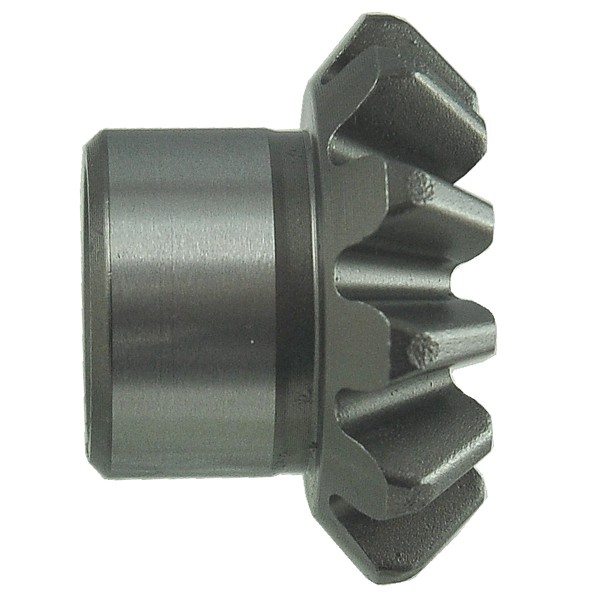

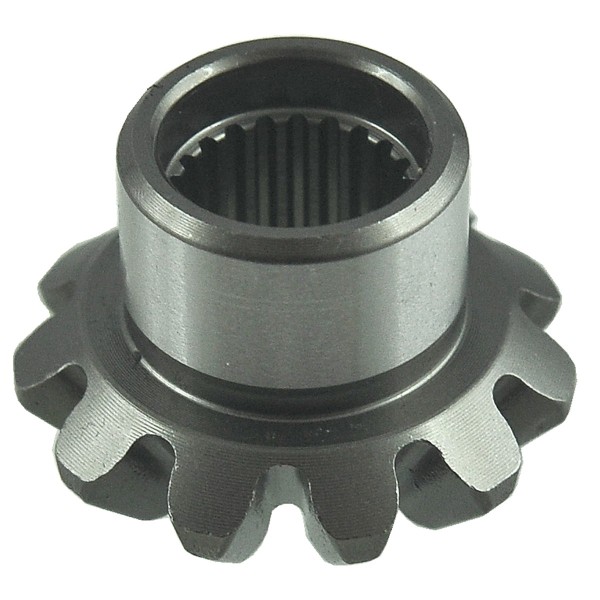

Front drive sprocket 11T (OUT) / 22T (IN) with an inner diameter of 18 mm (measured between the cutter teeth), 16.50 mm (measured together with the cutter), outer diameter of 40.50 mm for Iseki tractors of the Iseki TM3185, Iseki TM3187 series and others.

The axle or axle with drive is a key element in the construction of a tractor. Its main function is to transfer the weight of the machine and transfer torque from the engine to the driving wheels. The differential gear allows for different wheel rotation speeds, which is especially important when turning.

Dimensions :

• outer diameter: 40.50 mm,
• inner diameter: 18 mm (measured between cutter teeth), 16.50 mm (measured with cutter),
• height: 27 mm,
• number of teeth: 11T (OUT) / 22T (IN),
• comparison numbers: -,
• part numbers: 1776-434-003-00.

Tractor models :

Iseki :

• Iseki TM3185,
• Iseki TM3187.

Warehouse :
K18

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
