Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
- Kubota L3940
- Kubota L4060
Kubota L4508
Kubota L4600
Kubota L4708
Kubota L5018
Number of teeth (pcs/T-teeth)
24T
Diameter (mm)
25
Overall length (mm)
203
Go to full specification >

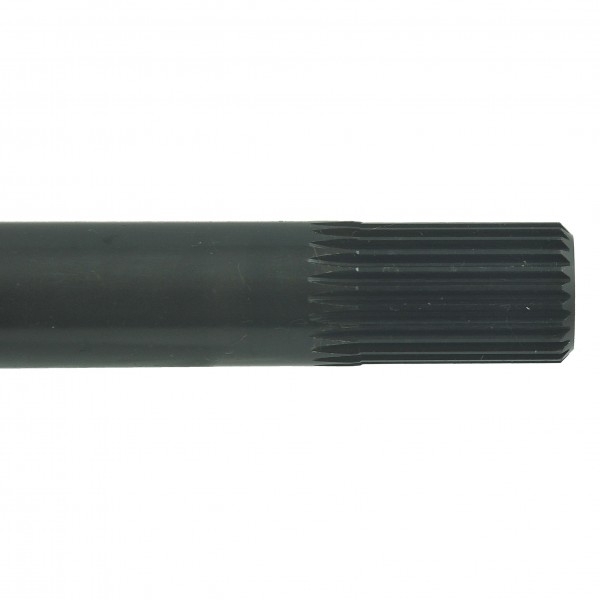

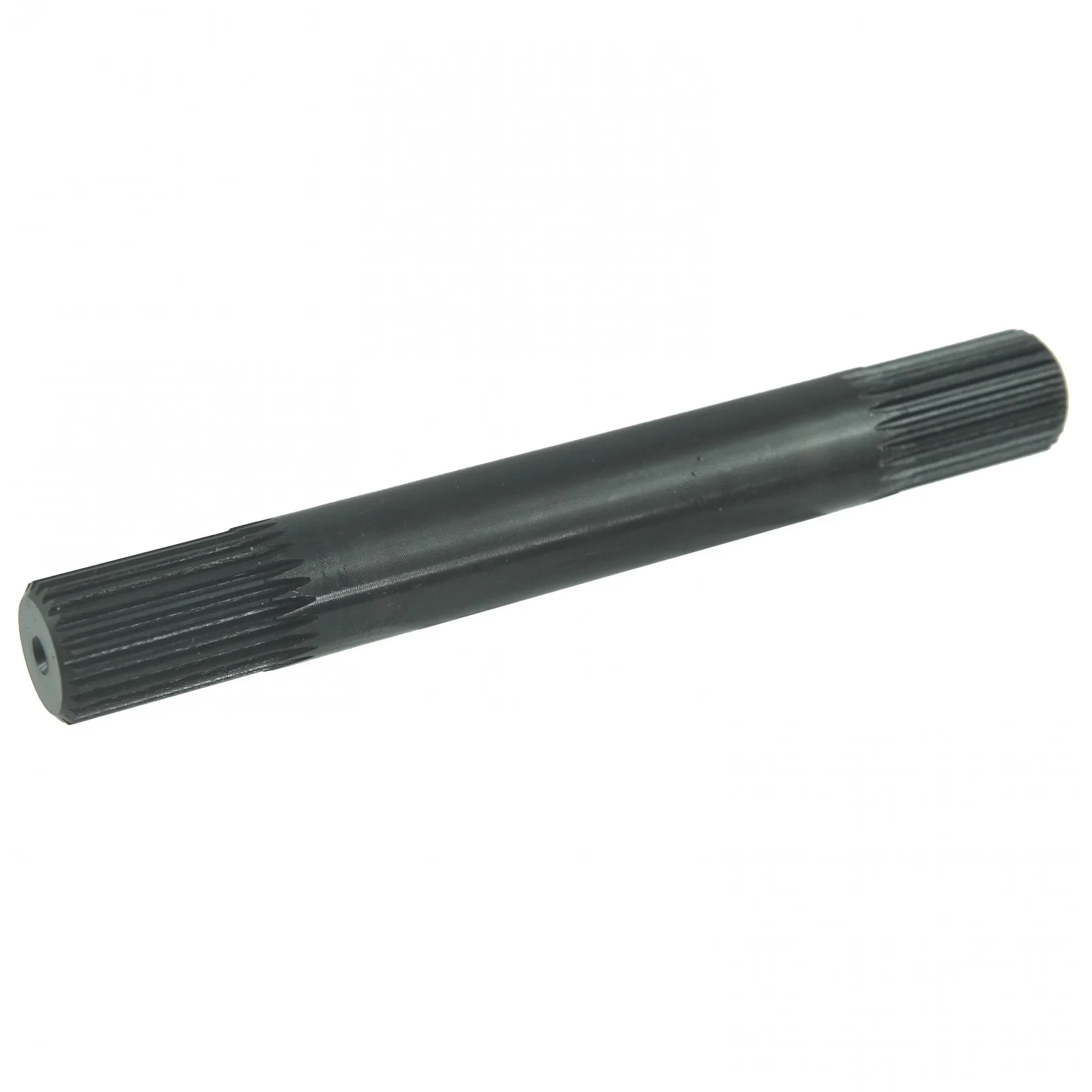

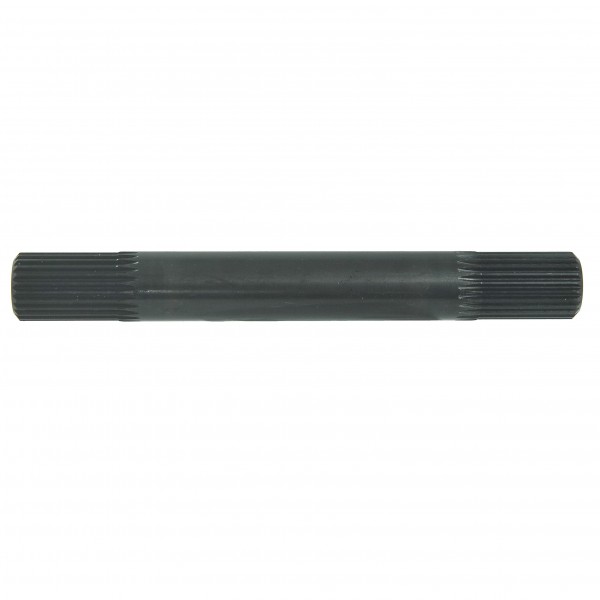

Final drive shaft / 24T / 24T / 203 mm / Kubota L3940 / L4060 / L4508 / L4600 / L4708 / L5018 / 5-01-208-07

5-01-208-07
zł224.00
Tax included PL 23%

182,11 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

Final drive shaft / 24T / 24T / 203 mm / Kubota L3940 / L4060 / L4508 / L4600 / L4708 / L5018 / 5-01-208-07

Wheel drive shaft (sprocket 6-19-115-03, 32781-13200) with a length of 203 mm and a cutter diameter of 22 mm (measured between the cutter teeth), 24.50 mm (measured together with the cutter) for Kubota tractors of the Kubota L3940, Kubota L4060, Kubota L4508, Kubota L4600, Kubota L4708, Kubota L5018 series and others.

The drive shaft is a part of the system responsible for transferring power from the engine to the axle, the wheels (axles, reduction gear) of the tractor and/or the power take-off shaft of the tractor. In tractors with 4 x 4 drive, there are two similar or identical shafts. The task of the gearbox shaft is to receive the driving force from the clutch disc and transfer it to one of the gears or to the PTO/PTO power take-off shaft.

Dimensions :

  • total length: 203 mm,
  • diameter: 25 mm,
  • cutter diameter: 22 mm (measured between teeth), 24.50 mm (measured together with cutter),
  • number of teeth: 24T / 24T,
  • original part numbers: TD030-12722,
  • comparison part numbers: ,
  • part numbers: 5-01-208-07.

Tractor models :

Kubota :

  • Kubota L3940,
  • Kubota L4060,
  • Kubota L4508,
  • Kubota L4600,
  • Kubota L4708,
  • Kubota L5018.

Warehouse:
K18:F37:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years

Specification

Magazyn: K18:F37:S01
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
- Kubota L3940
- Kubota L4060
Kubota L4508
Kubota L4600
Kubota L4708
Kubota L5018
Number of teeth (pcs/T-teeth)
24T
Diameter (mm)
25
Overall length (mm)
203
Diameter of Cutter(s) (mm)
22
24.50
Original Part Number (OEM)
TD030-12722
Part number
5-01-208-07

4FARMER

4FARMER

The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.

The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.

Wide offer of 4FARMER:

The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .

The most important advantages of the 4FARMER brand?

  • Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
  • Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
  • Professional support and access to spare parts.

4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
