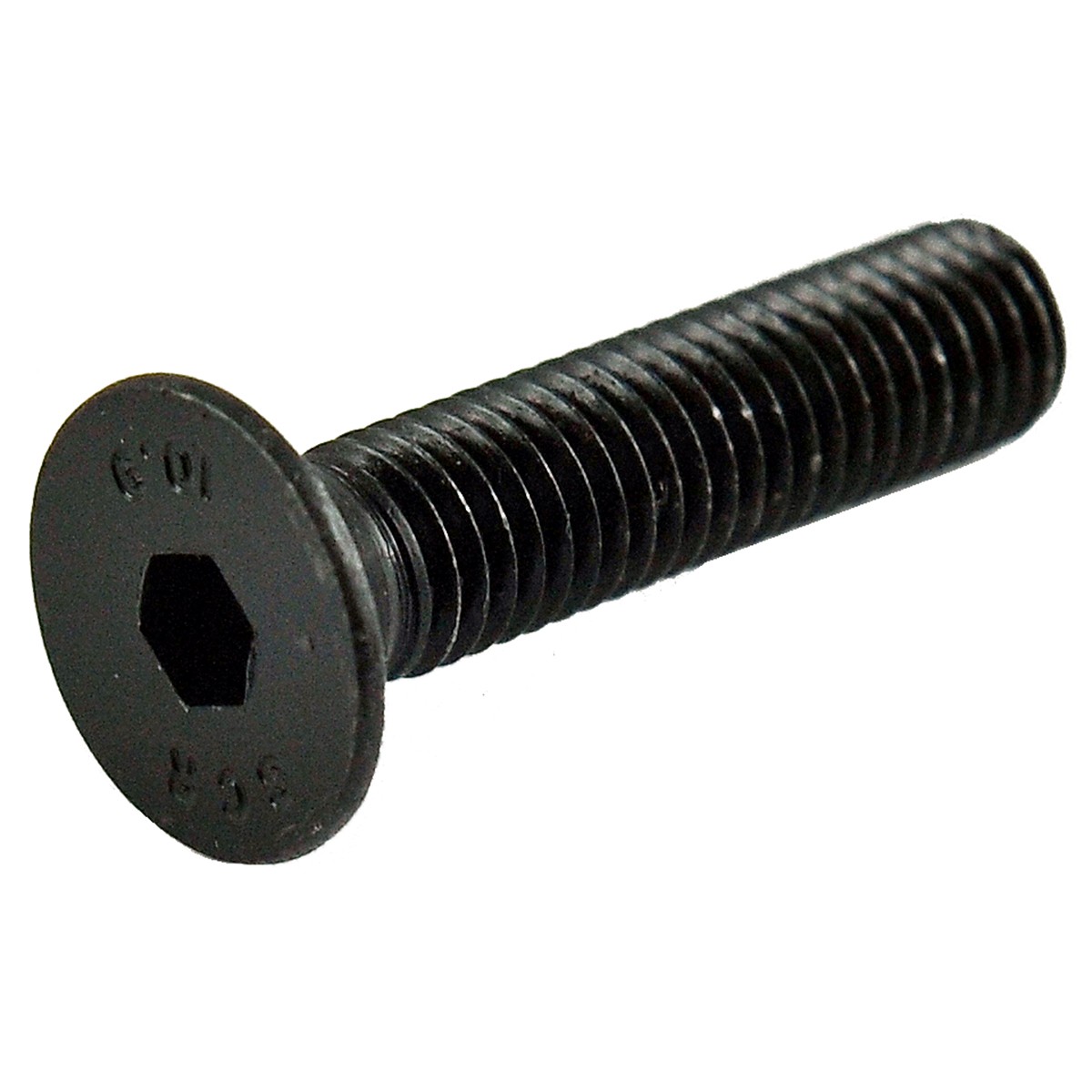

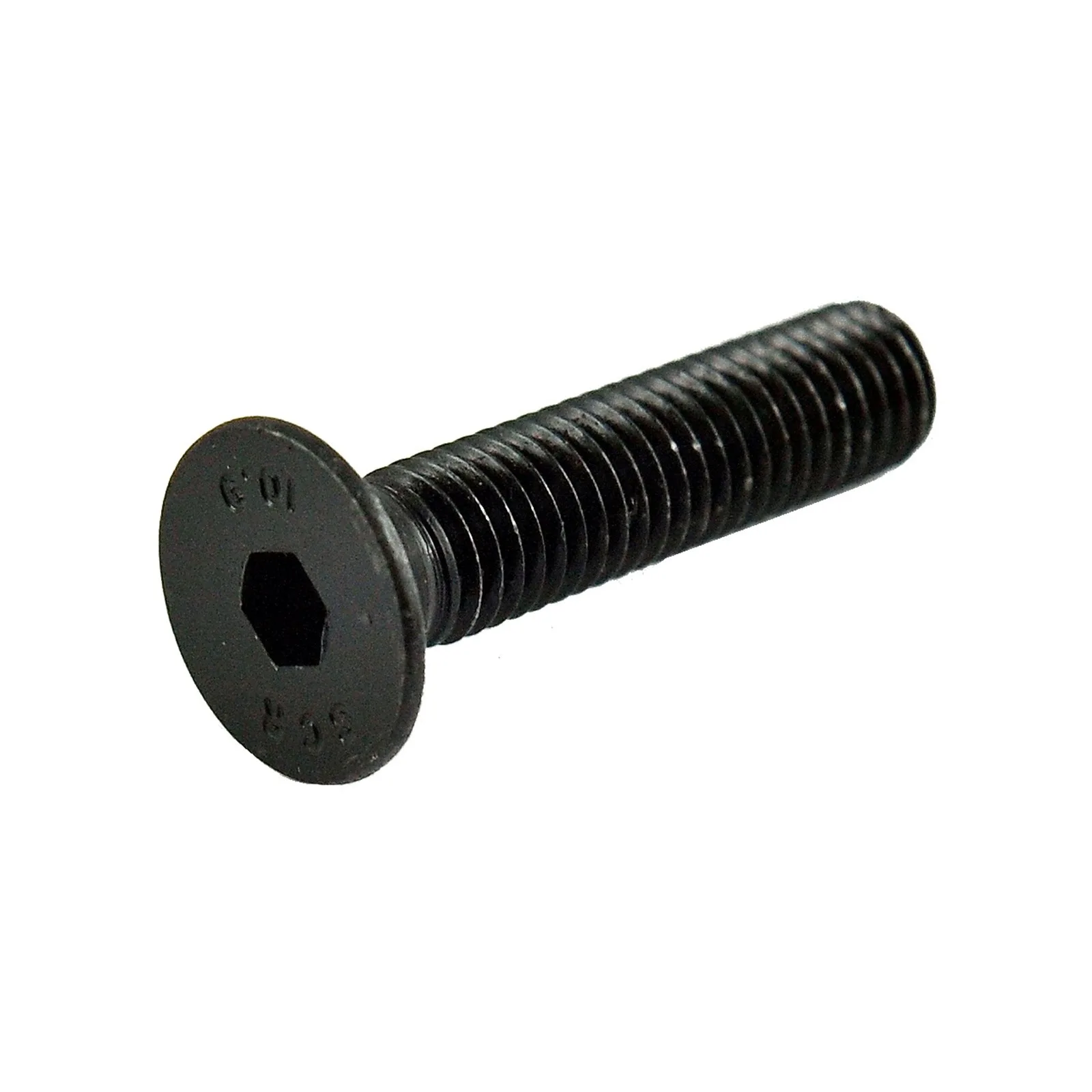

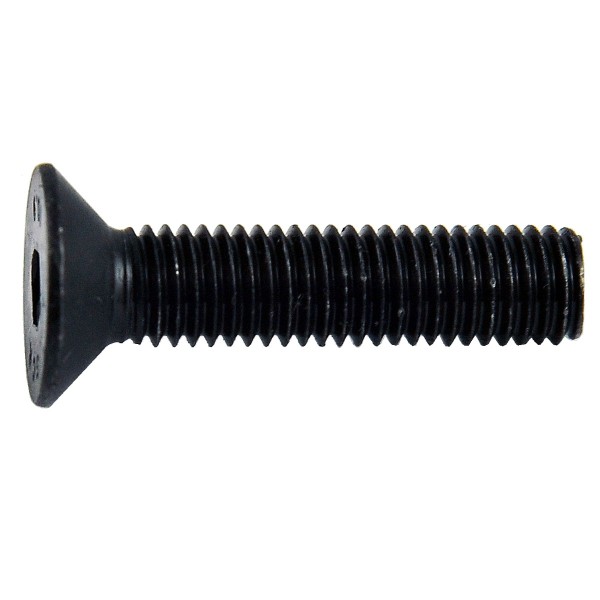

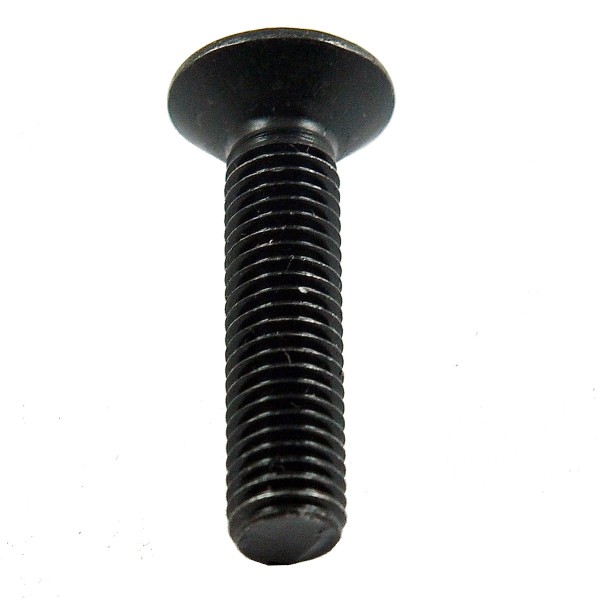

Chipper knife bolt / M10 x 1.5 / 10.9 / Cedrus RB05 / DR-CS-15HP-H 4FARMER

M10 shredder knife bolt, blade mounting screw for Cedrus RB05 chippers, %C4% 99tank-fuel-disc-dr-cs-15hp-hydrauliczny-4farmer-15km-5904506301690.html">DR-CS-15HP-H 4FARMER and others.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of precision of screw manufacturing, i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9 , 12.9, where the first digit indicates the tensile strength limit and the second the yield strength in relation to the first value (in percentage). The higher the values, the greater the strength of the screw, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 45 mm,
• working length: 35 mm,
• thread length: 35 mm,
• thread: M8 x 1.5,
• key size: 6 (allen key),

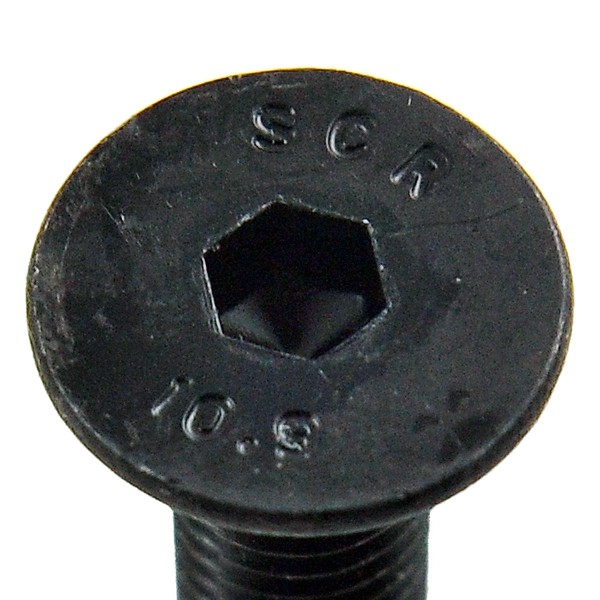

• standards and strength classes: SGR 10.9.

Machine models :

4FARMER :

• %C4% 99disc-fuel-tank-dr-cs-15hp-hydraulic-4farmer-15km-5904506301690.html">DR-CS-15HP-H 4FARMER .

Cedrus :

• Cedrus RB05.

Warehouse :
K02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
