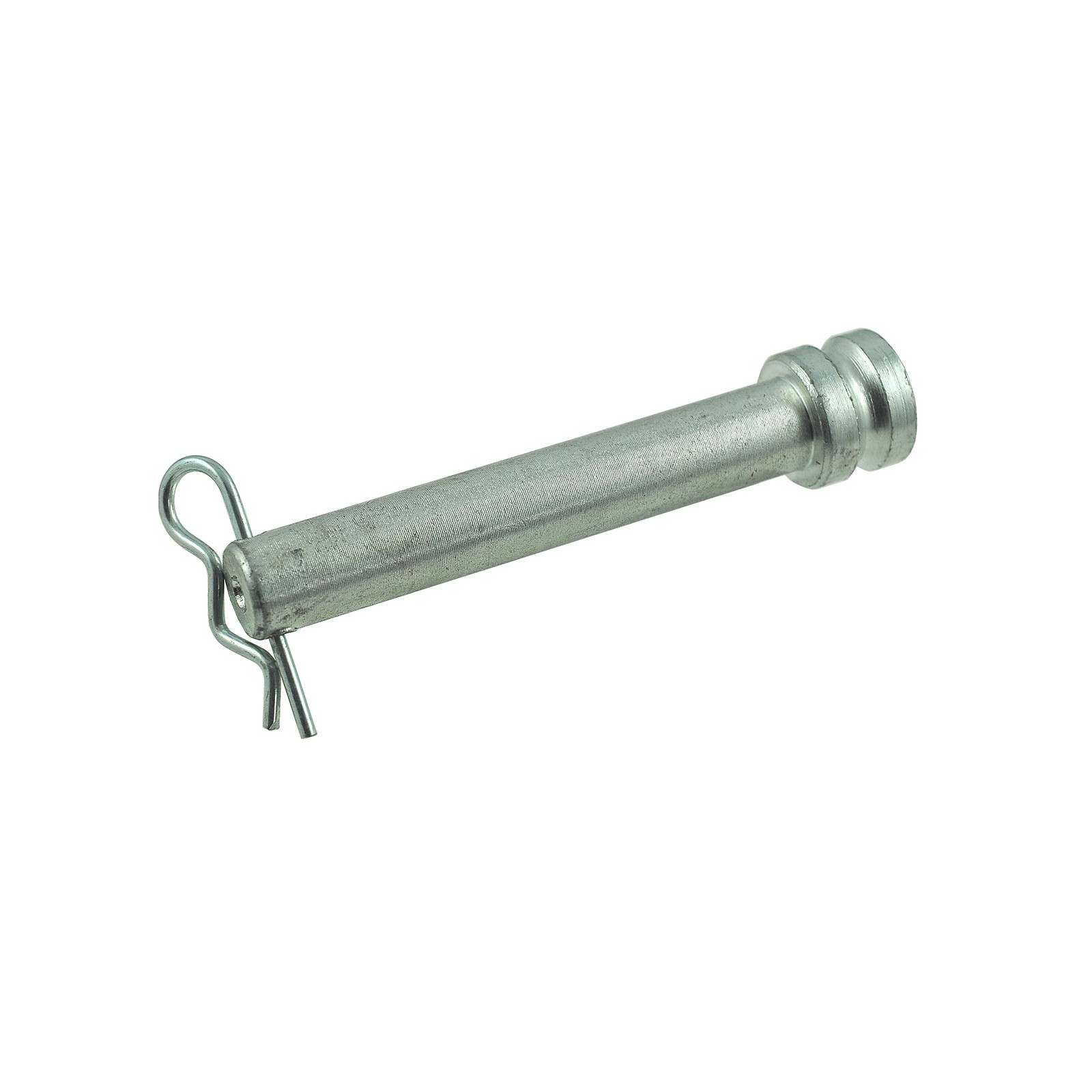

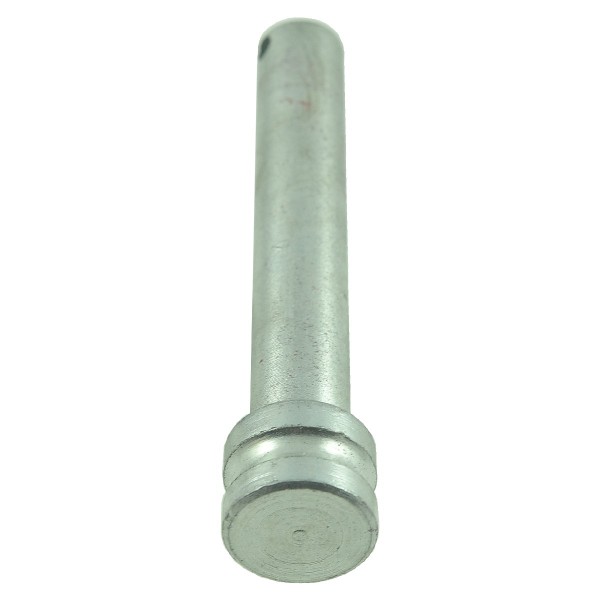

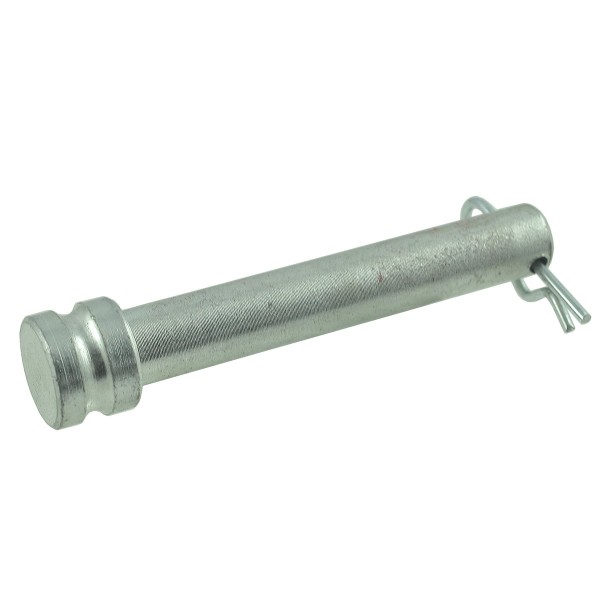

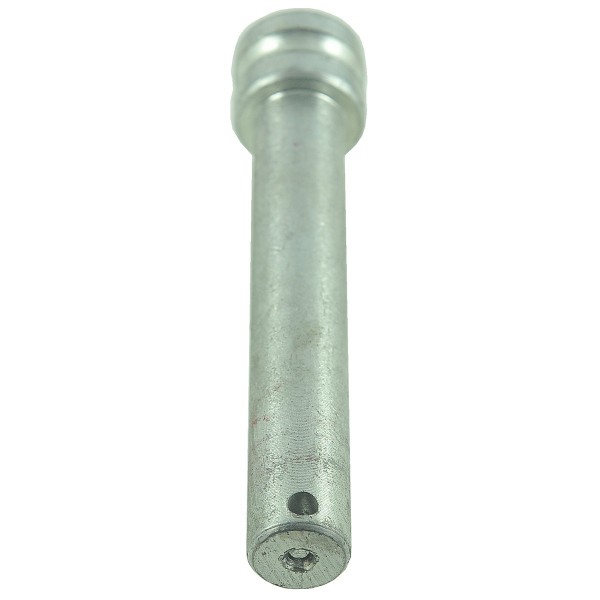

Link pin / 19 x 92 mm / KATI / EFG 4Farmer / EF175-1046

KAT I pin for the upper bracket connecting the mower plates (bracket EF175-0016 ) with a working length of 92 mm and a diameter of 19 mm for 4FARMER flail mowers of the EFG105 , EFG115 , EFG135 , EFG145 series and others

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common: headless, nose, with a cylindrical head with a threaded pin, with a handle and others.

Dimensions:

• diameter: 19 mm,
• working length: 92 mm,
• total length: 118 mm,
• part numbers: EF175-1046.

Lawnmower models :

4FARMER :

• EFG105 4FARMER ,
• EFG115 4FARMER ,
• EFG135 4FARMER ,
• EFG145 4FARMER .

Warehouse :
M01:M12:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
