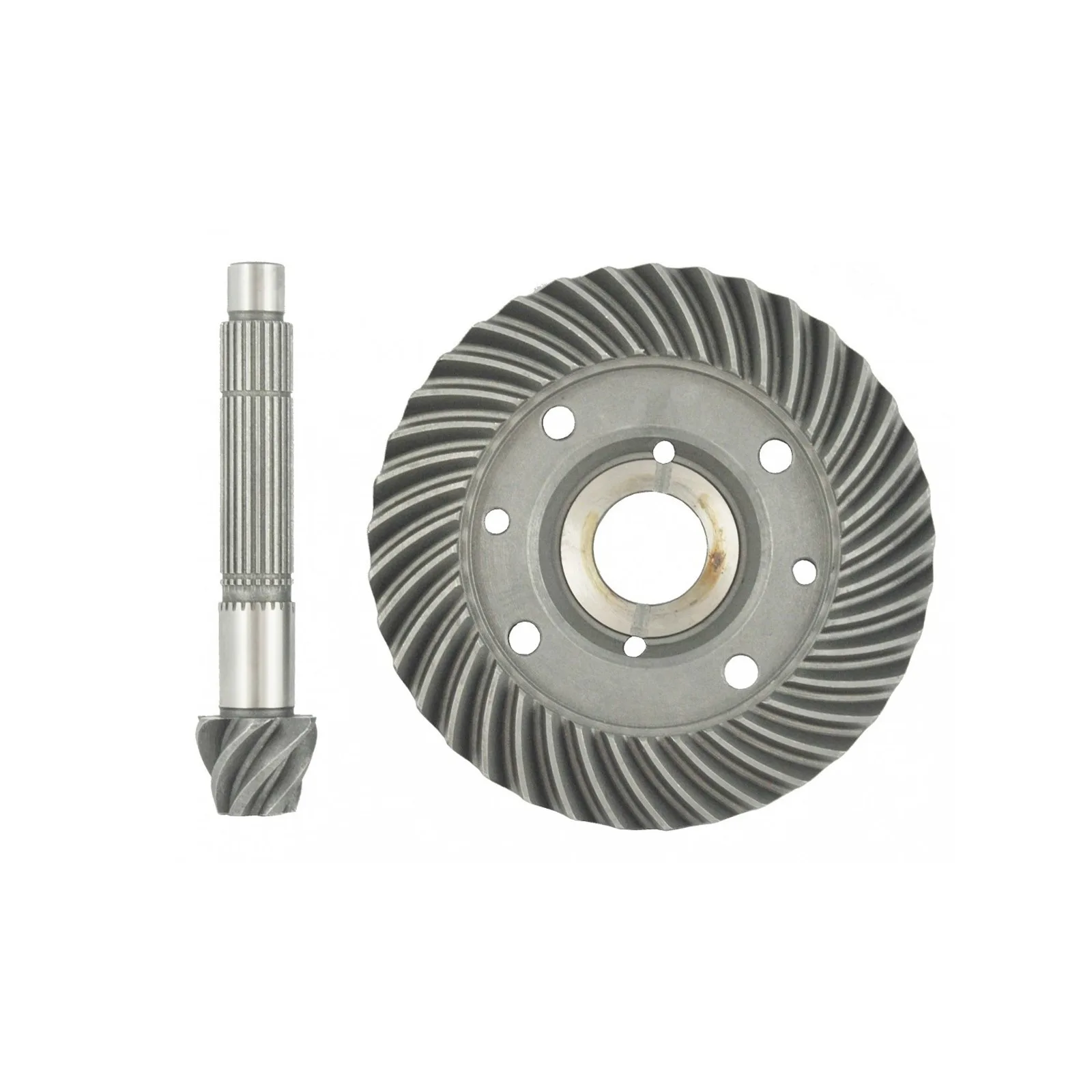

6T/24T drive shaft + 37T crown wheel / Kubota B4200 / 42046

The input shaft (fixing screw 67810-56680) with a total length of 143 mm and a fez with the number of teeth 6T and 24T with a sprocket with an outer diameter of 148 mm , an inner diameter of 30 mm and helical teeth 37T for Kubota tractors of the Kubota B4200 series and others.

The crown wheel with pinion is a differential component responsible for transmitting power from the engine's drive shafts to the road wheels. In addition to transmitting power, the drive shaft + crown wheel assembly increases the torque transmitted by the longitudinal shaft to the transverse shaft while simultaneously changing the direction of rotation.

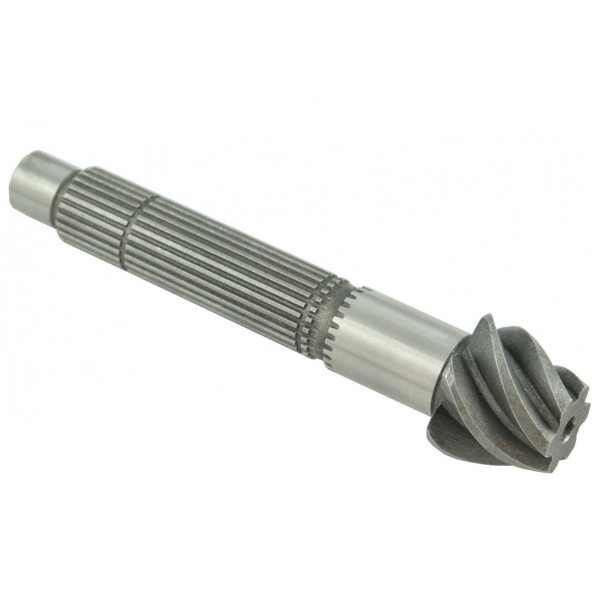

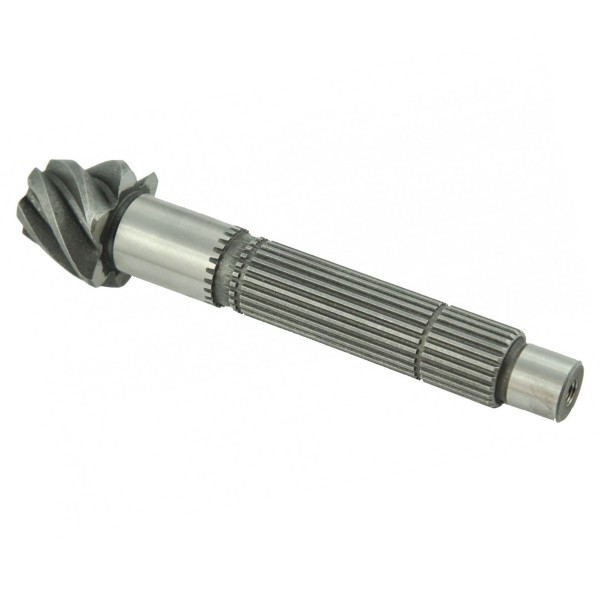

Dimensions (roller):

• total length: 143 mm,
• helical gear diameter: 20 / 33 mm,
• helical gear width: 25 mm,
• working length of cutters: 18 / 46 mm.
• cutter diameter: 17.50 mm (measured between cutter teeth), 19 mm (measured together with the cutter),
• Number of teeth: 6T / 24T,
• original part numbers: 66621-82710,
• part numbers: 42046.

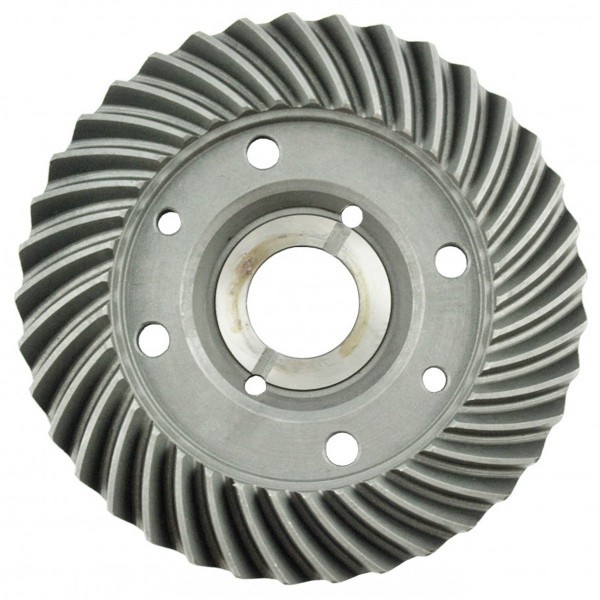

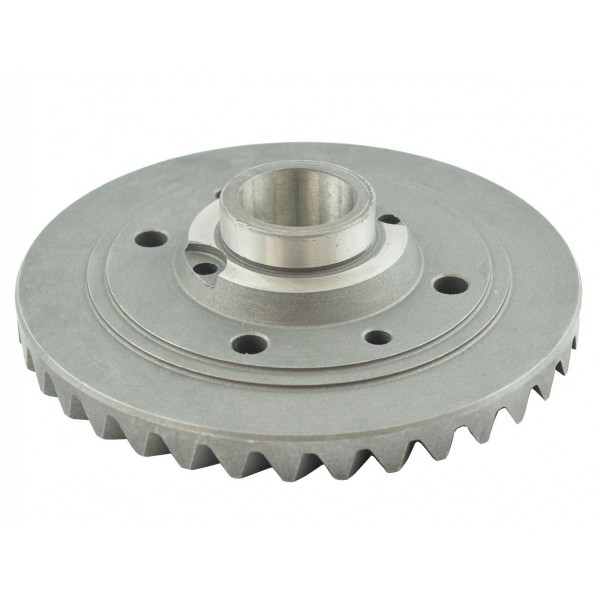

Dimensions (ring wheel):

• outer diameter: 138 mm,
• inner diameter: 30 mm.
• height: 34 mm.
• number of wheel teeth: 37T,
• original part numbers: 66621-82710,
• part numbers: 42046

Tractor models :

Kubota :

• Kubota B4200.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.
