zł45.00
To order
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Kubota M6040
Number of teeth (pcs/T-teeth)
9T/22T (Shaft)
42T (koło)
42T (koło)
Height (mm)
35 (koło)
Outer diameter (mm)
250 (koło)

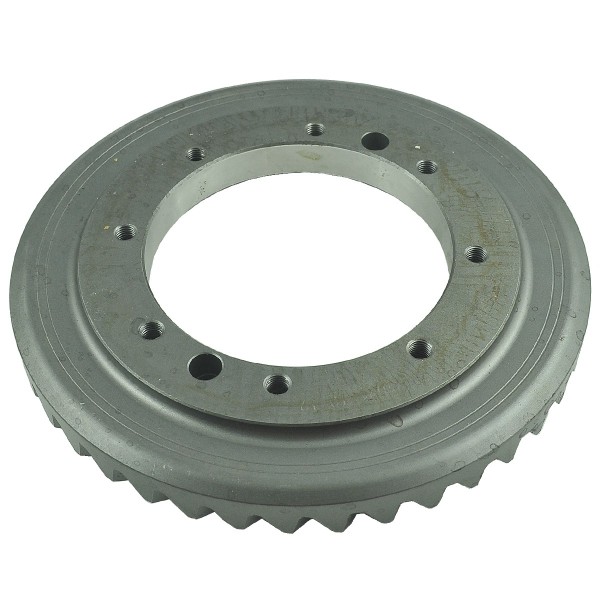

Disc wheel 42T/Ø250mm + input shaft 9T/342 mm / Kubota M6040 / 3A272-32400
3A272-32400
Do you have any questions?

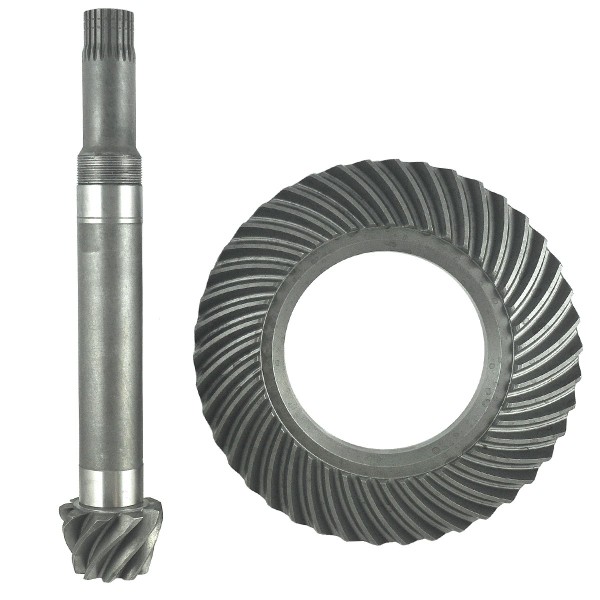

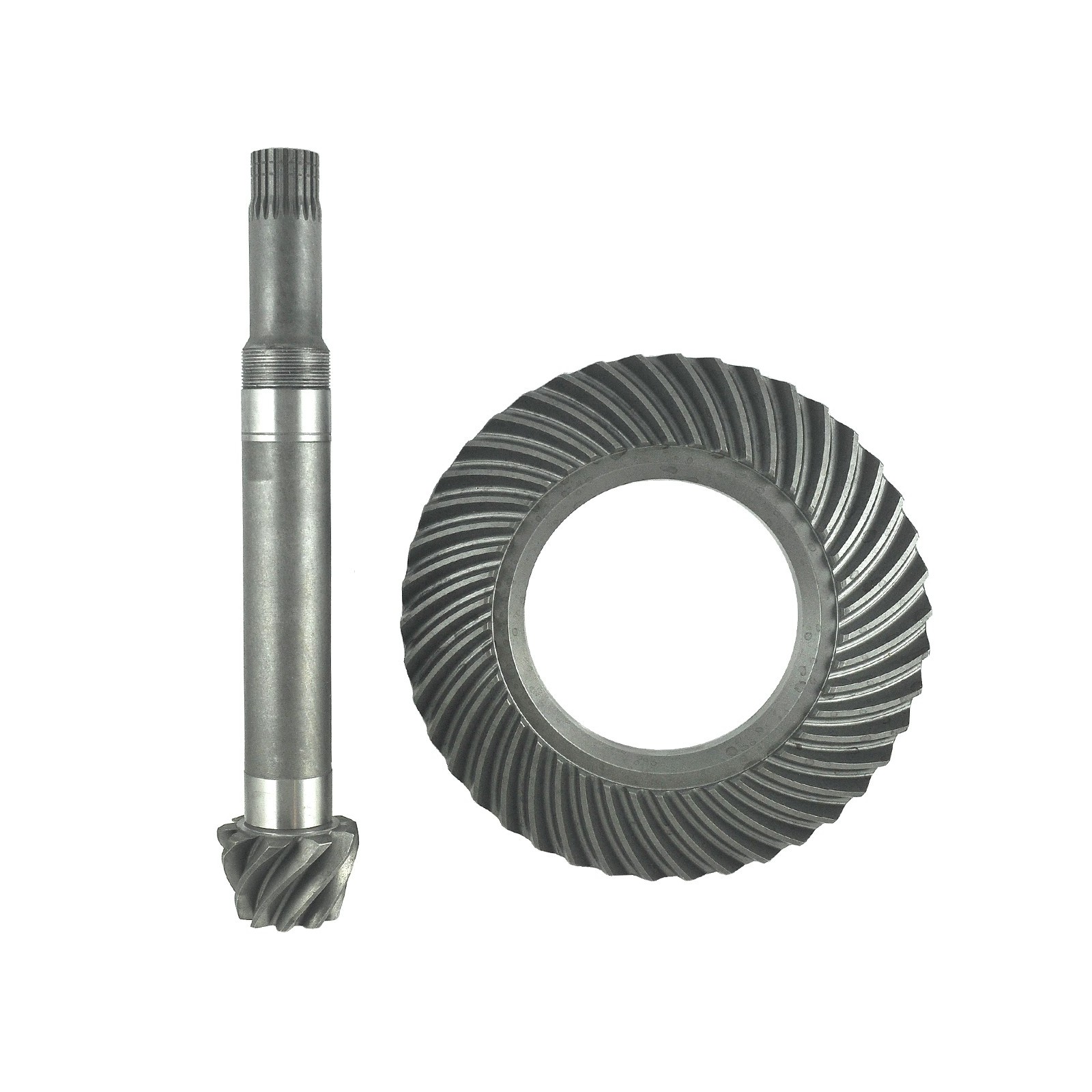

Disc wheel 42T/Ø250mm + input shaft 9T/342 mm / Kubota M6040 / 3A272-32400
37T disc wheel + 9T / 22T input shaft of the rear axle drive for Kubota tractors of the Kubota M6040 series and others.
The disc wheel with an attack shaft is an element of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transmitting the drive, the shaft + disc wheel drive assembly increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

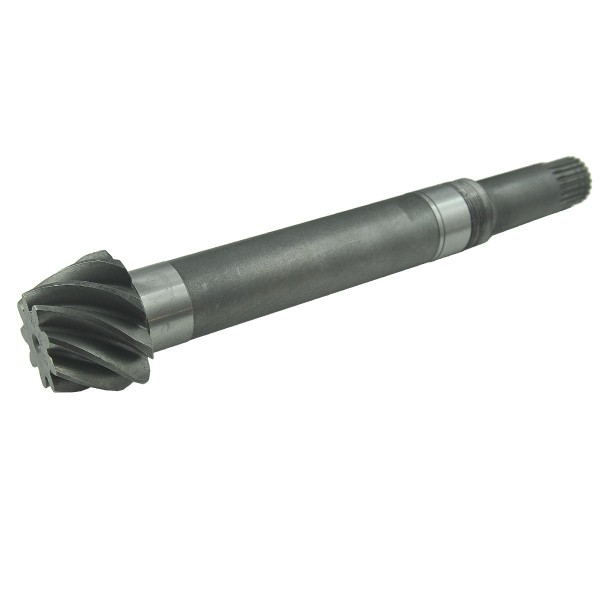

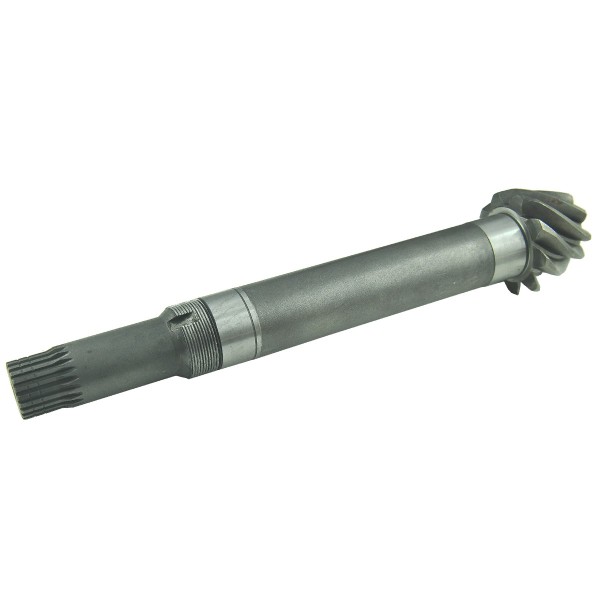

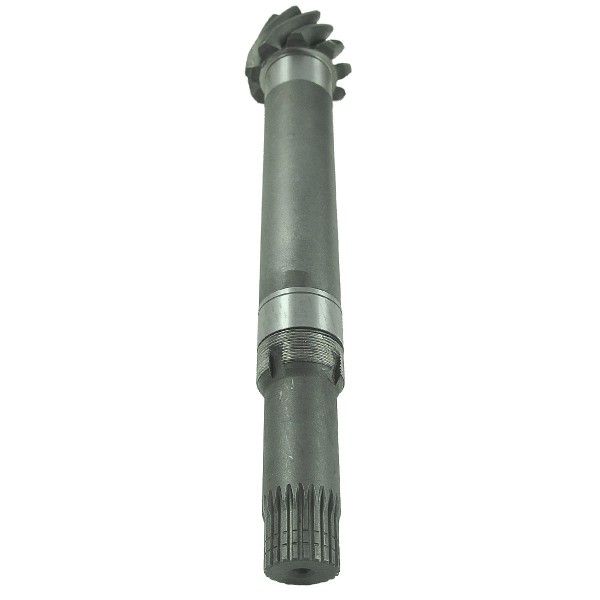

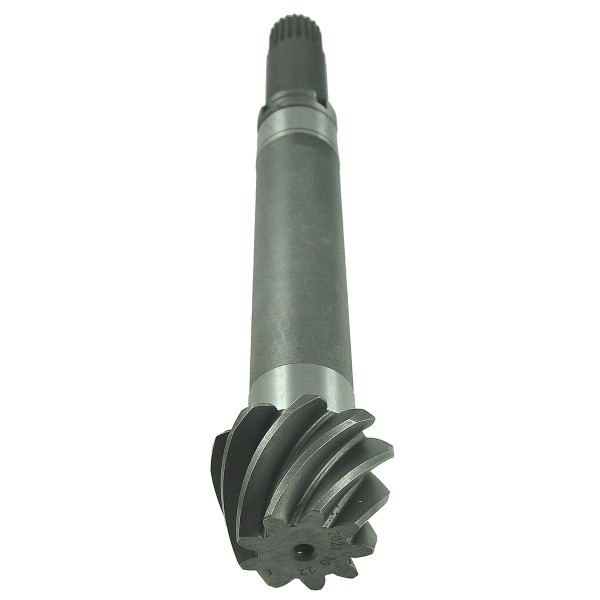

Roller dimensions :
- total length: 342 mm,
- helical gear diameter: 47 / 65 mm,
- helical gear width: 44 mm,
- cutter diameter: 29.50 mm (measured together with the cutter teeth), 26.50 mm (measured between the cutter teeth),
- working length of the cutter: 20 mm,
- thread: M40 x 1.5 mm,
- thread length: 16 mm,
- number of teeth: 9T / 22T,
- original part numbers: -,
- comparison numbers: -,
- part numbers: 3A272-32400.

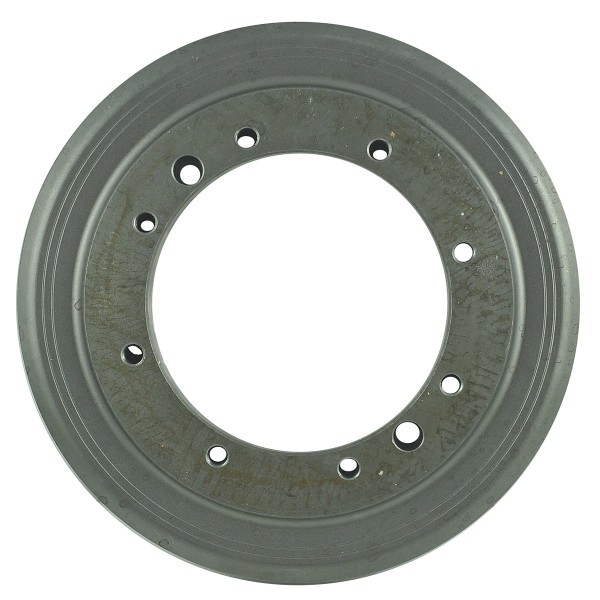

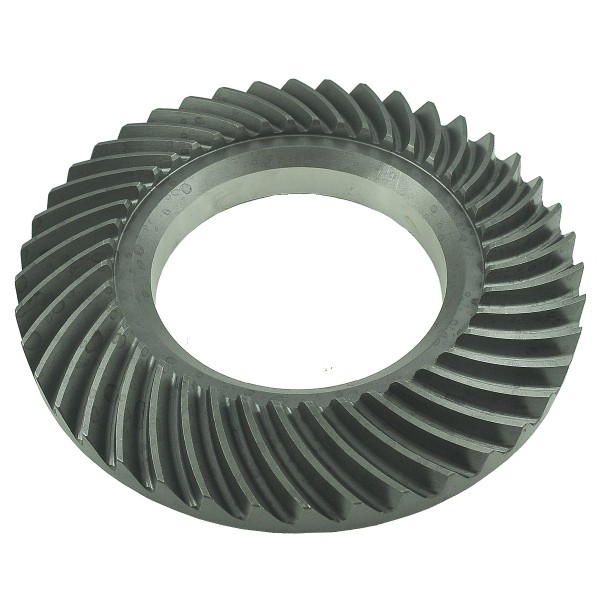

Plate wheel dimensions :
- outer diameter: 250 mm,
- inner diameter: 132 mm,
- height: 35 mm,
- number of teeth: 42T
- original part numbers: -,
- comparison numbers: -,
- part numbers: 3A272-32400.
Tractor models :
Kubota :
- Kubota M6040.
The first signs of damage to the drive unit, crown wheel or input shaft are the observation of play in the main gear, or a noticeable knocking noise when starting and an increased noise level during operation.
Warehouse:
M01:B55:S01
Specification
Magazyn: M01:B55:S01
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
Kubota M6040
Number of teeth (pcs/T-teeth)
9T/22T (Shaft)
42T (koło)
42T (koło)
Height (mm)
35 (koło)
Outer diameter (mm)
250 (koło)
Inner Diameter (mm)
132 (koło)
Overall length (mm)
342 (wałek)
Thread(s) length (mm)
16
Diameter of helical gear (mm)
47 / 65
Rack width (mm)
44
Thread
M40 x 1.5
Part number
3A272-32400
