Available
Condition
New
Production
Substitute
Parts
Drive
Number of teeth (pcs/T-teeth)
7
18
43T
Outer diameter (mm)
154
Inner Diameter (mm)
92.50
Overall length (mm)
292

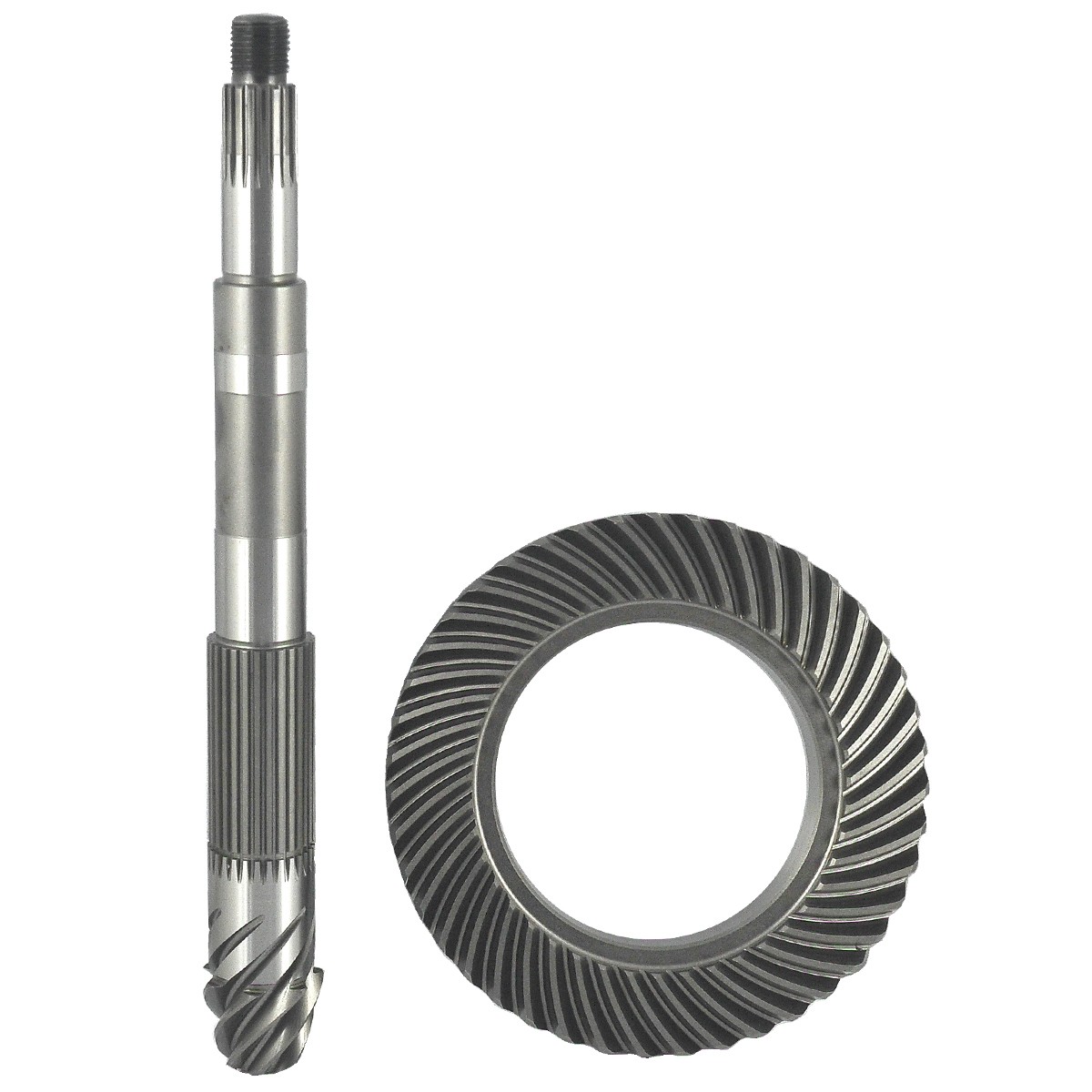

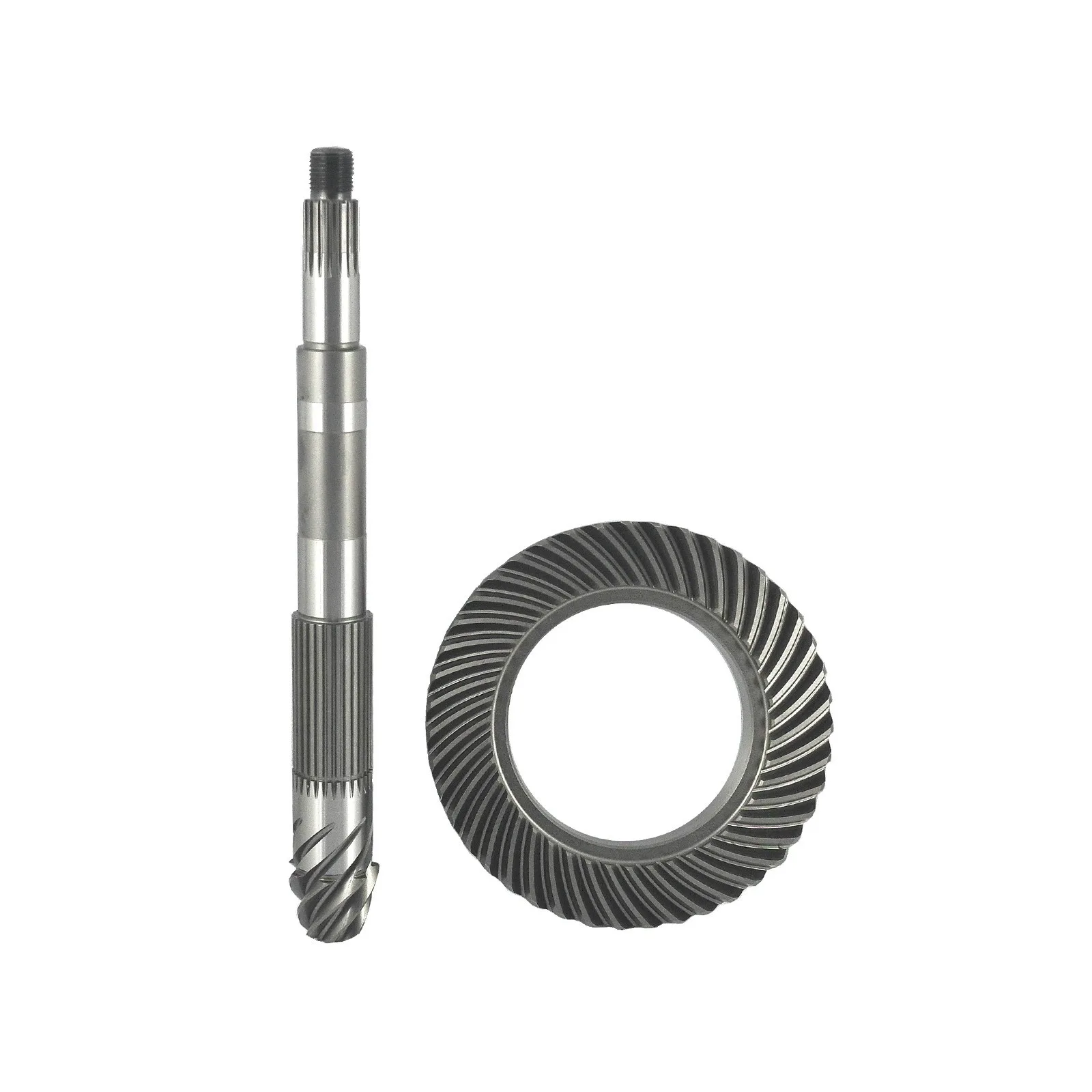

Crown wheel 43T / Ø 154 mm + pinion shaft 7T / 18T / 292 mm / Yanmar F16 / YM1602 / 5-04-104-04

5-04-104-04
zł1,984.00
Tax included PL 23%

1613,01 netto

  • Dostępność (49 Quantity): stock

Do you have any questions?

Crown wheel 43T / Ø 154 mm + pinion shaft 7T / 18T / 292 mm / Yanmar F16 / YM1602 / 5-04-104-04

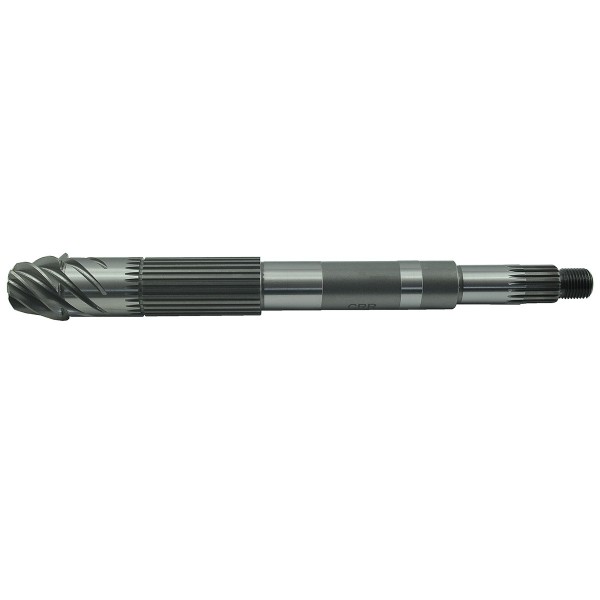

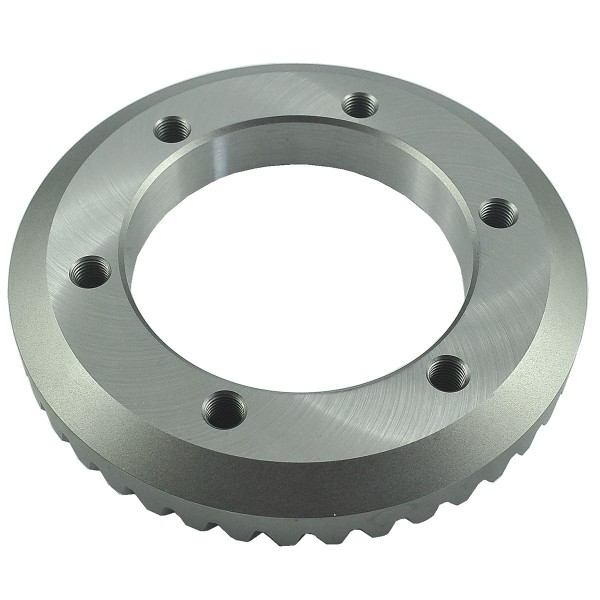

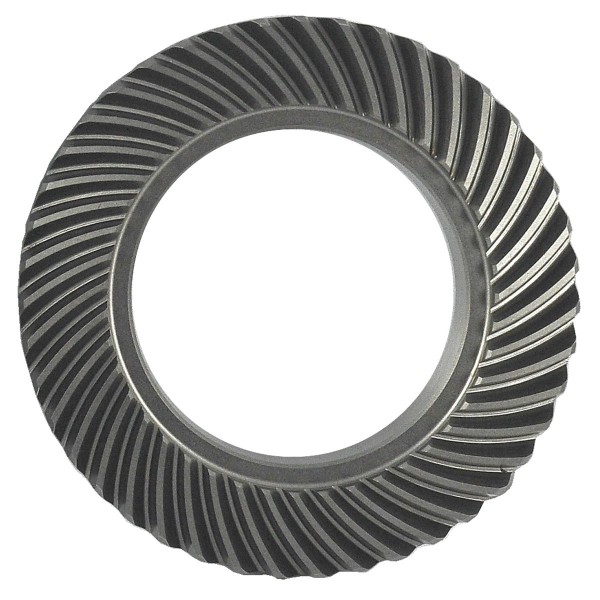

43T crown wheel + 7T / 18T pinion shaft of the front axle drive () for Yanmar tractors of the Yanmar F16, Yanmar YM1602 and other series.

The crown wheel with the pinion is a part of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transferring the drive, the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

Plate wheel + input roller YANMAR F16 43T x 7T

(D4-46)

Specification

Magazyn: K18:E29
Condition
New
Production
Substitute
Parts
Drive
Number of teeth (pcs/T-teeth)
7
18
43T
Outer diameter (mm)
154
Inner Diameter (mm)
92.50
Overall length (mm)
292
Thread(s) length (mm)
12
Cutter(s) length (mm)
58
Diameter of Cutter(s) (mm)
17.50
19.50
Mounting bolt(s) hole diameter (mm)
M9
Diameter of helical gear (mm)
20
34
Rack width (mm)
26
Bolt hole spacing (mm)
54.50
110
Thread
M9 x 1.5
Comparison numbers
194312-31300
Original Part Number (OEM)
194193-31390
Part number
5-04-104-04
