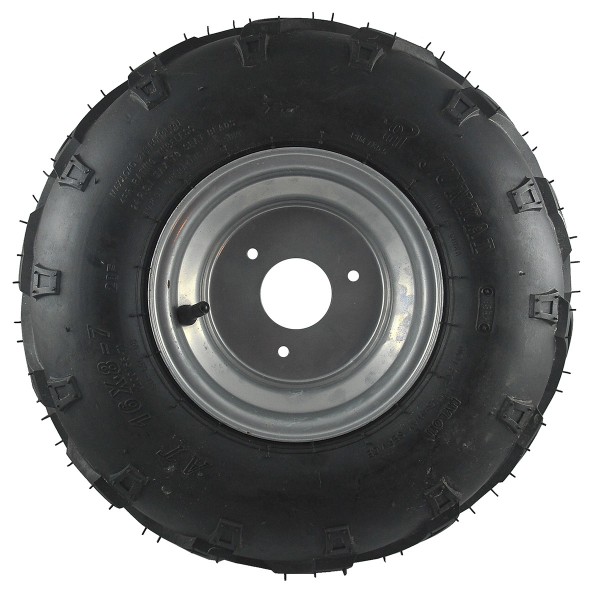

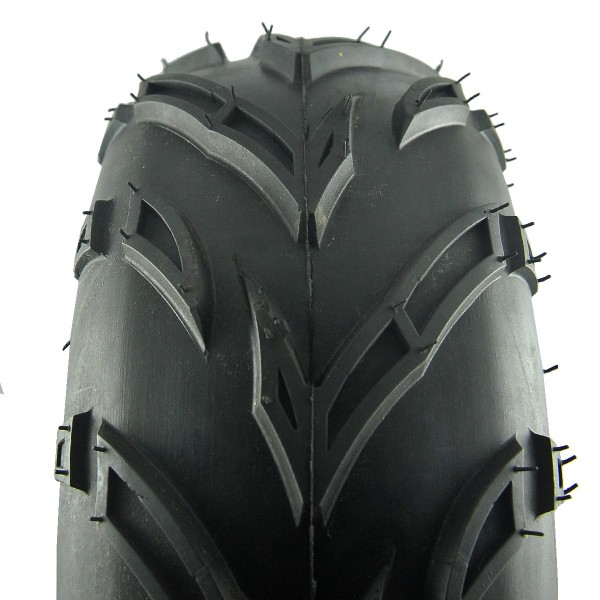

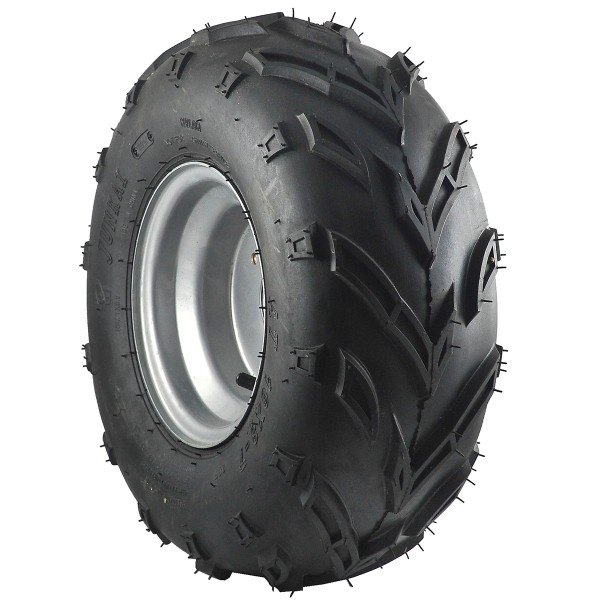

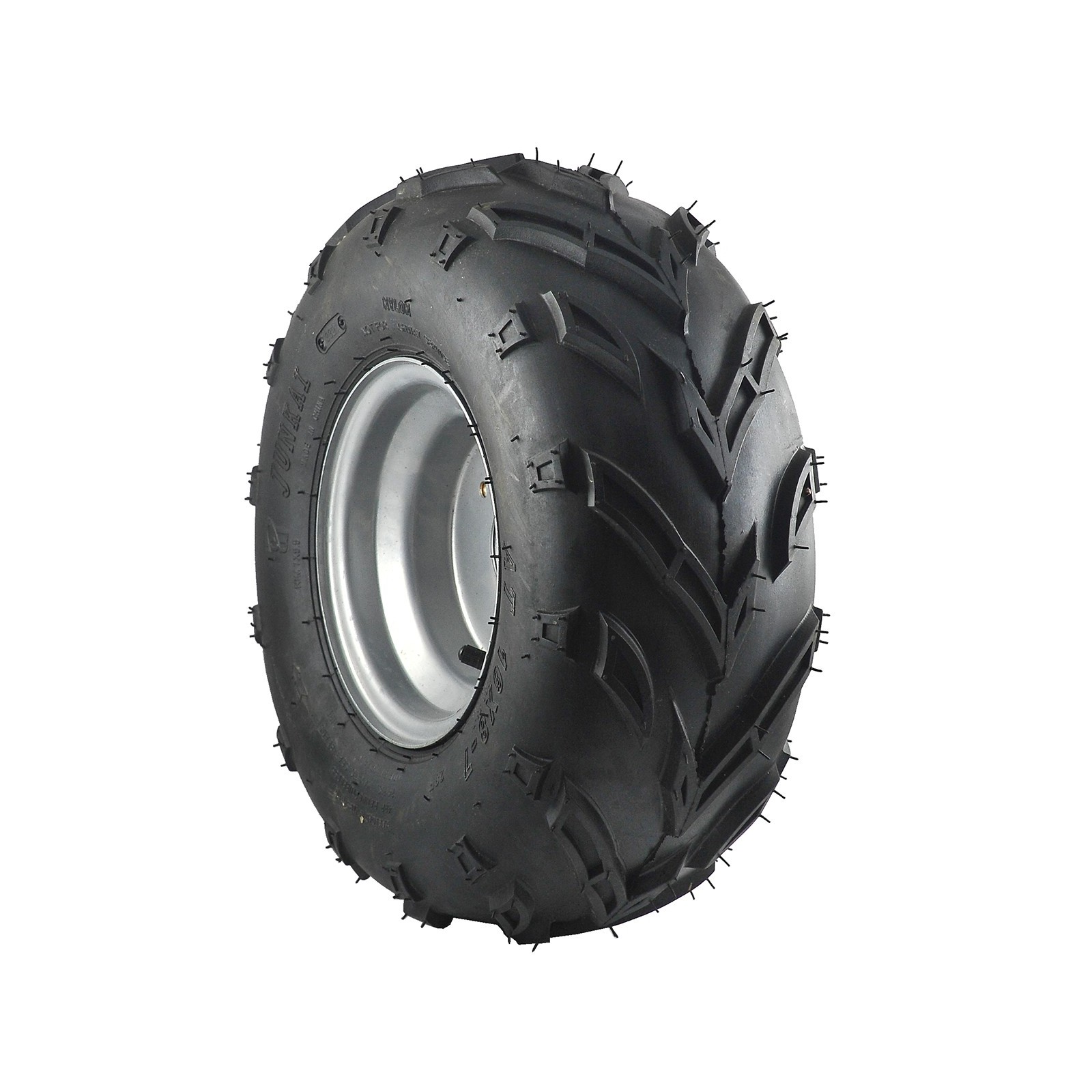

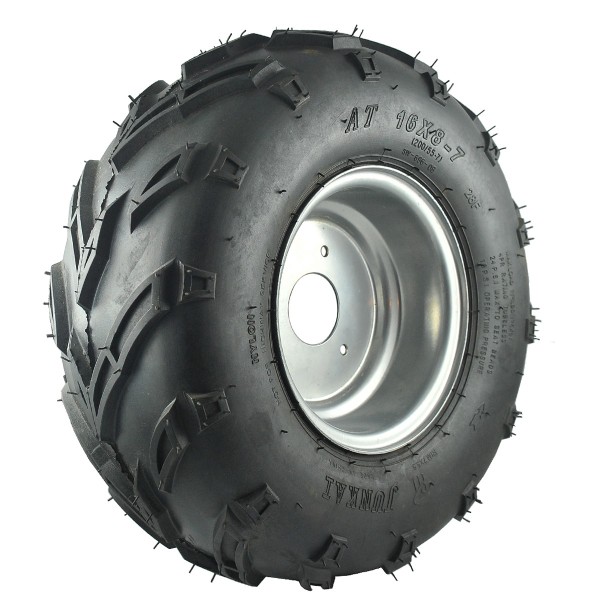

ATV chipper wheel / 5.50 x 7'' / 16" x 8.0-7 / Cedrus RB05 PRO / DR-CS-15HP-H 4FARMER

Complete ATV wheel (shaft shaft 4F/DR-CS-15HP-H/146 ) with 5.50 x 7'' (200 mm) rim and 16" x 8.0-7 tire for Cedrus chippers, Cedrus RB05 series, 4FARMER brand DR-CS series -15HP-H 4FARMER and others.

Properly selected tires allow for maximum use of the tire's driving properties and translate into better use of the tractor's power. A properly selected tire should be in contact with the ground surface with the entire tread face. Low-profile tires are recommended for large machines used mainly for transport on even and long sections, while high-profile tires are recommended for small and medium-sized machines, where driving characteristics require the use of narrow-width tires. Tires are divided into two main groups:

• Radial tires / R / (carcass fibers relative to the tire side reinforcement at a right angle). The tire is resistant to mechanical damage, but is more durable and more economical to operate the tractor. A tire with a larger contact surface can operate at reduced and increased pressure and compacts the soil less. It allows you to change the tractor's field tasks.
• Diagonal tires /D/ (carcass fibers relative to the reinforcement of the tire sides at an acute angle). The tire is very resistant to mechanical damage, requires high pressure and compacts the soil more. The tire is designed to operate in difficult terrain conditions and with constant air pressure.

What size tire?

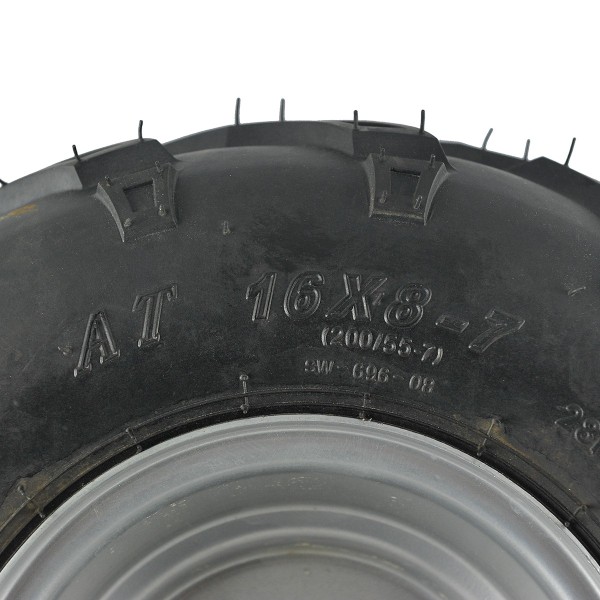

Tire sizes are most often given in inches (inch; abbreviation or symbol: in or ″) and are a series of numbers and letters indicating the tire width, profile height and construction type, tread type and rim diameter. The 22 x 11.00-8 tire is:

• 16 - outer diameter,
• 8 - width,
• 7 - profile.

Additionally, the tire contains information about the number of X PR canvases, the speed index, e.g. TT , and the maximum tire load in kg or lbs.

Dimensions :

• outer diameter: 400 mm (+/- 10 mm), 16"x 8.0-7,
• rim diameter: 200 mm, 5.50 x 7"
• width: 150 mm (+/- 10 mm),
• number of canvases: 4PR,
• load capacity: 125 kg (275 LBS),
• pressure: 24 PSI,
• tire size: 22 x 11-8,
• central hole diameter: 50 mm,
• diameter of holes for mounting screws: 8 mm,
• spacing of holes for mounting screws: 75 mm (measured from each other),
• weight: 4 kg.

Machine models :

4FARMER :

• DR-CS-15HP-H 4FARMER .

Cedar :

• Cedrus RB05 PRO,

Improperly selected tires may damage the tire or machine or create a danger to people and animals, and may affect work comfort and operation, e.g. fuel consumption. Maintaining proper tire pressure allows for optimal use of tire driving properties, machine power and extends their life.

Warehouse :
K02
