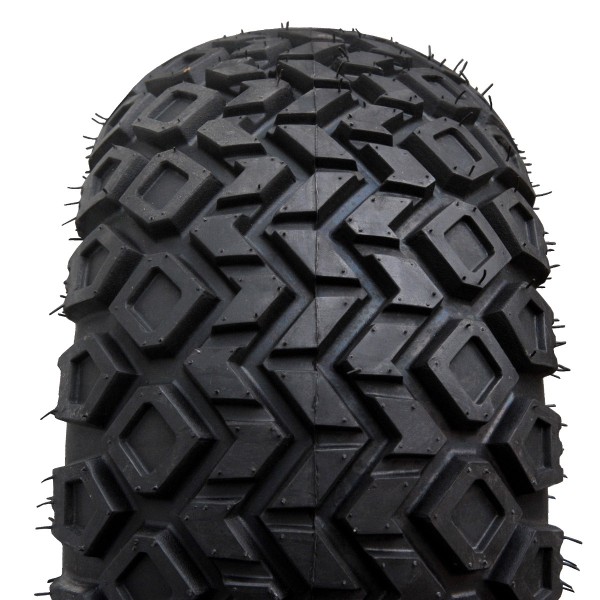

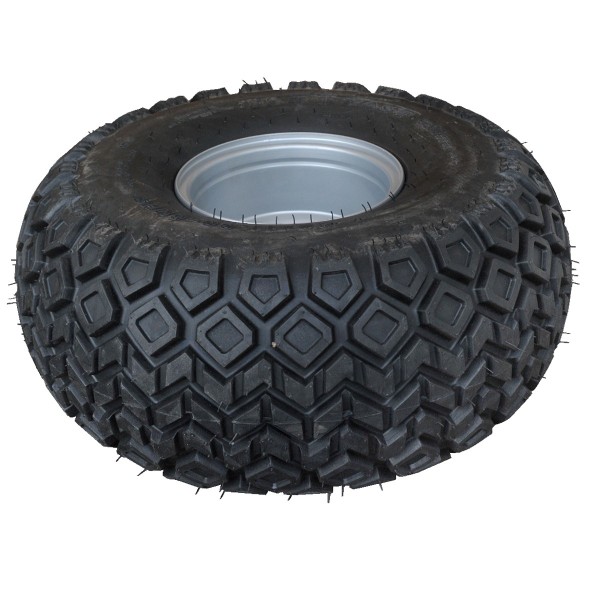

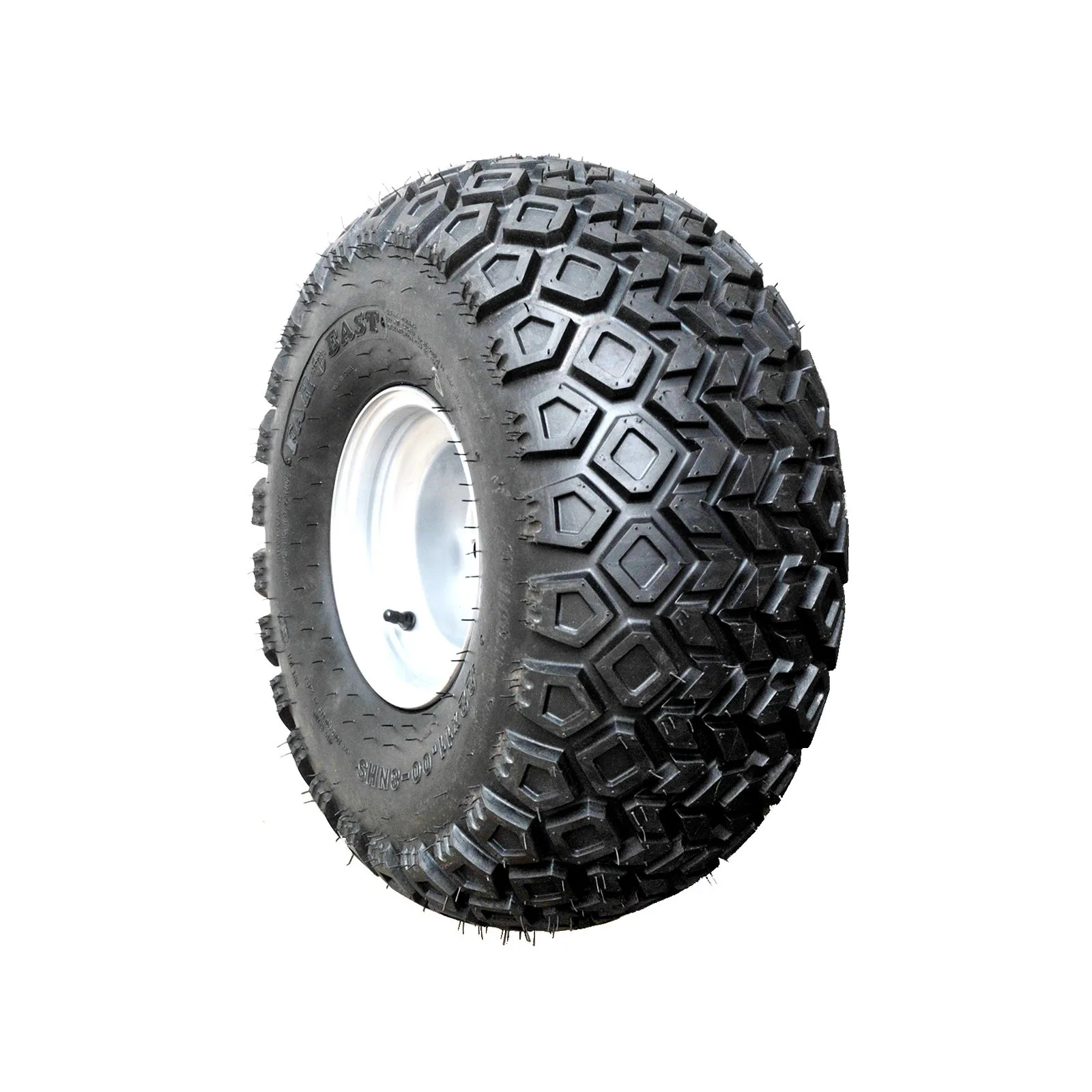

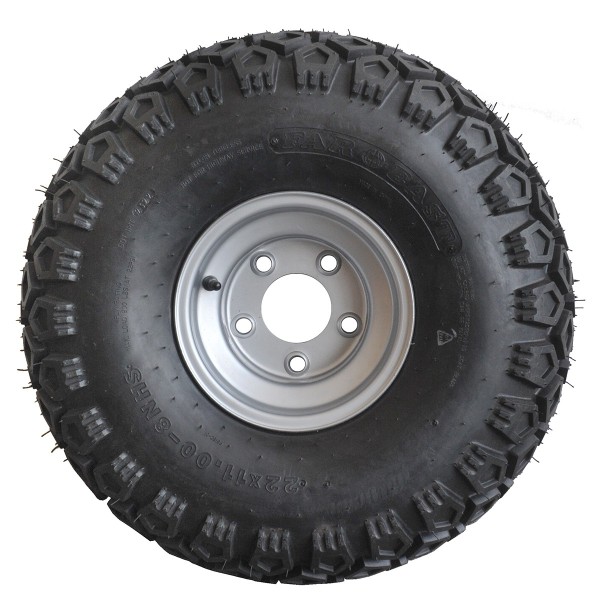

Tire ATV QUAD / 22 x 11.00-8 / 4PR / F918C

How to choose a tire?

Properly collected tires allow for the maximum use of the tire's driving properties and translates into better use of the tractor's power. Correctly selected tire should be in contact with the ground surface with the entire surface of the tread face. Low-profile tires are recommended for large machines used mainly for transport purposes over even and long distances, while high-profile tires for small and medium-sized ones, where the driving characteristics require the use of small width tires. We divide tires into two main groups:

• Radial tires / R / (carcass fibers in relation to the reinforcement of the sides of the tire at a right angle), The tire is resistant to mechanical damage, but more durable and more economical operation of the tractor. A tire with a larger contact area can work with reduced and increased pressure and compacts the soil less. It allows you to change the field tasks of tractor work.
• Diagonal tires / D / (warp yarns in relation to the reinforcement of the sides of the tire at an acute angle). The tire is very resistant to mechanical damage, needs high pressure, it compacts the ground more. Tire designed for operation in difficult terrain conditions and with constant air pressure.

What tire size?

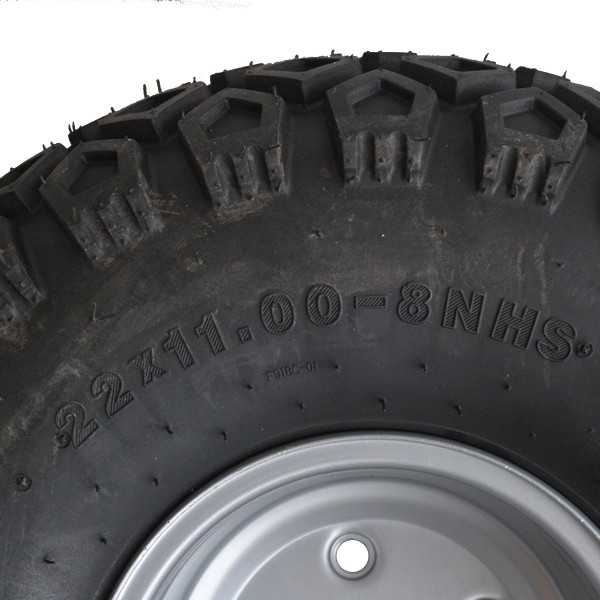

Tire sizes are most often given in inches (abbreviation or symbol: in or ″) and it is a series of numbers and letters denoting the width of the tire, profile height and type of construction, type of tread and rim diameter. The 22 x 11.00-8 tire is a tire:

• 22 - outer diameter,
• 11 - width,
• 8 - rim diameter,

In addition, the tire provides information on the number of X PR canvases, speed rating, eg TT , and the maximum tire load in kg or lbs.

Dimensions :

• outer diameter: 570 mm (+/- 10 mm), 22 ",
• rim diameter: 230 mm,
• width: 230 mm (+/- 10 mm),
• number of canvases: FP4,
• load capacity: 414 kg (900 LBS),
• pressure: 22 PSI,
• tire size: 22 x 11.00-8,
• central hole diameter: 73 mm,
• mounting bolt hole diameter: 17 mm,
• spacing of holes for fastening screws: 68 mm measured from each other, 108 mm measured diagonally,
• weight: 12.5 kg.

Incorrectly selected tires may damage the tire, machine or pose a threat to people and animals, and affect the comfort of work and operation, e.g. fuel consumption. Maintaining proper tire pressure allows for optimal use of the tires' driving properties, machine power and extends their service life.
