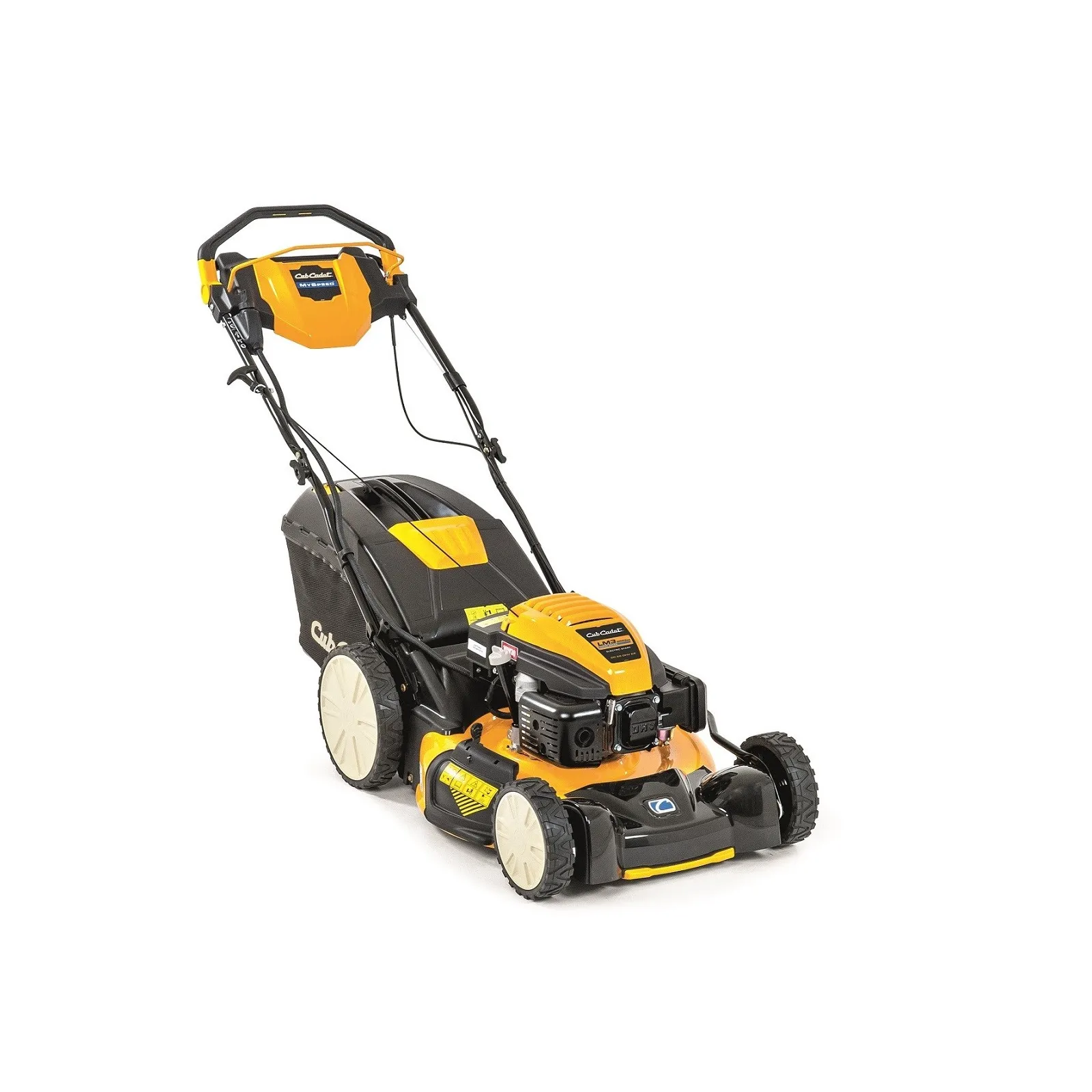

Cub Cadet LM3 DR53es petrol lawn mower

CUB CADET LM3 DR53ES COMBUSTION MOWER

The LM3 mowers are equipped with powerful Cub Cadet motors and a host of comfort features. The biggest advantage of the LM3 mowers is the MySpeed wheel drive, which makes mowing extremely comfortable and flexible. Just move at your own pace and the LM3 Series mower will follow your steps.

FEATURES AND FUNCTIONS OF THE LM3 SERIES COMBUSTION MOWERS:

• HEIGHT ADJUSTMENT Central height adjustment is a key feature allowing you to easily change the mowing level when you need to cut your lawn differently.

• ADJUSTING THE HEIGHT OF THE HANDLE - adjusting the height of the handle to the operator's needs.

• ELECTRIC START - starting the mower by turning the key

• LARGE COLLECTION BASKET saves time, thanks to the reduction of the frequency of dumping. The basket is equipped with a full indicator.

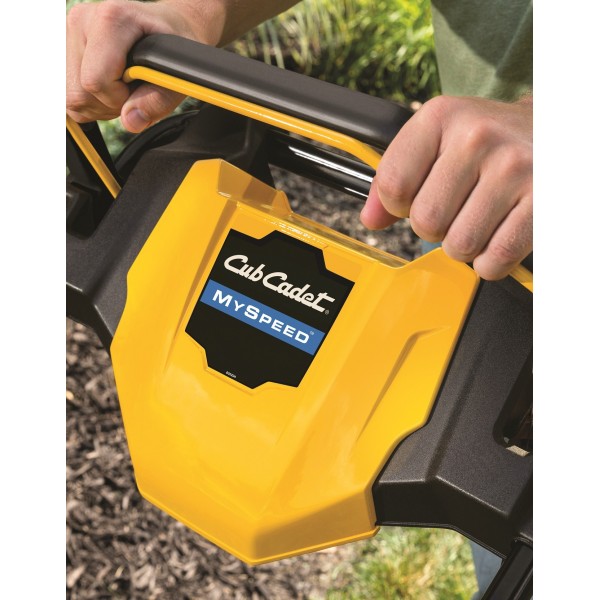

• MY SPEED DRIVE The speed of the drive system with the innovative MYSPEED system depends on the tightening of the handle. If the operator walks faster, the handle will automatically apply more pressure and therefore the speed of the mower increases. If the operator walks slower, there is less pressure on the handle and the mower drive slows down. If the operator stops, the lever automatically moves to the neutral position and the drive stops.

• HIGH REAR WHEELS Large wheels protect the grass and provide better traction, while the double ball bearing ensures easy movement over grass or uneven terrain.

• POWERFUL ENGINES, EASY TO START The LM3 mowers feature Cub Cadet OHV or Briggs & Stratton engines for maximum power and efficiency.

• MOWING AT THE EDGES Thanks to the special geometry of the housing, in which the wheels do not protrude beyond its outline, the mower can also easily mow grass along walls, fences or walls.

FORCE SERIES 4-IN-1 - REAR AND SIDE DISCHARGE, COLLECTION AND MULCHING

The 4-in-1 function gives the mower optimal flexibility in 4 usage modes. This solution gives you the freedom to choose the desired handling of the cut grass, regardless of the conditions. When the cutting time counts, the swath can be ejected to the side or to the rear. If cleanliness and accuracy are important, it is possible to collect the swath into the bin. On the other hand, mulching, which is a clever method of grass care, is possible using the enclosed plug.

Technical data:

Engine type: Cub Cadet 55 OHV ES

Engine capacity (cm3): 159 cm³

Nominal power (kW / min-1): 2.5 / 2.600

Engine start: electric

Fuel tank capacity (l): 1.0

Drive: Drive, rear wheels

Drive speed (maximum): 3.6 km / h

Housing (material) / Frame: Steel

Working capacity (m2 / h): 950 m² / h

Working width / Working height (adjustment) (mm): 53cm / 28-92 mm

Working Functions: 4-in-1 Option

Working height (range): 6 positions / central

Collecting in the bin: Standard

Basket: Textile

Basket (capacity) (l): 70 l

Basket full indicator: standard

Wheels (front / rear): 200mm / 200mm

Basket full indicator: Standard

Double Row Ball Bearings: Standard

Washing nozzle: Standard

Handle height adjustment: Standard

LpA / LwA / LwAg (dB): 86/96/98

Vibration value AHV Hand / arm (m / s2): 5 / 1.5

Dimensions (L / W / H) (cm): 162/58/114

Net weight (kg): 41 kg

3-YEAR MANUFACTURER'S WARRANTY
