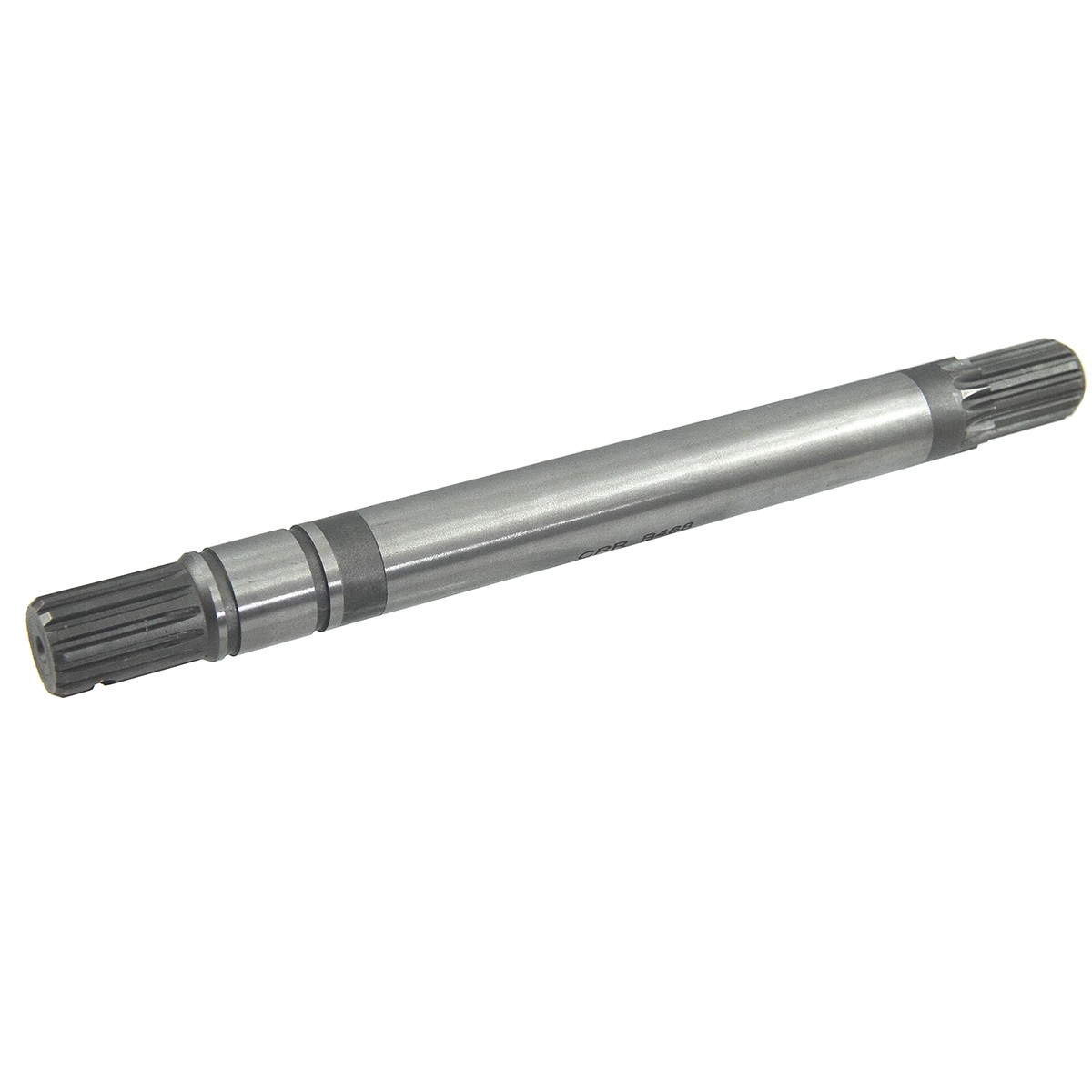

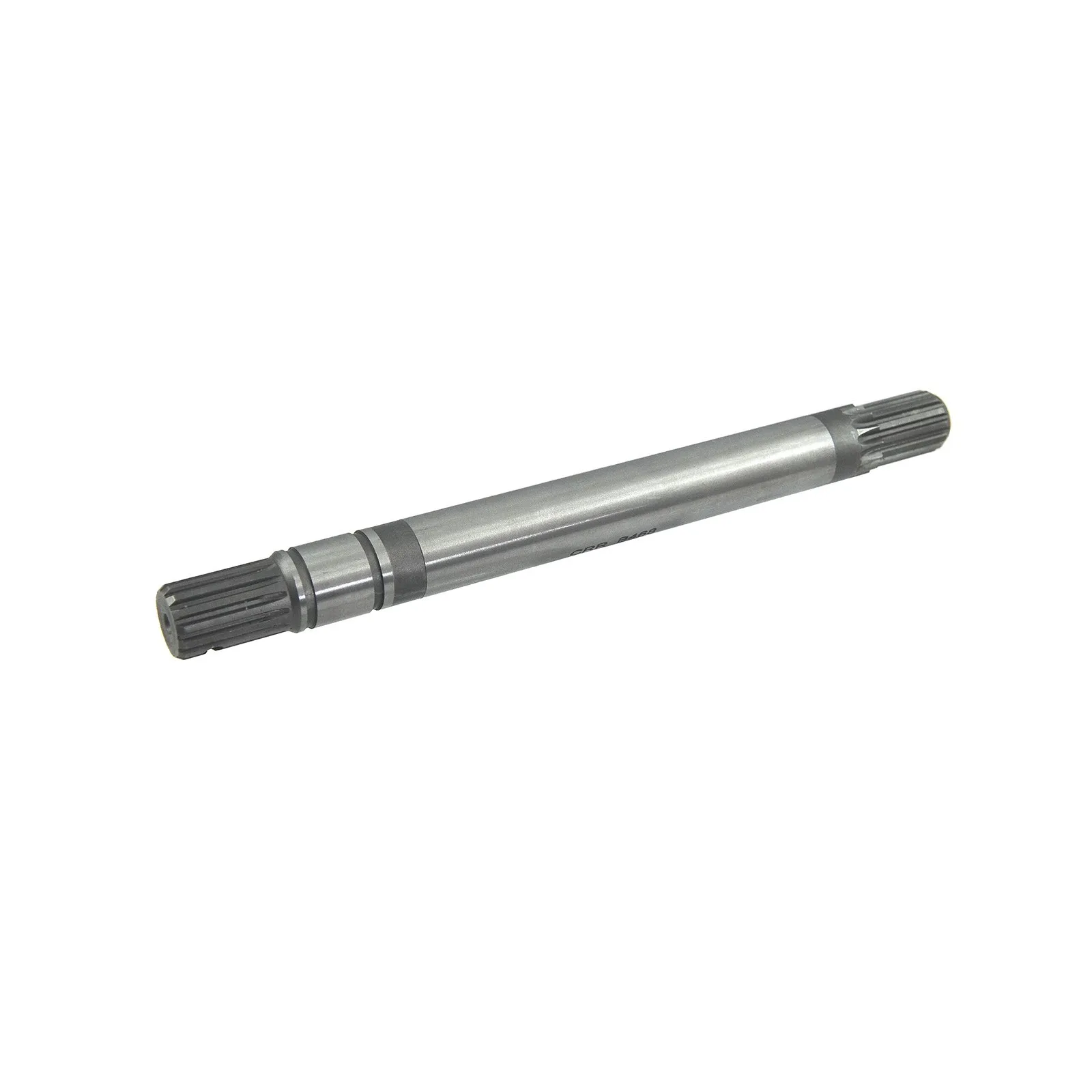

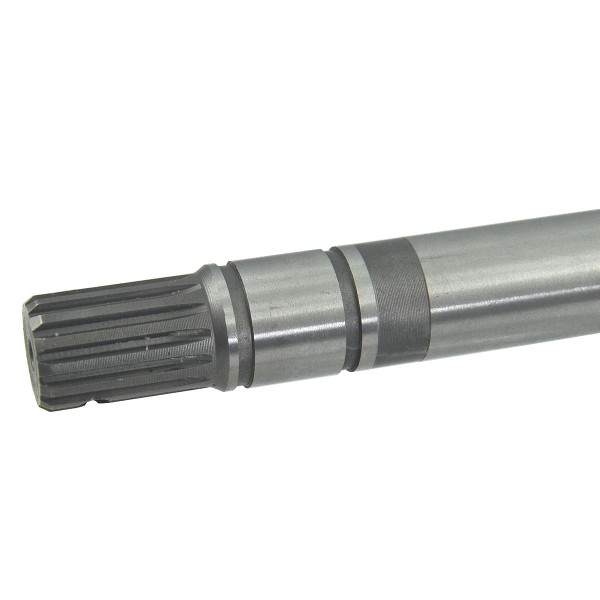

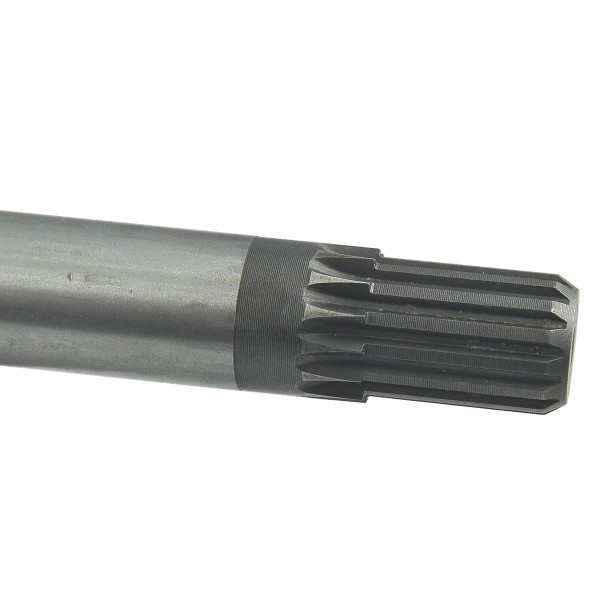

Drive shaft / 14T/14T / 246 mm / Kubota B2410 / B2440 / B2740 / 6-18-117-07

Bushing of the front axle drive shaft and other shafts (connector %C4% 85cznik-wa %C5% 82k %C3% B3w-14t14t-58-mm-kubota-b2410-b2440-b2740-5-15-251-07.html">5-15-251-07 , 6C526-14350, joint 6-07-102-08, 6-07-102-09) with a length of 58 mm and an internal diameter of 17 mm (measured between the teeth of the cutter), 20 mm (measured together with the cutter) for Kubota tractors of the Kubota B2410, Kubota B2440, Kubota B2740 series and others.

The drive shaft is a part of the system responsible for transferring power from the engine to the tractor's driving axle (axles, final drive) and/or the tractor's power take-off shaft. In 4 x 4 tractors, there are two similar or identical shafts. The gearbox shaft's task is to receive the driving force from the clutch disc and transfer it to one of the gears or to the PTO/PTO power take-off shaft.

Dimensions :

• total length: 246 mm,
• diameter: 22 mm,
• cutter diameter: 17 mm (measured between teeth), 19.50 mm (measured together with cutter),
• number of teeth: 14T,
• original part numbers: 6C526-57622,
• Reference Part Numbers: 6C300-57622,
• part numbers: 6-18-117-07.

Tractor models :

Kubota :

• Kubota B2410,
• Kubota B2440,
• Kubota B2740.

Warehouse :
K18:F18:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
