zł320.00
To order
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
- Kubota B2410
Kubota B2710
Kubota B2910
Kubota B2710
Kubota B2910
Voltage (V)
12V
Length (mm)
10 (pręt)
Diameter (mm)
34
Extinguisher coil / 12V / Kubota B2410 / B2710 / B2910/ F2680/ F2690/ F2690/ F2880/ F3080/ F3680 / Selenoid 6A320-31152
6A320-31152
Do you have any questions?
Extinguisher coil / 12V / Kubota B2410 / B2710 / B2910/ F2680/ F2690/ F2690/ F2880/ F3080/ F3680 / Selenoid 6A320-31152

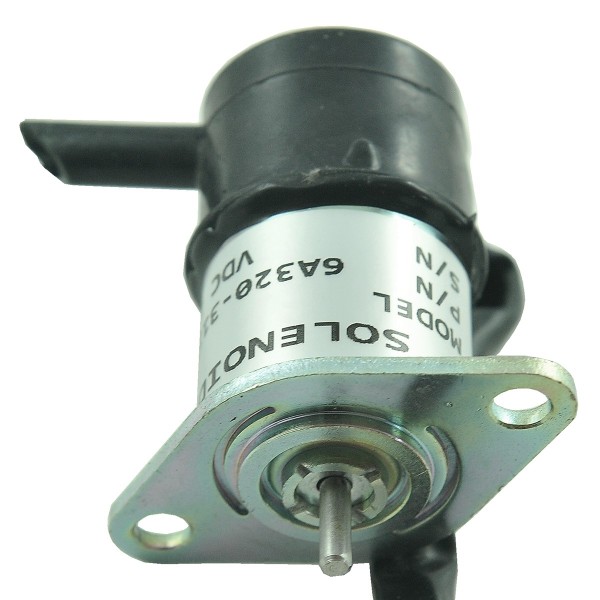

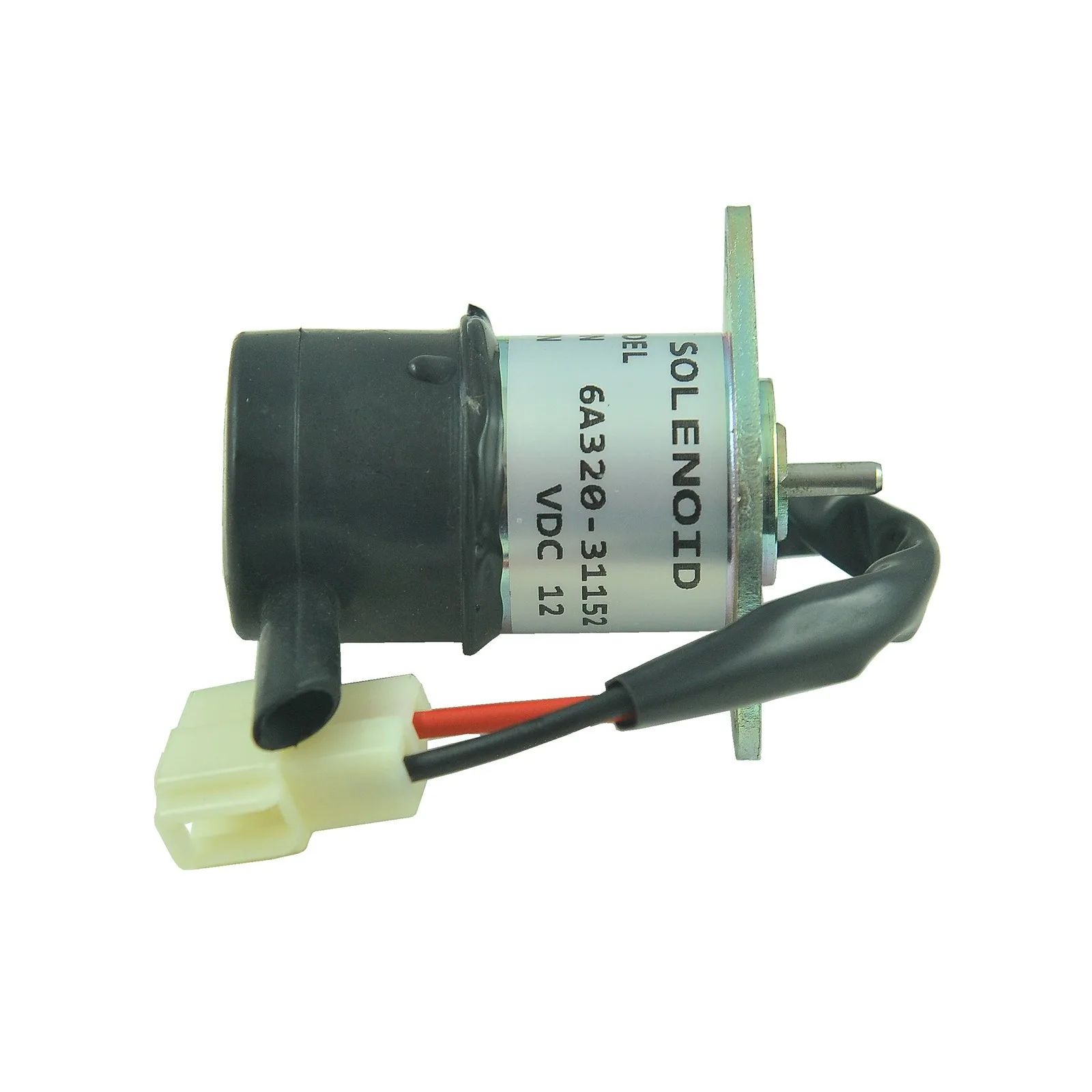

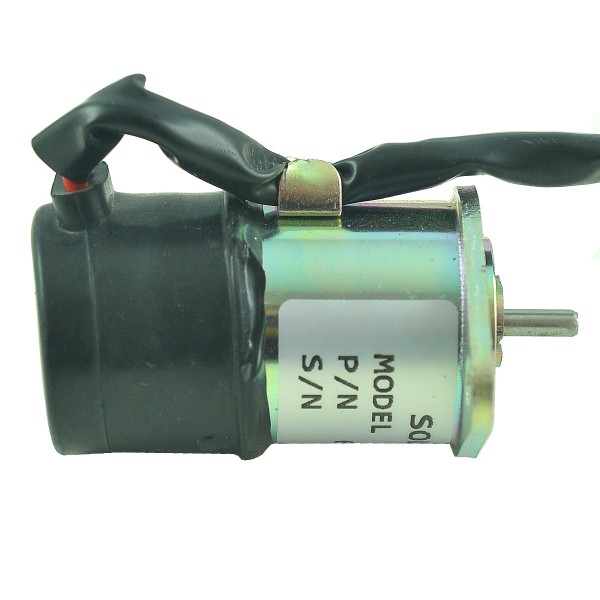

Selenoid extinguishing coil with a diameter of 34 mm and a total length of 6.4 mm (measured from the rod) for Kubota tractors of the Kubota B2410, Kubota B2710, Kubota B2910, Kubota F2680, Kubota F2690, Kubota F2880, Kubota F3080, Kubota F3680 series and others.
The extinguishing coil , solenoid valve , or electromagnet is one of the most important elements of the tractor's ignition system and is responsible for cutting off the fuel supply to the fuel pump. The extinguishing coil's task is to turn off the engine. The extinguishing choke is an electrical device operating at a voltage of 12V and often in oil immersion.
Dimensions :
- voltage: 12V,
- diameter: 34 mm,
- total length (without rod): 64 mm,
- rod length: 10 mm,

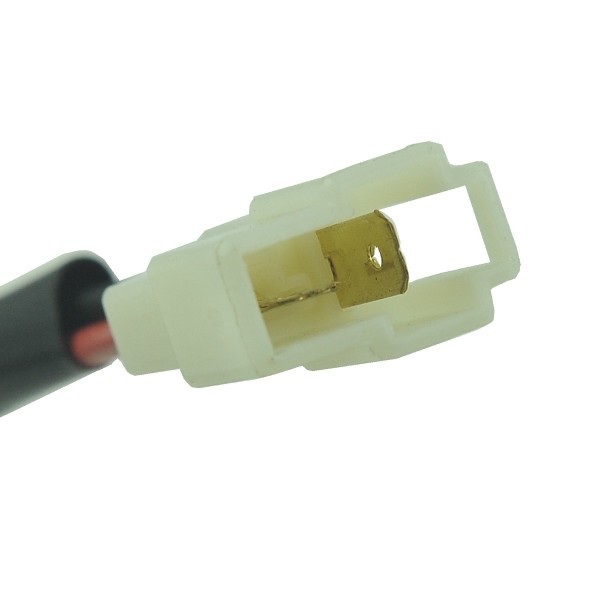

- number of pins: 2 pcs.
- cable length: 100 mm,
- spacing of mounting screw holes: 52 mm,
- original part numbers: 6A320-31150,
- reference numbers: 6A320-31153,
- part numbers: 6A320-31152.
Tractor models :
Kubota :
- Kubota B2410,
- Kubota B2710,
- Kubota B2910.
Lawnmower models :
Kubota :
- Kubota F2680,
- Kubota F2690,
- Kubota F2880,
- Kubota F3080,
- Kubota F3680.
The first signs of a failed extinguishing coil are problems with starting the engine, rough idling or jerking when starting off. Sometimes problems with the correct operation of the extinguishing coil are due to a weakly charged battery.
Magazine : M01:B74
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:B74
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
- Kubota B2410
Kubota B2710
Kubota B2910
Kubota B2710
Kubota B2910
Voltage (V)
12V
Length (mm)
10 (pręt)
Diameter (mm)
34
Overall length (mm)
64
Wire length(s) (mm)
100
Bolt hole spacing (mm)
52
Number of pins (pcs.)
2
Mower models
Kubota F2680
Kubota F2690
Kubota F2880
Kubota F3080
Kubota F3680
Kubota F2690
Kubota F2880
Kubota F3080
Kubota F3680
Comparison numbers
6A320-31153
Original Part Number (OEM)
6A320-31150
Part number
6A320-31152
