Product description

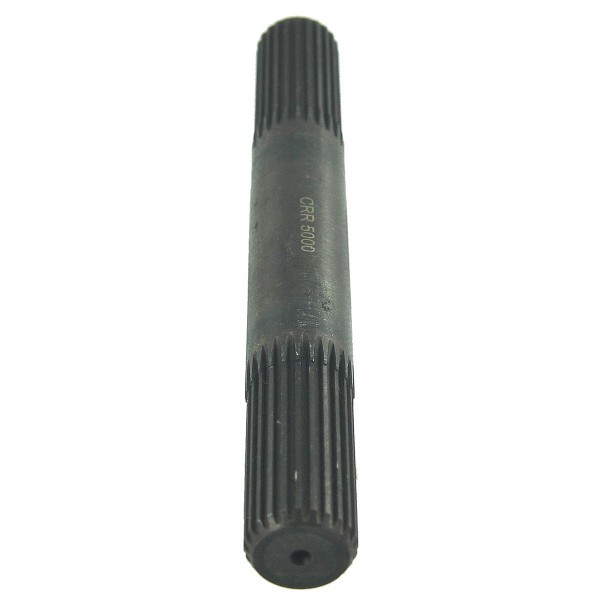

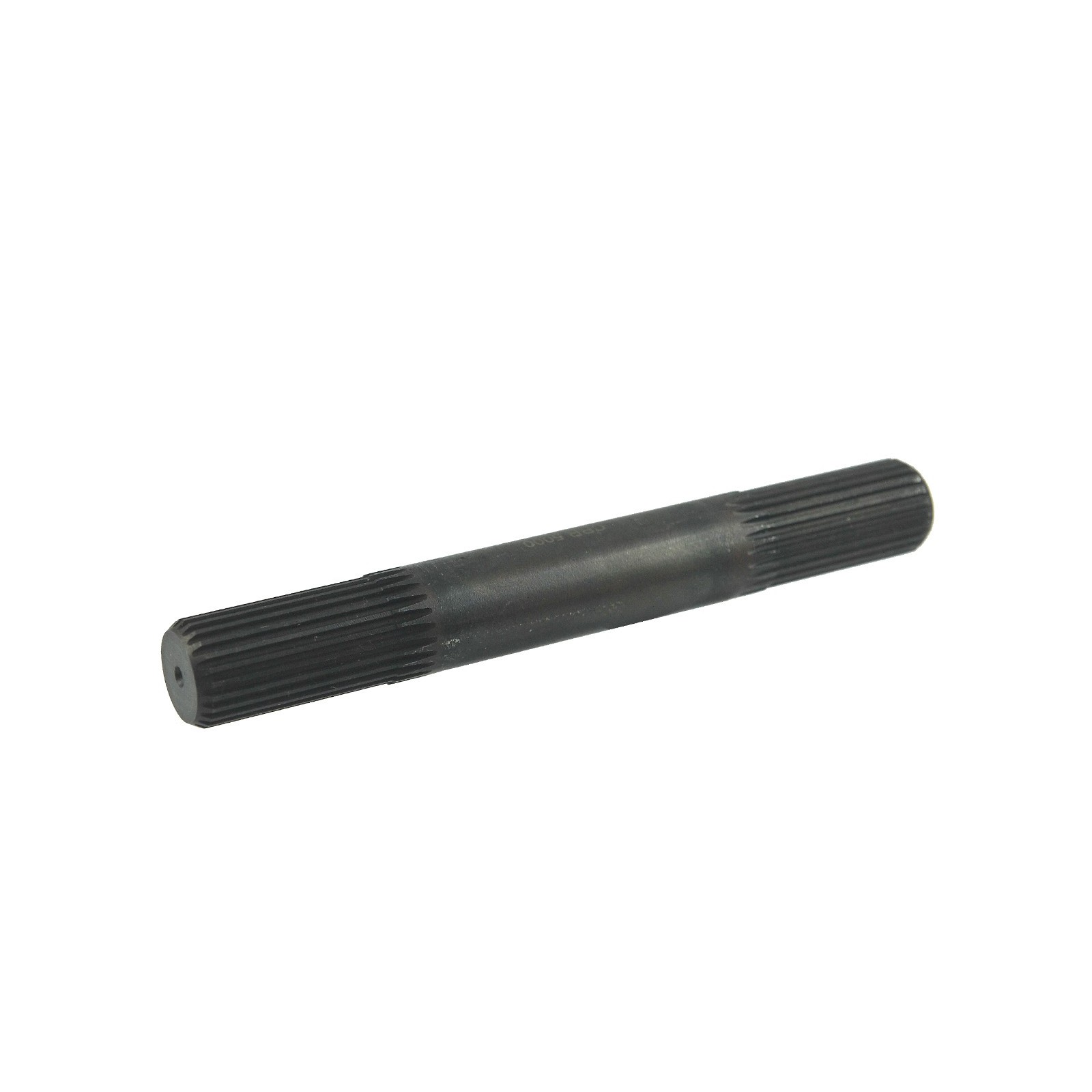

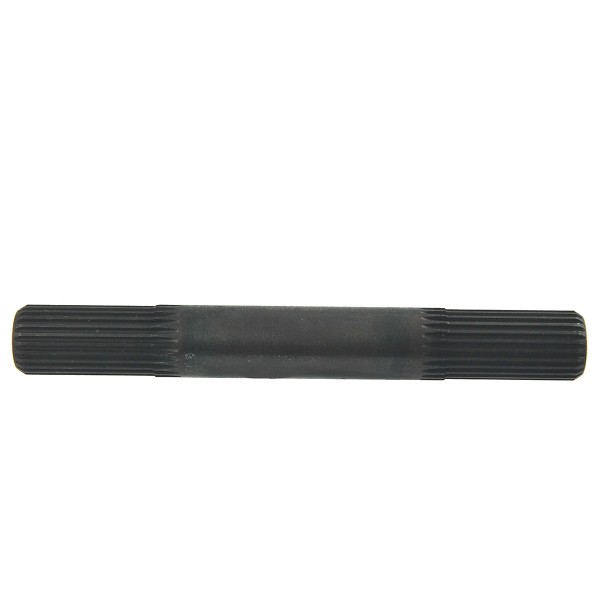

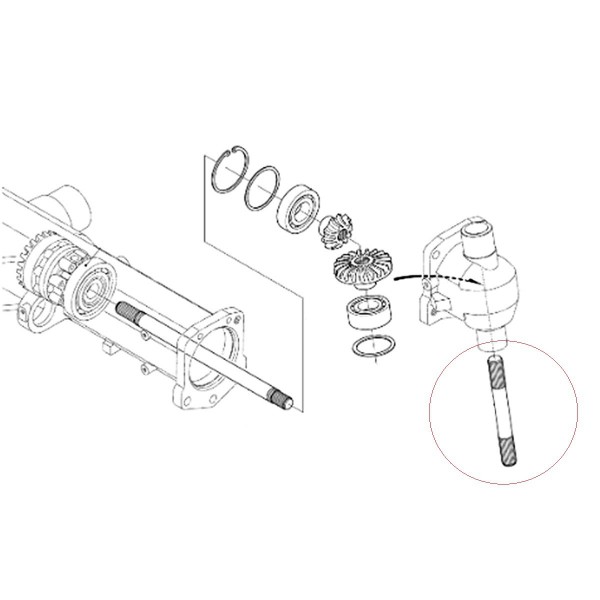

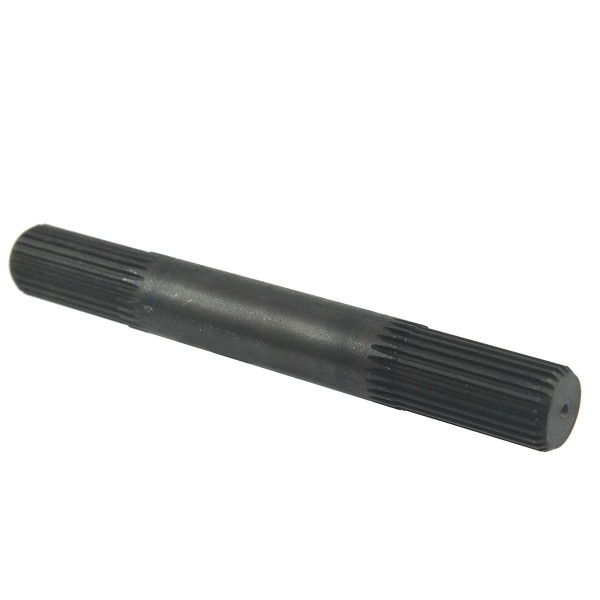

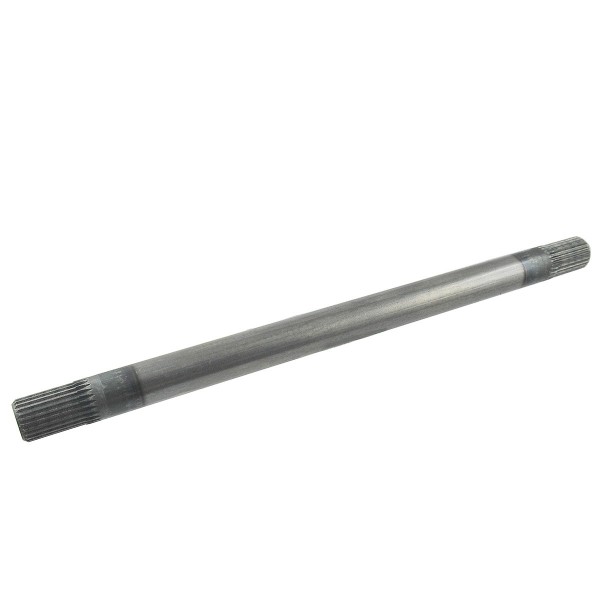

24T/24T drive shaft (4WD, vertical final drive shaft), front axle (shaft on the left side 5-18-114-19 , 3A021-43210, shaft on the right side 5-18-114-19 , 3A021-43210) with a diameter of 25.50 mm and a total length of 196 mm for Kubota tractors of the Kubota M4700, Kubota M5000, Kubota M5400, Kubota M5700, Kubota M6800, Kubota M8200 series and others.
The intermediate shaft, drive shaft is a part of the system responsible for transferring power from the engine to the tractor's driving axle (axles, final drive) and/or the tractor's power take-off shaft. In 4 x 4 tractors, there are two similar or identical shafts. The gearbox shaft's task is to receive the driving force from the clutch disc and transfer it to one of the gears or to the PTO/PTO power take-off shaft.
Dimensions :
- total length: 196 mm,
- shaft diameter: 25.50 mm,
- cutter diameter: 21.50 mm (measured between cutter teeth), 24.50 mm (measured together with the cutter),
- number of teeth: 24T / 24T,
- working length of cutters: 47 / 47 mm,
- original part numbers: 3A021-43410,
- part numbers: 5-01-208-09.
Tractor models :
Kubota :
- Kubota M4700,
- Kubota M5000,
- Kubota M5400,
- Kubota M5700,
- Kubota M6800,
- Kubota M8200.
The drive shaft is one of the most precisely manufactured components in the drive system and is always made from a single piece of steel, because the shaft houses the equally precisely manufactured bearings, gears and sprockets that drive the tractor.
Magazine : K18:B05:S03
Specifications
Podobne produkty
Reviews of Final drive..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
