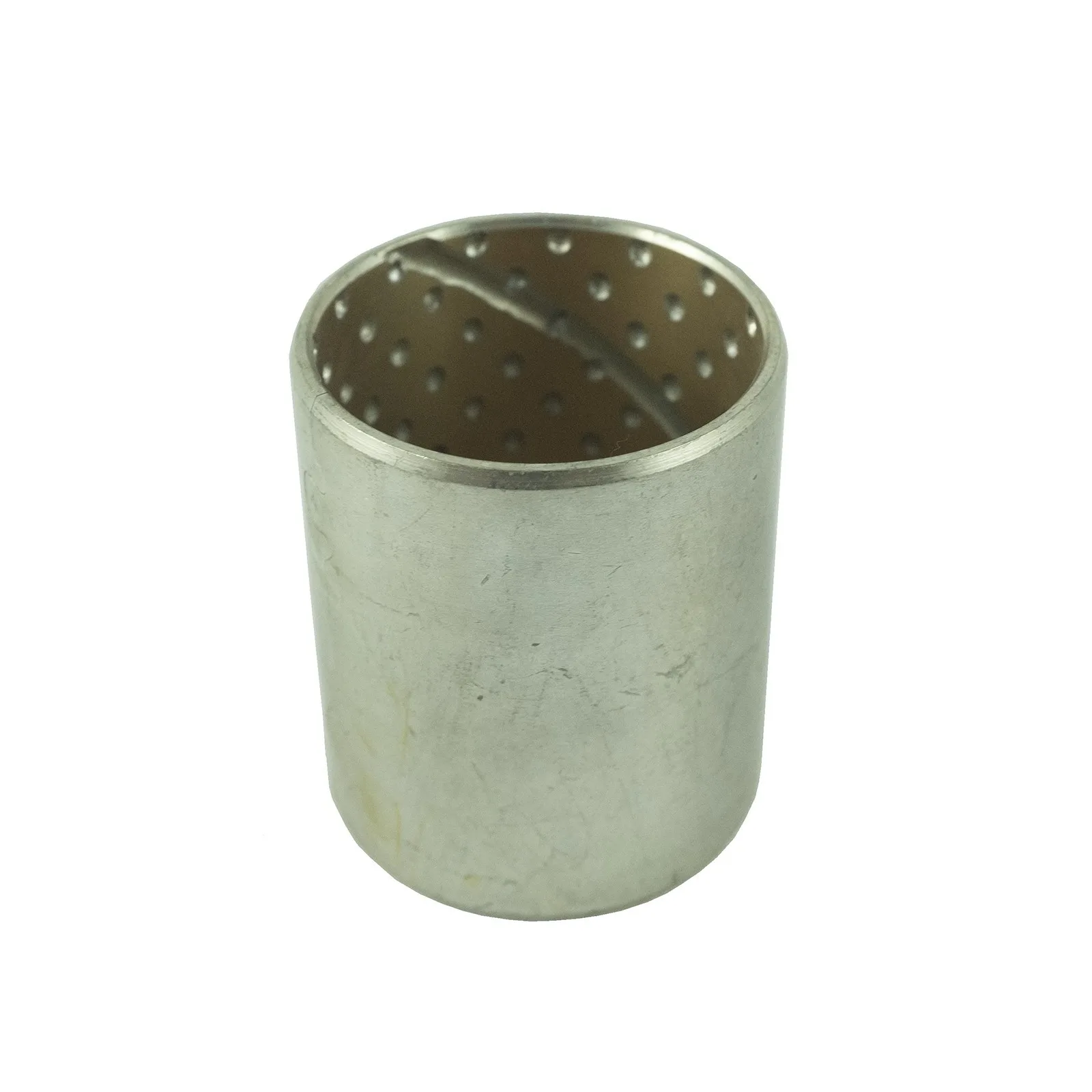

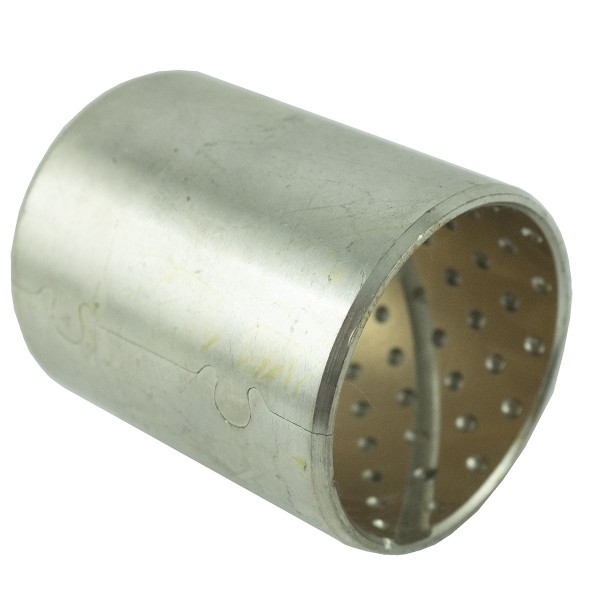

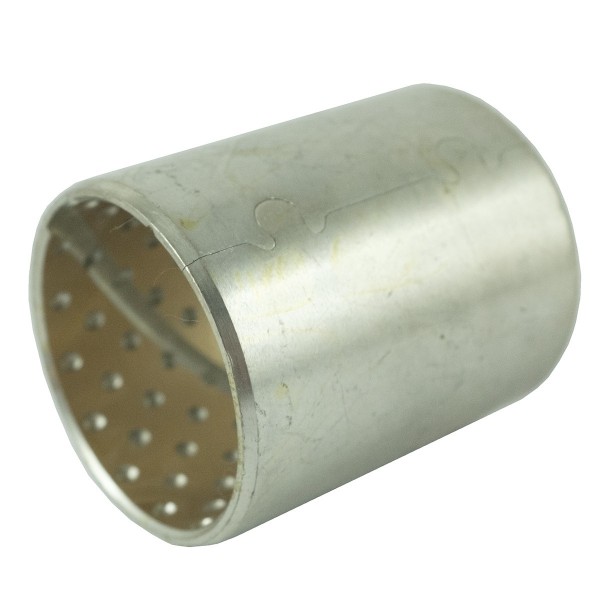

Bushing 50 x 45 x 60 mm, rear linkage sliding bush / Kubota M5000 / 6-14-100-06 / 32530-37450

Rear linkage sliding bush (O-ring 5-27-100-09 , 04811-50450, 04816-50450) with dimensions 50 x 45 x 60 mm for Kubota M series tractors and others.

A thrust sleeve or a sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have very high abrasion resistance and are capable of carrying heavy loads. A plain bearing , as this component is sometimes called, often has an internal groove or hole to facilitate access of lubricant to the contact surfaces.

Dimensions :

• outer diameter: 50 mm,
• inner diameter: 45 mm,
• height: 60 mm,
• comparison numbers: 32530-37450.

Tractor models :

Kubota :

• Kubota M5000.

The first signs of wear of the sliding sleeves are a constant knocking sound during operation. The appropriate pressure of the lubrication system and the use of oil with the appropriate viscosity or too rare oil changes have a direct impact on the life of the bushings,
