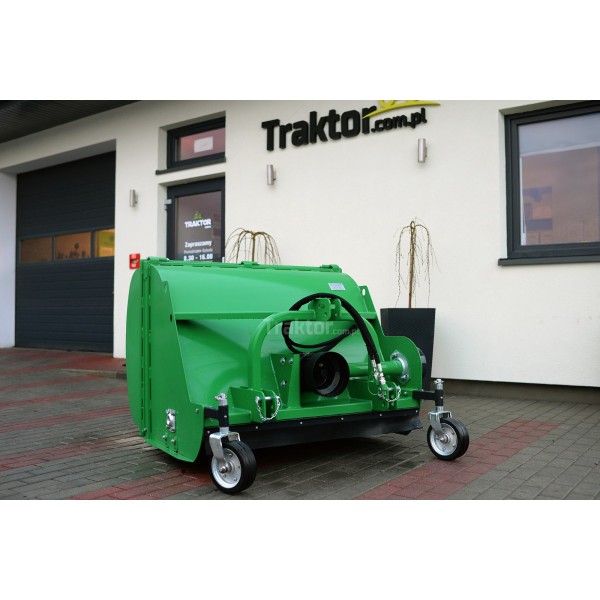

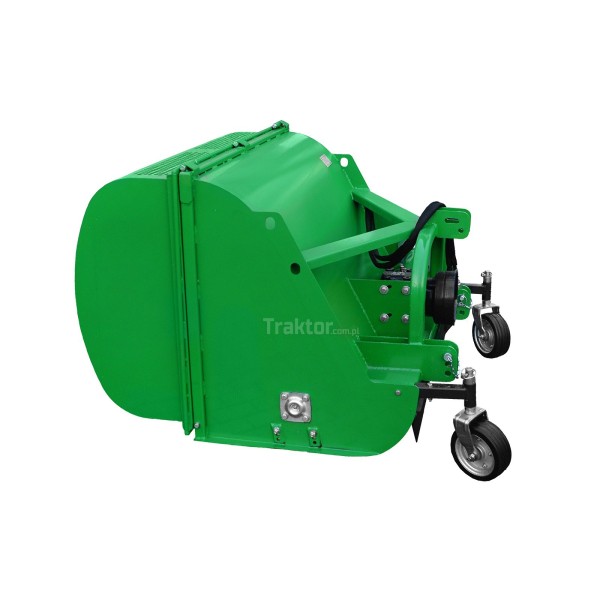

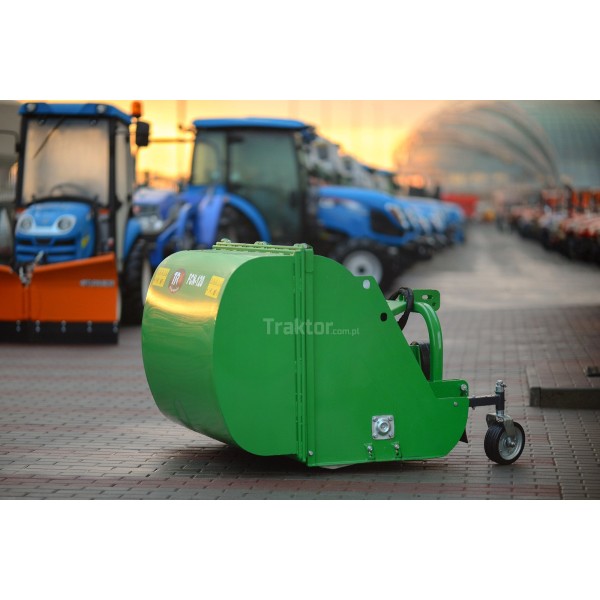

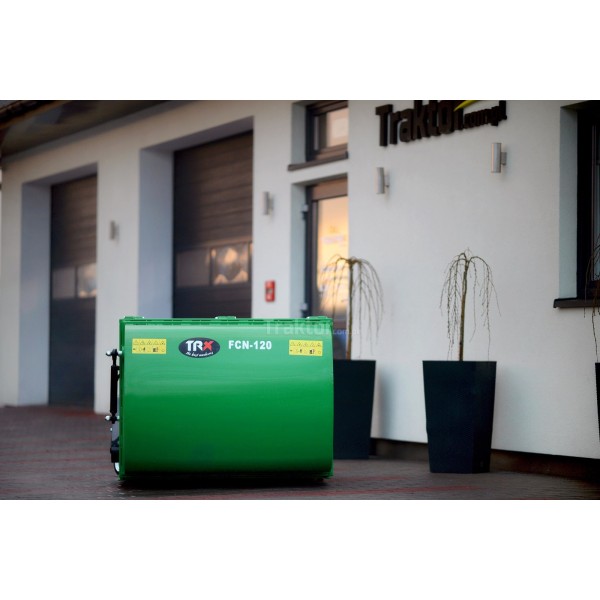

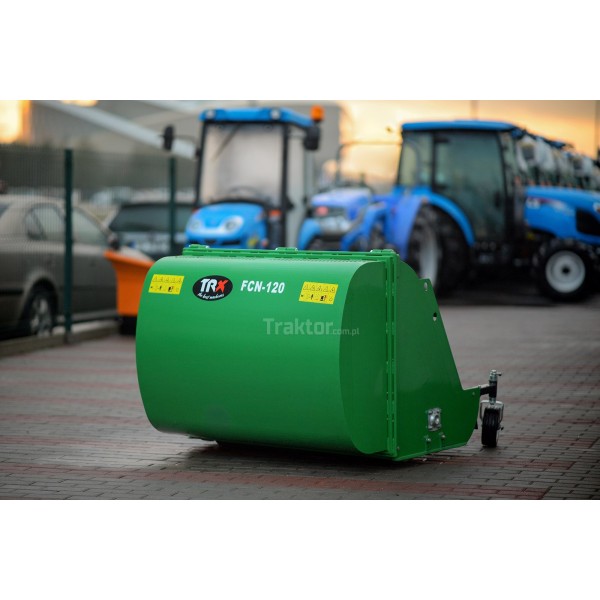

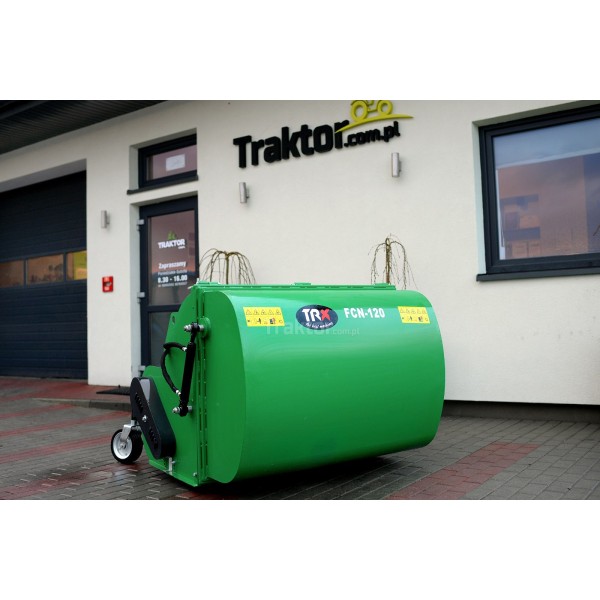

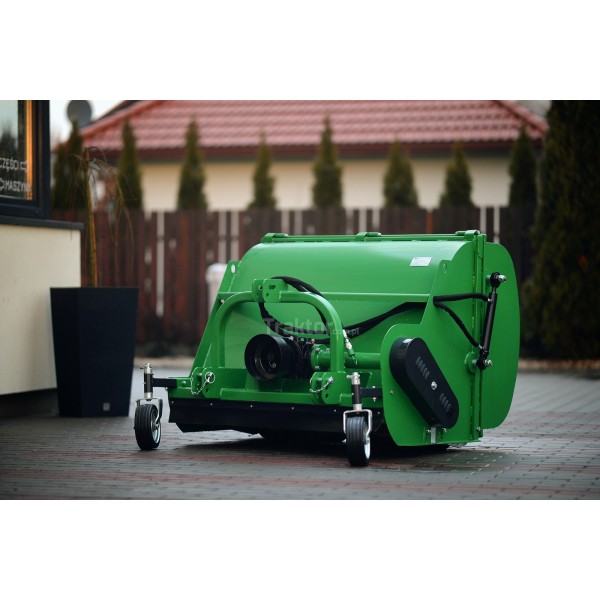

FCN 120 flail mower with grass catcher

Application:

• mowing all kinds of wasteland,
• mowing road shoulders, slopes and ditches
• mowing green areas in cities
• care of pastures, meadows, recreational areas, bushes for cleaning purposes
• mowing green areas in parks with the possibility of collecting grass and fallen leaves
• as a cleaning machine in orchards and nurseries

Benefits:
• can be easily used in urbanized areas because the number of flying stones and their impetus are very limited,
• when taking care of lawns, there is no need to collect mulched grass if this procedure is repeated quite often,
• also copes with neglected terrain where there are more stones, branches and other obstacles,
• cut green material quickly transforms into humus, and old grass does not grow back so quickly,
• has a double protection against damage to the gear: hammers bounce off a stable obstacle, belts on pulleys slip in case of too much resistance,
• the transmission has a one-way clutch that protects the tractor from damage
• simple construction ensures reliability and low repair costs

Technical data:
• working width - 120 cm
• total width - 140 cm
• minimum tractor power - 18 HP
• average efficiency - 0.4 ha/h
• max speed - 10 km/h
• basket capacity - 0.84 m3
• number of V-belts - 2 pcs

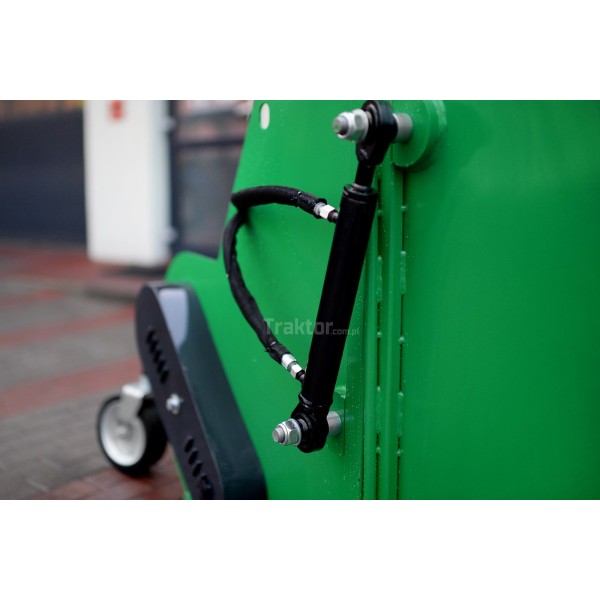

• basket opening - hydraulic

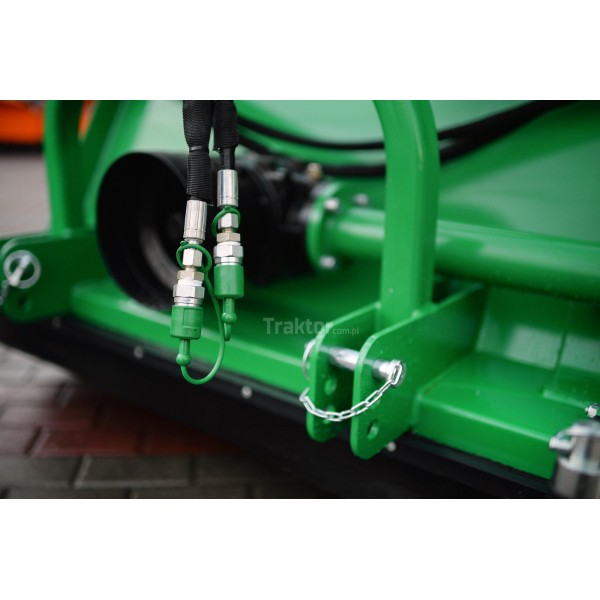

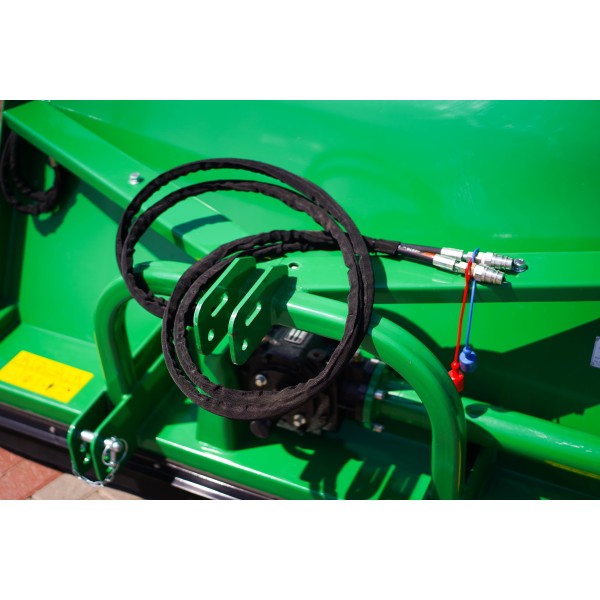

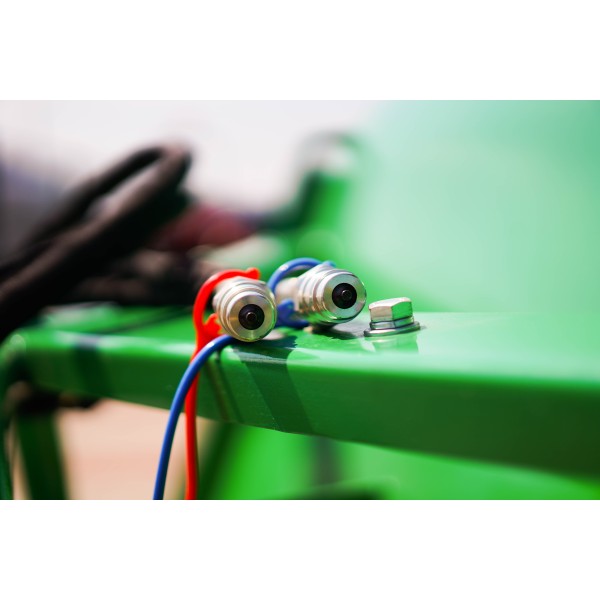

• number of hydraulic connections - 2 pcs

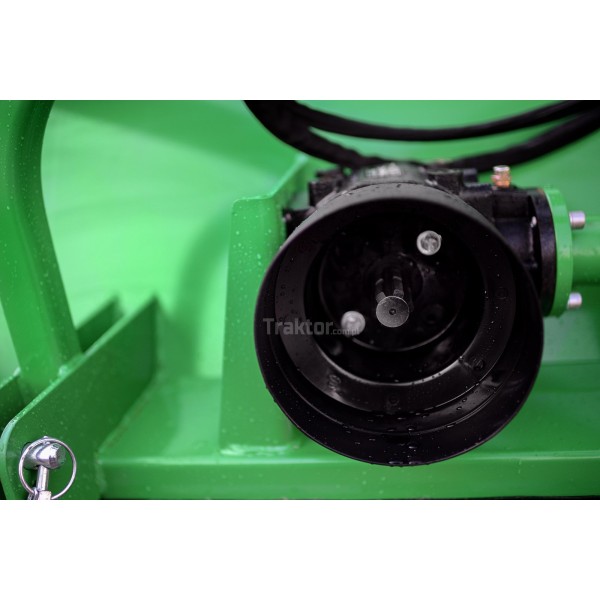

• gear type - bevel gear with clutch
• weight - 336 kg
• mounted on the 3-point mount of the Cat-1 tractor,
• drive from the tractor's PTO shaft, 540 rpm,
• equipped with a reinforced angular gear with a clutch,
• cutting elements: 28 hammers put on the fi 12 screw,

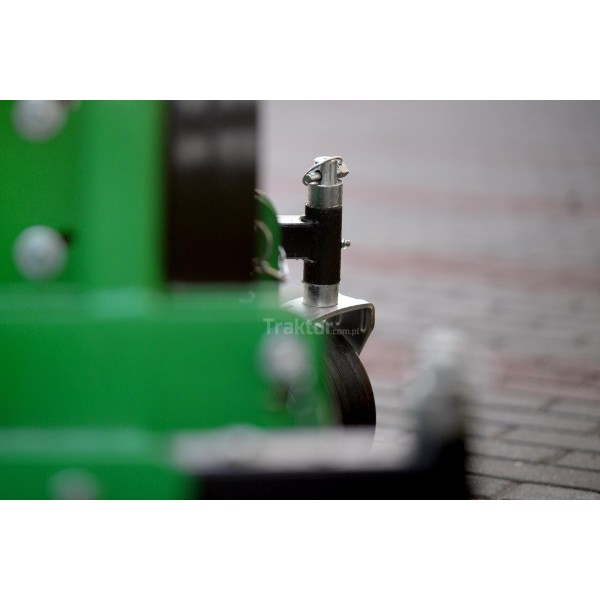

• adjustable cutting height

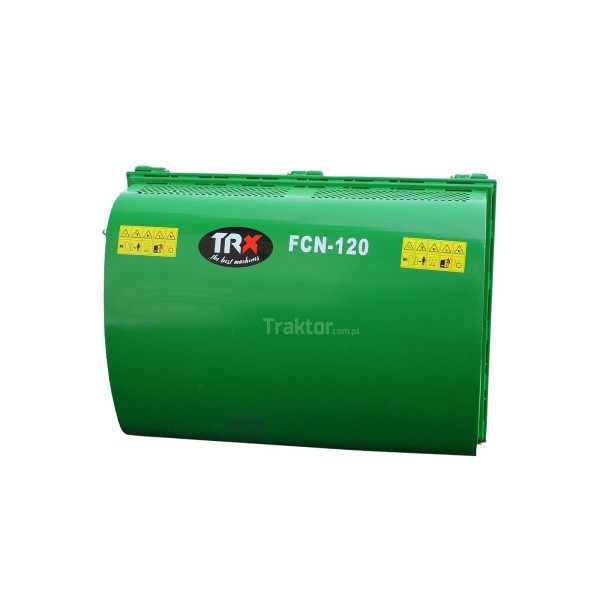

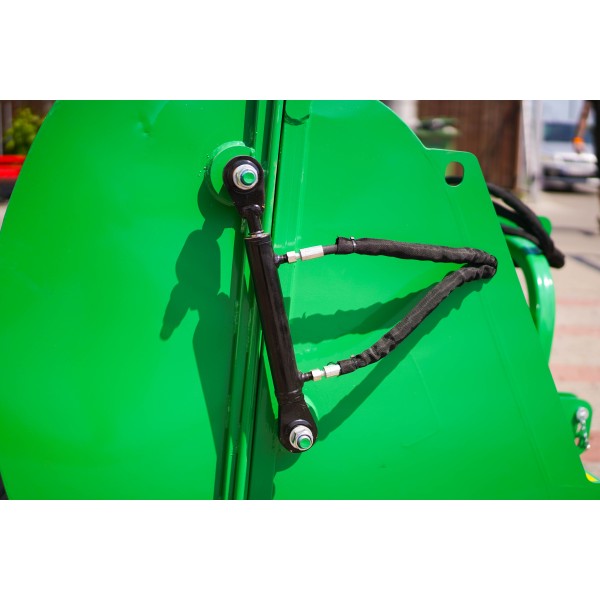

• has a hydraulically opened basket for collecting grass, discharge on the ground. One hydraulic section is required in the tractor.

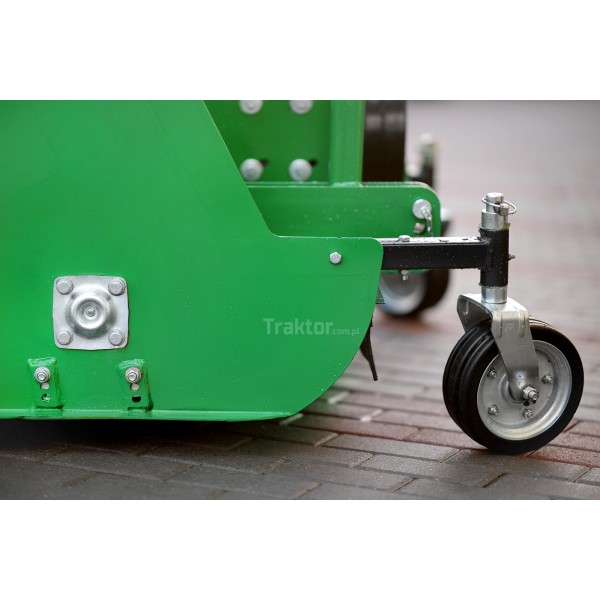

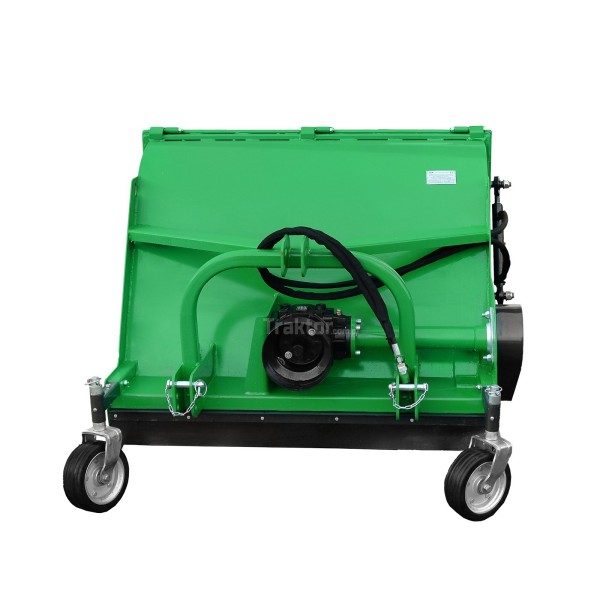

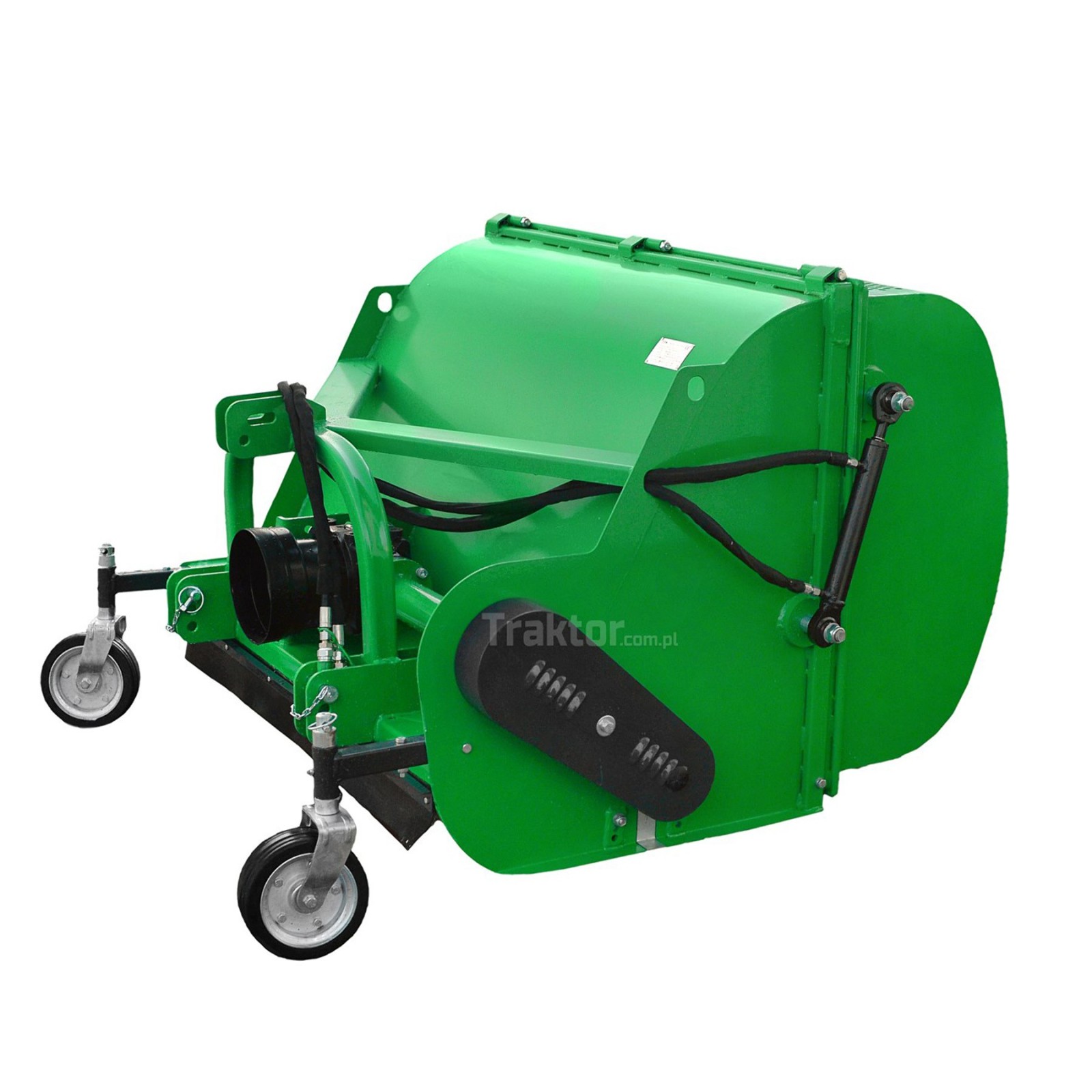

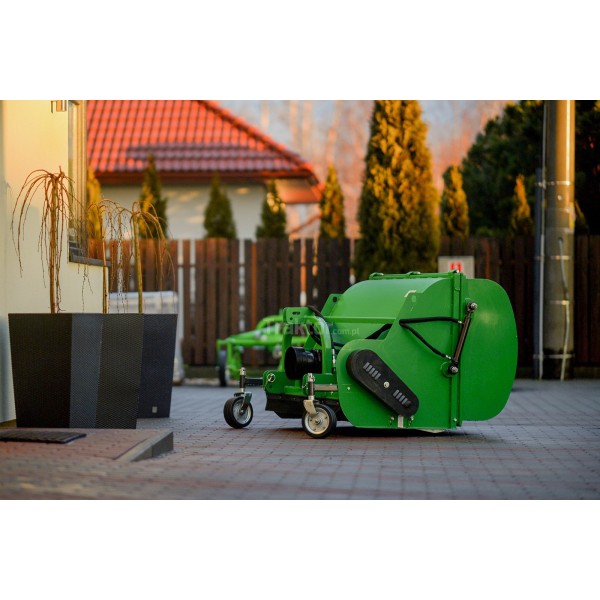

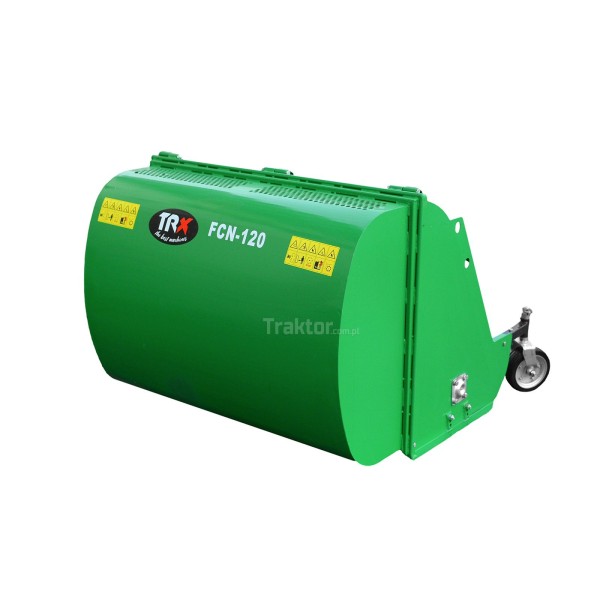

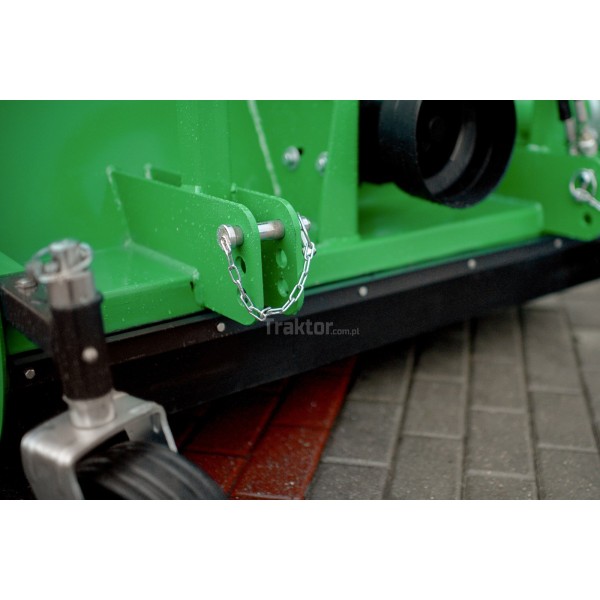

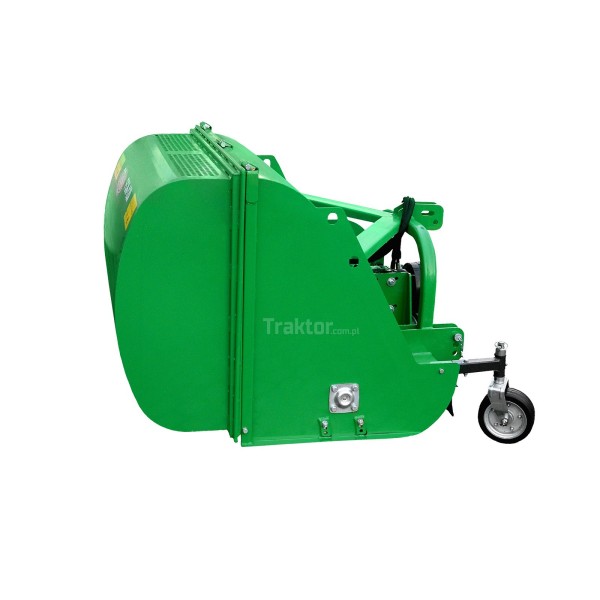

(Reference photo of FCN 160)
