Product description

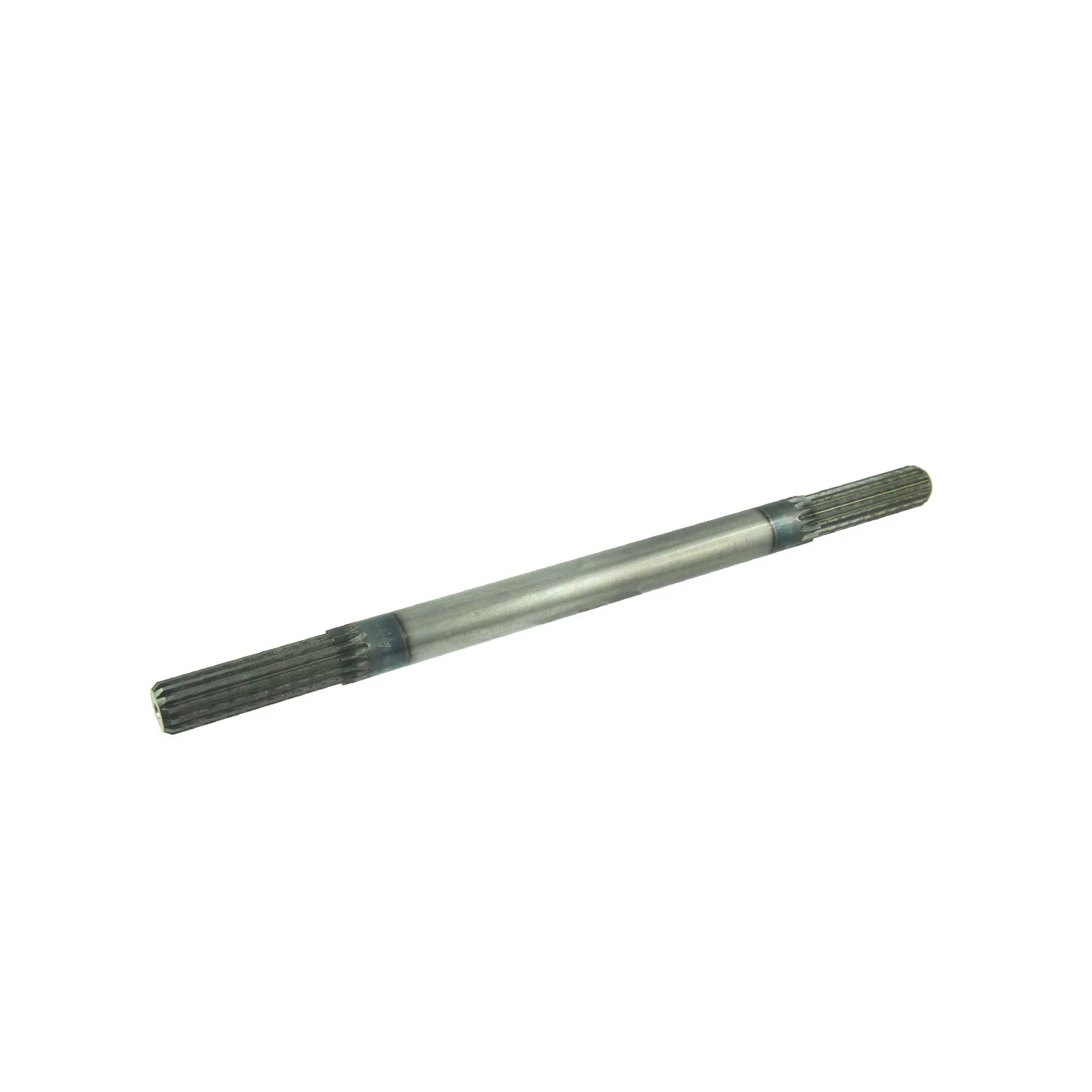

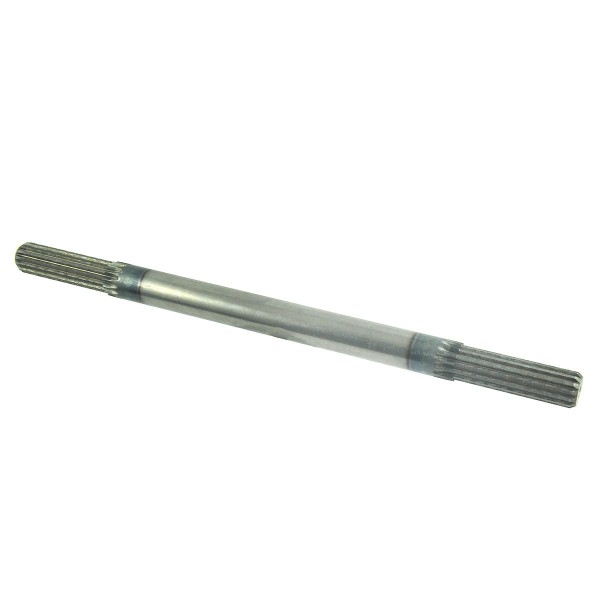

Front axle drive shaft (center) of the 4 x 4 drive (4WD), 356 mm long, 22 mm in diameter, with a 14T / 14T cutter for Kubota tractors of the Kubota L4508, Kubota L4708, Kubota L5018 series and others.
The intermediate shaft is the part of the system responsible for transferring the drive from the engine to the tractor's driving axle(s) and/or the tractor's power take-off shaft. Tractors with 4 x 4 drive have two similar or identical shafts. The task of the gearbox shaft is to receive the driving force from the clutch disc and transmit it to one of the gears or to the PTO/PTO shaft.
Dimensions :
- total length: 356 mm.
- shaft diameter: 22 mm,

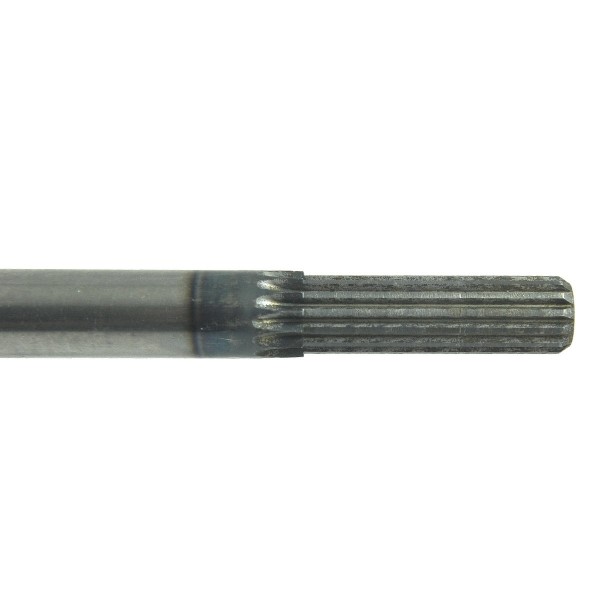

- cutter diameter: 16.50 mm (measured between the cutter teeth), 19.70 mm (measured together with the cutter),
- working length of cutters: 65 / 65 mm,
- number of teeth: 14T / 14T,
- original part numbers: TC230-14630,
- part numbers: 5-18-121-07.
Tractor models :
Kubota :
- Kubota L4508,
- Kubota L4708,
- Kubota L5018.
The drive shaft is one of the most precisely made things in the drive system and is always made of one piece of steel, because the shaft houses equally precisely made bearings, racks and gears that drive the tractor.
Warehouse :
M01:B62
Specifications
Podobne produkty
Reviews of Shaft /..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
