Available
Others in the offer of this manufacturer >
State
New
Production
Substitute
Number of teeth (pcs/T-teeth)
16T
Outer diameter (mm)
31 (sleeve)
Inner Diameter (mm)
20 / 22.60 (tuleja)
Overall length (mm)
65 (sleeve)
123 (roller)
Diameter of Cutter(s) (mm)
19 / 22 (roller)
Go to full specification >
wishlist

Shaft 16T/Ø24 mm / Shaft connector 65 mm 4700/M4900/M5700/M8200 / 5-15-232-12

5-15-232-12
zł159.00
Tax included PL 23%

129,27 netto

  • Dostępność (49 Quantity): stock
wishlist

Do you have any questions?

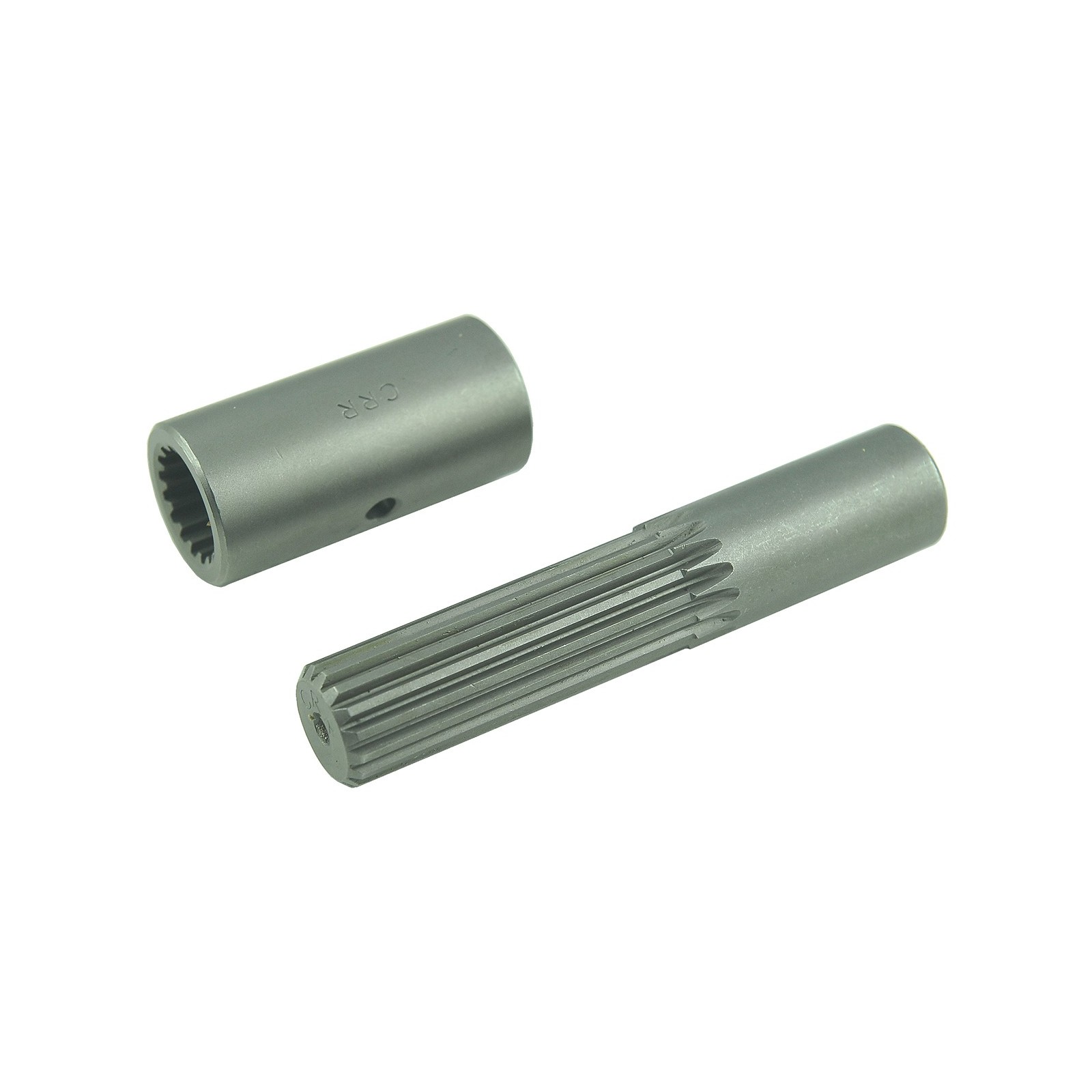

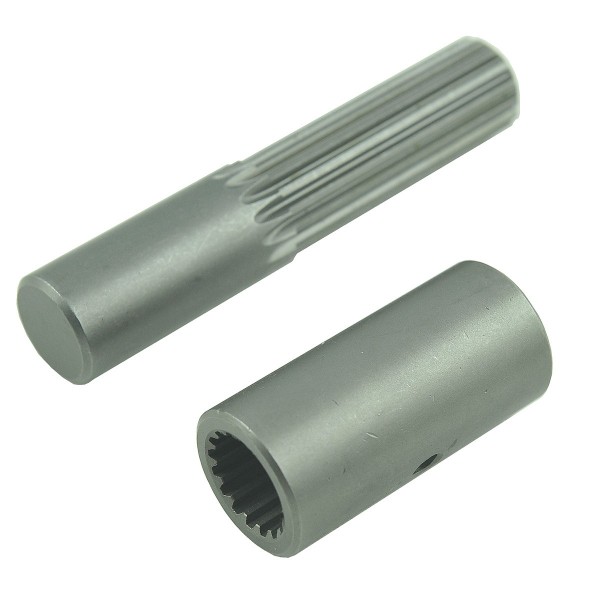

Shaft 16T/Ø24 mm / Shaft connector 65 mm 4700/M4900/M5700/M8200 / 5-15-232-12

16T drive shaft (shaft 6-18-117-03 , 3A021-41320, connector 3A021-44520 ) with a diameter of 24 mm with a shaft connector 65 mm long for Kubota tractors of the Kubota M4700, Kubota M4900, Kubota M5700, Kubota M8200 series and others.

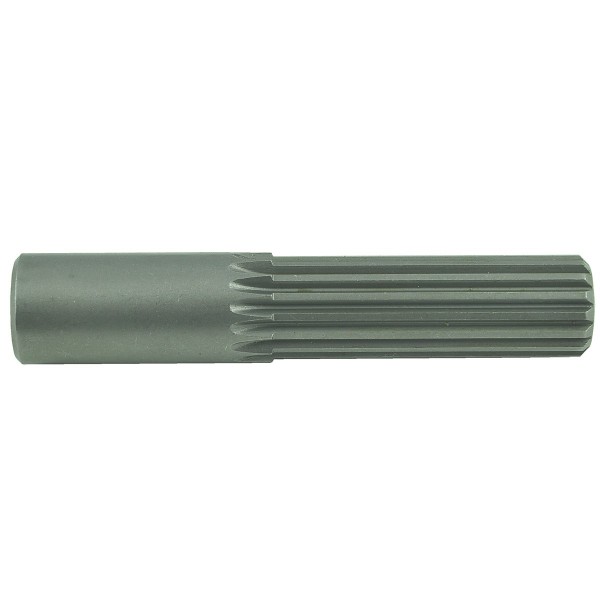

Roller dimensions :

  • total length: 123 mm,
  • shaft diameter: 24 mm,
  • cutter diameter: 19 mm (measured between teeth), 22 mm (measured together with the cutter),
  • cutter working length: 65 mm,
  • number of teeth: 16T,
  • original part numbers: 3A021-41320,
  • comparison numbers: 6-18-117-03 ,
  • part numbers: 6-18-117-03 .

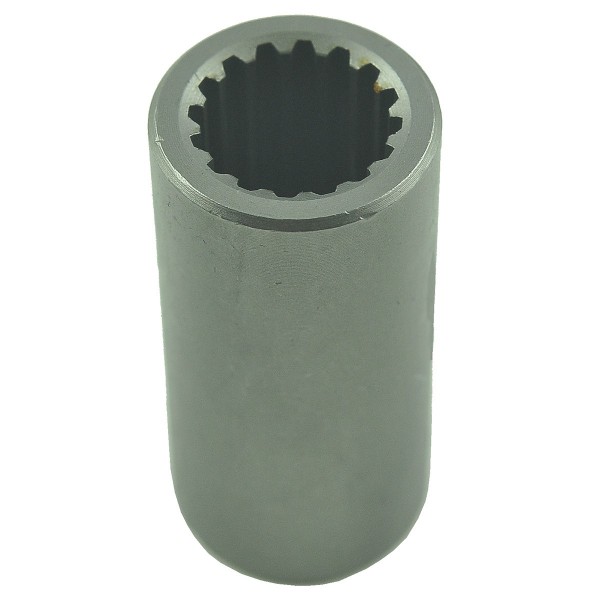

Connector dimensions :

  • total length: 65 mm,
  • outer diameter: 31 mm,
  • inner diameter: 22.60 mm. (measured between teeth), 20 mm (measured with cutter),
  • number of teeth: 16T,
  • original part numbers: 3A021-44520 ,
  • reference numbers: TC650-44520,
  • part numbers: 5-15-232-12.

Tractor models :

Kubota :

  • Kubota M4700,
  • Kubota M4900,
  • Kubota M5700,
  • Kubota M8200.

Warehouse:
M01:B36:S02

Specification

Magazyn: M01:B36:S02
State
New
Production
Substitute
Number of teeth (pcs/T-teeth)
16T
Outer diameter (mm)
31 (sleeve)
Inner Diameter (mm)
20 / 22.60 (tuleja)
Overall length (mm)
65 (sleeve)
123 (roller)
Diameter of Cutter(s) (mm)
19 / 22 (roller)
Shaft diameter (mm)
24
Comparison numbers
6-18-117-03 (wałek)
TC650-44520 (sleeve)
Original Part Number (OEM)
3A021-41320 (shaft)
3A021-44520 (sleeve)
Part number
5-15-232-12 (wałek)
