Knife hub / Cub Cadet LR2 NS76 / 618-04822B

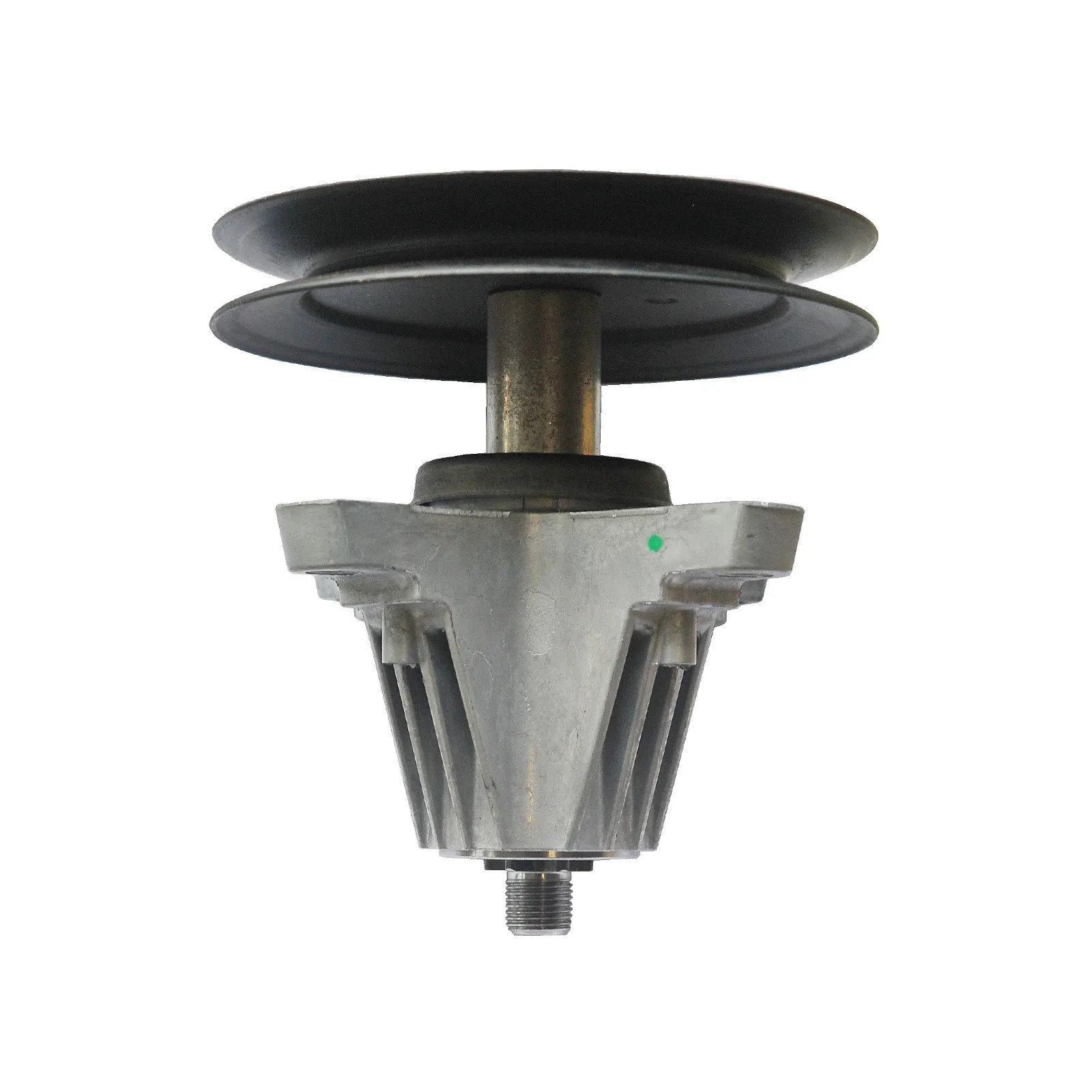

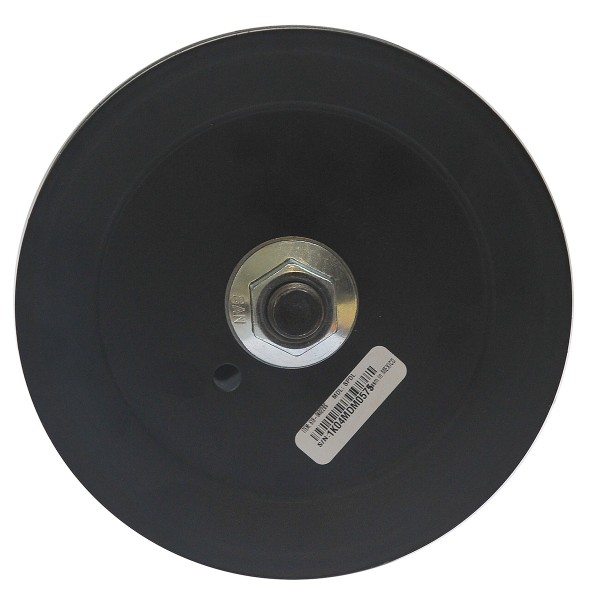

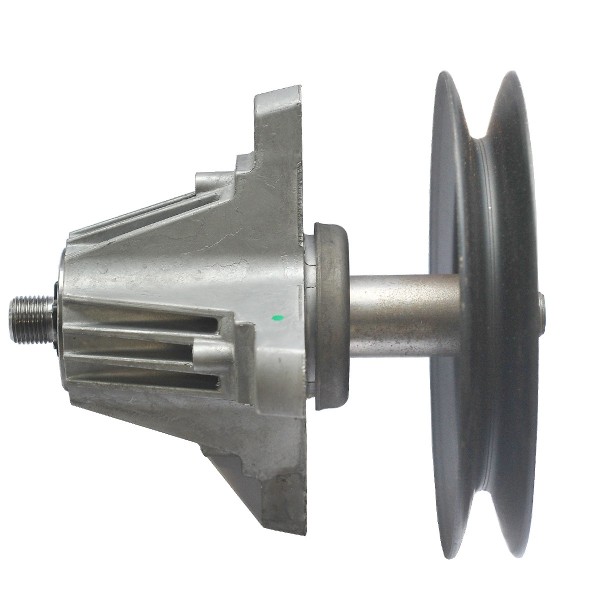

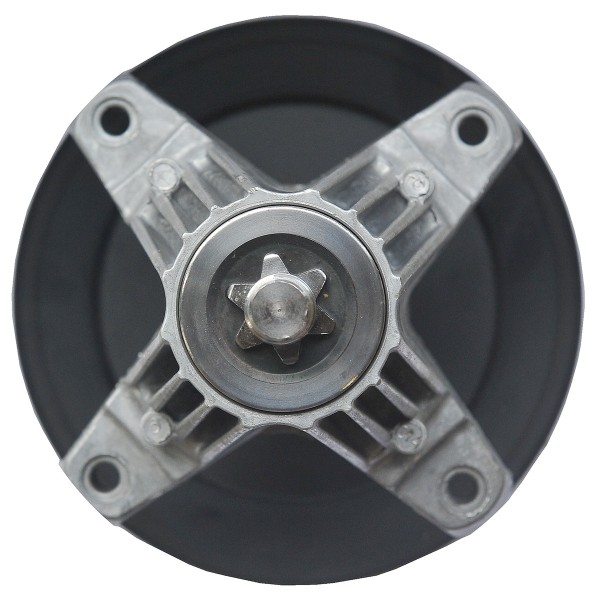

Mower Blade Mount ( 742-04058 ) with 155mm OD Drive Belt Flywheel (756-05111) for Cub Cadet Mower Tractors with 760mm Cutting Width Mower Cub Cadet LR2 NS76 Series and Others
Dimensions :
- height: 165mm,
- wheel diameter: 155 mm,
- belt groove width: 22 mm ( 754-05001 belt),
- star dimensions: 20 mm (measured between the teeth), 24 mm (measured together with the teeth),
- spacing of holes for fixing screws: 130 mm,
- thread: M18,
- part numbers: 738-1186A, 756-05111, 618-04822B.
Mower models :
Cub Cadet :
Warehouse :
M01
Specification
738-1186A
738-1186A
Cub Cadet is an American company that started producing gardening equipment in 1961. Its offer includes tractors, robotic lawn mowers and multi-purpose vehicles. The brand idea is technology and lifestyle in one. The company has products with interesting design but also of very good quality. The company focuses on innovation, thanks to which it is unrivaled in the range of lawn mowers and tractors. The products are made so that, in addition to quality, they are characterized by durability in accordance with the latest technologies. Currently, Cub Cadet belongs to the global MTD concern and is conquering not only the American but also the European market.
