zł2,199.00
To order
Condition
New
Production
Substitute
Parts
Chassis
Number of teeth (pcs/T-teeth)
8T (cutter) / 9T (rack)
51T
51T
Height (mm)
26
Outer diameter (mm)
255 (circle)
Inner Diameter (mm)
115

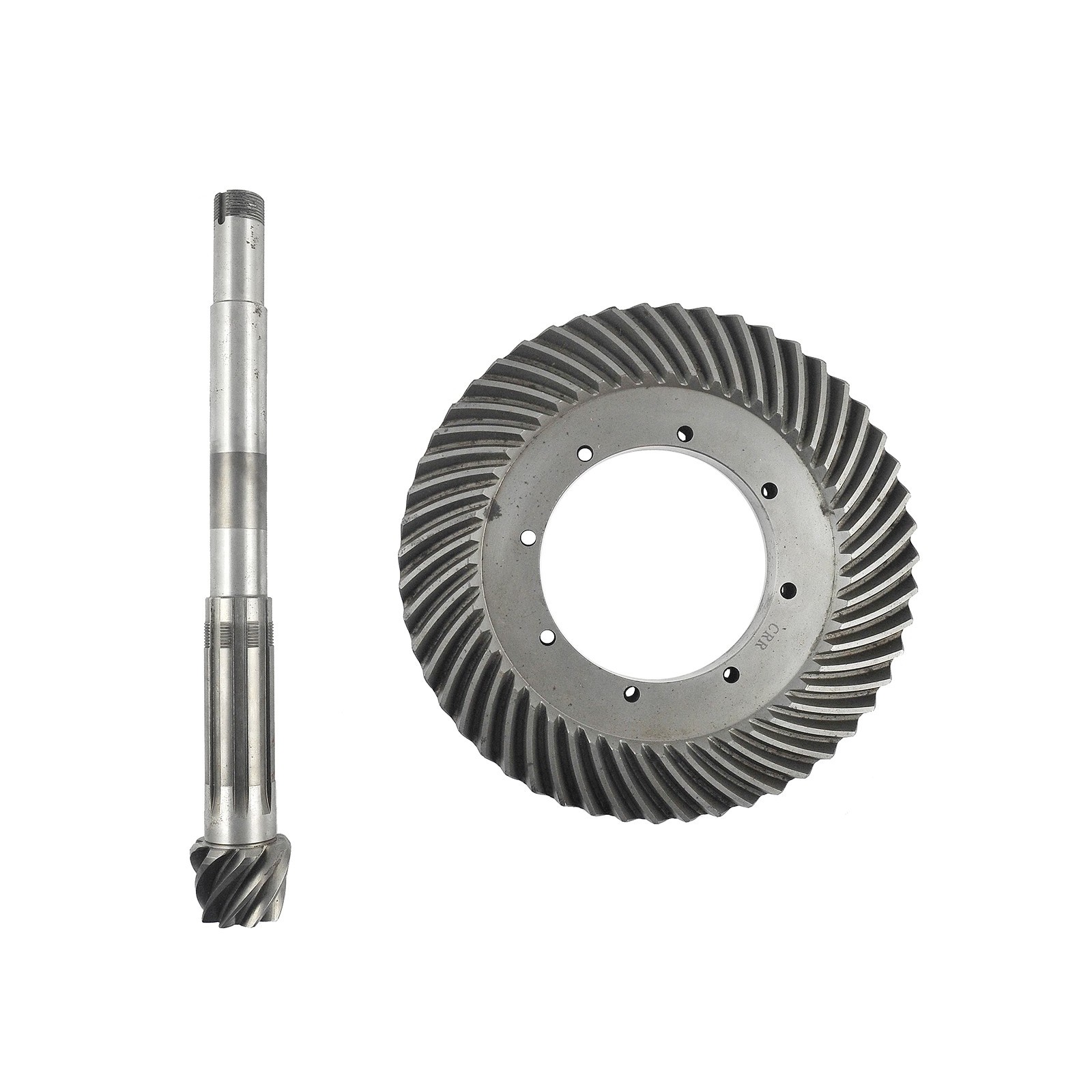

Crown pinion 51T/255 mm disc wheel + 8T/358 mm drive roller / Iseki TS2510 / 9-19-104-03
9-19-104-03
Do you have any questions?
Crown pinion 51T/255 mm disc wheel + 8T/358 mm drive roller / Iseki TS2510 / 9-19-104-03
51T disc wheel + 8T input shaft of the front axle drive for Iseki tractors of the Iseki TS2510 series and others.
The disc wheel with an attack shaft is an element of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transmitting the drive , the shaft + disc wheel drive assembly increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

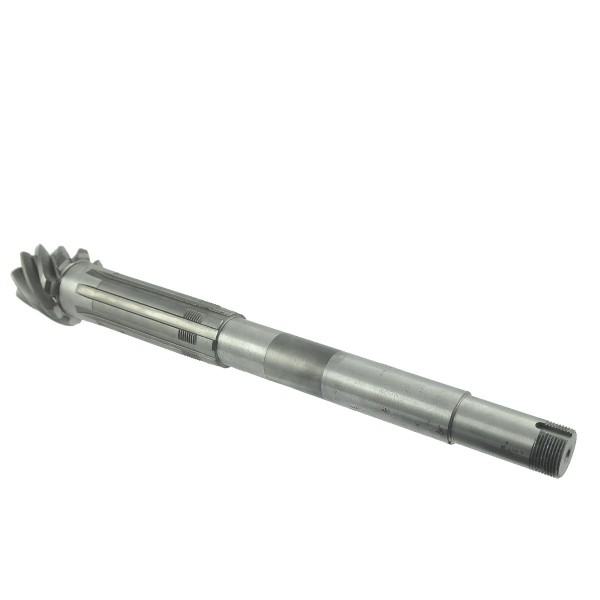

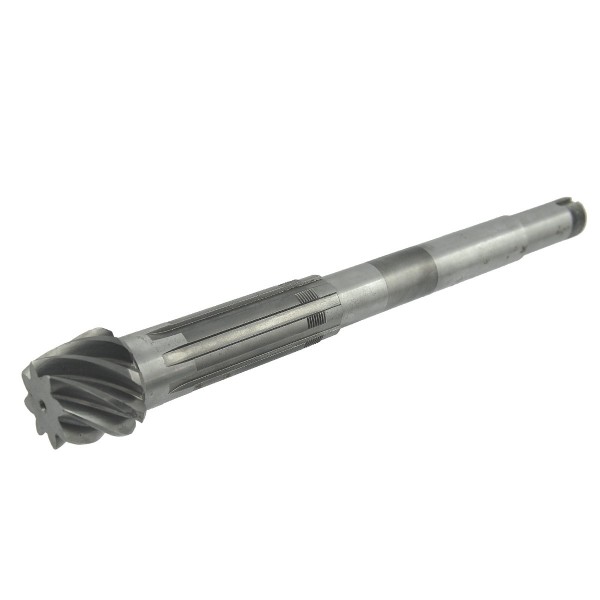

Roller dimensions :
- total length: 358 mm,
- helical gear diameter: 40 / 49 mm,
- helical gear width: 34 mm,
- cutter diameter: 30 mm (measured with teeth), 34.50 mm (measured between teeth),
- working length of the cutter: 67 mm,
- thread: M24 x 1.5 mm,
- thread length: 14 mm,
- number of teeth: 8T (cutter) / 9T (sprocket),
- part numbers: 9-19-104-03

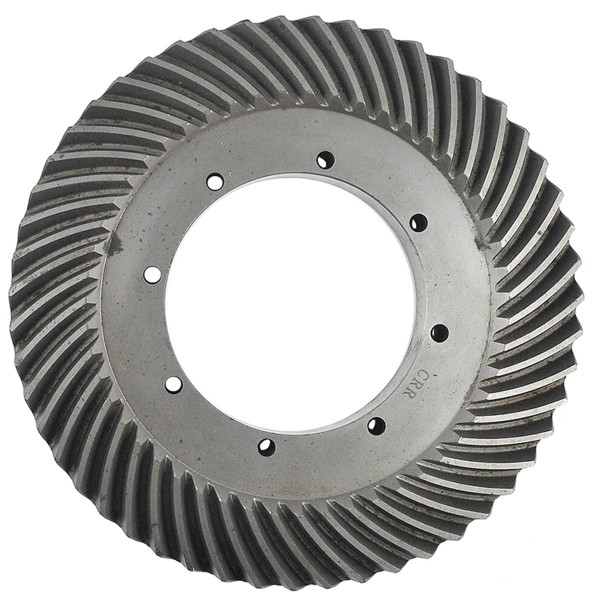

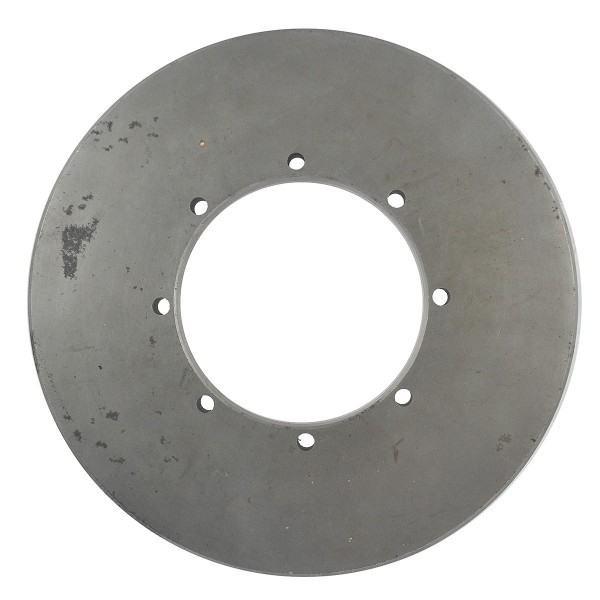

Plate wheel dimensions :
- outer diameter: 255 mm,
- inner diameter: 115 mm,
- height: 26 mm,
- spacing of holes for mounting screws: 130 mm (measured diagonally), 49.50 mm (measured from each other),
- number of teeth: 51T,
- part numbers: 9-19-104-03.
The first signs of damage to the drive unit, crown wheel or input shaft are the observation of play in the main gear, or a noticeable knocking noise when starting and an increased noise level during operation.
Warehouse :
M01:A46
Specification
Magazyn: M01:A46
Condition
New
Production
Substitute
Parts
Chassis
Number of teeth (pcs/T-teeth)
8T (cutter) / 9T (rack)
51T
51T
Height (mm)
26
Outer diameter (mm)
255 (circle)
Inner Diameter (mm)
115
Overall length (mm)
358
Thread(s) length (mm)
14
Cutter(s) length (mm)
67
Diameter of Cutter(s) (mm)
30 / 34.50
Diameter of helical gear (mm)
40 / 49
Bolt hole spacing (mm)
49.50 / 130
Thread
M24 x 1.5
Part number
9-19-104-03
Iseki is the third largest manufacturer of agricultural machinery in Japan. It is characterized primarily by a continuous optimization process drawing energy from the combination of Japanese precision and German inventiveness. Since 1961, the company has been producing tractors, which quickly gained recognition not only in Japan. This is evidenced by the fact that ISEKI & Co., Ltd tractors have been and are sold all over the world under various names, including: AGCO, Bolens, Massey Ferguson and White. Several models that were sold in Japan were manufactured by the Italian Landini or French Massey Ferguson plants.
From the beginning of its activity , Iseki has focused primarily on the needs of users. It is currently described as one of the core suppliers in Japan and Europe and as a specialized manufacturer with a complete system solution for many customers. Iseki is associated with: competence, longevity, sustainable development and maximum efficiency.
When producing tractors, they use only high-quality materials and tools. Before releasing the product to the market, Iseki thoroughly tests the product in terms of careful design, reliability and manufacturing quality. Nowadays, Iseki invests in development and modernization, as evidenced by the opening in 2009 of a new training center for technical employees and dealers.
