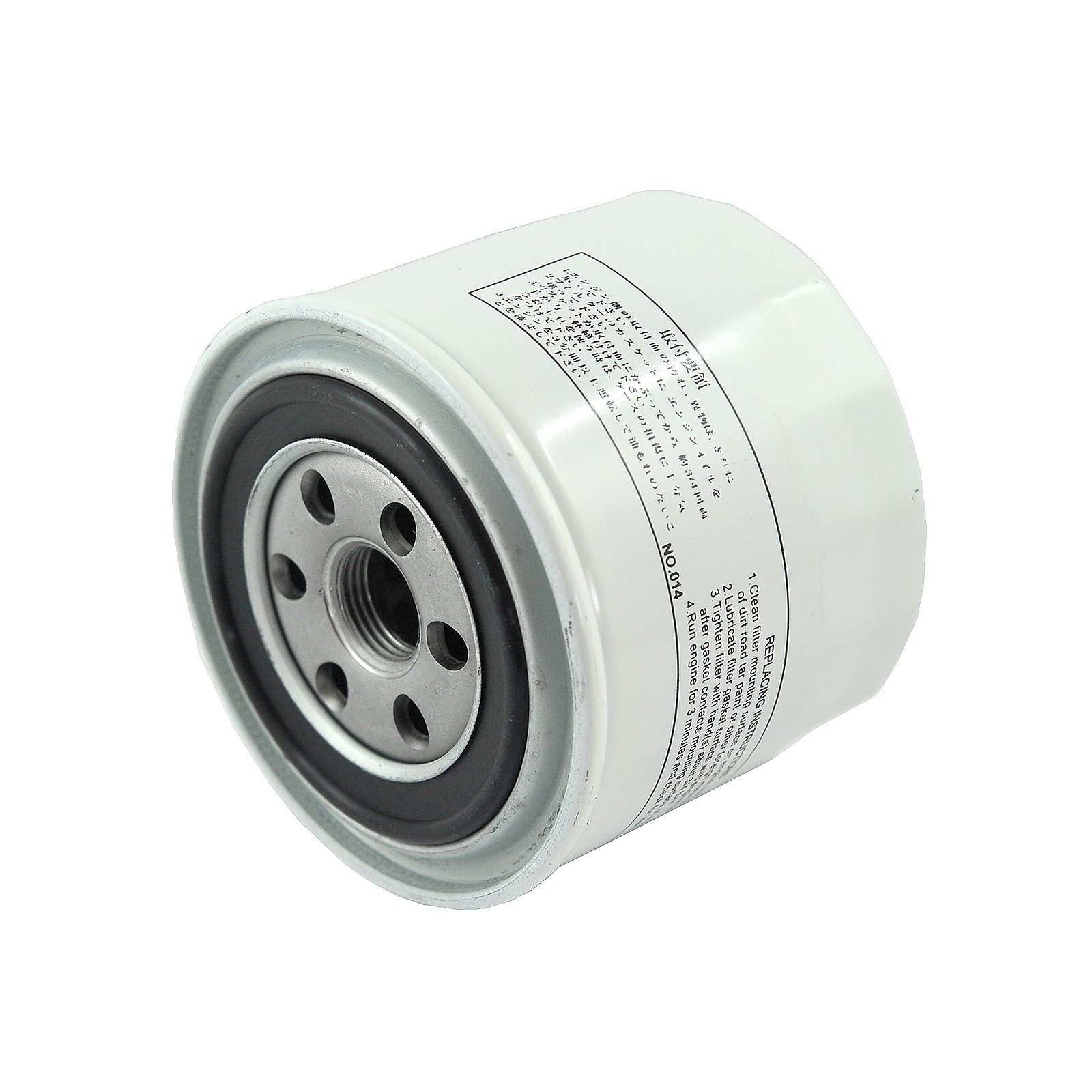

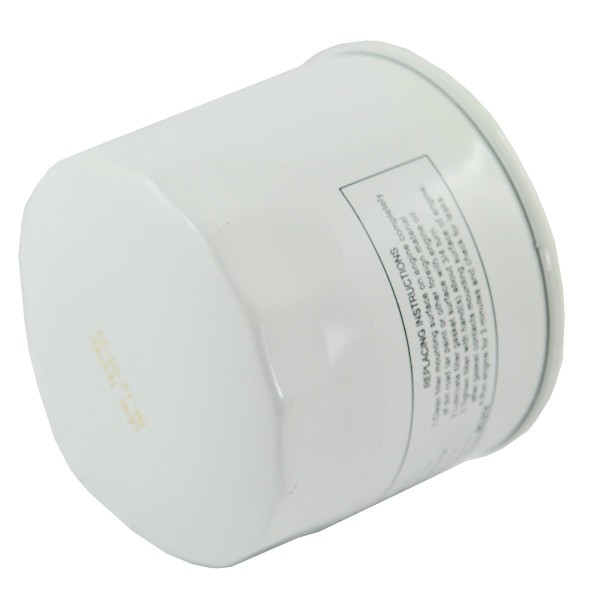

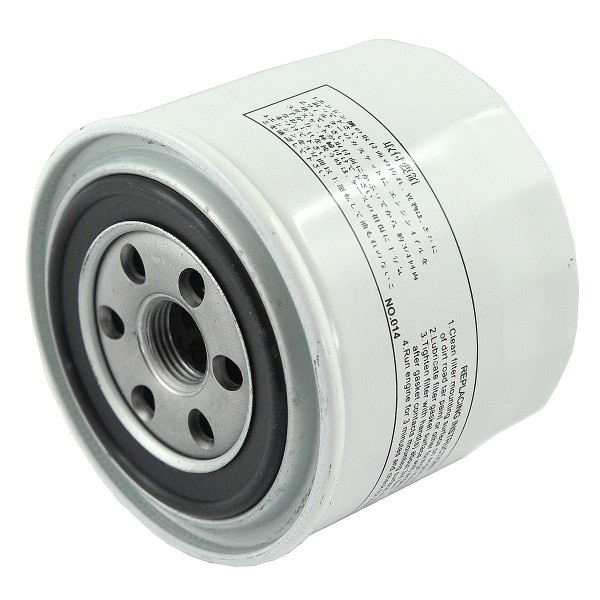

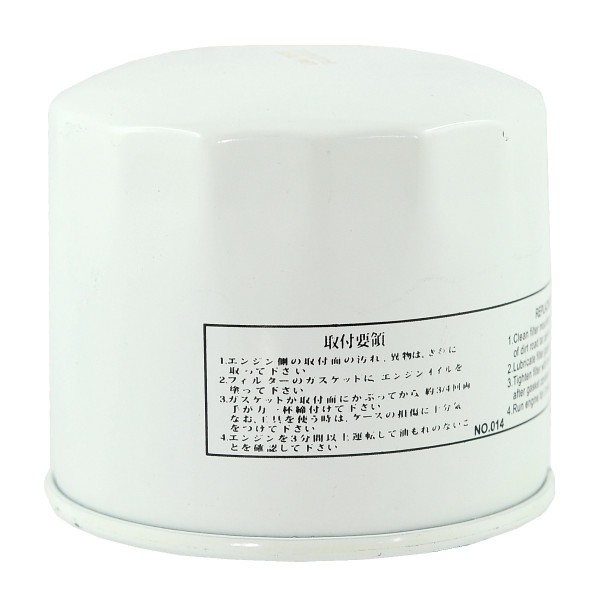

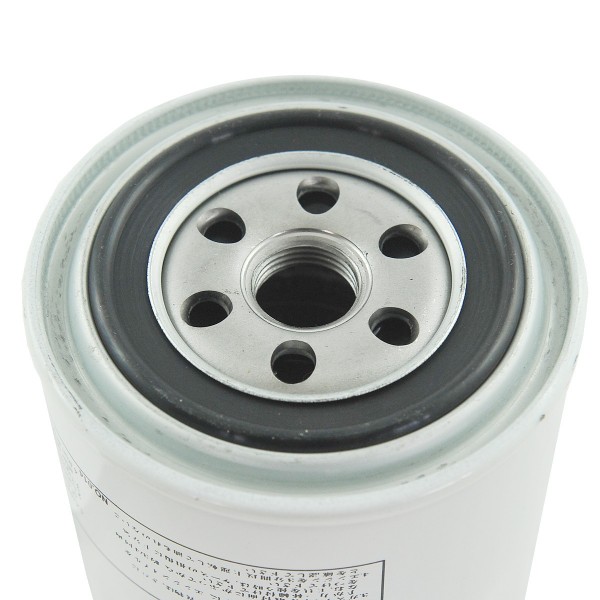

Engine oil filter Kubota / 3/4"-16UNF / Kubota GL / 16414-32430
Engine oil filter 3/4"-16UNF , height 86 mm, outer diameter 95 mm , for Kubota tractors of the series Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1 -28, Kubota L1-185, Kubota L1-195, Kubota L1-205, Kubota L1-215, Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-265, Kubota L1 -275, Kubota L1-285, Kubota L1-295, Kubota L1-305, Kubota L1-315, Kubota L1-325, Kubota L1802, Kubota L2350, Kubota L2600, Kubota L2601, Kubota L2808, Kubota L3408, Kubota L3408DI , Kubota Kubota GL29 , Kubota GL260, Kubota GL261, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GL321, Kubota GL337, Kubota GL338, Kubota GT-19, Kubota GT-21, Kubota GT- 23 with Kubota V1902, Kubota V1903 engines , Kubota V2003, Kubota V2003 DI, Kubota V2203, Kubota V2203-M-DI, Kubota V2203-M-E2B, Kubota V2403, Kubota V2403-Mi others.
The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest impurities from the oil, up to 1/50 mm in size. The construction of the filter is very simple and consists of a metal can with a thread and a paper insert inside arranged in the so-called. accordion to increase the filtration surface. Contamination of the oil for which we use the filter is most often created, in the case of organic contamination, from the breakdown of the oil itself during operation, from fuel residues, or from oxidation by-products. Mineral impurities are air pollutants and metal particles that appear in the engine during operation.
Dimensions :
- height: 86mm,
- diameter: 95mm,
- base diameter: 97 mm,
- thread: 3/4"-16UNF,
- gasket diameter: internal 54 mm, external 74 mm,
- original part numbers: 16414-32430, HH1C0-32430, HH164-32430, W21ESO1C00,
- comparative numbers: SO 6001 ,
- part numbers: 5-01-121-16.
Tractor models :
Kubota :
- Kubota GL19,
- Kubota GL21,
- Kubota GL23,
- Kubota GL25,
- Kubota GL26,
- Kubota GL27,
- Kubota GL29,
- Kubota GL32,
- Kubota GL33,
- Kubota GL200,
- Kubota GL201,
- Kubota GL220,
- Kubota GL221,
- Kubota GL240,
- Kubota GL241,
- Kubota GL260,
- Kubota GL261,
- Kubota GL268,
- Kubota GL277,
- Kubota GL280,
- Kubota GL281,
- Kubota GL300,
- Kubota GL301,
- Kubota GL320,
- Kubota GL321,
- Kubota GL337,
- Kubota GL338,
- Kubota GT19,
- Kubota GT21,
- Kubota GT23.
- Kubota L1-18,
- Kubota L1-20,
- Kubota L1-22,
- Kubota L1-24,
- Kubota L1-26,
- Kubota L1-28,
- Kubota L1-185,
- Kubota L1-195,
- Kubota L1-205,
- Kubota L1-215,
- Kubota L1-225,
- Kubota L1-235,
- Kubota L1-245,
- Kubota L1-255,
- Kubota L1-265,
- Kubota L1-275,
- Kubota L1-285,
- Kubota L1-295,
- Kubota L1-305,
- Kubota L1-315,
- Kubota L1-325,
- Kubota L1802,
- Kubota L2350,
- Kubota L2600,
- Kubota L2601,
- Kubota L2808,
- Kubota L3408,
- Kubota L3408DI ,
- Kubota L3540 DT,
- Kubota L4200DT.
Bobcat:
Engine Models :
Kubota :
- Kubota V1902,
- Kubota V1903,
- Kubota V2003,
- Kubota V2003 DI,
- Kubota V2203,
- Kubota V2203-M-DI,
- Kubota V2203-M-E2B,
- Kubota V2403,
- Kubota V2403-M.
The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases, a clogged oil filter can lead to overheating of the engine and damage to the head gasket. Always replace the oil filter together with the oil change at the interval specified in the machine's operating instructions.
Warehouse
M01:D64
Specification
Magazyn: M01:D64
State
New
Production
Substitute
Parts
Filtry
Engine model
- Kubota V1902
Kubota V1903
Kubota V2003
Kubota V2403
Tractor models
- Kubota GL19
- Kubota GL25
- Kubota GL200
- Kubota L2600
- Kubota L2601
- Kubota L3540
- Kubota L4200
Kubota GL21
Kubota GL23
Kubota GL26
Kubota GL27
Kubota GL29
Kubota GL32
Kubota GL33
Kubota GL201
Kubota GL220
Kubota GL221
Kubota GL240
Kubota GL241
Kubota GL260
Kubota GL261
Kubota GL268
Kubota GL277
Kubota GL280
Kubota GL281
Kubota GL300
Kubota GL301
Kubota GL320
Kubota GL321
Kubota GL337
Kubota GL338
Kubota GT19
Kubota GT21
Kubota GT23
Kubota L1-18
Kubota L1-20
Kubota L1-22
Kubota L1-24
Kubota L1-26
Kubota L1-28
Kubota L1-185
Kubota L1-195
Kubota L1-205
Kubota L1-215
Kubota L1-225
Kubota L1-235
Kubota L1-245
Kubota L1-255
Kubota L1-265
Kubota L1-275
Kubota L1-285
Kubota L1-295
Kubota L1-305
Kubota L1-315
Kubota L1-325
Kubota L1802
Kubota L2350
Kubota L2808
Kubota L3408
Height (mm)
86
Diameter (mm)
95
Base diameter (mm)
97
Thread
3/4"-16UNF
Machine models
Bobcat X225
Comparison numbers
SO6001
SO 6001
Original Part Number (OEM)
16414-32430
HH1C0-32430
HH164-32430
W21ESO1C00
Part number
5-01-121-16
Filter type
Engine oil filter
Inner seal diameter (mm)
54
Outer seal diameter (mm)
74
