Kubota M7040 engine oil filter, 3/4" - 16, 1G772-43560

Screw-in engine oil filter with an external diameter of 80 mm , a total height of 115 mm, a thread diameter of M20 x 1.5 for Japanese tractors Yanmar brand EF352T series and others .

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation. The filter is most often mounted on the side of the engine, and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption, and in extreme cases, a clogged oil filter may lead to engine overheating and damage to the head gasket. Always replace the oil filter together with the oil change at the frequency specified in the machine's operating instructions.

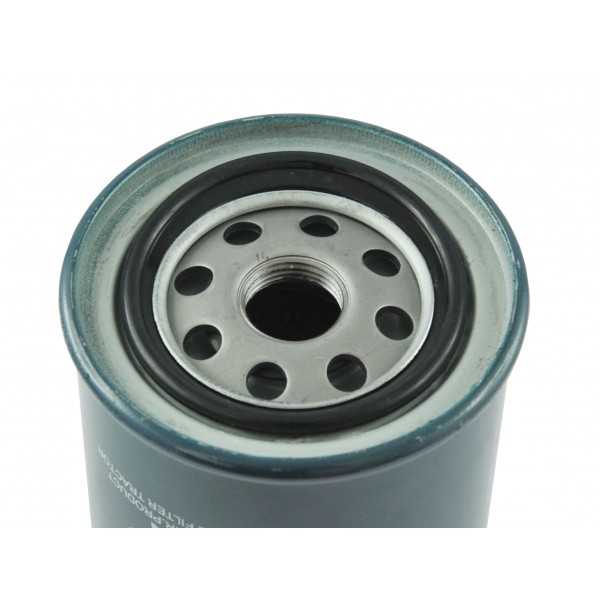

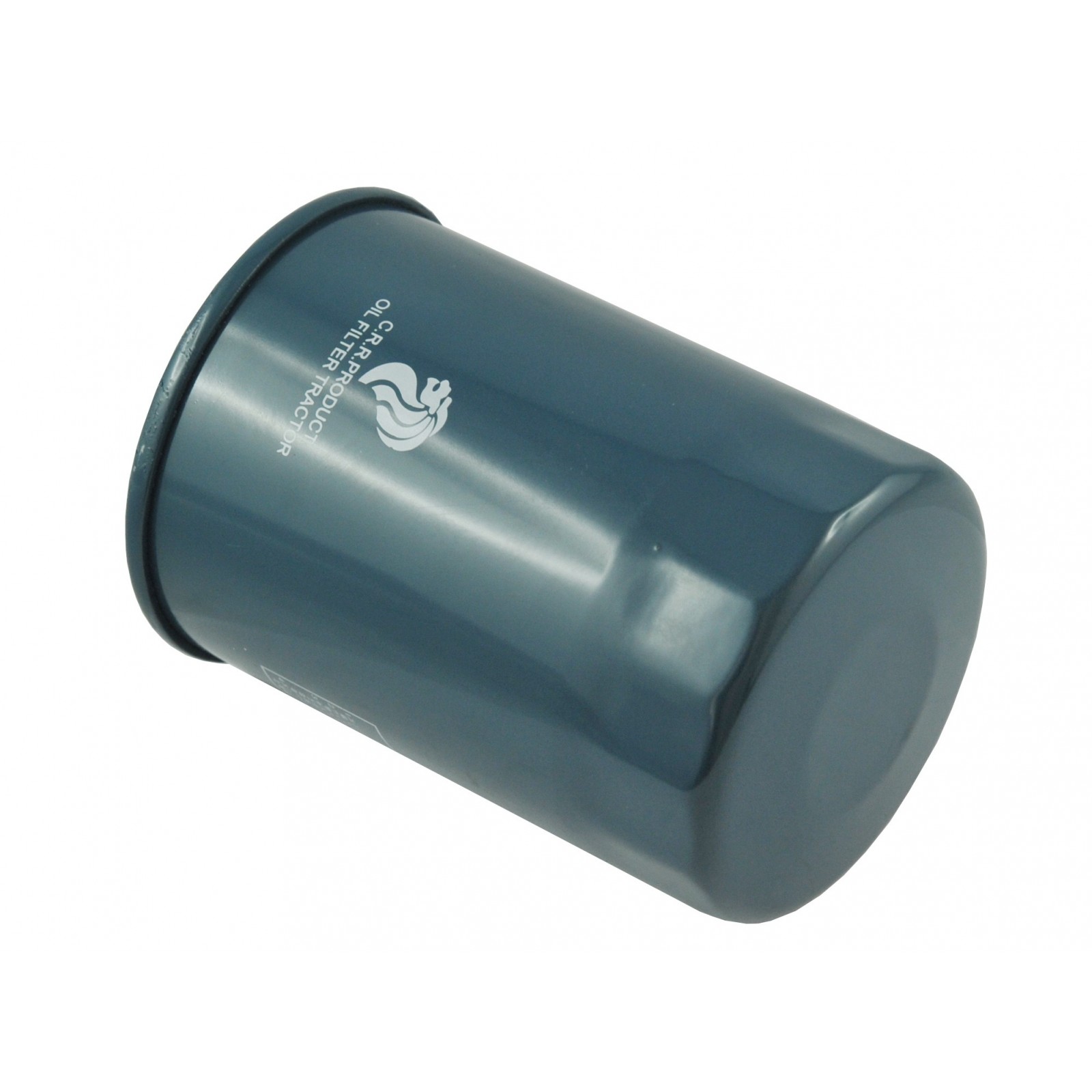

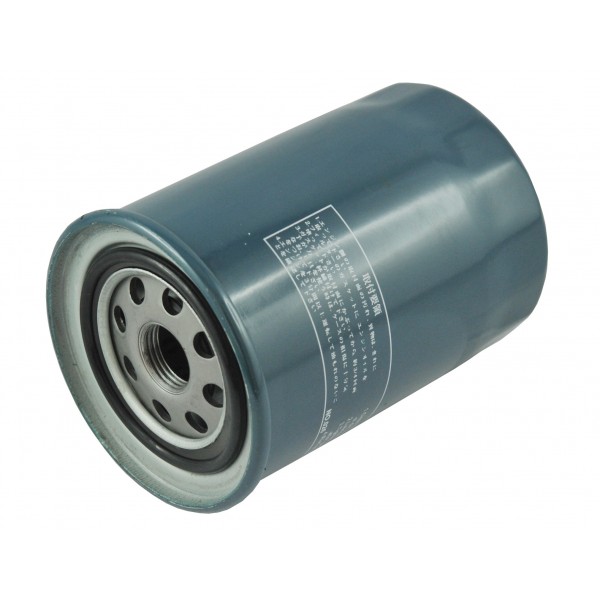

Kubota M7040 engine oil filter

Dimensions:

• Height: 115mm.
• Diameter: 80 mm.
• Base diameter: 84 mm.
• Seal diameter: outer: 60 mm, inner: 50 mm.
• Thread: 3/4"-16UNF
• Comparative numbers: 1G772-43560

Tractor models:

• Kubota M7040

Magazine: M01: E04
