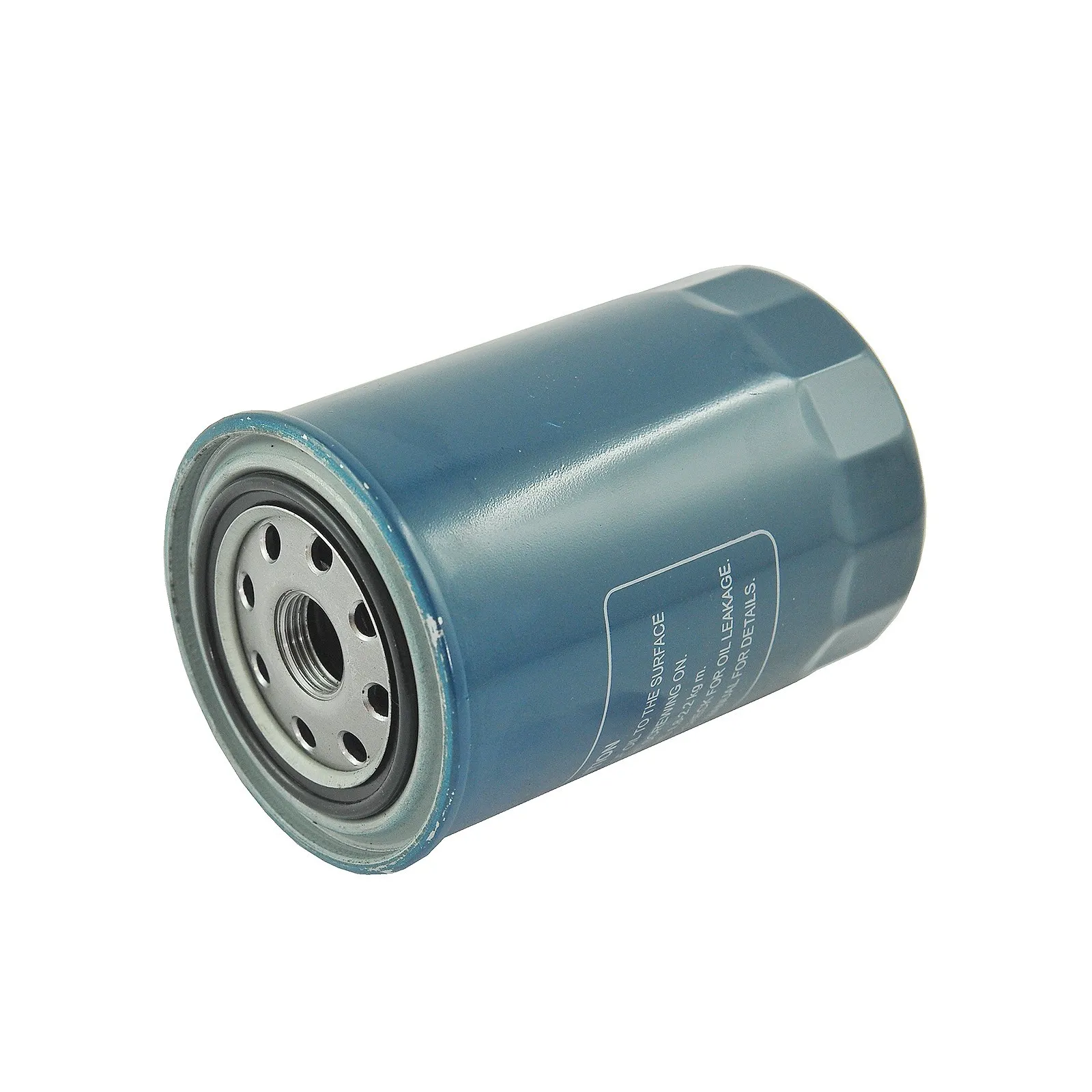

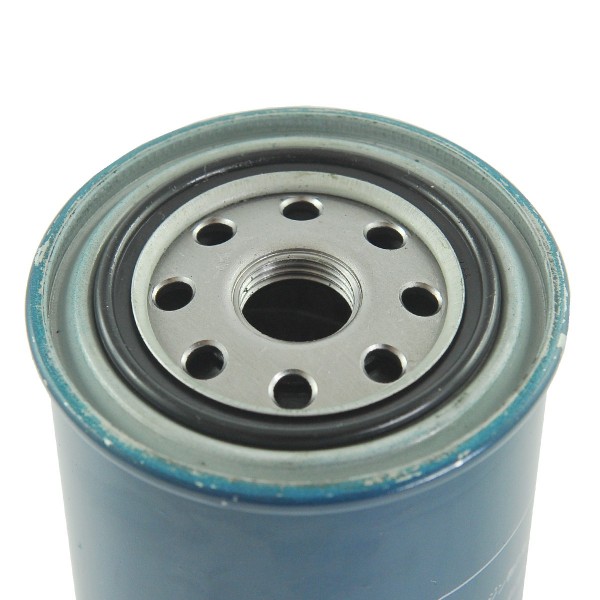

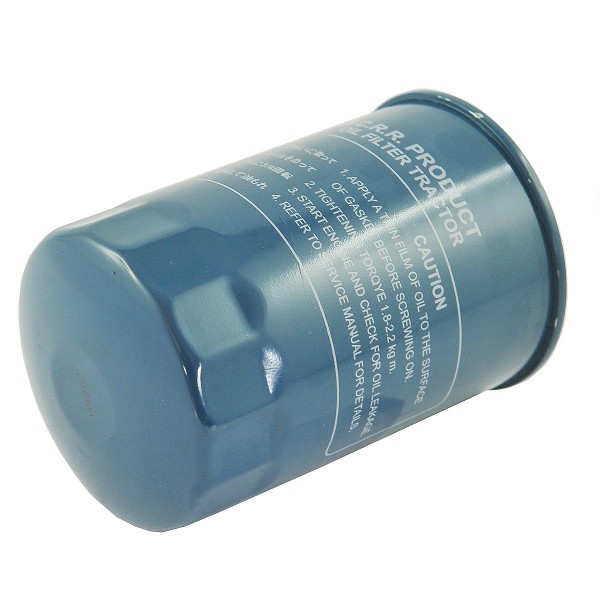

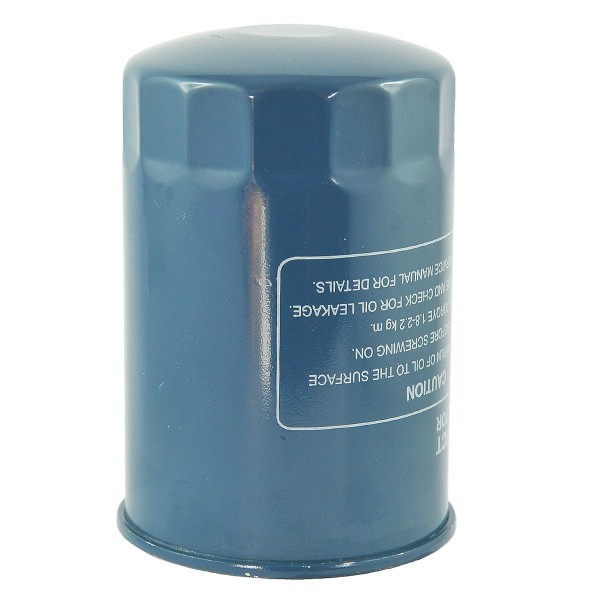

Engine oil filter 3/4"-16UNF , height 123 mm, outer diameter 80 mm , for Kubota tractors of the Kubota L175, Kubota L185, Kubota L200, Kubota L2000, Kubota L210, Kubota L225, Kubota L245, Kubota L260, Kubota L295 series tractors, Kubota L305, Kubota L1500, Kubota L1501 Kubota L2201 with Kubota Z750 engines and others.
The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest impurities from the oil, up to 1/50 mm in size. The construction of the filter is very simple and consists of a metal can with a thread and a paper insert inside arranged in the so-called. accordion to increase the filtration surface. Contamination of the oil for which we use the filter is most often created, in the case of organic contamination, from the breakdown of the oil itself during operation, from fuel residues, or from oxidation by-products. Mineral impurities are air pollutants and metal particles that appear in the engine during operation.
Dimensions :
- height: 125mm,
- diameter:80mm,
- base diameter: 84 mm,
- seal diameter: external 62 mm, internal 52 mm.
- thread: 3/4"-16UN,
- original part numbers: 70000-3243-1, 70000-32431.
- part numbers: 5-01-121-13.
Tractor models :
Kubota :
- Kubota L175,
- Kubota L185,
- Kubota L200,
- Kubota L2000,
- Kubota L210,
- Kubota L225,
- Kubota L245,
- Kubota L260,
- Kubota L295,
- Kubota L305,
- Kubota L1500,
- Kubota L1501
- Kubota L2201.
Iseki :
- Iseki TS1910,
- Iseki TS2205,
- Iseki TS3110,
- Iseki TS4510.
hinomoto :
- hinomoto 384,
- Hinomoto E2804.
Engine Models :
The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases, a clogged oil filter can lead to engine overheating and head gasket damage. Always replace the oil filter together with the oil change at the interval specified in the machine's operating instructions.
Warehouse :
M01:E04
