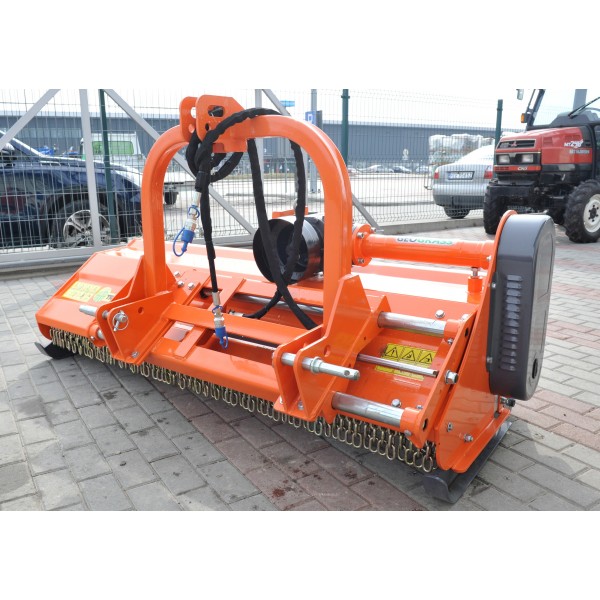

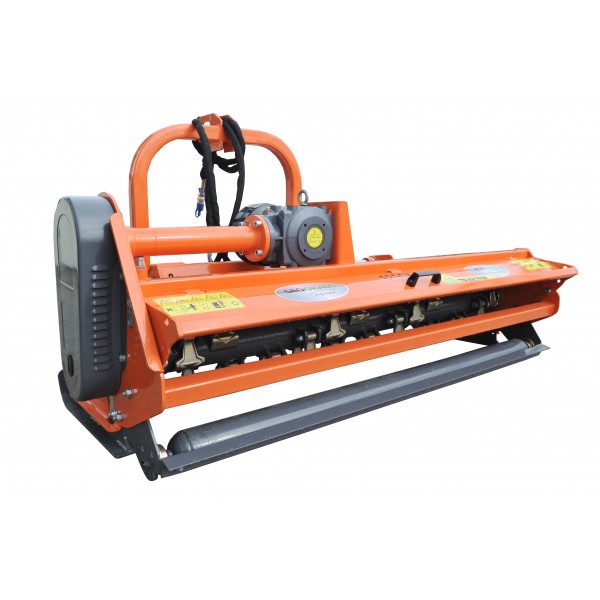

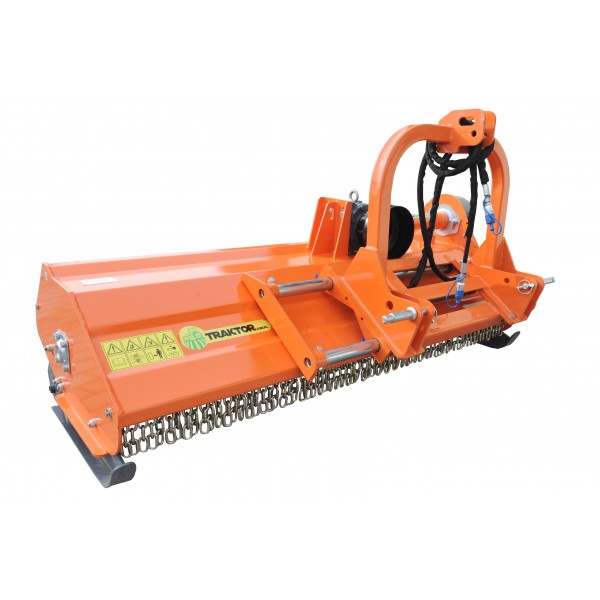

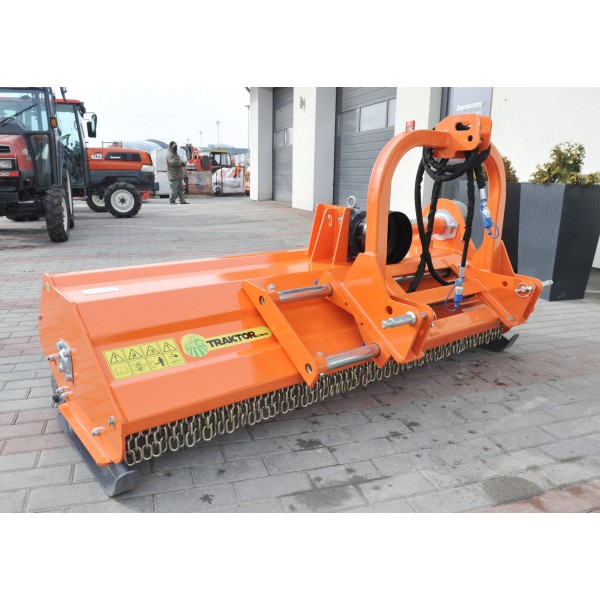

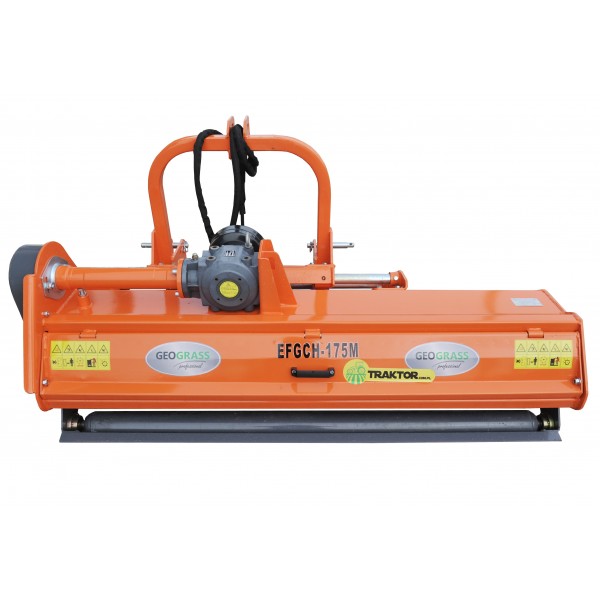

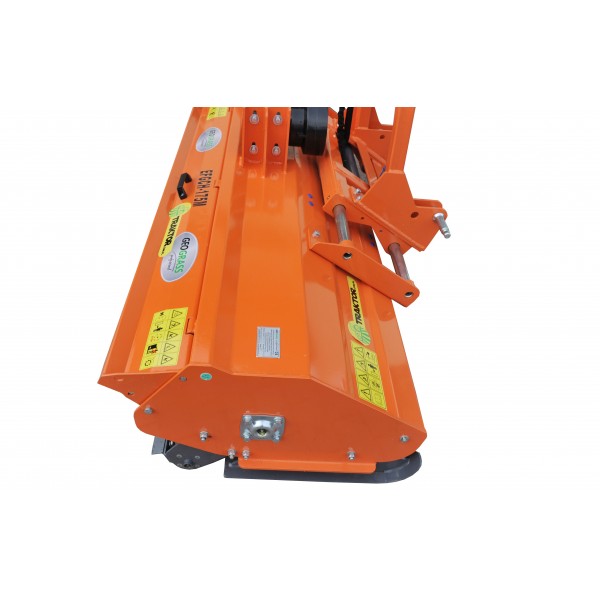

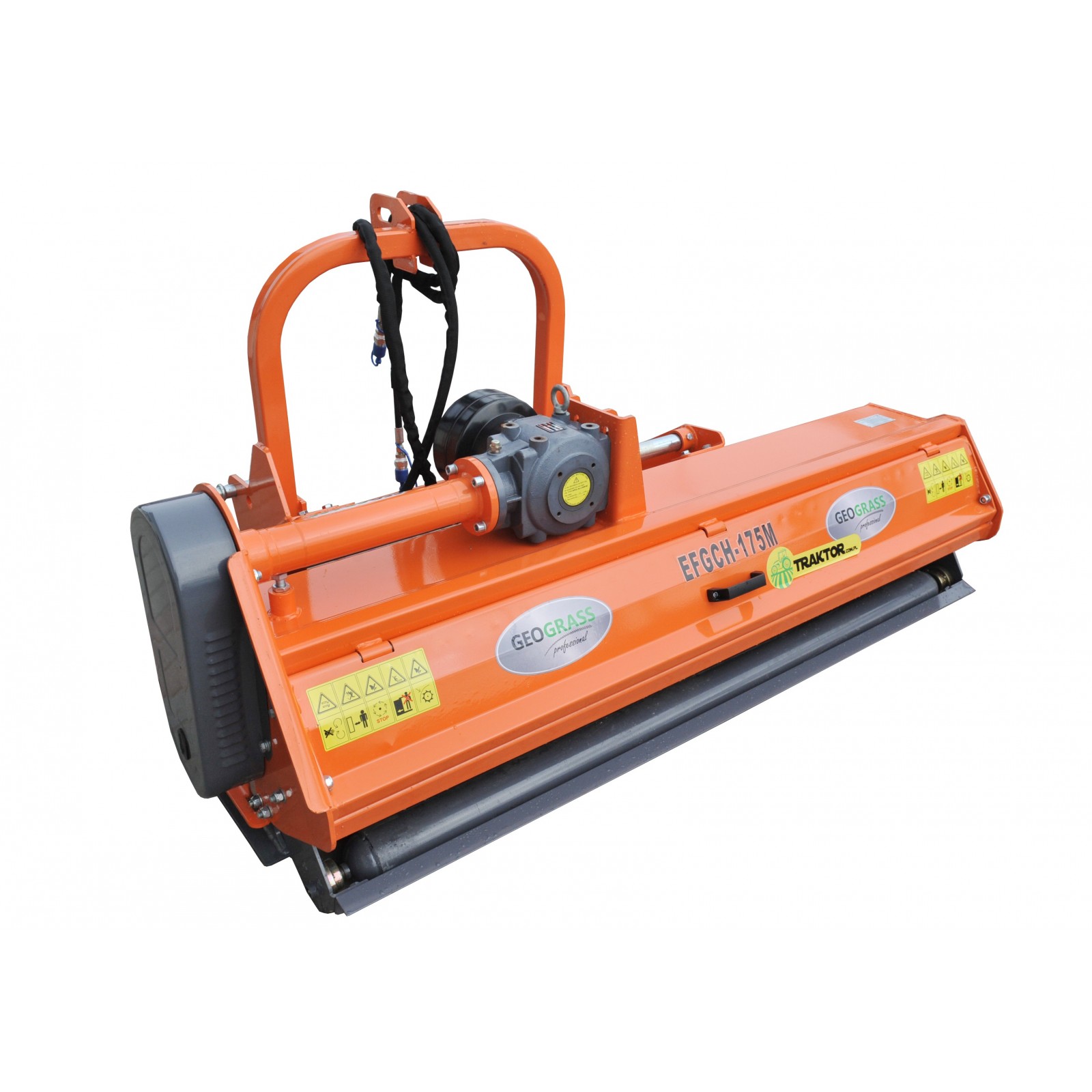

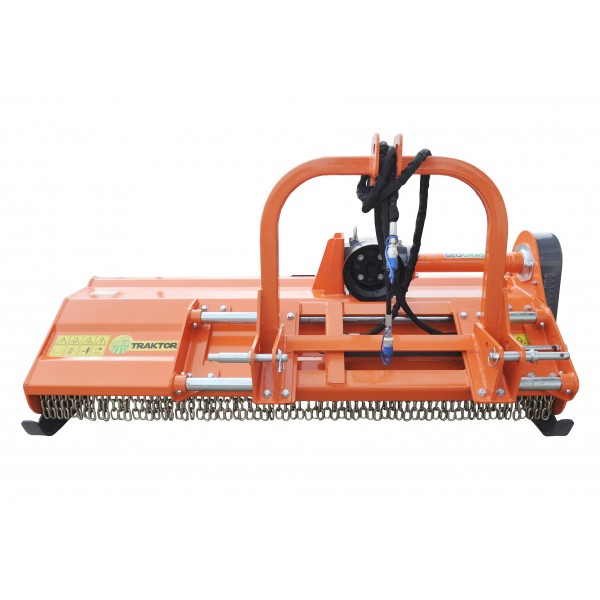

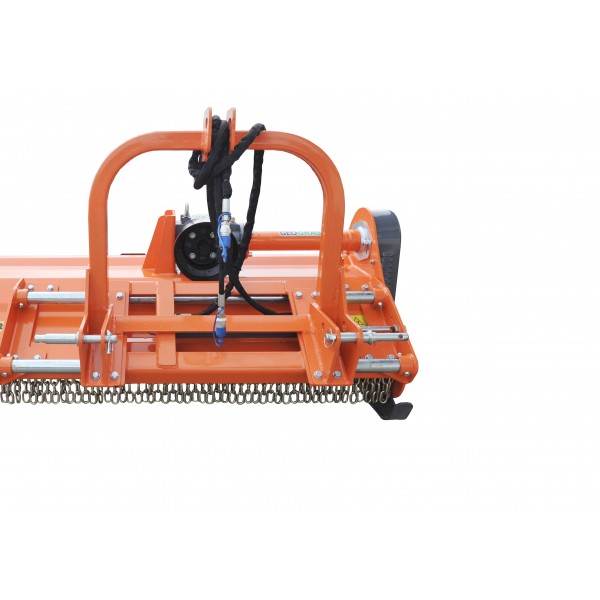

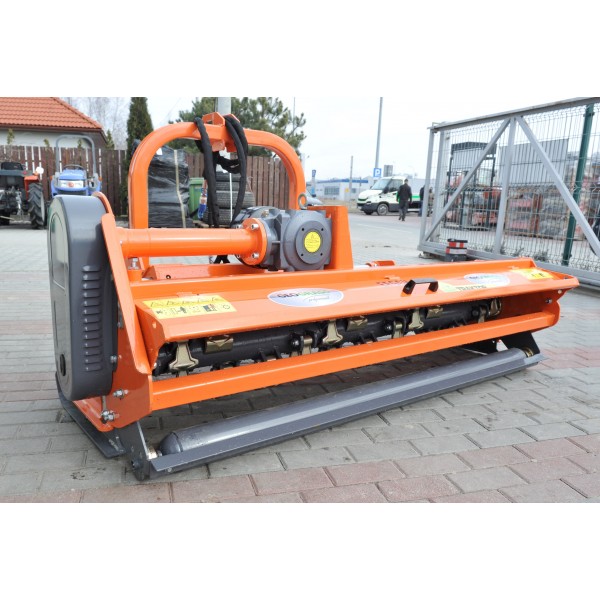

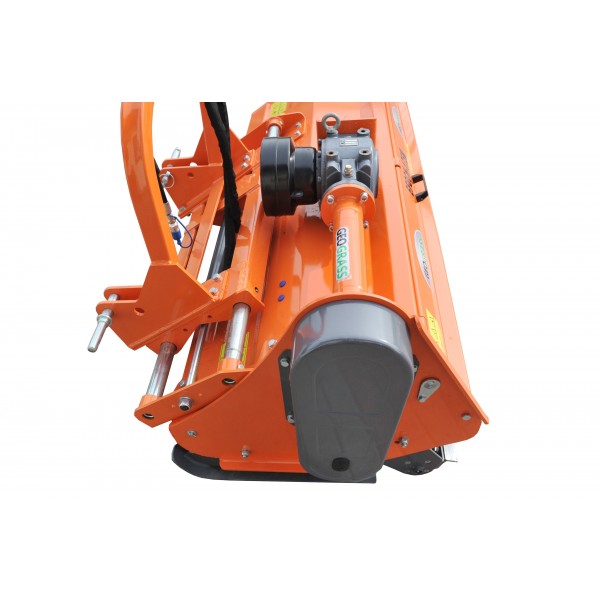

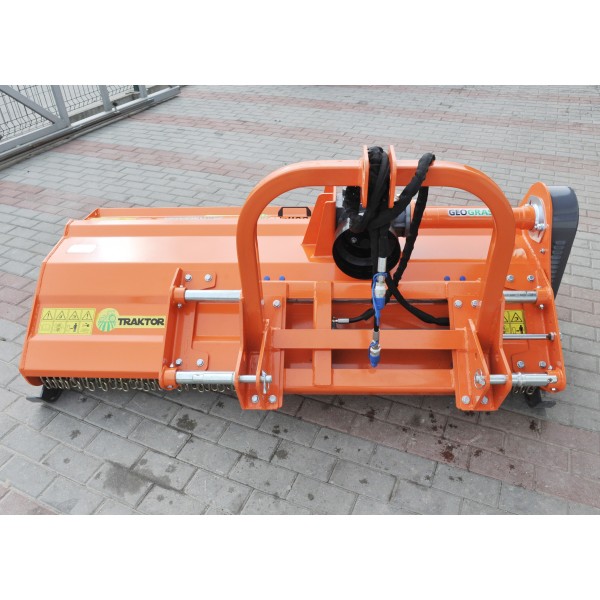

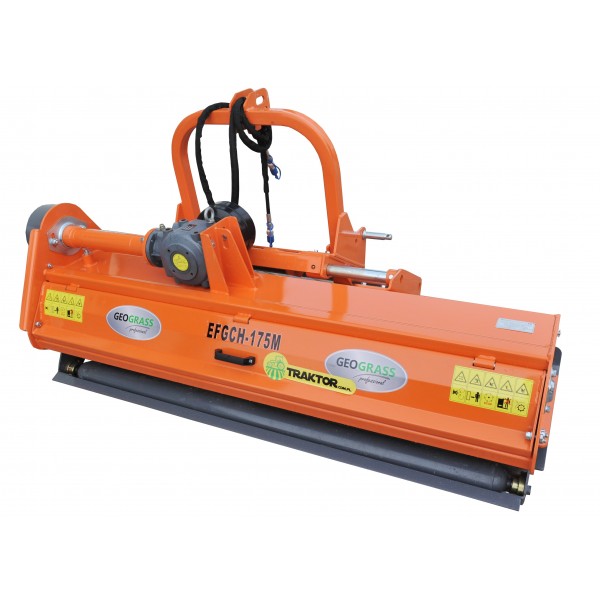

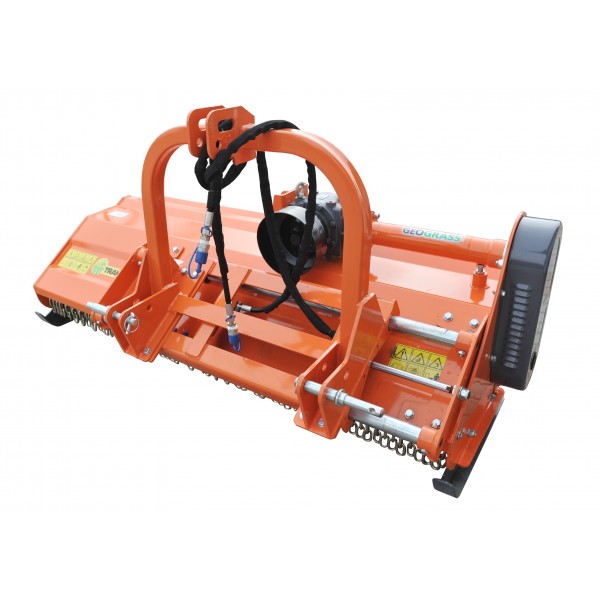

Flail mower with shift EFGCH-165M GEOGRASS

Heavy class flail mower (mulching) model EFGCH-M with side shift.

It is equipped with heavy hammers that work very well in wasteland. The large transmission allows the mower to be connected to a tractor with higher power. In addition, it is equipped with a hydraulic sideshift.

Application:

• mowing all kinds of wasteland,
• roadside mowing,
• mowing green areas in cities
• care of pastures, meadows, recreational areas, bushes for cleaning purposes
• mowing green areas in parks
• as a cleaning machine in orchards and nurseries

Benefits:

• can be easily used in urbanized areas because the number of flying stones and their impetus are very limited,
• when taking care of lawns, there is no need to collect mulched grass if this procedure is repeated quite often,
• it also copes with neglected terrain where there are more stones, branches and other obstacles,
• the cut green material quickly transforms into humus, and the old grass does not grow back so quickly,
• has a double protection against damage to the gear: hammers bounce off a stable obstacle, belts on pulleys slip in case of too much resistance,
• the gearbox has a one-way clutch
• simple construction ensures reliability and low repair costs

Technical data:

• working width - 165 cm
• total width - 175 cm
• recommended tractor power - 50 hp
• sideshift 40 cm
• maximum capacity - 1.45 ha/h
• max speed - 10 km/h
• number of V-belts - 3 pcs
• gear type - angular with clutch
• weight - 346 kg

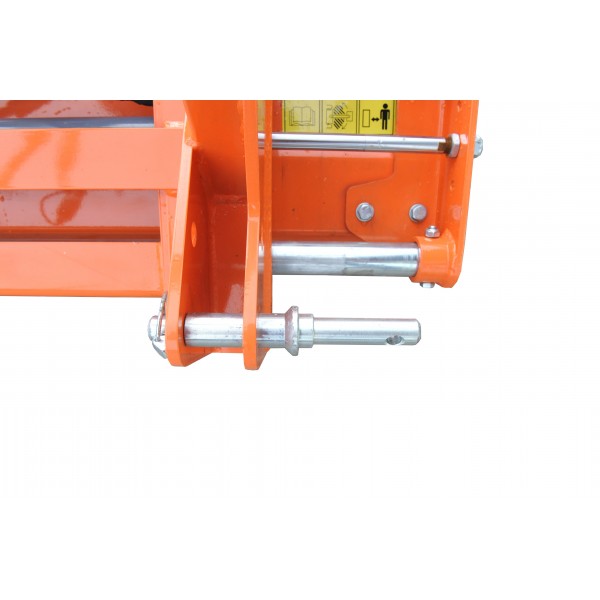

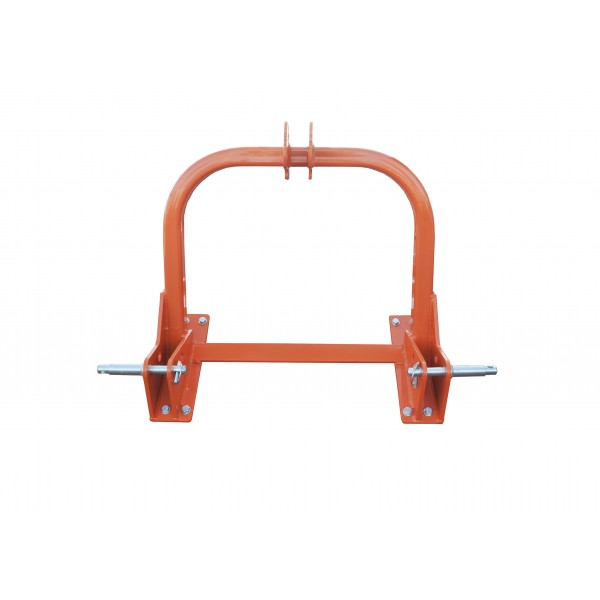

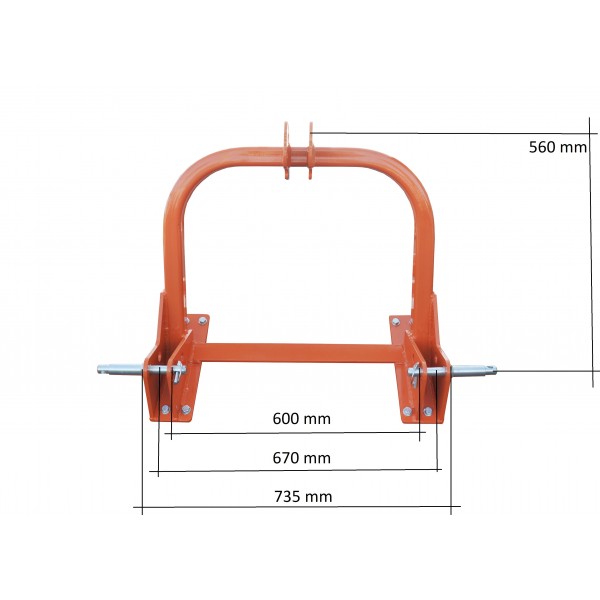

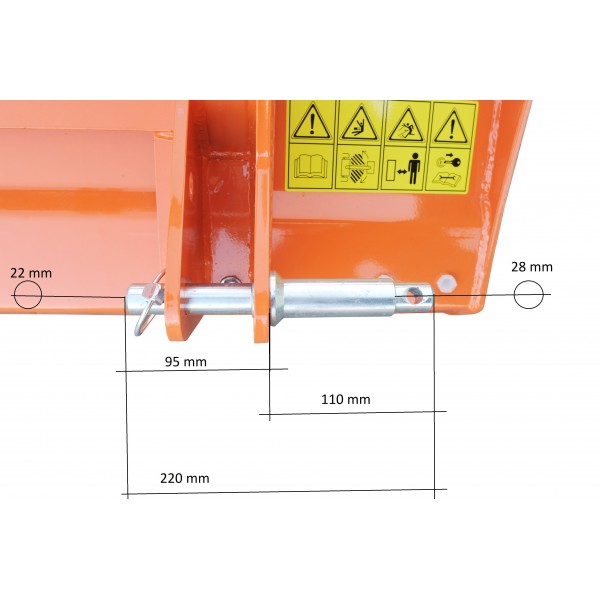

• fixed on the 3-point KATI suspension,
• equipped with a reinforced angular gear with a clutch,

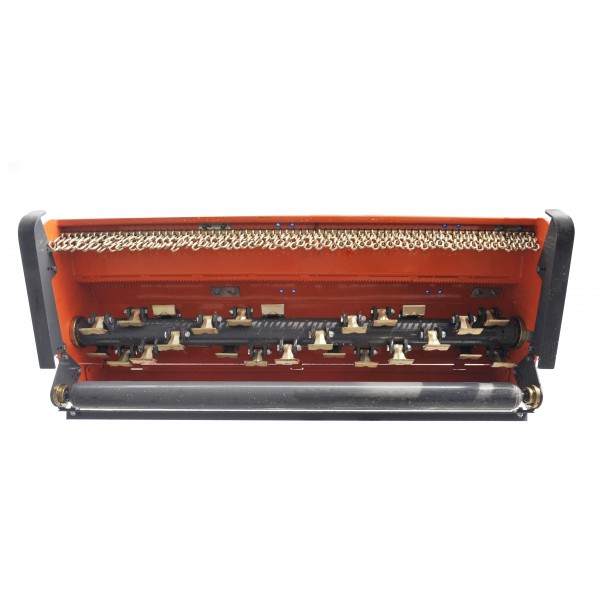

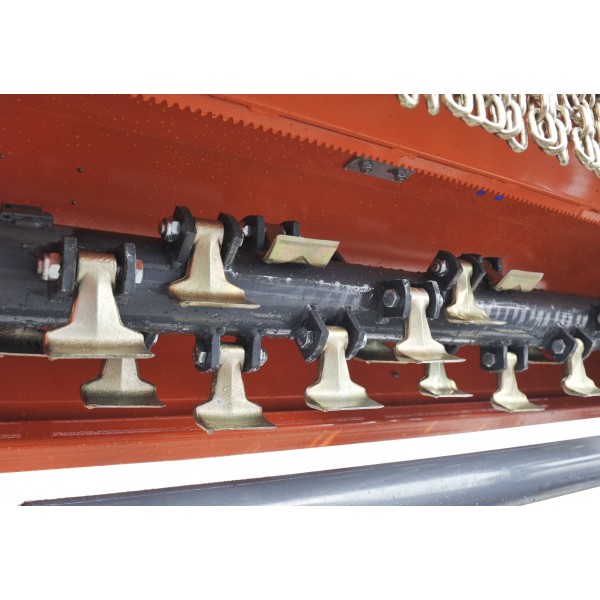

• cutting elements: 28 hammers weighing 700g mounted on a fi 16 screw, possibility to buy "Y" knives, max diameter of cut branches: Ø 50 mm,
• adjustable cutting height,
• very good mowing quality.
• travel: 350 mm
